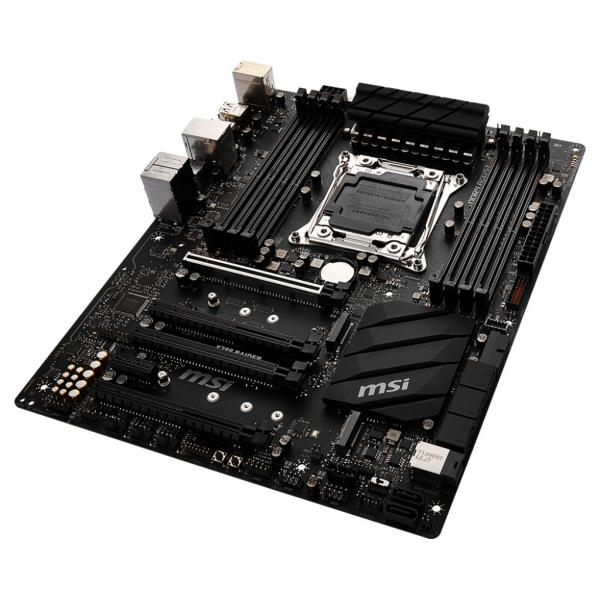

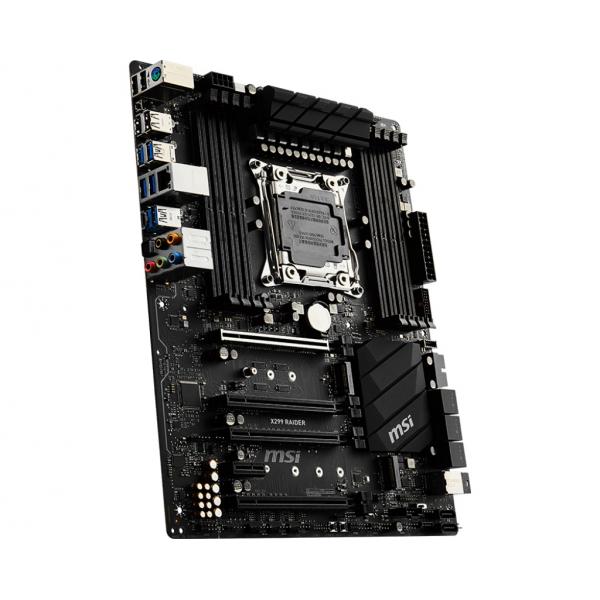

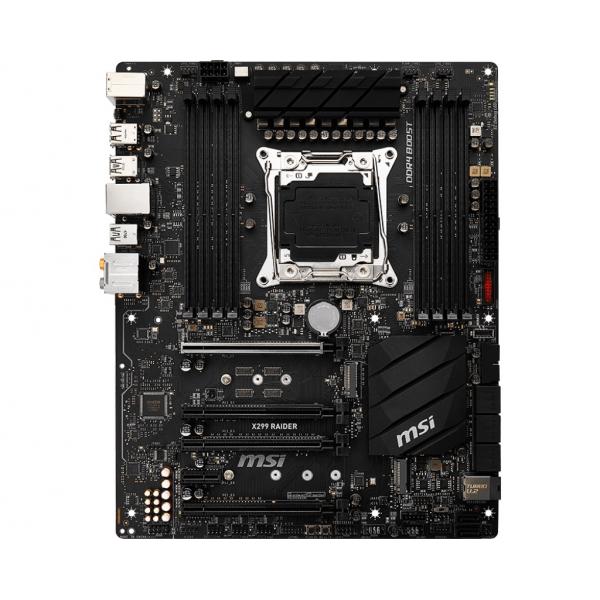

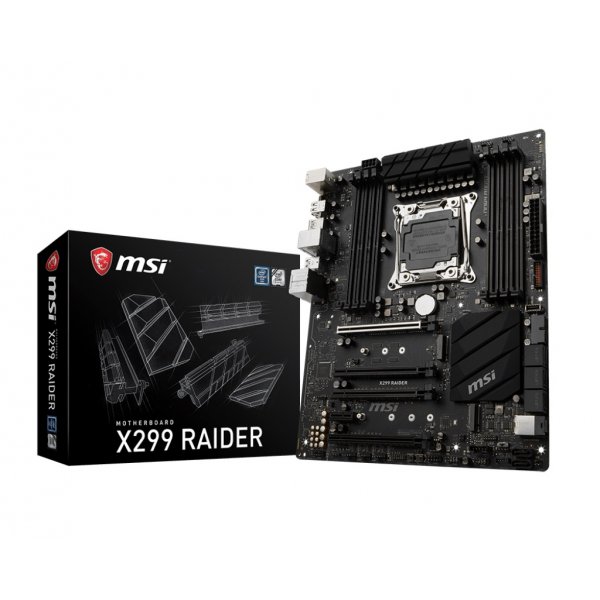

- MSI X299 Raider DDR4 Intel Motherboard
Monsoon Sale Offer
Description
Feature of MSI X299 Raider DDR4
- Supports New Intel® Core™ X-series Processor Family for LGA 2066 socket
- Support Quad Channel DDR4-4133(OC) , Dual Channel DDR4-4500(OC)
- DDR4 BOOST: Give your DDR4 memory a performance boost.
- TWIN TURBO M.2 and Intel® Optane Memory Ready: NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4
- TURBO U.2 with Steel Armor: The U.2 connector, featuring Steel Armor, allows connecting of the fastest NVMe based SSDs.
- Lightning USB 3.1 GEN2: Powered by the ASMedia ASM3142 USB 3.1 Gen2 controller, Lightning USB offers the fastest USB speeds.
- Military Class 6: Latest evolution in high-quality components for best protection and efficiency
- Intel® LAN: Great online experience through hardware design and bandwidth management offering the lowest latency.
- Audio Boost 4: Reward your ears with studio grade sound quality for a true HI-FI experience.
- EZ DEBUG LED: the Easiest way to troubleshoot.
- MULTI-GPU: With STEEL ARMOR PCI-E slot. Supports 3-Way NVIDIA SLI™ & 3-Way AMD Crossfire™
- Clear CMOS & Dual BIOS: Easy BIOS reset and recovery tools to ensure a booting system, no matter what.
Specifications of MSI X299 Raider DDR4
| PROCESSOR | Supports Intel® Core™ X-Series Processor Family for LGA2066 Socket |
| CHIPSET | Intel® X299 Chipset |
| MEMORY |
Intel® Core™ X-series Processors (6-core above CPU 78XX/79XX)8 x DDR4 memory slots, support up to 128GB Quad channel memory architecture with the CPU that supportsup to 4-channels DDR41 X-series processor support DDR4 4133 (OC)/4000(OC)/ 3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/ 3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz2 Intel® Core™ X-series Processors (4 core CPU i7-7740X/i5-7640X)4 x DDR4 memory slots, support up to 64GB Dual channel memory architecture with the CPU that supportsup to 2-channels DDR41 X-series processor support DDR4 4500 (OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/ 4133(OC)/4000(OC)/3866(OC)/3800(OC)/ 3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/ 3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/ 2400/2133 MHz2 Supports Intel® Extreme Memory Profile (XMP) Please refer the DIMM Slots section for more details. Please refer Compatibility for more information on compatible memory. |
| SLOTS |
4 x PCIe 3.0 x16 slotsSupport x16/x16/x8 mode with the 44-lane CPU. Support x16/x8/x4 modes with the 28-lane CPU. Support x8/x8/x0, x8/x4/x4 modes with the 16-lane CPU.1 x PCIe 3.0 x1 slots |
| MULTI-GPU |
Supports NVIDIA® SLI™ Technology Supports AMD® CrossFire™ Technology |
| STORAGE |
Intel® X299 Chipset 8 x SATA 6Gb/s ports1 2 x M.2 slot (Key M)Supports up to PCIe 3.0 x4 and SATA 6Gb/s M2_1 slot supports 2242/ 2260 /2280 storage devices M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices Supports Intel® Optane™ Memory Ready for all M.2 slots21 x U.2 port3Supports PCIe 3.0 x4 NVMe storageSupports Intel® Smart Response Technology4 M.2 slots and SATA ports share the same bandwidth. Please refer to user manual for U.2, M.2 & SATA combination table. Please refer to user manual for Intel® Optane™ Memory Configuration. PCI_E2 shares bandwidth with U2_1. If you install a PCE_E2 device, the U2_1 will be disabled. The functions will be supported depend on the CPU. |
| RAID |
Intel® X299 Chipset Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID1 for M.2 PCIe storage devices1 M.2 PCIe RAID volume can be created with M.2/Optane Genie. Please refer to user manual for Creating a M.2 PCIe SSD RAID with M.2/Optane Genie. |
| USB |
Intel® X299 Chipset 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors) 5 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 1 port available through the internal USB connector) ASMedia® ASM3142 Chipset 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel) 1 x USB 3.1 Gen2 Type-C port internal USB connectorUSB 2.0 Hub GL850G 3 x USB 2.0 (High-speed USB) ports available through the internal USB connectors. |
| AUDIO |
Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1 x Intel® I219-V Gigabit LAN controller |
| INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 8 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 1 x USB 3.1 Gen2 Type-C port 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 4 x 4-pin system fan connectors 2 x Front panel connectors 1 x Front panel audio connector 1 x LED extension connector 1 x TPM module connector 1 x Virtual RAID on CPU connector 1 x Thunderbolt add-on card connector |
| BACK PANEL PORTS |
Keyboard / Mouse Clear CMOS Button USB 3.1 Gen1 Intel® Gigabit LAN Golden Audio Connectors USB 2.0 USB 3.1 Gen2 Type-A/C Optical S/PDIF-Out |
| DIMENSIONS |
12 in. x 9.6 in. (30.5 cm x 24.3 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
