Description

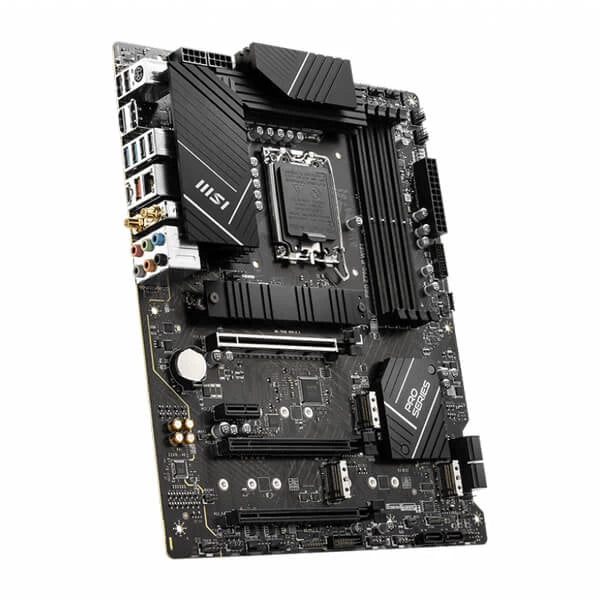

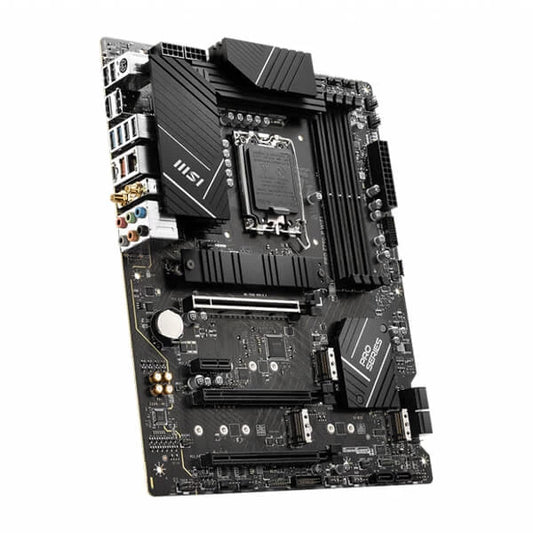

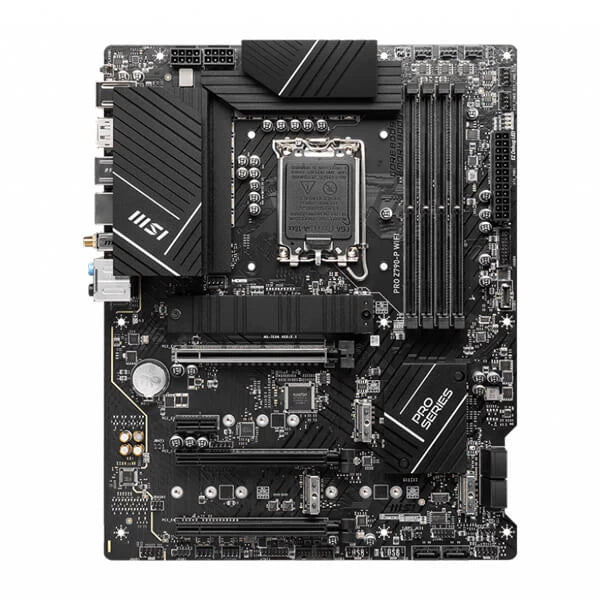

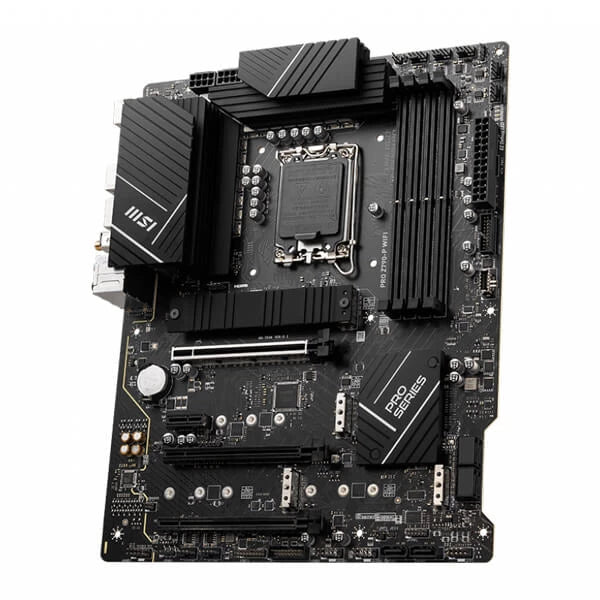

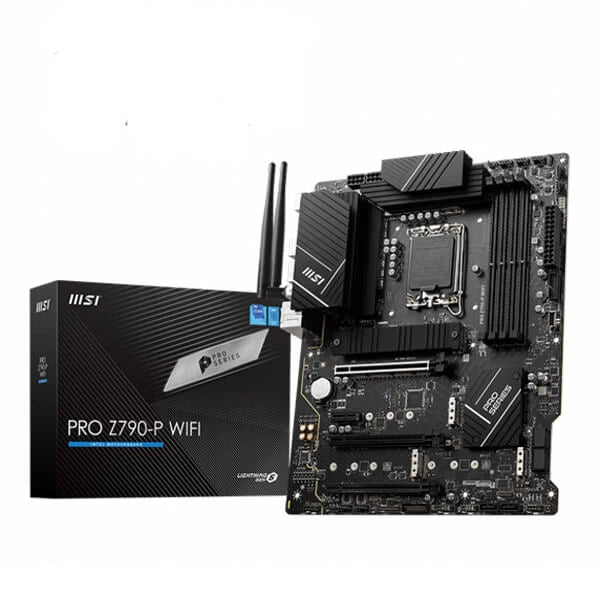

MSI Pro Z790-P WI-FI DDR5 Motherboard
Features:
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specification:
| Chipset | INTEL Z790 |
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB Memory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ 1x DisplayPort Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz |
| EXPANSION SLOT | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) |
| Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |

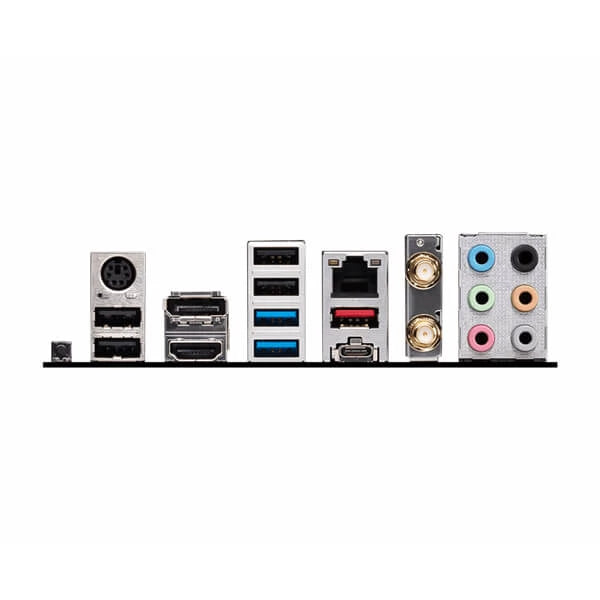

| BACK PANEL PORTS | Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button USB 2.0 HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
