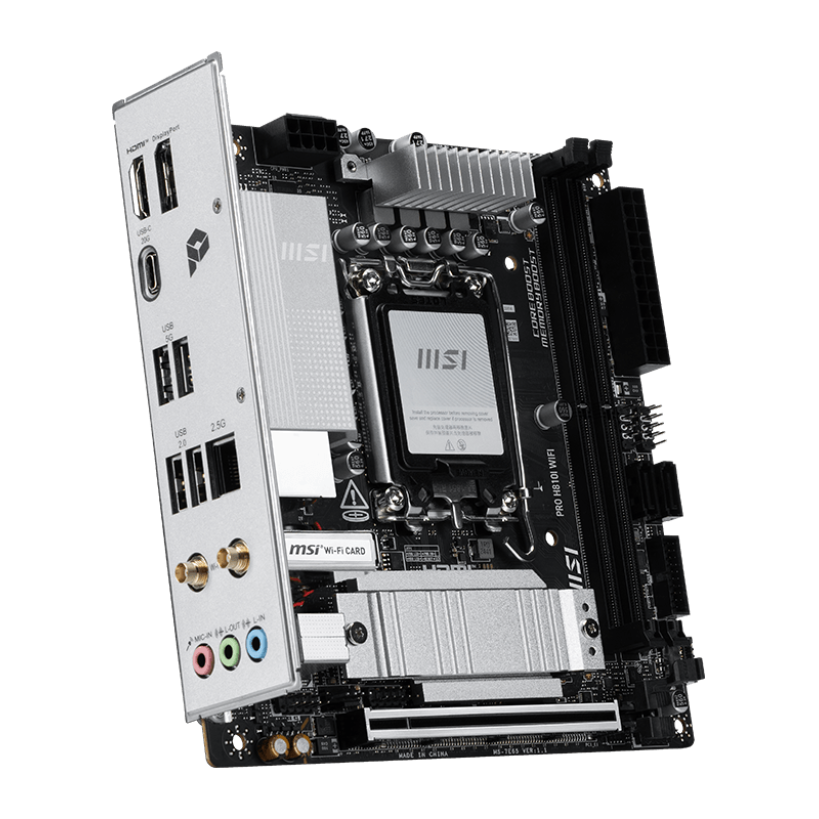

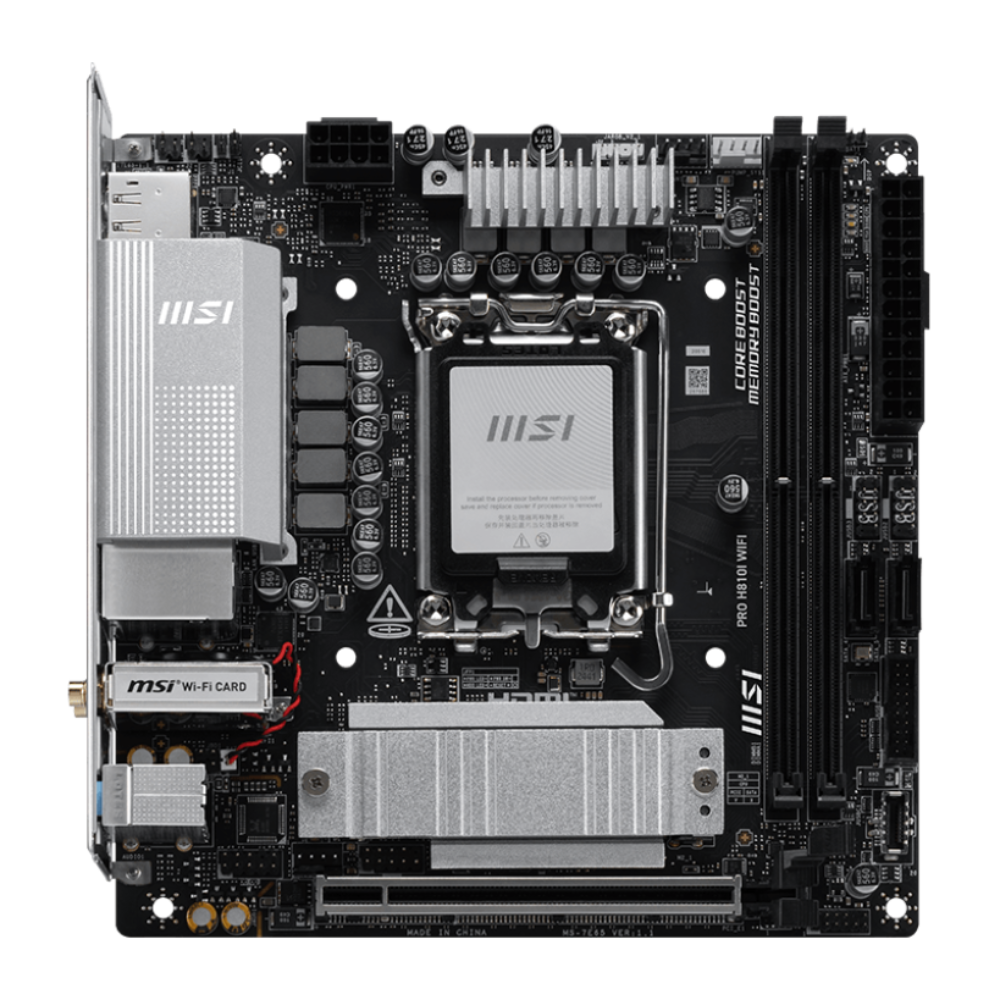

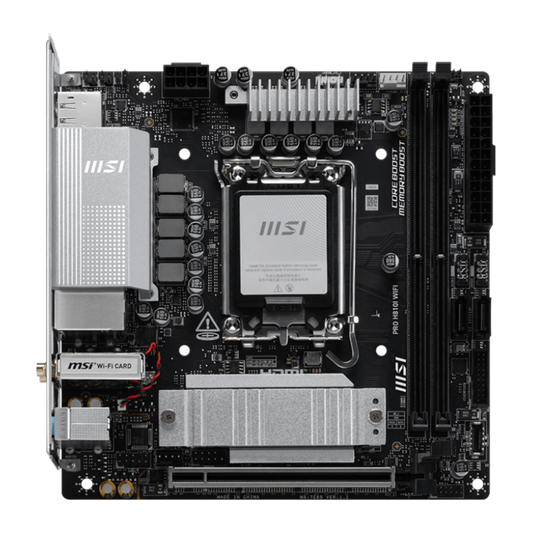

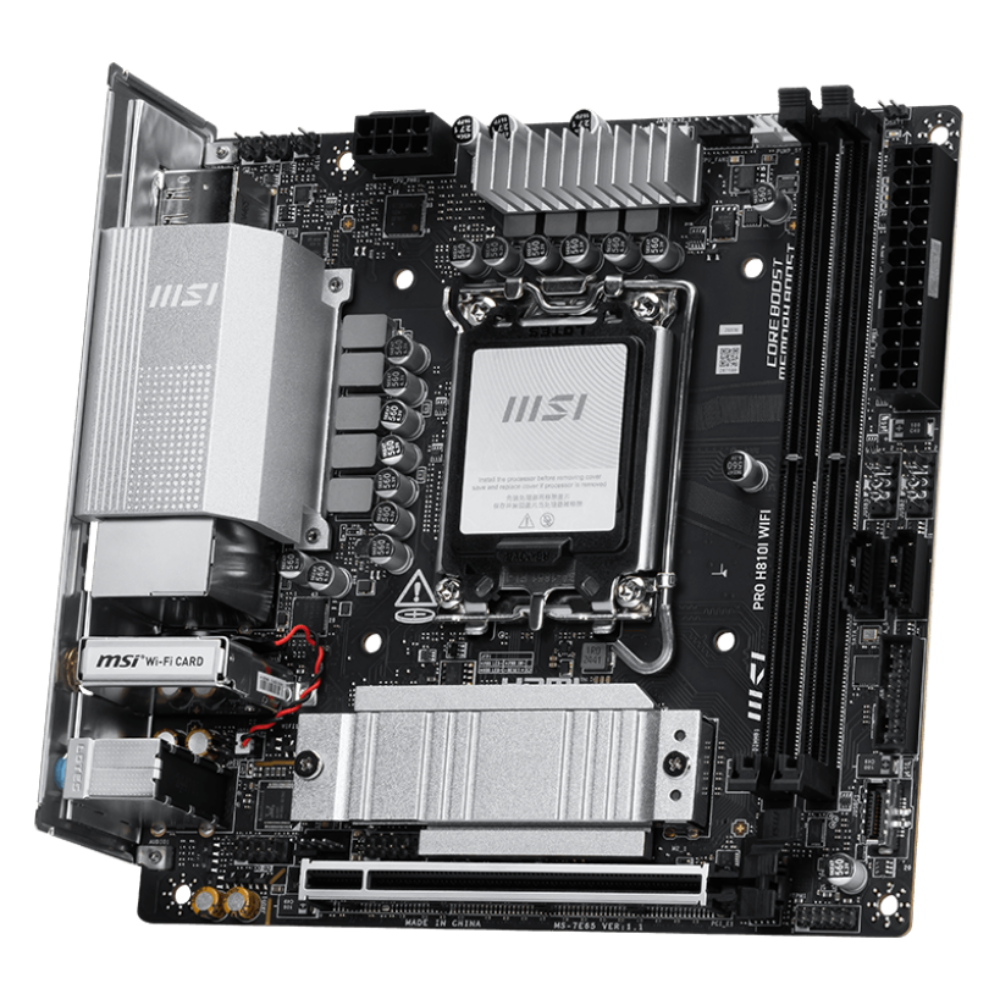

MSI Pro H810I Wifi7 DDR5 Intel Motherboard

Features of MSI Pro H810I Wifi7 DDR5 Intel Motherboard

PRO H810I WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 2.5G LAN, PCIe 5.0, and USB 20Gbps Type-C, ready for the Intel^® Core™ Ultra processors.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 6400 MT/s (MAX)
• Core Boost: With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Frozr Guard: Extended Heatsink, M.2 Shield Frozr, and MOSFET thermal pads rated for 7W/mK are built for high performance system and non-stop experience
• EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
• Lightning Fast experience: PCIe 5.0 slot and Lightning Gen 4 x4 M.2
• 2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

PRO H810I WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 2.5G LAN, PCIe 5.0, and USB 20Gbps Type-C, ready for the Intel Core Ultra processors.

One Finger for EZ GPU Installation

The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.

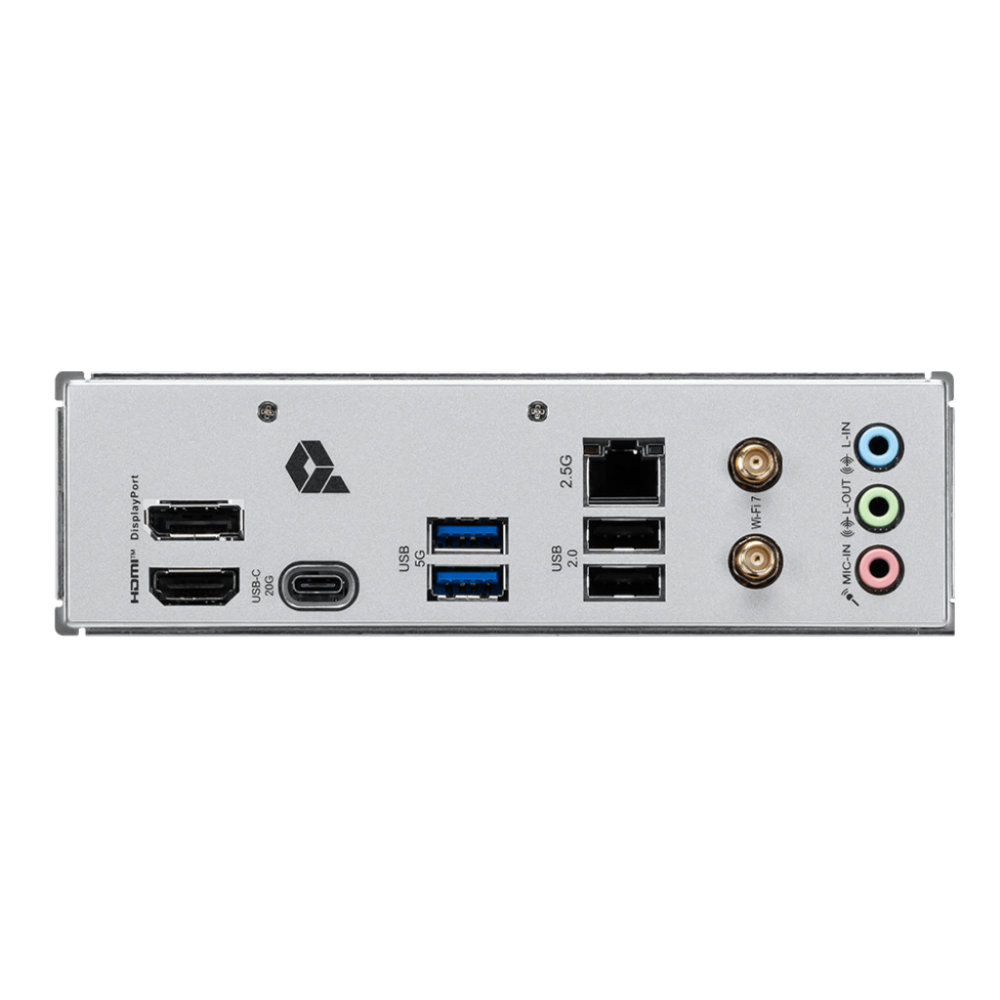

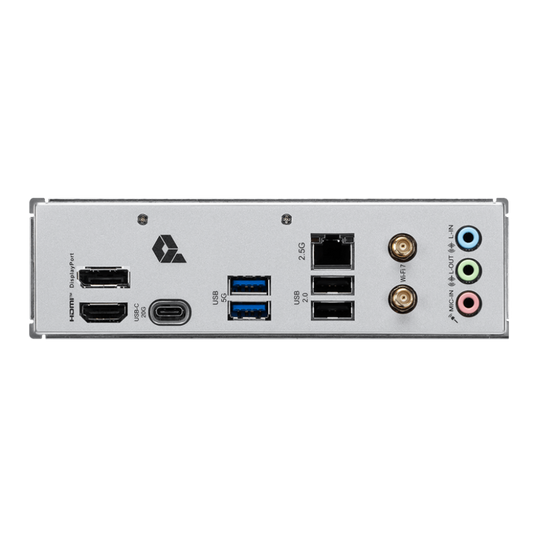

Pre-Installed I/O Shield

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.

EZ OPTIMIZATION

A host of features inject artificial intelligence into key aspects of your computing experience to make smarter, real-time optimizations. The MSI Center offers a clean, minimal interface to customize and manage your PC settings. The AI Engine, for example, automatically adjusts settings based on the applications you're using, ensuring seamless performance.

CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO H810I WIFI is ready to deliver the world-class memory performance.

Memory Extension Mode

Memory Extension Mode provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. Furthermore, Memory Extension Mode can combine XMP profiles to maximize memory frequency, enabling users to effortlessly discover the best configuration based on their requirements.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK MOSFET Thermal Pad

High-quality 7W/mK MOSFET thermal pad ensures stable performance when all cores are running at high speed.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Specifications of MSI Pro H810I Wifi7 DDR5 Intel Motherboard
