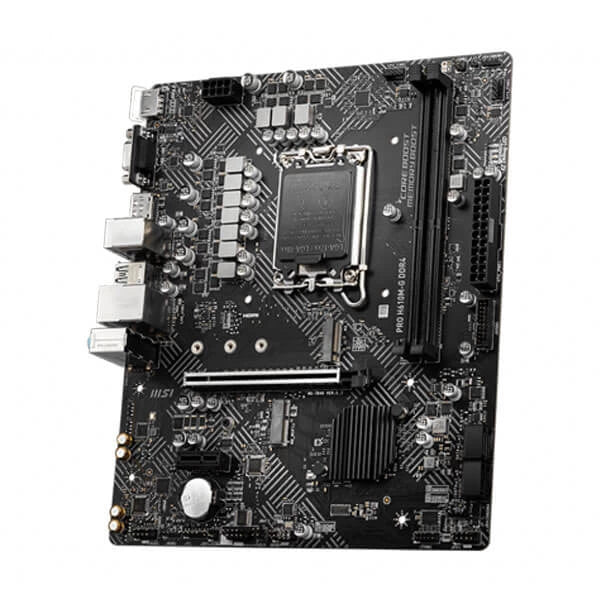

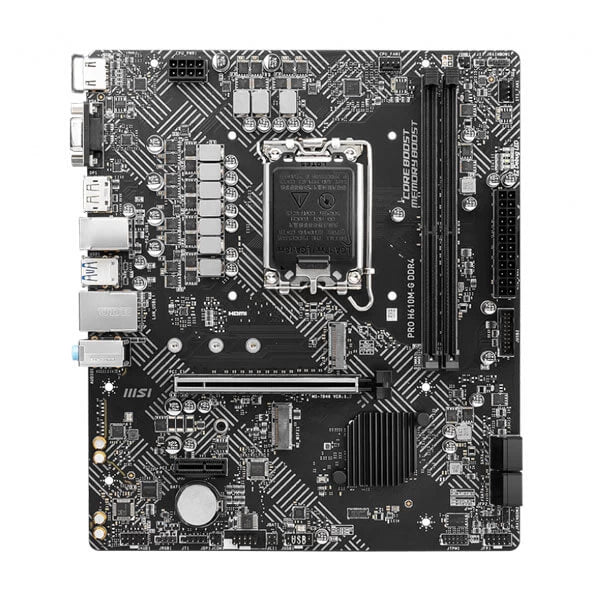

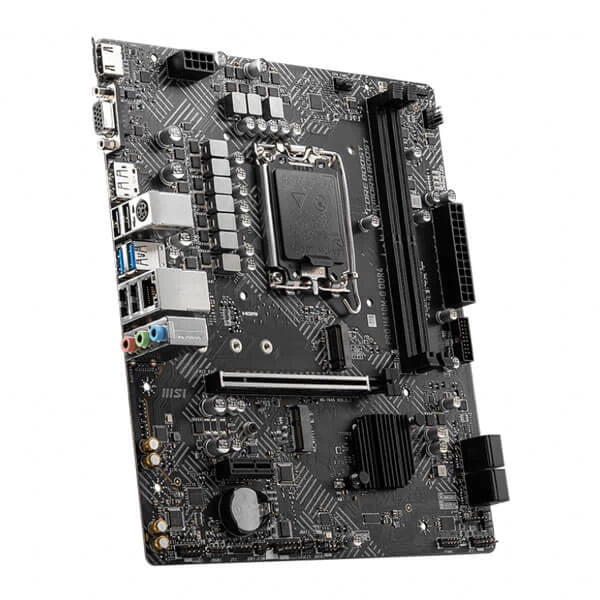

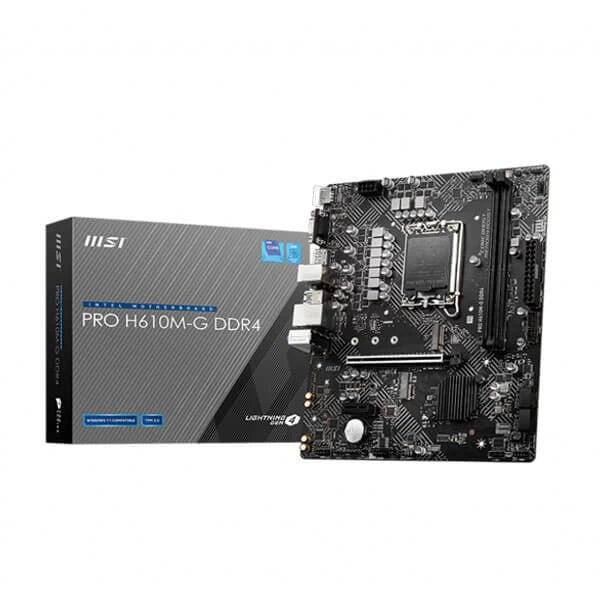

MSI Pro H610M-G DDR4 Intel Motherboard

Rs. 7,999.00 Rs. 11,400.00

Discount: Rs. 3,401.00 (30%)

20 people are viewing this right now

Hurry Up! Only 1 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: 14 December,2024 - 18 December,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Features of MSI Pro H610M-G DDR4 Intel Motherboard

Micro-ATX H610 business motherboard with enhanced security, reliability, manageability and serviceability

Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket

MSI Pro H610M-G Supports DDR4 Memory, up to 3200(MAX) MHz

Core Boost :

With premium layout and digital power design to support more cores and provide better performance

Memory Boost:

Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Lightning Fast Experience: PCIe 4.0

Audio Boost:

Reward your ears with studio grade sound quality

Steel Armor:

Protecting VGA cards against bending and EMI for better performance, stability and strength

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

Specifications of MSI Pro H610M-G DDR4 Intel Motherboard

Processor	Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 Please go to MSI official website to get the newest support status as new processors are released.
Chipset	Intel® H610 Chipset
Memory	2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Please refer to MSI official website for more information on compatible memory.
Expansion Slot	1 x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
Onboard Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
SATA Ports	4x SATA 6Gb/s ports1 * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD Slot	1x M.2 slot (Key M, from chipset)1 Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
USB	Intel® H610 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Audio	7.1-Channel High Definition Audio
LAN	1x Intel® I219V 1Gbps LAN controller
Power Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector
Fan Connectors	1x 4-pin CPU fan connector 1x 4-pin system fan connector
System Connectors	1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector
Jumpers	1x Clear CMOS jumper
LED Features	1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED

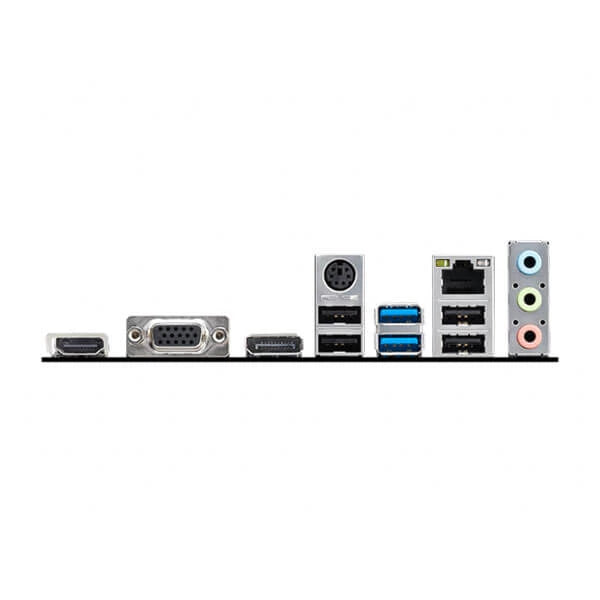

Back panel ports	HDMI VGA DisplayPort Keyboard/Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0
Dimensions	mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
Operating System	Support for Windows® 11 64-bit
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
