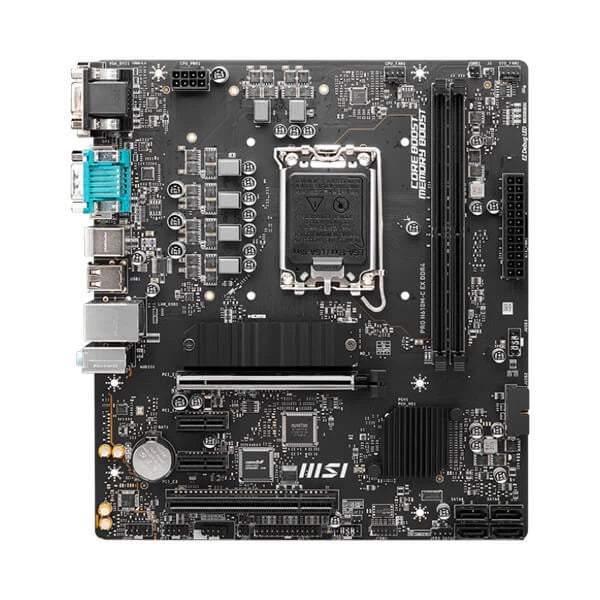

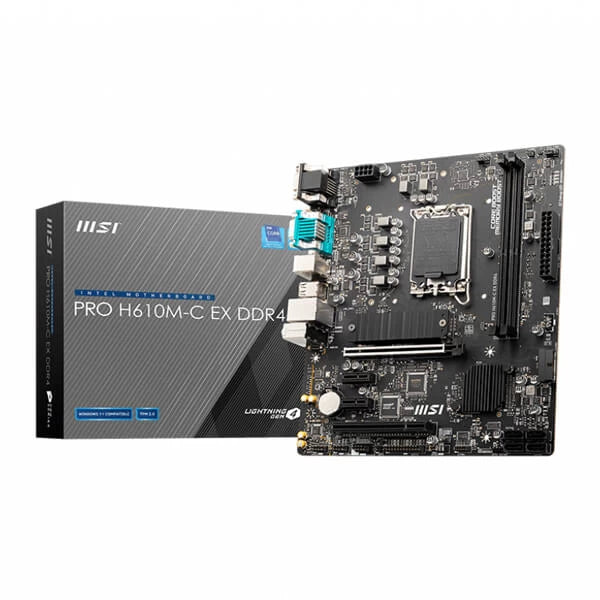

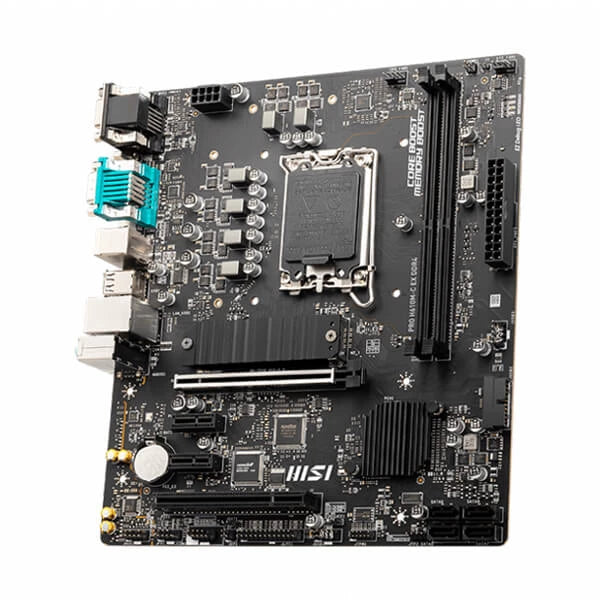

- MSI Pro H610M-C EX DDR4 Intel Motherboard
Description
Feature of MSI Pro H610M-C EX DDR4
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
SYSTEM SAFETY
All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.
TPM SUPPORT
The TPM (Trusted Platform Module) enhances security above and beyond the capabilities of consumer software, which is also used to keep your PC running well. MSI PRO series motherboards support TPM to enable a deeper and broader level of security coverage.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI Pro H610M-C EX DDR4 conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations. sure that SSD maintains maximum performance.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
PROTECTION
HUMIDITY PROTECTION
Reduction in moisture absorption helps prevent “Conductive Anodic Filament”. Untreated PCB’s can have 10x higher failure rate.
HIGH TEMPERATURE PROTECTION
All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.
CIRCUIT PROTECTION
Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for MSI motherboards.
ESD PROTECTION
Each and every I/O port is protected against the hazards of Electro Static Discharge.
EMI PROTECTION
All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.
Specifications of MSI Pro H610M-C EX DDR4
Processor |
Supports 12th Gen Intel® Core™ Processors Processor socket LGA1700 |
Chipset | Intel® H610 Chipset |
Memory |
2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
Expansion Slot |
1x PCIe x16 slot, PCI_E1 (from CPU Support up to PCIe 4.0 for 12th Gen Intel® CPU 2x PCIe x1 slots (from H610 chipset) , Support up to PCIe 3.0 1x PCI slot (from H610 chipset) |
Onboard Graphics |
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x DVI-D port, supporting a maximum resolution of 1920x1200 60Hz |
Storage |
Intel® H610 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (M2_1 slot) Supports up to PCIe 3.0 x 4 Supports 2242/ 2260/ 2280 storage devices |
LAN | 1x Realtek® RTL8111H 1Gbps LAN controller |
USB |
Intel® H610 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 Type-A ports available through the internal connectors) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) |
Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audi |
Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connector (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connecto |

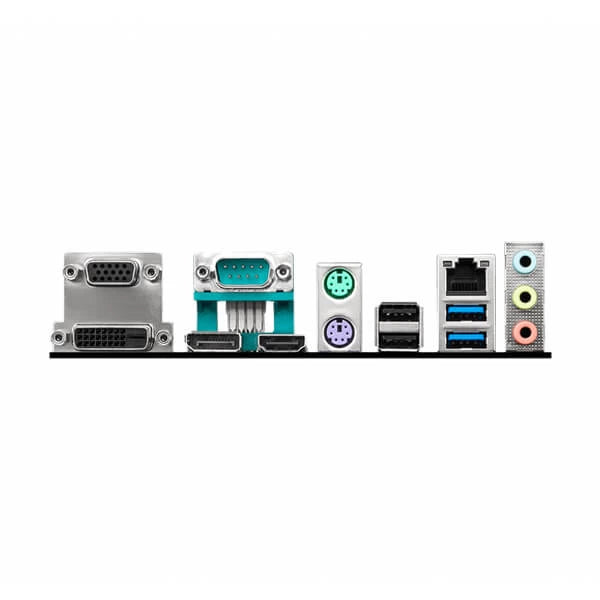

Back panel ports |
VGA COM Port Mouse LAN Port Audio Connectors DVI-D DisplayPort HDMI Keyboard USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) |
Dimensions |
M ATX Form Factor 9.6 in. x 8.7 in. (24.4 cm x 22 cm) |
Mounting | 6 mounting holes |
Operating System | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
