Description

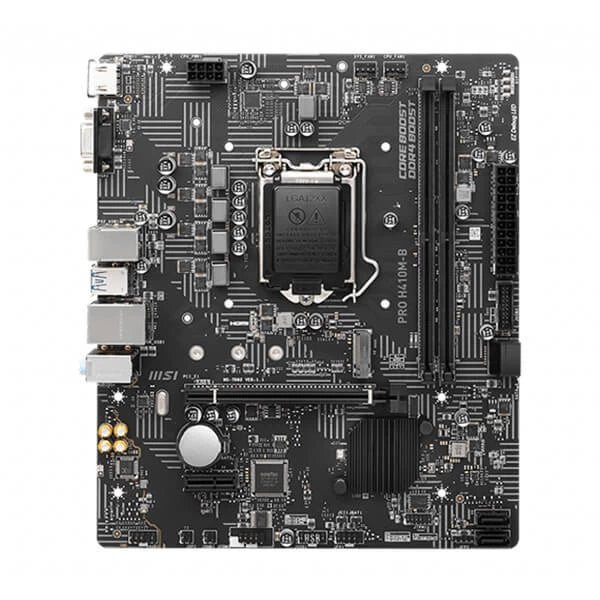

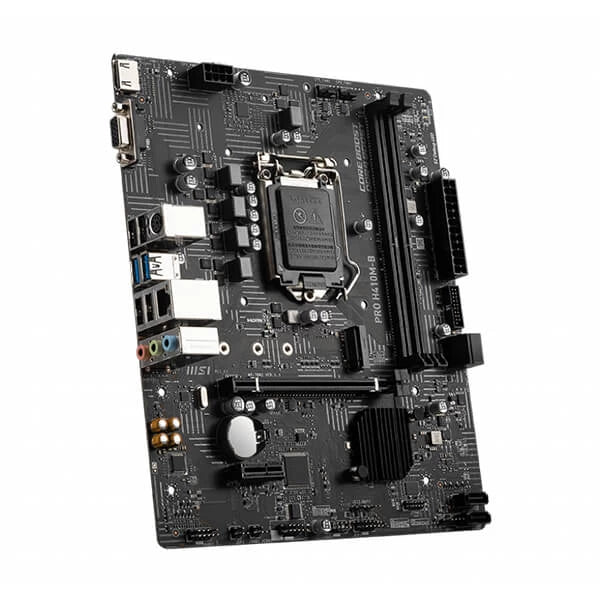

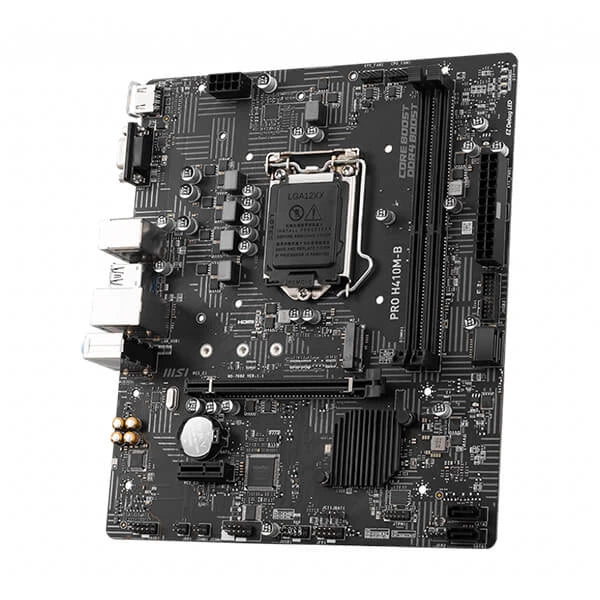

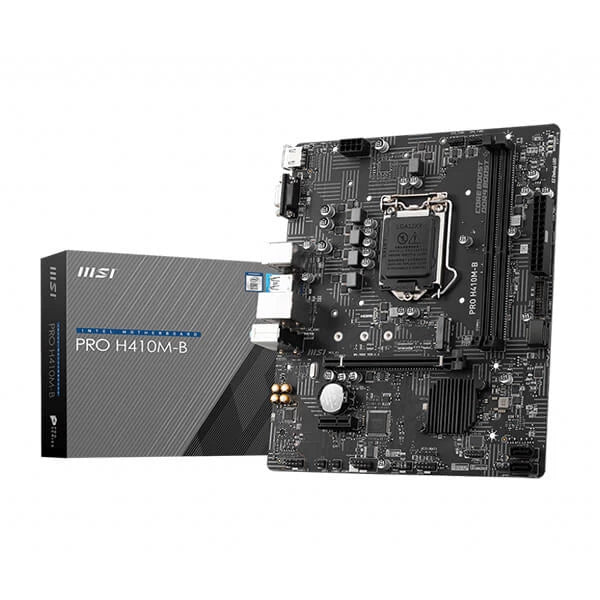

Feature of MSI PRO H410M-B DDR4
- Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 2933(Max) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost: Reward your ears with studio grade sound quality
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI Pro H410M-B DDR4 motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.
MSI LAN MANAGER
- - Allows you to change applications' traffic priority -
- - Allows you to customize bandwidth for each application
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Specifications of MSI PRO H410M-B DDR4
| Processor |
Supports 10th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
Processor socket LGA1200 |
| Chipset |
Intel® H510 Chipset
|
| Memory |
2x DDR4 memory slots, support up to 64GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slot |
1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH) |
| Onboard Graphics |
1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz 1 2 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage |
4x SATA 6Gb/s ports (From H510 Chipset)
1x M.2 slot (Key M, from H510 chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s1 Supports 2242/ 2260/ 2280 storage devices SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| USB |
Intel® H510 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
| Audio |
Realtek® ALC897/ ALC892 Codec
7.1-Channel High Definition Audio |
| LAN |
1x Realtek® RTL8111 Gigabit LAN controller
|
| Internal connectors |
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (support additional 2 USB ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper |

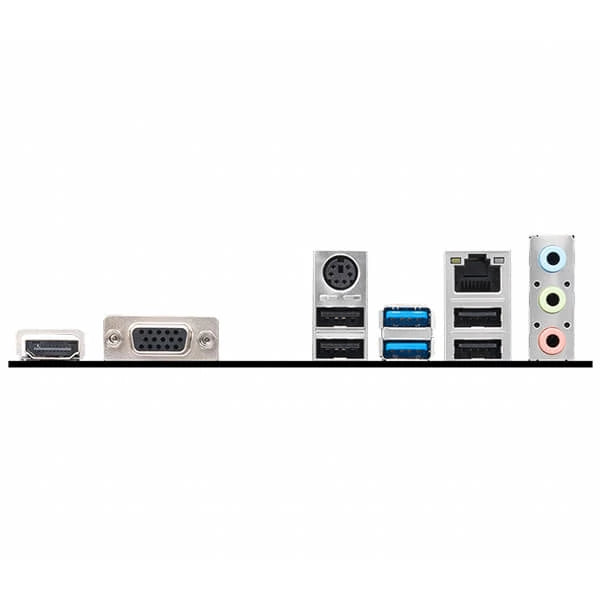

| Back panel ports |
HDMI
VGA Mouse / Keyboard USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 USB 2.0 |
| Dimensions |
M-ATX Form Factor
9.3 in. x 7.95 in. (23.6 cm x 20.2 cm) |
| Mounting |
6 mounting holes
|
| Operating System |
Support for Windows® 10 64-bit
|
| Warranty | 3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
