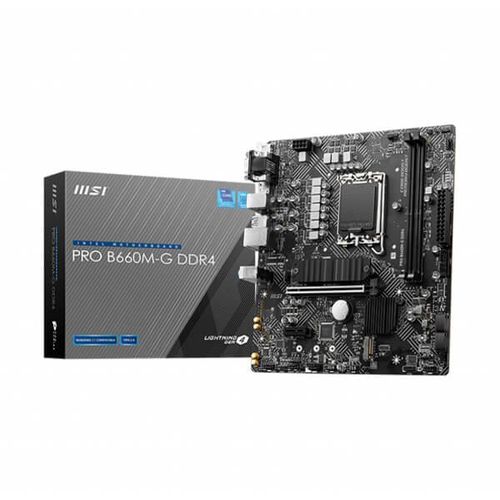

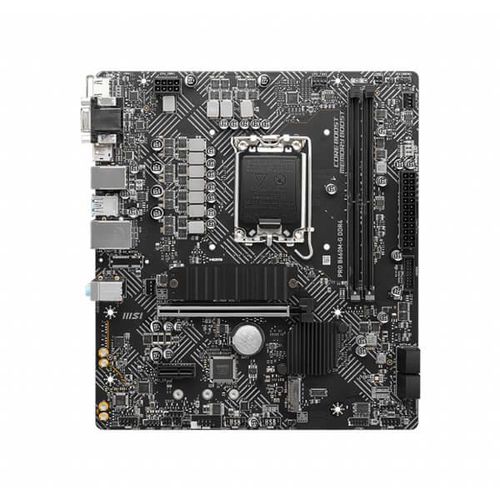

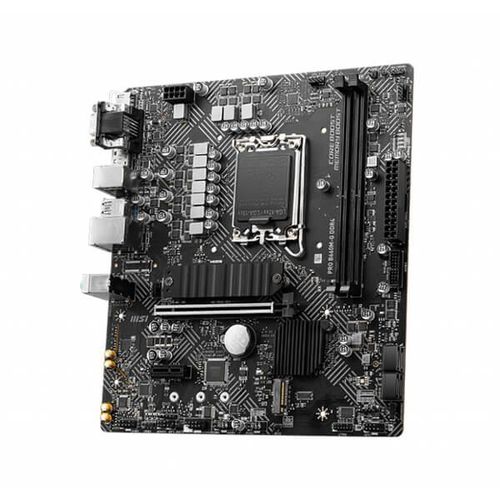

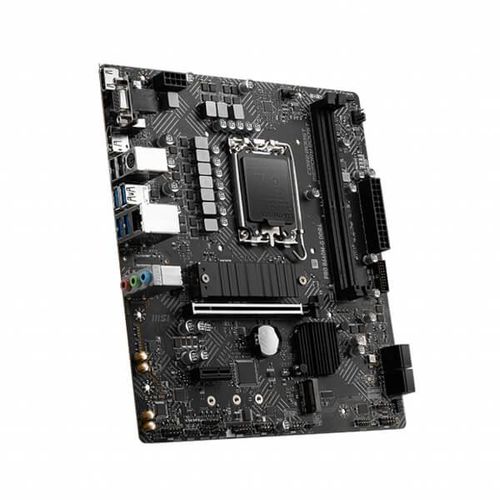

- MSI Pro B660M-G DDR4 Intel Motherboard
Description
Feature of MSI Pro B660M-G DDR4
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4600+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI Pro B660M-G DDR4 motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Specifications of MSI Pro B660M-G DDR4
| CPU |
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700 |
| Chipset | Intel® B660 chipset |
| Memory |
2x DDR4 memory slots, support up to 64GB 1 Supports ADL-s 1R 2133/2666/2933/3200 MHz 1 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slot |
1x PCIe 4.0 x16 slot (from CPU) 1x PCIe 3.0 x1 slot (from B660 chipset) |
| Onboard Graphics |
1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1/2 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1/2 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8125BG 2.5Gbps LAN controller |
| Storage |
4x SATA 6Gb/s ports (From B660 chipset) 1 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset) 1 Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Technology SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| USB |
Intel® B660 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 2x USB 2.0 Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| Form Factor |
M-ATX Form Factor 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm) |
| BIOS Features |
1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connector (support additional 4 USB ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 2x 4-pin system fan connectorx 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x JRGB 2x JRAINBOW 1x Tuning Controller Connector |
| LED Feature | 4x EZ Debug LED |

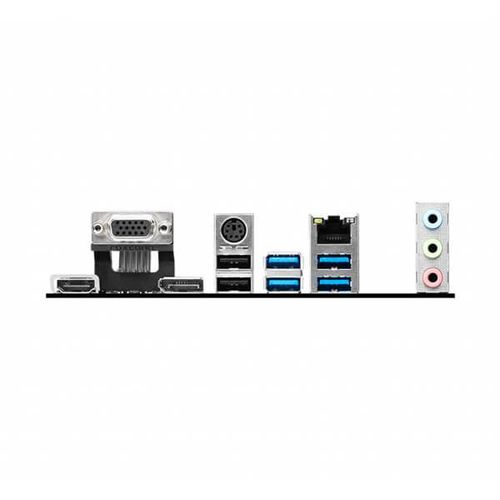

| Back panel Connectors |
VGA Keyboard / Mouse LAN port Audio connector HDMI DisplayPort USB 2.0 USB 3.2 Gen 1 5Gbps Type-A |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
