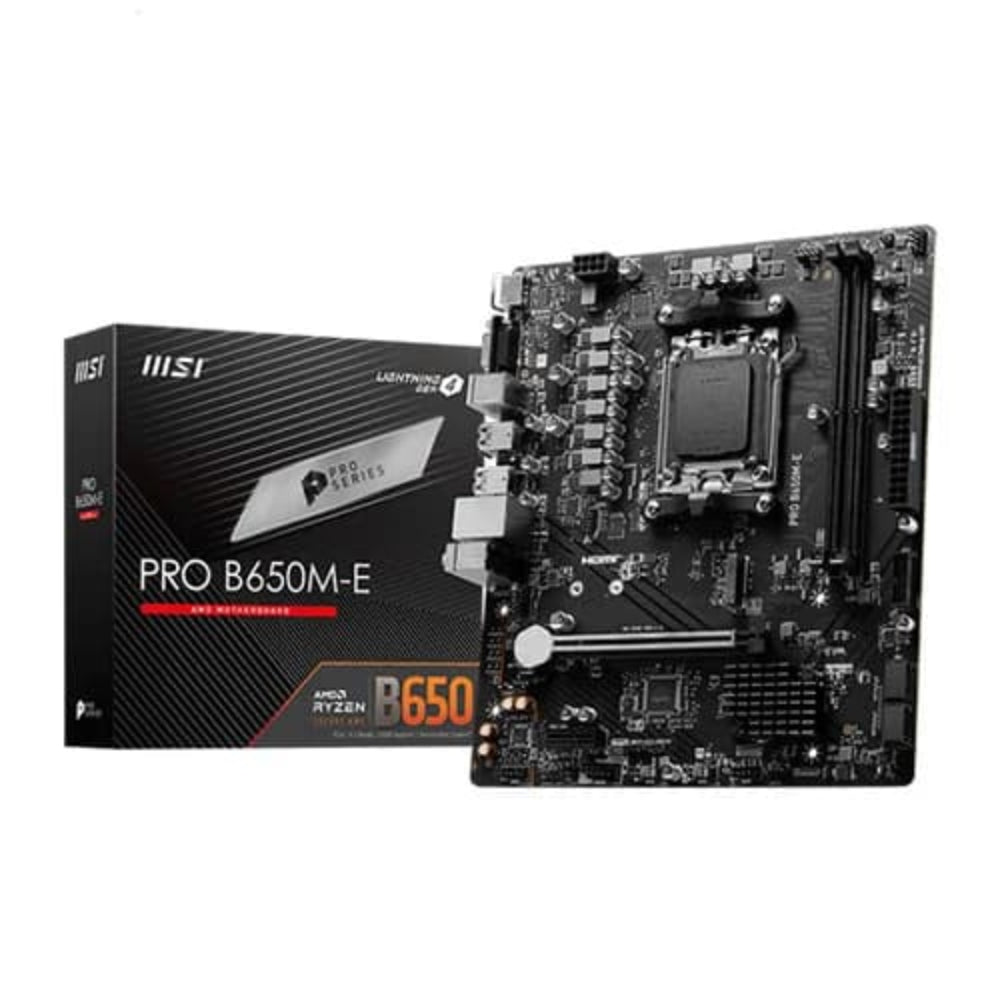

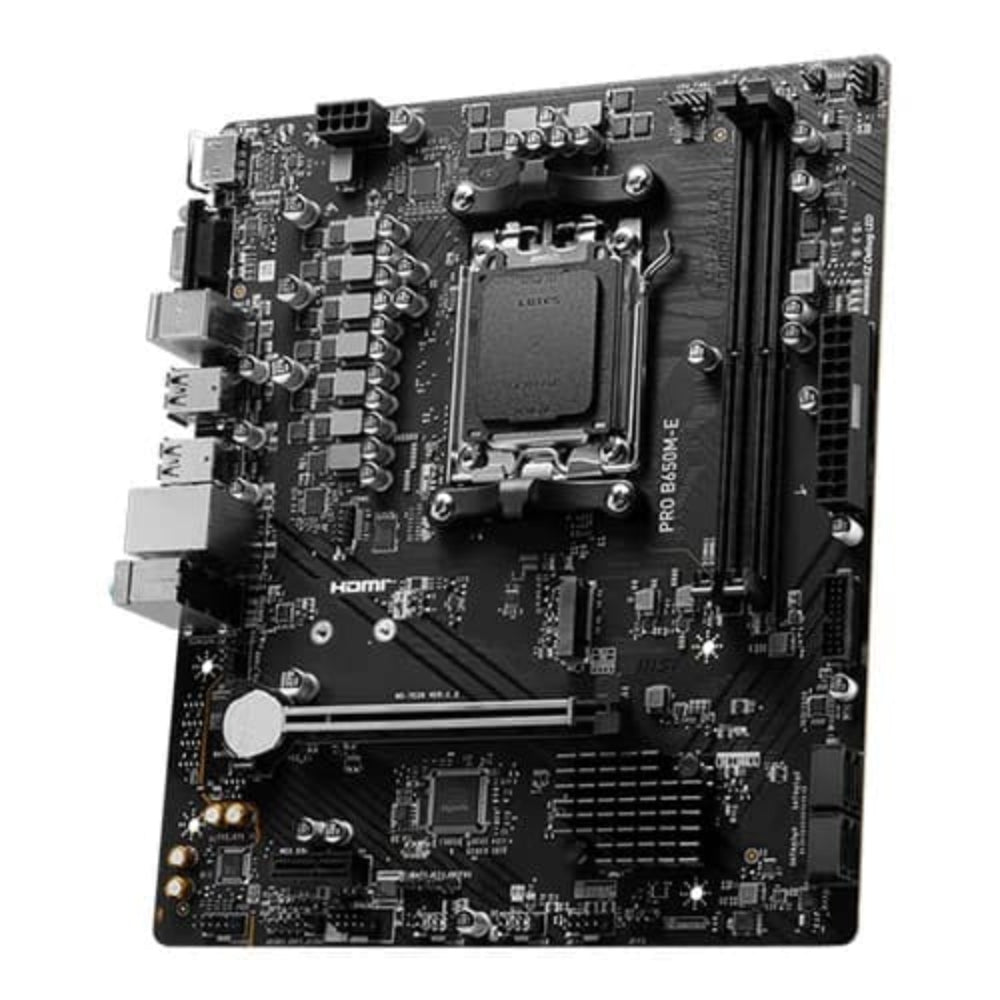

- MSI Pro B650M-E DDR5 AMD Motherboard
Description
Features of MSI Pro B650M-E DDR5 AMD Motherboard
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Core Boost :
With premium layout and digital power design to support more cores and provide better performance
Memory Boost:
Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Game experience:
PCIe 4.0 slot, Lightning Gen 4 x4 M.2
AUDIO BOOST:
Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor:
Protecting VGA cards against bending and EMI for better performance, stability and strength
Specification of MSI Pro B650M-E DDR5 AMD Motherboard
Platform | AMD |
Socket | AM5 |
Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
Chipset | B650 |
Memory Speed | up to 6800+ |
Max Memory Support | 128 GB |
Supported Memory Type | DDR5 |
Channel Supported | Dual Channel |
Memory Feature | Supports non-ECC, un-buffered memory Supports AMD EXPO |
Graphics Port | 1 x HDMI,1 x VGA |
Expansion Slots | 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |

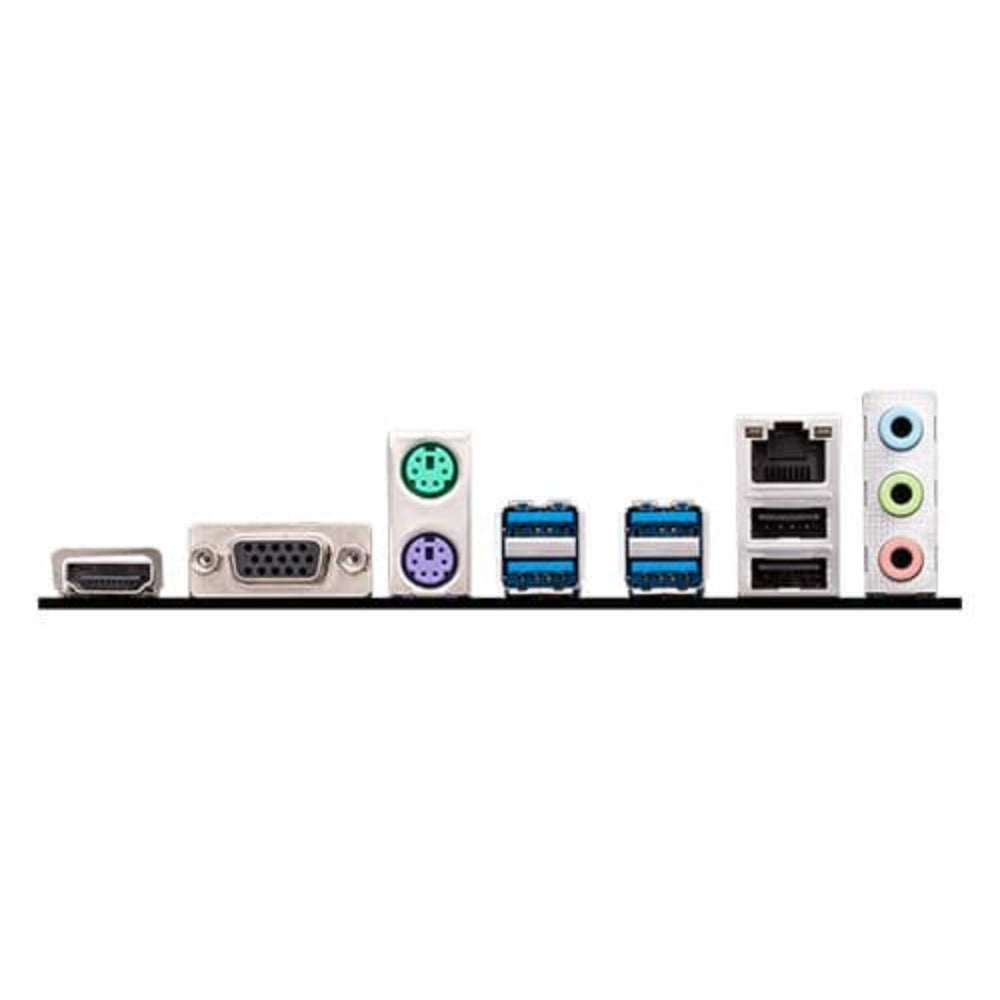

Back Panel I/O Ports | HDMI VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0 |
Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
Form Factor | Micro-ATX |
Warranty | 3 Years |
Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
