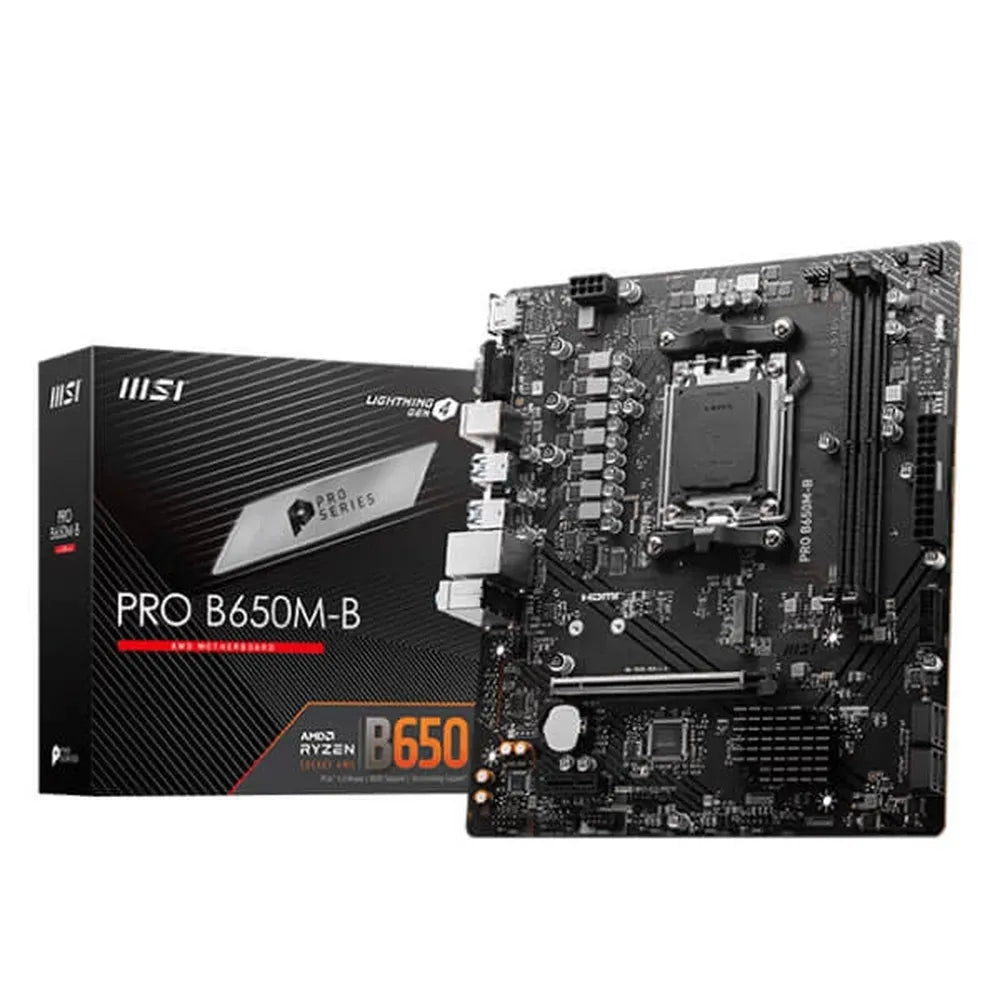

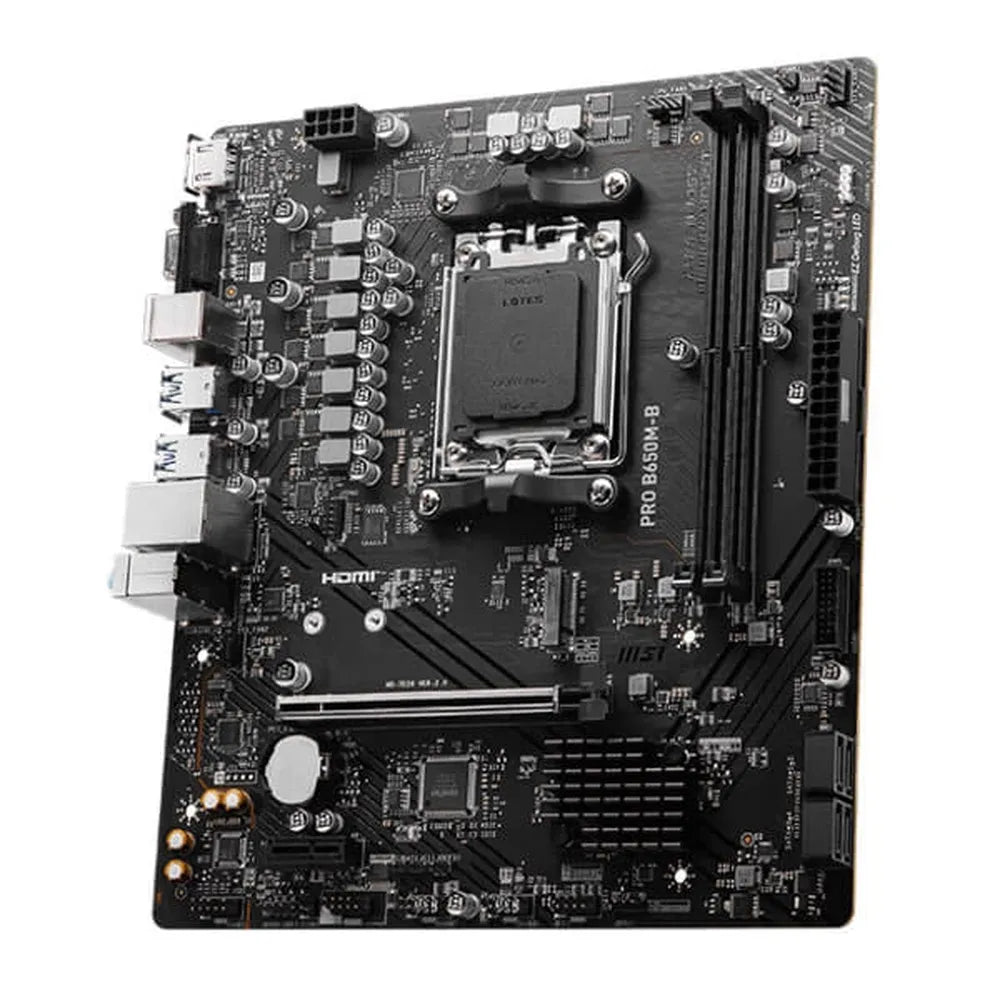

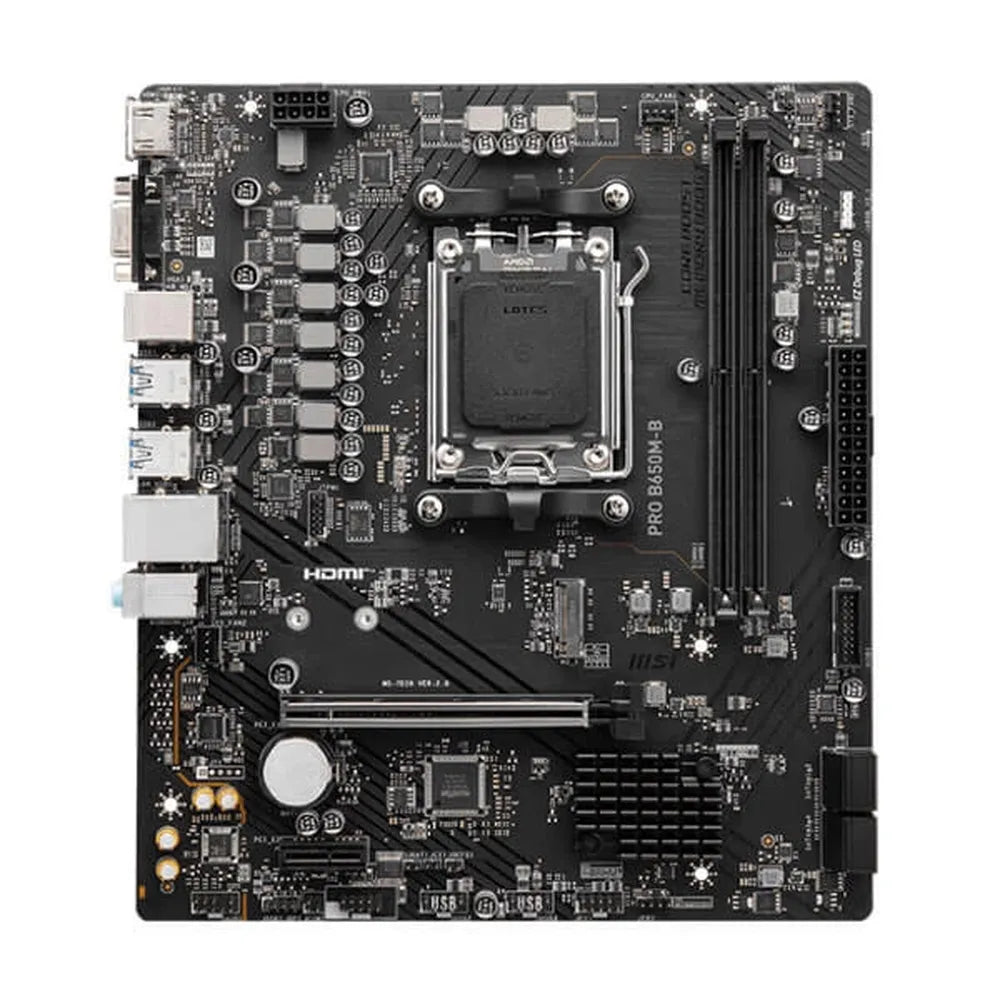

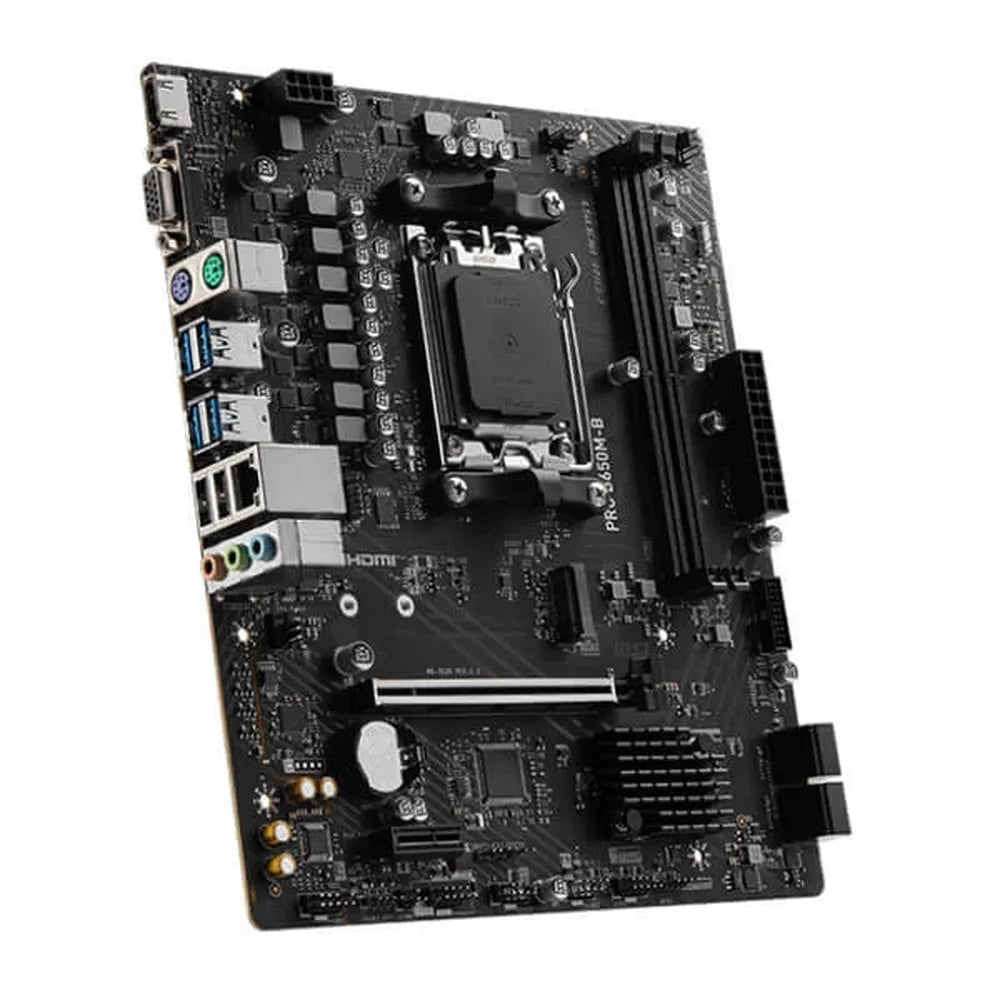

- MSI Pro B650M-B DDR5 AMD Motherboard
Description
Features Of MSI Pro B650M-B
- Ryzen 7000 READY – The MSI PRO B650M-B is a compact Micro-ATX motherboard outfitted with the AMD B650 chipset (AM5, Ryzen 7000 ready); The VRM features MSI Core Boost technology for improved stability & performance
- PASSIVE & AI COOLING – A chipset heatsinks provide passive cooling; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
- DDR5 MEMORY, PCI-E 4.0 x16 SLOT – 2 x DDR5 DIMM SMT slots enable high-speed memory and improve signal clarity (1DPC 1R, 6800+ MHz); Primary PCIe x16 slot supports PCIe 4.0 (64GB/s) and includes Steel Armor
- GEN4 M.2 CONNECTOR – Storage options include 1 x M.2 Gen4 x4 64Gbps slot for hyper-fast SSD access
- WELL CONNECTED – Network hardware includes 2.5Gbps LAN; Rear ports include USB 3.2 Gen 1 Type-A (5Gbps), HDMI 2.1, VGA, and 7.1 HD Audio with Audio Boost
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
EASY OVERCLOCKING WITH EXPO PROFILE
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.
AUDIO BOOST
THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
- Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications Of MSI Pro B650M-B
| Model Name | PRO B650M-B |
| Chipset | AMD B650 |
| CPU |
Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory |
2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Onboard Graphics |
1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Slot |
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage |
1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| LED FEATURE | 4x EZ Debug LED |

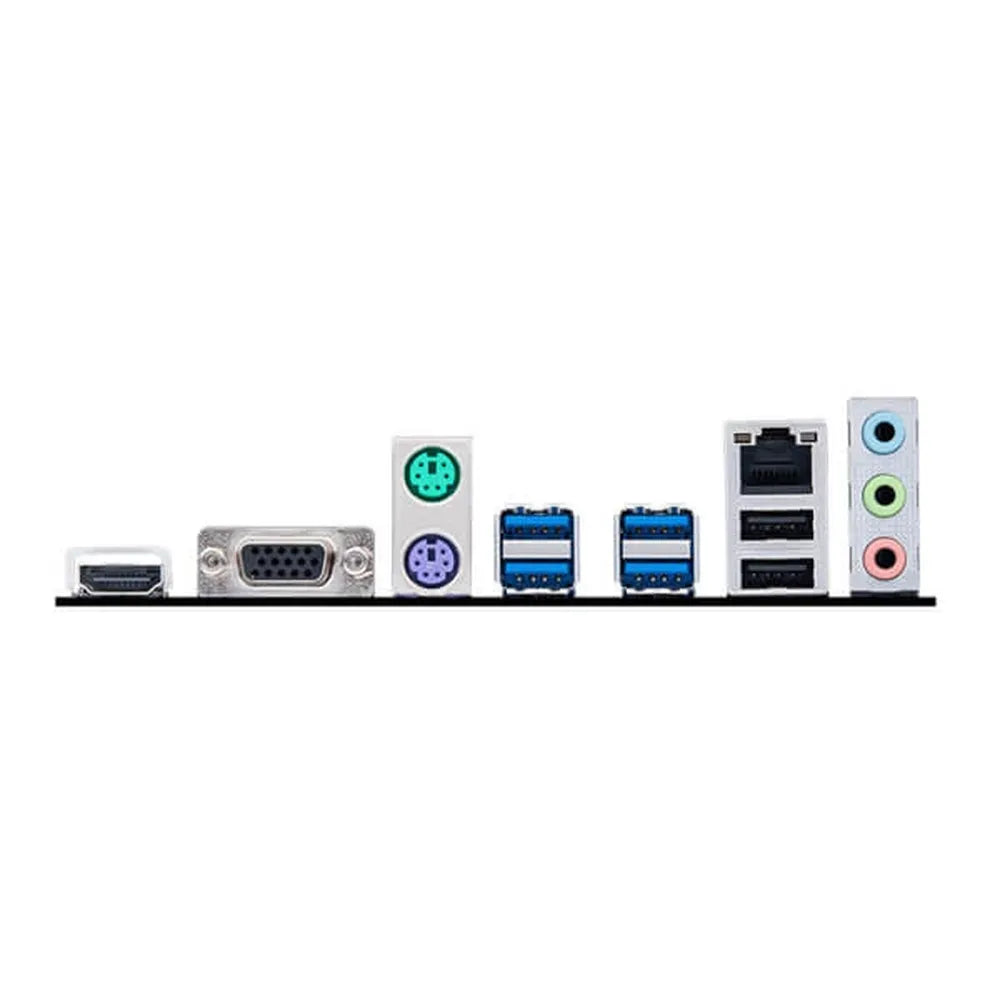

| BACK PANEL PORTS |
HDMI™ VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0 |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info |
mATX 215mmx243.84mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
