Description

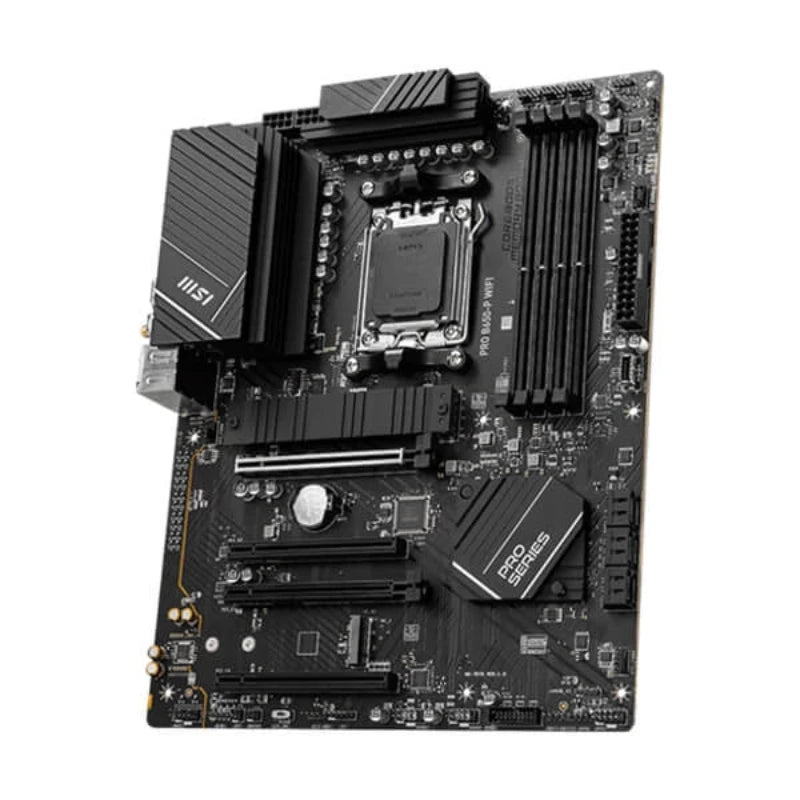

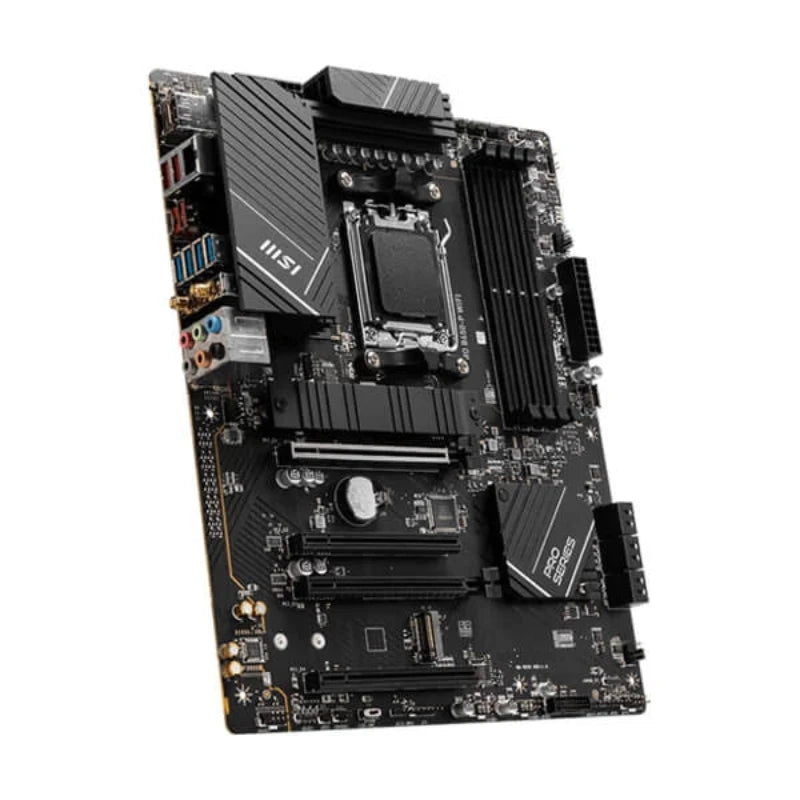

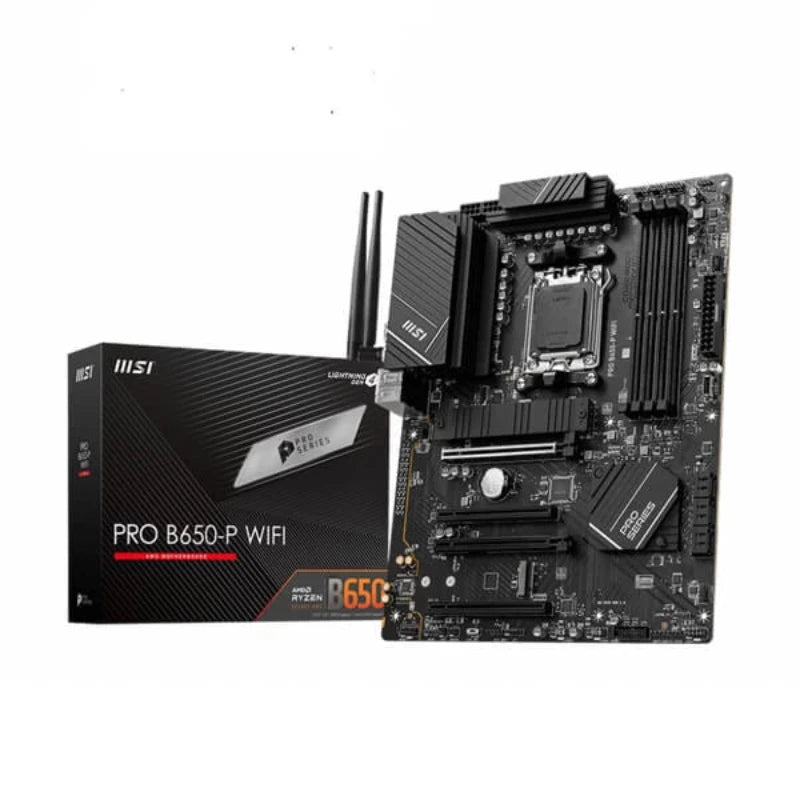

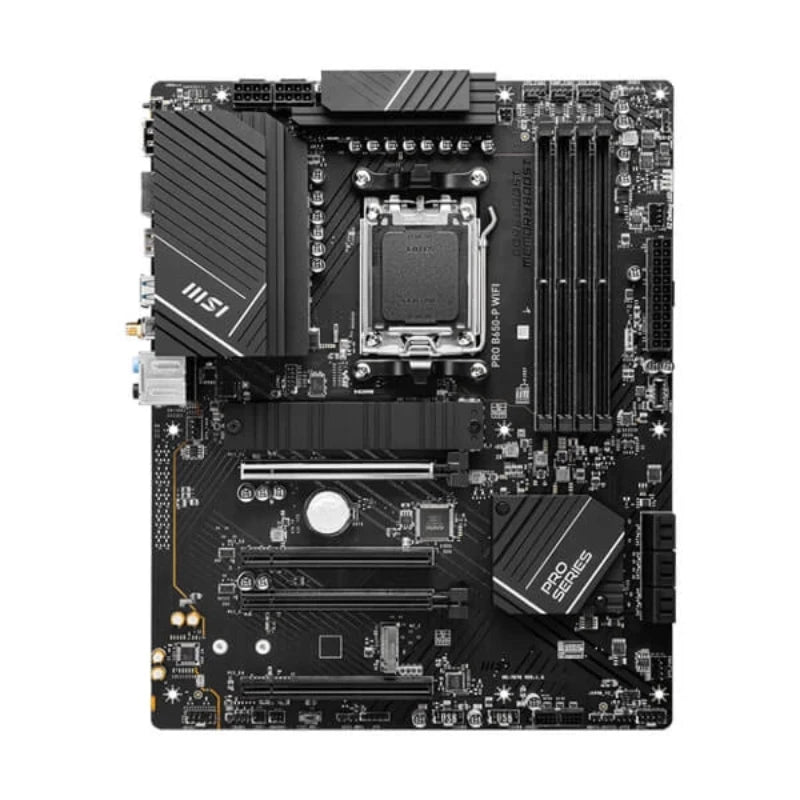

MSI Pro B650-P Wi-Fi Motherboard
Features:
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
- Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications:
| Chipset | AMD B650 |
| CPU SUPPORT |
Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| Memory |
4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5800+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Onboard Graphics |
1x HDMI™ 1x DisplayPort Support HDMITM 2.1, maximum resolution of 4K 60Hz Supports DP1.4, maximum resolution of 4K 60Hz |
| EXPANSION SLOT |
4x PCI-E x16 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) |
| Multi-GPU | Supports AMD MULTI-GPU |
| Storage |
2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
| RAID |
Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Realtek® 8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH |
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |

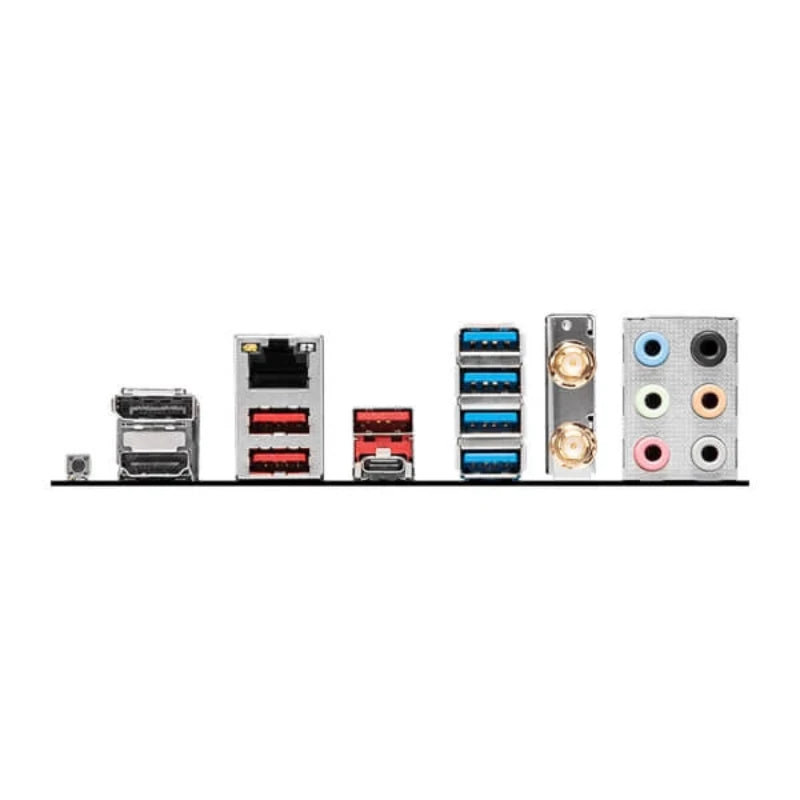

| BACK PANEL PORTS |
DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension |
ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
