- MSI Prestige X570 Creation WiFi Motherboard
Description

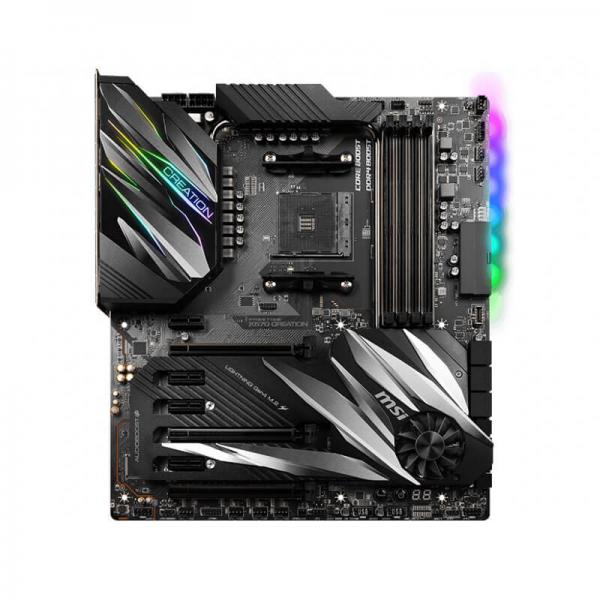

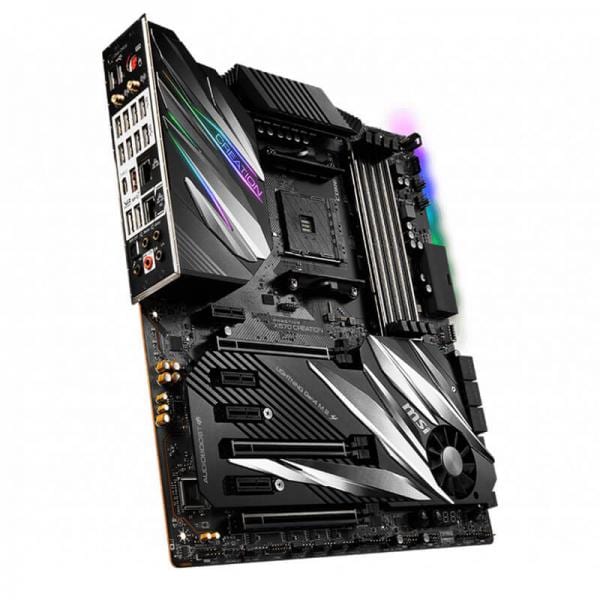

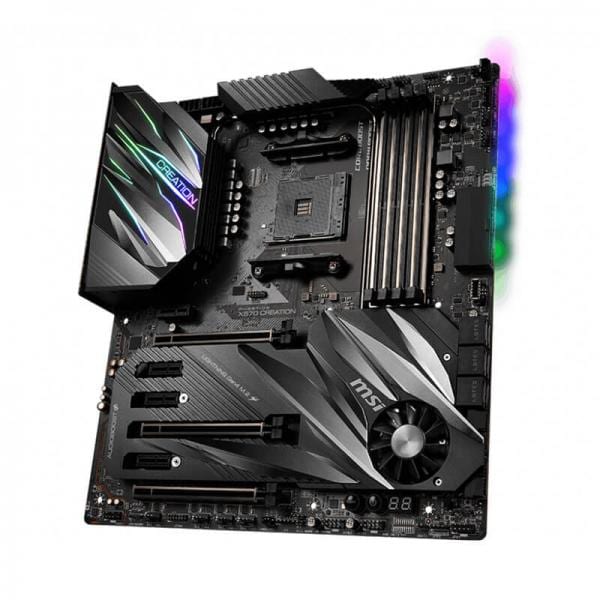

MSI Prestige X570 Creation WiFi Motherboard
Features:
- Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
- Supports 4 DIMMs, Dual Channel Memory DDR4
- Dual LAN with 10G Super LAN and WI-FI 6: Next level network speed, secure networking with fastest data throughput to improve efficiency.
- Lightning Gen 4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and performance
- Frozr Heatsink Design : Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
- Extended Heat-pipe Design: Enlarge the surface of heat dissipation, connecting from MOS heatsink to chipset heatsink
- Extended Heatsink Design with Pre-installed I/O Shielding: All-metal extended heatsink cover ensures even high-end processors to run in full speed and provides convenience for installation
- M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 safer and faster
- Creator Center: An optimized software with various system modes and resources for a wide range of scenarios and needs
Specifications:
| PROCESSOR | Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4 |
| CHIPSET | AMD® X570 Chipset |
| MEMORY |
4x DDR4 memory slots, support up to 128GB3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODEDual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Please refer www.msi.com for more information on compatible memory. |
| EXPANSION SLOTS |
2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5)2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5) 3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 mode 2nd Gen AMD Ryzen™ support PCIe 3.0x16/x0, x8/x8 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8/x0 mode1x PCIe 4.0/3.0 x16 slot (PCI_E7, supports x4 mode) 4x PCIe 2.0 x1 slots The speeds may vary for different devices |
| MULTI-GPU |
Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology |
| STORAGE |
AMD® X570 Chipset Supports RAID 0, RAID 1 and RAID 10 |
| USB |
AMD® X570 Chipset 1x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector 12x USB 3.2 Gen1 (SuperSpeed USB) ports (8 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors) 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® Processor 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| AUDIO |
Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| LAN |
1x Intel® I211AT Gigabit LAN controller 1x Aquantia® AQC107 10-Gigabit LAN controller |
| WIFI & BLUETOOTH |
Intel® Wi-Fi 6 AX200 The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth® 5 |
| INTERNAL CONNECTORS |
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen2 Type-C port 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 7x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 2x 2-pin Thermal Sensors connectors 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector |

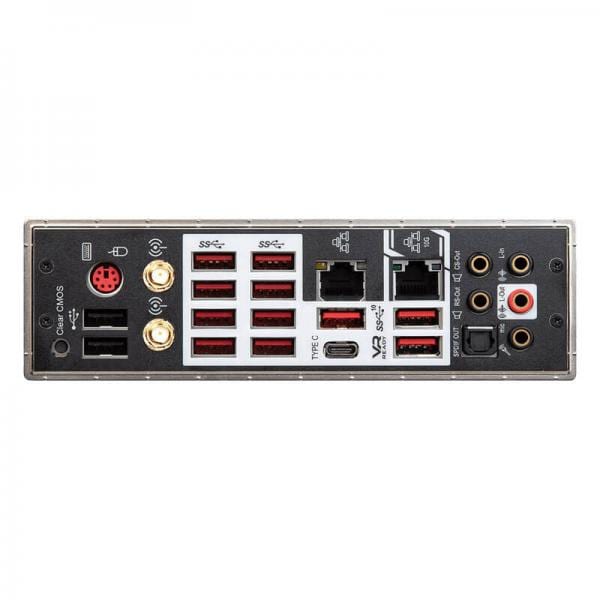

| BACK PANEL PORTS |
PS/2 Combo Port Intel Wi-Fi 6 LAN Port 10G LAN Port HD Audio Connectors Clear CMOS Button USB 2.0 Ports USB 3.2 Gen1 Ports USB 3.2 Gen2 Type-A C USB 3.2 Gen1 Type-A Optical S/PDIF OUT |
| DIMENSIONS |
12 in. x 10.7 in. (30.5 cm x 27.2 cm) E-ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
