- MSI MPG Z790 Carbon WiFi DDR5 Motherboard
Description

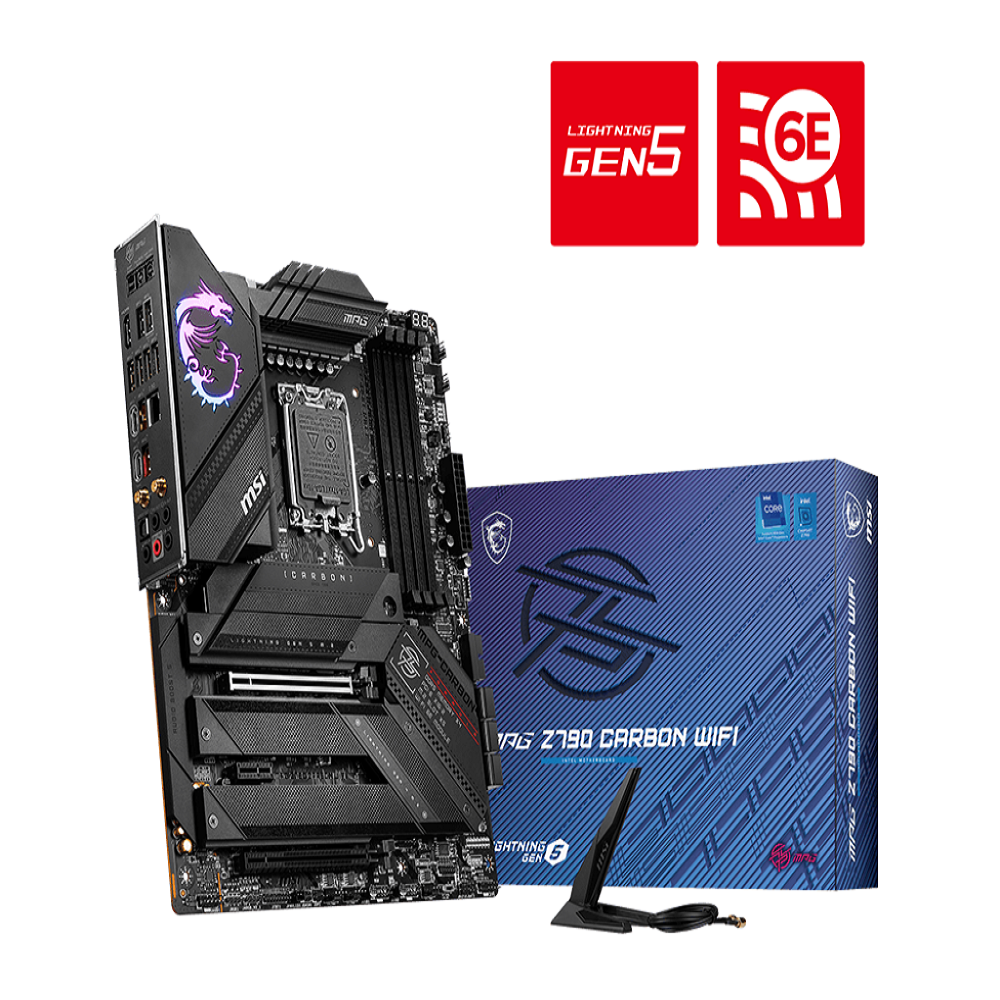

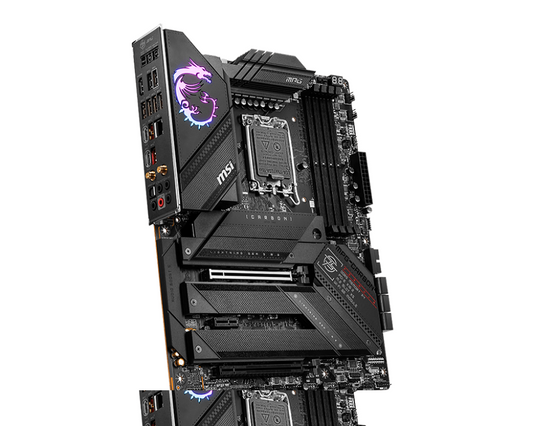

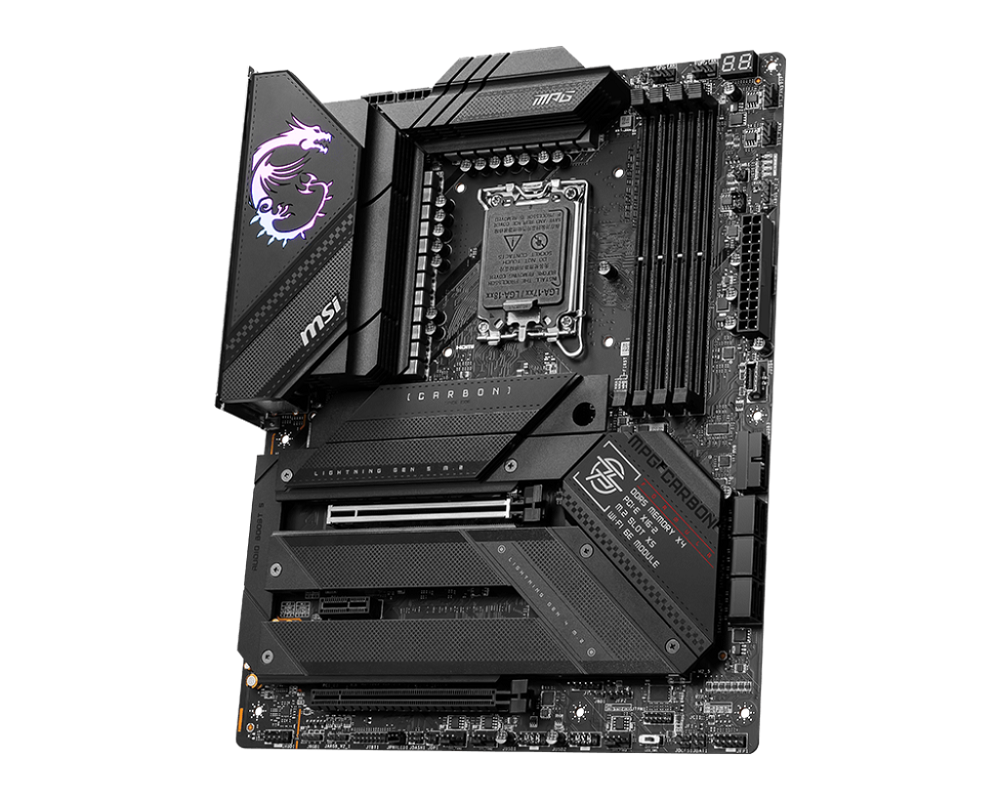

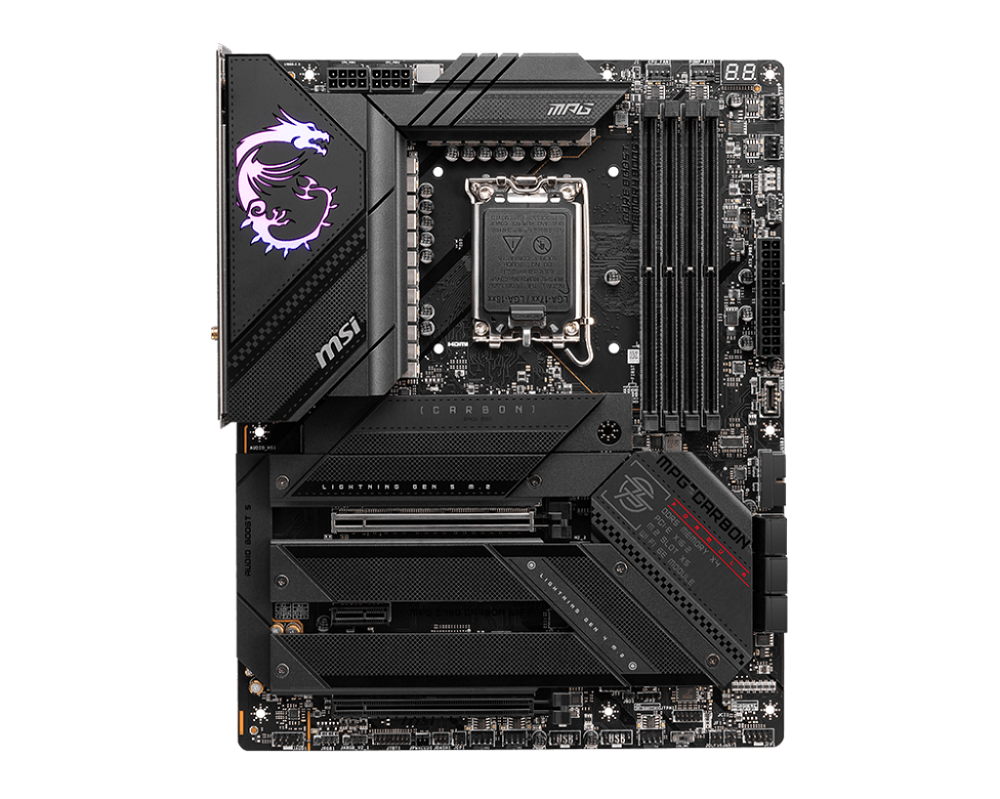

MSI MPG Z790 Carbon WiFi DDR5 Motherboard
Features :
- Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7600+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
- Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 8-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Specifications :
| CHIPSET | INTEL Z790 |
| CPU SUPPORT |
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700 |
| MEMORY |
4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7600+(OC)/7400 (OC)/7200(OC)/7000(OC)/6800(OC)/ 6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/
5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC) /4800(JEDEC) MHz
Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| ONBOARD GRAPHICS |
1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT |
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| STORAGE |
5x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 6x SATA 6G port |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. |
| USB |
4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 6x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front) |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH |
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11." |
| AUDIO |
Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| INTERNAL I/O |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen 2x2 Type C |
| LED FEATURE |
1x EZ LED Control switch 1x 2-Digit Debug Code LED 4x EZ Debug LED |

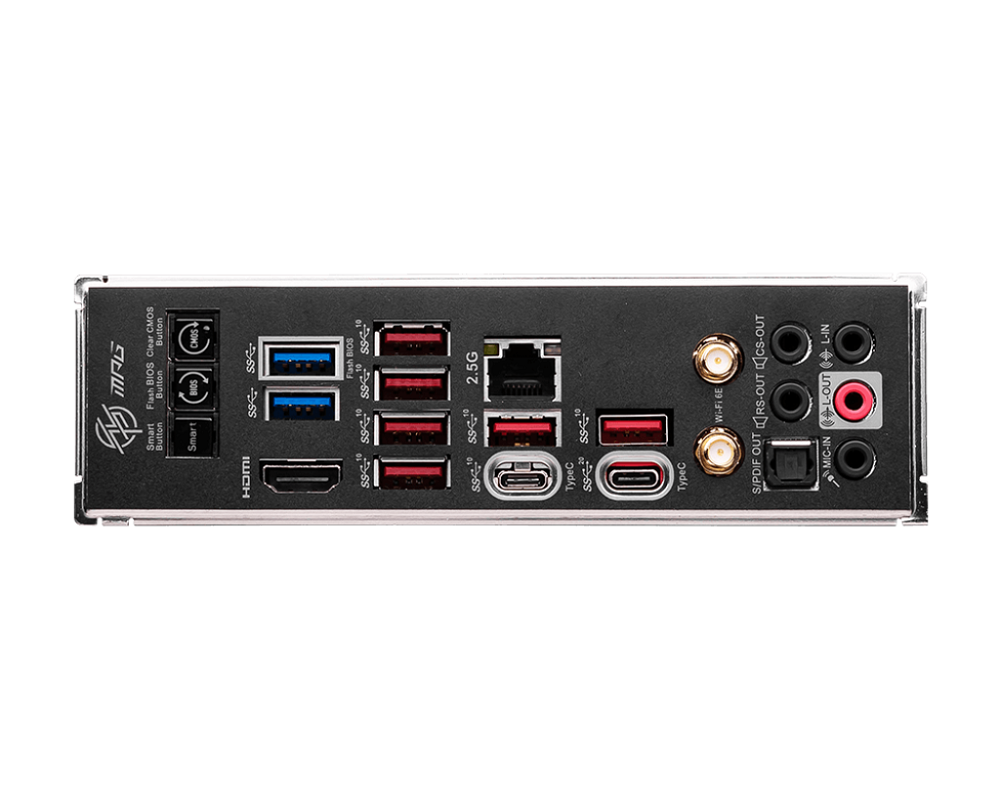

| BACK PANEL PORTS |
Clear CMOS / Flash USB 3.2 Gen 1 5 Gbps (Type-A) 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) Audio Connectors Smart Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2x2 20Gbps (Type-C) Wi-Fi / Bluetooth Optical S/PDIF Out |
| PCB DIMENSION |
ATX 243.84mmx304.8mm |
