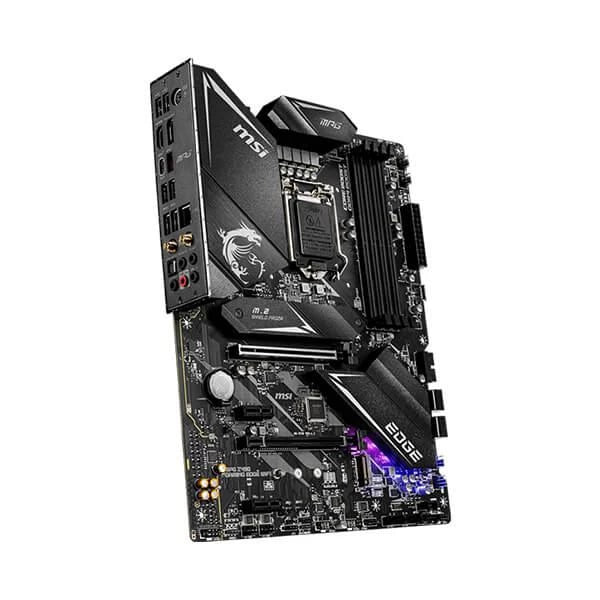

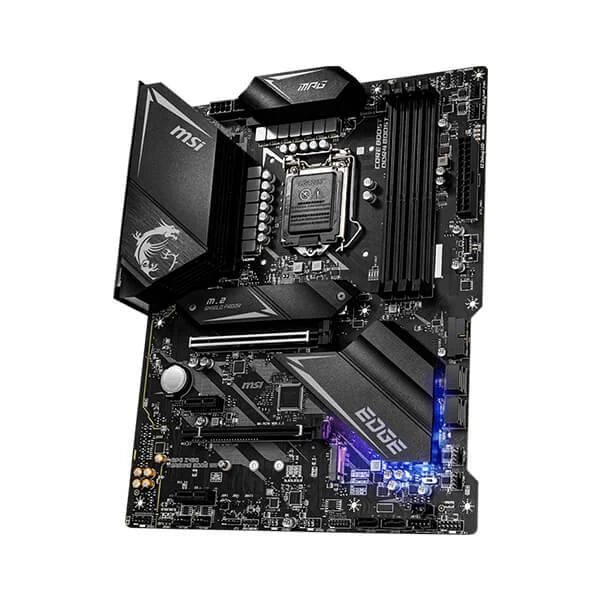

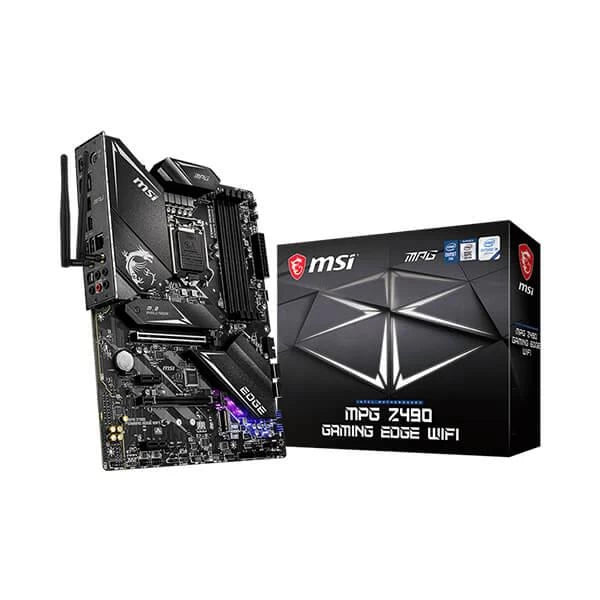

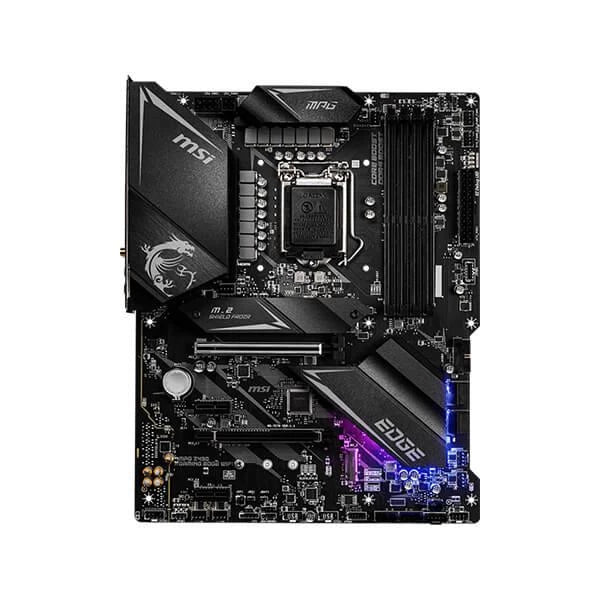

MSI MPG Z490 Gaming Edge WiFi Motherboard
The MSI MPG Z490 GAMING EDGE WIFI is a feature-loaded Z490 motherboard. The MSI MPG Z490 GAMING EDGE WIFI comes equipped with features that gamers would appreciate. After all, that is what the MPG series of products are made for. Being a Z490 motherboard, it can support LGA 1200 socket processors such as 10th generation Intel Core / Pentium Celeron processors. Support for memory speeds upto 4800 MHz is also present, for those who want the absolute best performance. Talking of performance, the Z490 Gaming Edge Wi Fi comes with Core Boost technology which 8+4 pin CPU power connector. This allows extracting the best level of performance. Another thing ensuring enhanced power supply is 12+1+1 Duet Rail Power System. Just like other Z series motherboards, this too can overclock the compatible unlocked Intel processors.
The Z490 Gaming Edge WiFi comes with premium thermal solutions using an aluminum cover with an extended heatsink design, along with M.2 Shield Frozr. Superfast USB connectivity is also present due to ASmedia 3241 USB 3.2 Gen2x2, and you can get speeds upto 20 Gb/s with USB Type-C. A solid audio experience with 2.5G LAN, and Intel Wi-Fi 6 AX. Attractive, and gorgeous RGB lighting using MSI Mystic Light, which can also be sued for customizing lighting of other RGB/ARGB devices.
Features:
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 4800(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Aluminum Cover with Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Audio Boost: Reward your ears with studio grade sound quality
Specifications:
| Processor |
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2 Please go to intel.com for compatibility information. Onboard graphics output are disabled when using the F SKU processors. |
| Chipset | Intel® Z490 Chipset |
| Memory |
4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/2666/2933 MHz*1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory |
| Expansion Slots |
1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (x4 mode, from PCH) 2x PCIe x1 slots (from PCH) |
| Onboard Graphics |
1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz |
| Multi-GPU | Supports AMD® 2-Way CrossFire™ Technology |
| Storage |
Intel® Z490 Chipset 6x SATA 6Gb/s ports 1 2x M.2 slots (Key M)Supports up to PCIe 3.0 x4 and SATA 6Gb/s M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices1 M2_2 slot supports 2242/ 2260 /2280 storage devices2 Intel® Optane™ Memory Ready*** 3SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID |
Intel® Z490 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices |
| USB |
Intel® Z490 Chipset 1x USB 3.2 Gen 2 10Gbps Type-A port on the back panel 7x USB 3.2 Gen 1 5Gbps (4 Type-A ports on the back panel, 2 ports through the internal USB connector, 1 Type-C internal connector) 2x USB 2.0 ports on the back panel 4x USB 2.0 ports available through the internal USB connectors, hub-GL850G ASMedia® ASM3241 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel |
| Audio |
Realtek® ALC1200-VD1 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Realtek® RTL8125B-CG 2.5G LAN Controller |
| WiFi & Bluetooth |
Intel® AX201 MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps 802.11ac; WiFi 6 pre certified Bluetooth 5.1, FIPS, FISMA 1x M.2_3 Socket with E key (Wi-Fi mode) |
| Internal connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x chassis intrusion connector 1x Clear CMOS jumper 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x TBT connector 1 1x RTD3 connector Thunderbolt card need support RTD3 |

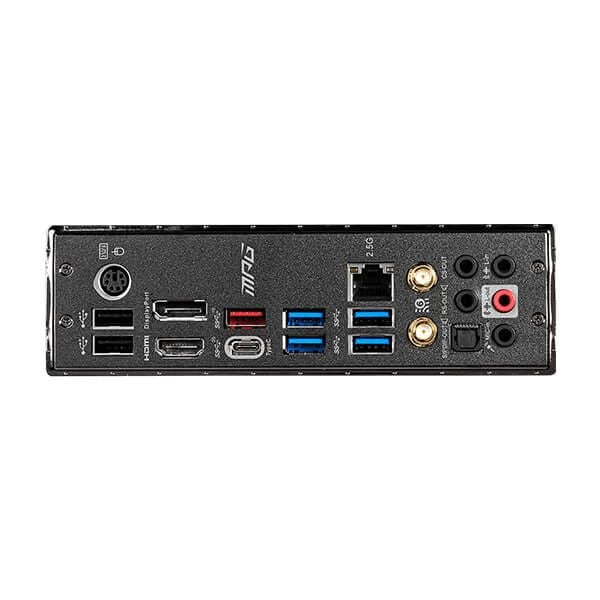

| Back panel ports |
PS/2 Combo Port DisplayPort USB 3.2 Gen 2 10Gbps (Type-A) LAN Port HD Audio Connectors USB 2.0 HDMI Port USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Optical S/PDIF OUT |
| Dimensions |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
