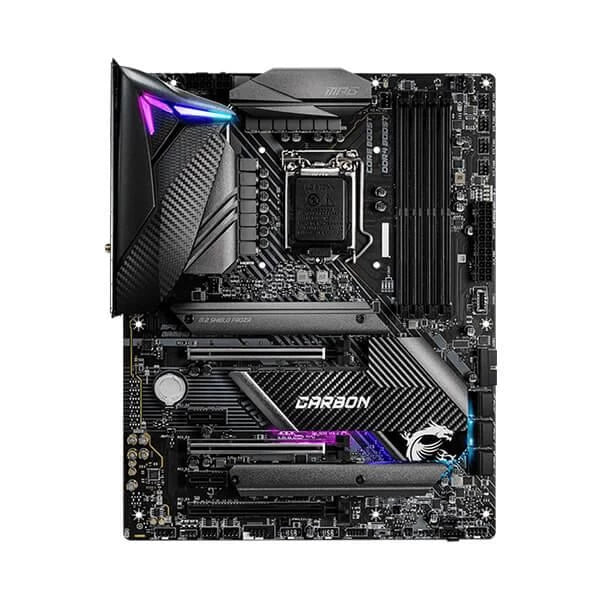

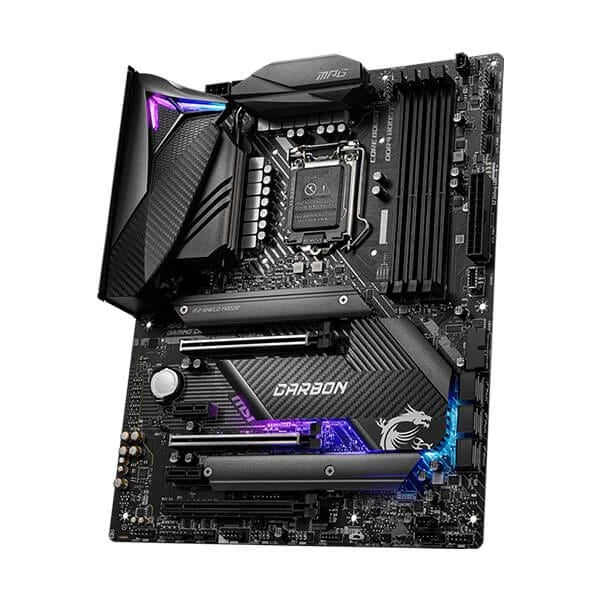

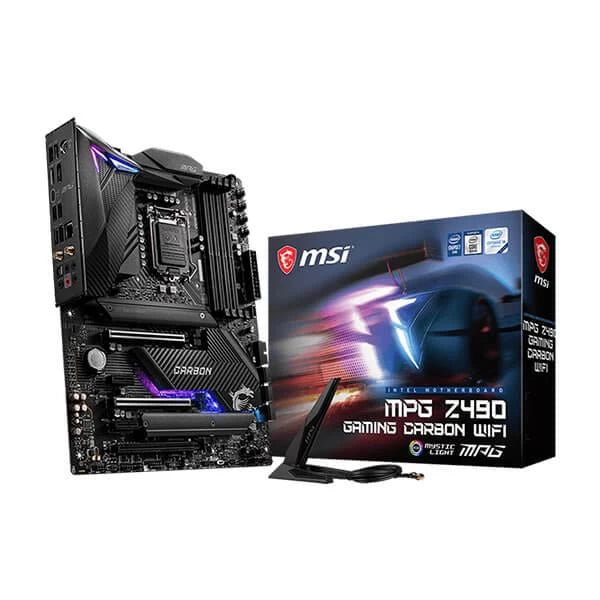

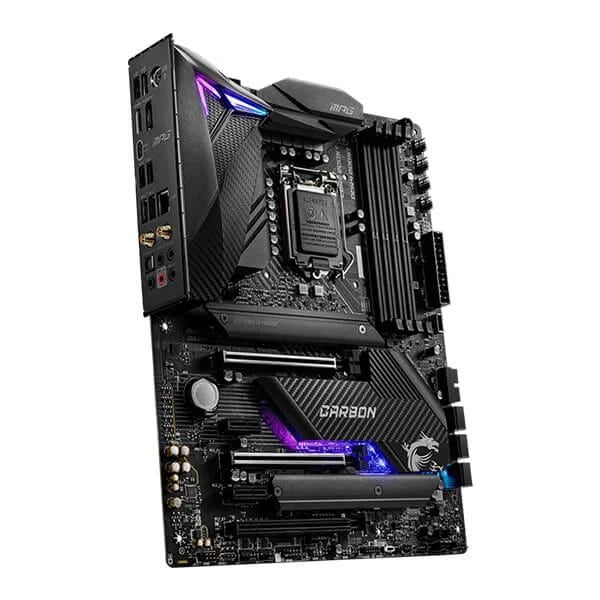

- MSI MPG Z490 Gaming Carbon Wifi DDR4 Intel Motherboard
Description
Feature of MSI MPG Z490 Gaming Carbon WiFi DDR4
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 4800(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- M.2 Shield Frozr: Both M.2 slots with Shield Frozr to built for high performance system and non-stop gaming experience
- Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
GAME IN STYLE
The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI MPG Z490 Gaming Carbon Wifi motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compare to Z390 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for Z490. Easy to enable XMP profile with auto power settings to get the best memory speed and stability
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
Specifications of MSI MPG Z490 Gaming Carbon WiFi DDR4
Processor |
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2 Please go to intel.com for compatibility information. Onboard graphics output are disabled when using the F SKU processors. |
Chipset | Intel® Z490 Chipset |
Memory |
4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/2666/2933 MHz11DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory |
Expansion Slots |
3x PCIe 3.0 x16 slots*, support x16/ x0/ x4 or x8/ x8/ x4 mode 2x PCIe 3.0 x1 slots |
Onboard Graphics |
1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz Maximum shared memory is 1GB |
Multi-GPU |
Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology |
Storage |
Intel® Z490 Chipset 6x SATA 6Gb/s ports 1/ 2 2x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1 M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices2 Intel® Optane™ Memory Ready3 Supports Intel® SmaSATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
RAID |
Intel® Z490 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices |
USB |
Intel® Z490 Chipset 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector) 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia® ASM3241 Chipset 1x USB 3.2 Gen 2x2 20Gbps port on the back panel |
Audio |
Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
WiFi & Bluetooth |
Intel® AX201 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11ac WiFi 6 pre-certified Supports Bluetooth® 5.1, FIPS, FISMA |
Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 1x Serial port connector 1xTPM module connector 1x TBT connector* 1x RTD3 connector 1x Clear CMOS jumper |

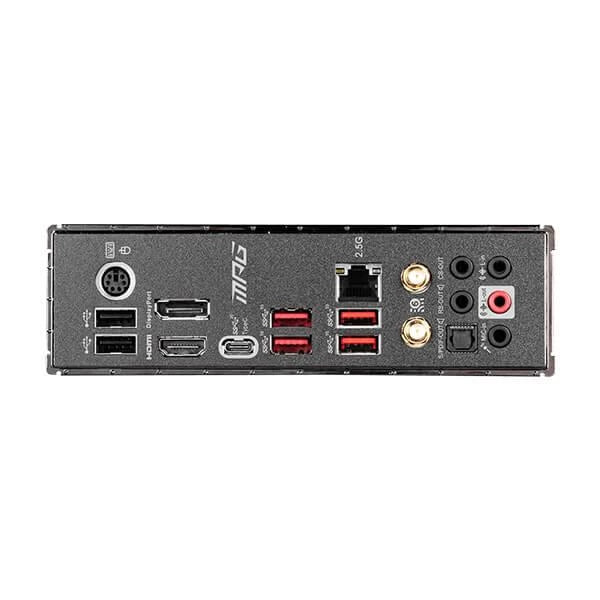

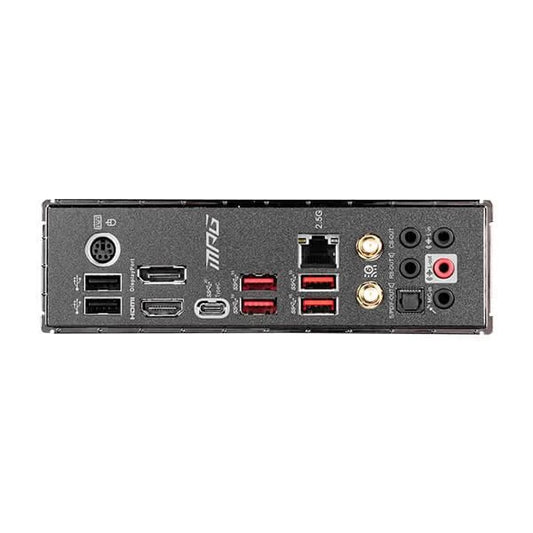

Back panel ports |
PS/2 Combo Port DisplayPort USB 3.2 Gen 2 10Gbps (Type-A) LAN Port HD Audio Connectors USB 2.0 HDMI Port USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth Optical S/PDIF OUT |
Dimensions |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
Mounting | 9 mounting holes |
Operating System | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
