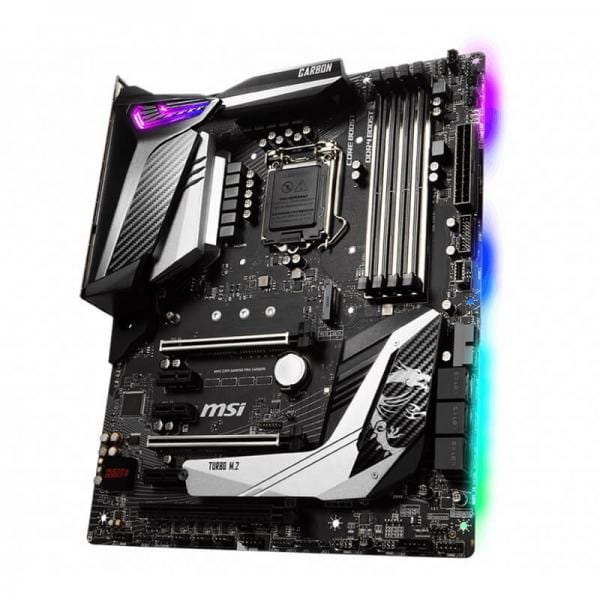

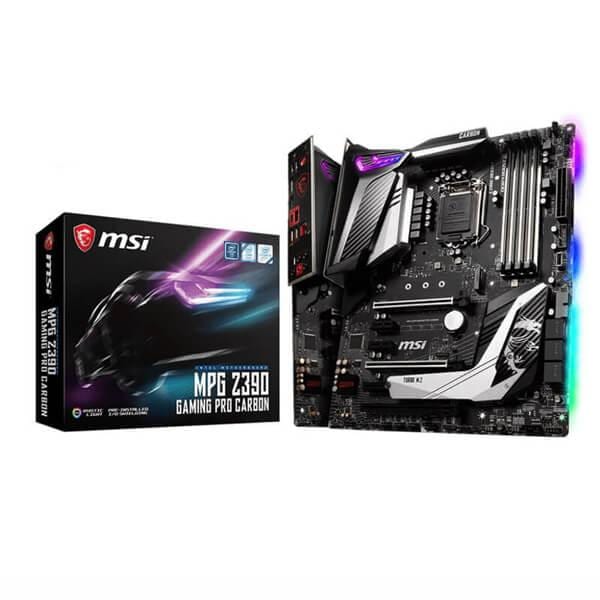

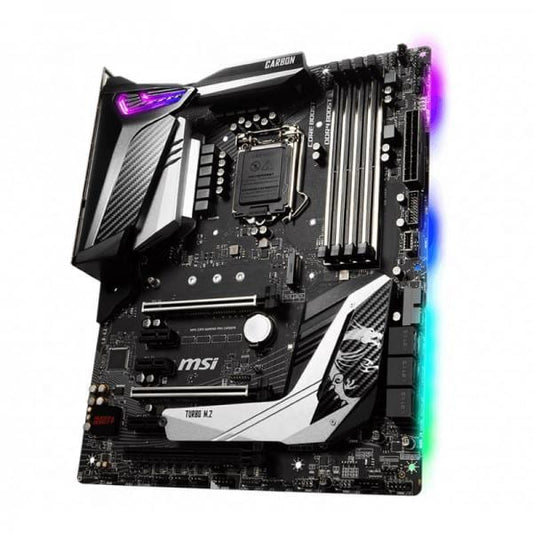

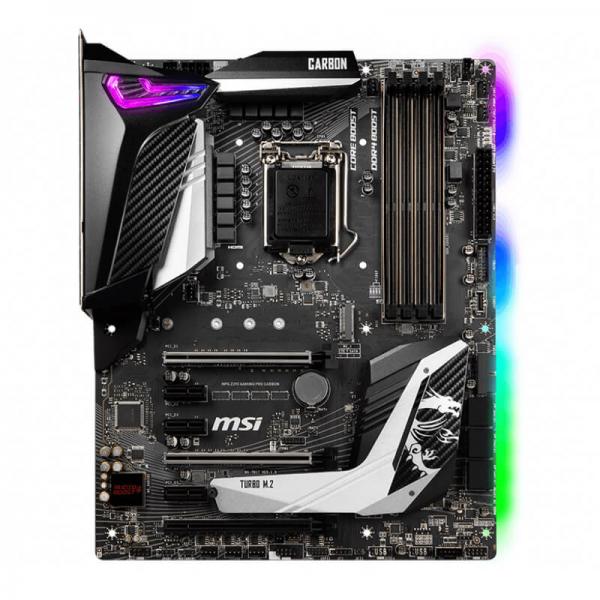

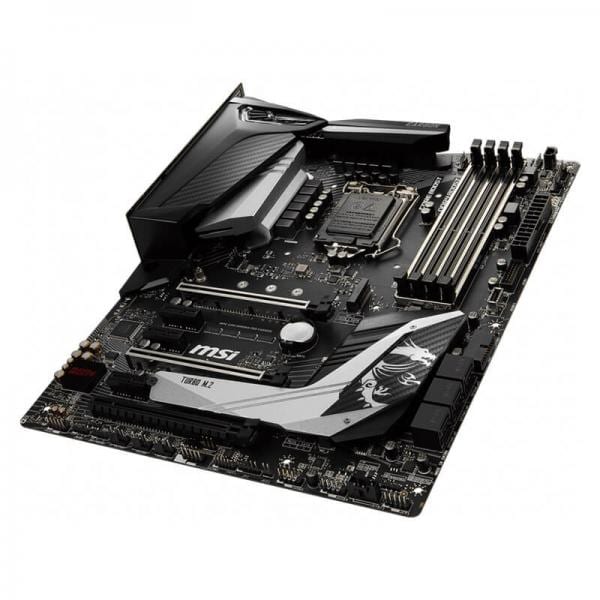

- MSI MPG Z390 Gaming Pro Carbon DDR4 Intel Motherboard
Monsoon Sale Offer
Description
Feature of MSI MPG Z390 Gaming Pro Carbon DDR4
Inspired by the curve and shape of supercars, offers colorful customization with MSI Mystic Light RGB, tuned for better performance by Core boost, DDR4 Boost, M.2 Shield Frozr, Intel Gaming LAN, Front USB 3.1 Gen2 connector
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4400(OC) MHz
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Turbo USB 3.1 GEN2
- Set Core Power Free: Core Boost, 8 4 pin CPU power connector, Game Boost, DDR4 Boost with Steel Armor
- AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Cooling
The MPG Z390 has one water pump connector and six fan headers with DC and PWM control, which enable you to adjust your fans' speeds as needed within BIOS or a third-party software. Moreover, it has an extended heatsink design to help dissipate heat and ensure stable performance.
User Friendly
- XL Clip - Enlarged PCIe clips make it easier for users to swap out PCIe hardware
- EZ Debug LED - Onboard LEDs for key components indicate the source of a problem
CPU
For stability and performance, this motherboard features Core Boost, a combination of layout design and optimization which allows for faster and undistorted current delivery to the CPU. It also supports one-second overclocking with the optional MSI Game Boost software. Additional enhancements and features include load-line calibration, overvoltage protection, digital power design, and double power connectors.
DDR4
The DDR4 RAM slots on this motherboard feature optimized traces and a fully isolated memory circuit for stable performance. It also supports a variety of RAM from different manufacturers, so be sure to check if yours is compatible. Moreover, you can easily toggle on XMP (Intel Extreme Memory Profile) with just a single click within BIOS.
Storage
Install PCIe Gen 3 x4 SSDs or even Intel Optane memory on this motherboard for fast storage solutions. With a compatible drive, you'll be able to transfer data at speeds of up to 32 Gb/s. Moreover, you can enable XBoost within MSI's optional software for enhanced SSD speeds. For larger capacity storage, this motherboard has six SATA III ports and supports RAID 0, 1, 5, and 10 with M.2 Genie. Please note that you should upgrade the drivers and BIOS to the latest version before using Intel Optane memory.
Internet Connectivity
Intel I219-V provides you with fast, optimized gaming-quality Gigabit LAN connectivity. Moreover, you can use the optional MSI GAMING LAN Manager to automatically classify and prioritize your gaming traffic.
Audio
MSI MPG Z390 Gaming Pro Carbon is built with MSI Audio Boost as well as multiple hardware and software features designed to provide you with a better listening experience.
- Dedicated, EMI-shielded Hi-Fi audio processor
- Isolated audio design with LED border ensures a better audio signal
- Separated audio layers for clean left and right channels
- De-pop protection prevents loud popping sounds when you plug or unplug or devices
- Nahimic 3 surround sound for immersion
- High-quality audio capacitors for a warmer sound
- Connectors for 7.1-channel surround sound
MSI Mystic Light
Control and sync your compatible RGB products with MSI Mystic Light. This motherboard has two 4-pin RGB LED connector, one 3-pin RAINBOW LED connector, and a 3-pin CORSAIR LED connector. With over 16.8 million colors to choose from and a variety of lighting patterns, MSI Mystic Light can be easily configured to fit your build's aesthetics.
Specifications of MSI MPG Z390 Gaming Pro Carbon DDR4
| PROCESSOR | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® Z390 Chipset |
| MEMORY |
4 x DDR4 memory slots, support up to 128GBSupports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Dual-Channel mode |
| SLOTS |
3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes) 3 x PCIe 3.0 x1 slots |
| ONBOARD GRAPHICS |
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz *No Display support when using the Processor model with suffix “F” |
| MULTI-GPU |
Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology |
| STORAGE |
Intel® Z390 Chipset 6 x SATA 6Gb/s ports1 2 x M.2 slot (Key M)1Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices Intel® Optane™ Memory Ready2M.2 slots and SATA ports share the bandwidth. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID |
Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 PCIe storage devices |
| USB |
Intel® Z390 Chipset 5x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) |
| AUDIO |
Realtek® ALC1220P-VB2 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1 x Intel® I219-V Gigabit LAN controller |
| INTERNAL CONNECTORS |
24-pin ATX main power connector 8-pin ATX 12V power connector 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.1 Gen2 Type-C port 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 5x 4-pin system fan connectors 1x Serial port connector 1x Front panel audio connector 2x System panel connectors Thunderbolt Add-on Card Connector Chassis Intrusion connector TPM module connector 2x 4-pin RGB LED connectors 1x 3-pin RAINBOW LED connector 1x 3-pin CORSAIR LED connector |

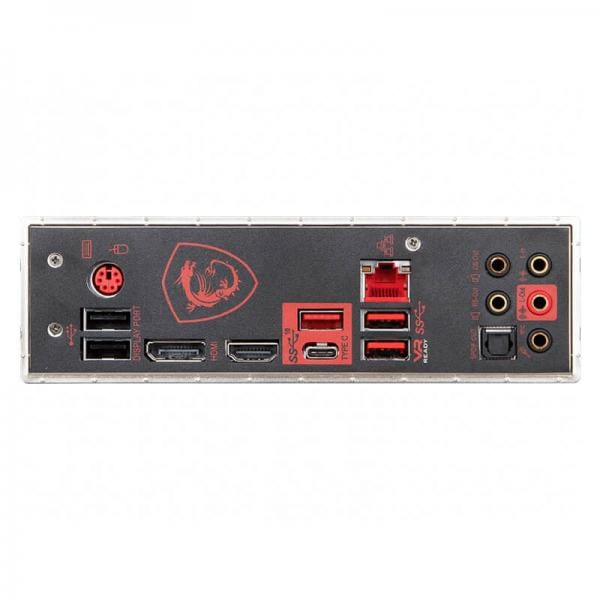

| BACK PANEL PORTS |
PS/2 Combo Port LAN HD Audio Connectors USB 2.0 DisplayPort HDMI USB 3.1 Gen2 Type-A C USB 3.1 Gen2 Type-A Optical S/PDIF out |
| DIMENSIONS |
9.6 in. x 12 in. (24.3 cm x 30.4 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
