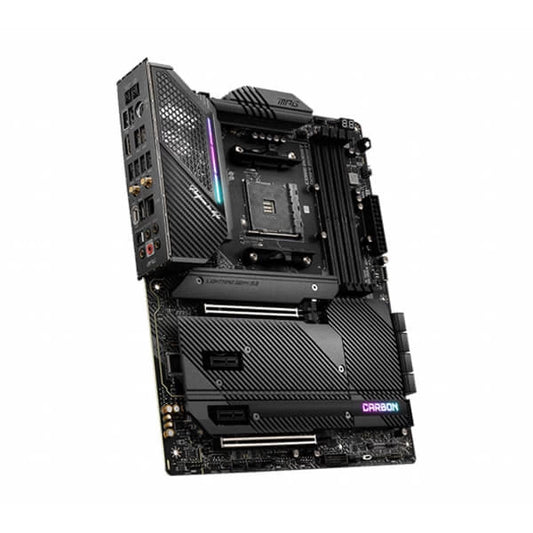

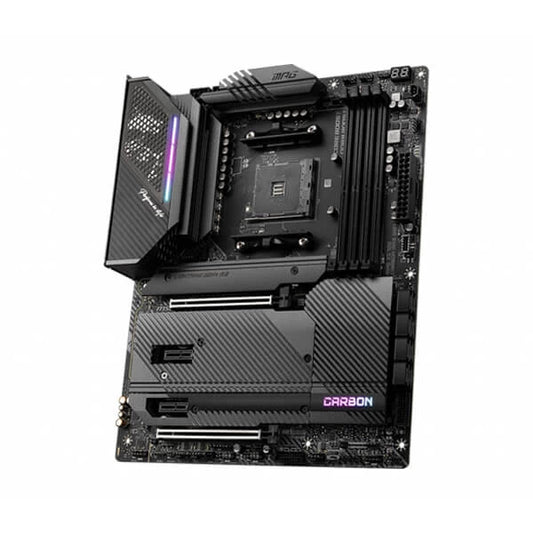

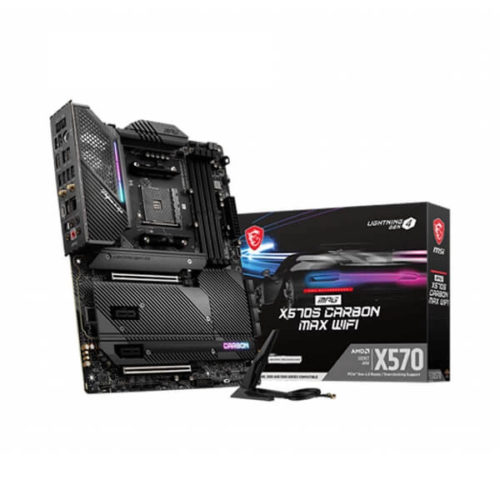

MSI MPG X570S Carbon Max Wifi DDR4 AMD Motherboard

Feature of MSI MPG X570S Carbon Max WiFi DDR4

1. Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
2. Supports DDR4 Memory, up to 5300+(OC) MHz
3. Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
4. Enhanced Power Design: 14+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
5. Premium Thermal Solution: Aluminum cover, heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
6. MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
7. 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
8. AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
9. High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
10. Pre-installed I/O Shield: Better EMI protection and more convenience for installation


M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI MPG X570S Carbon Max Wifi DDR4 motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 Duet Rail Power System(DRPS). Combining dual power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.

CORE BOOST

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while high-loading operation.

PRE-INSTALLED I/O SHIELD

Featuring the Pre-installed I/O Shield, makes your installation process easier and safer. The patent-pending design protect your IO ports and also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.

STEEL ARMOR

MSI PCI Express Steel Armor slot is secured to the motherboard with extra solder points and supports the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

ULTIMATE MOTHERBOARD PROTECTION

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

Specifications of MSI MPG X570S Carbon Max WiFi DDR4
