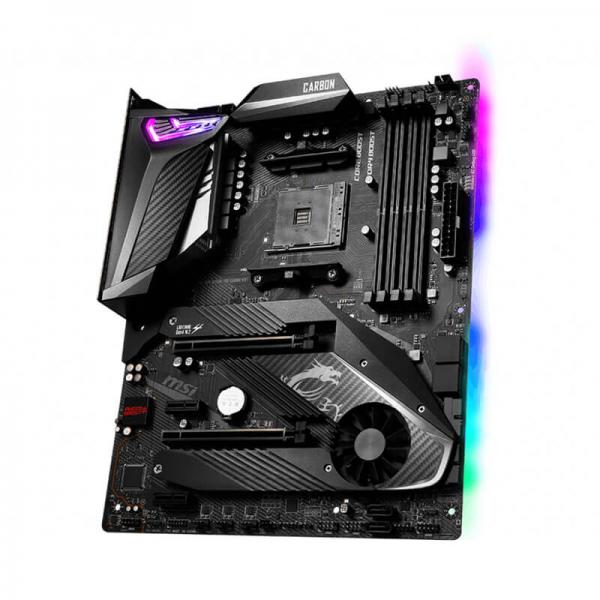

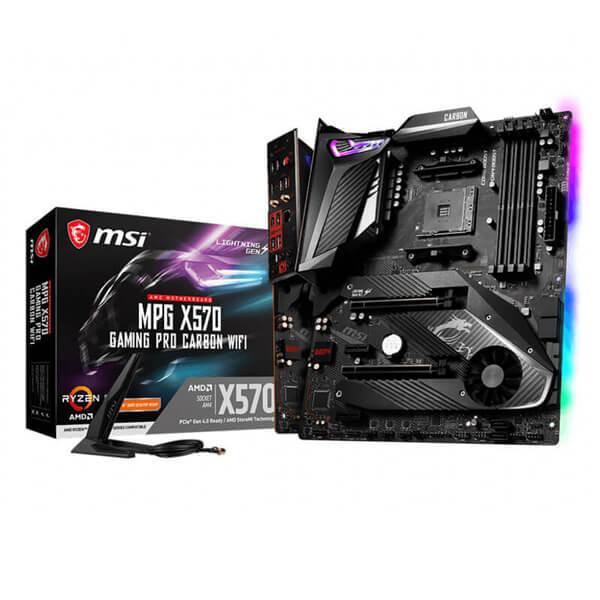

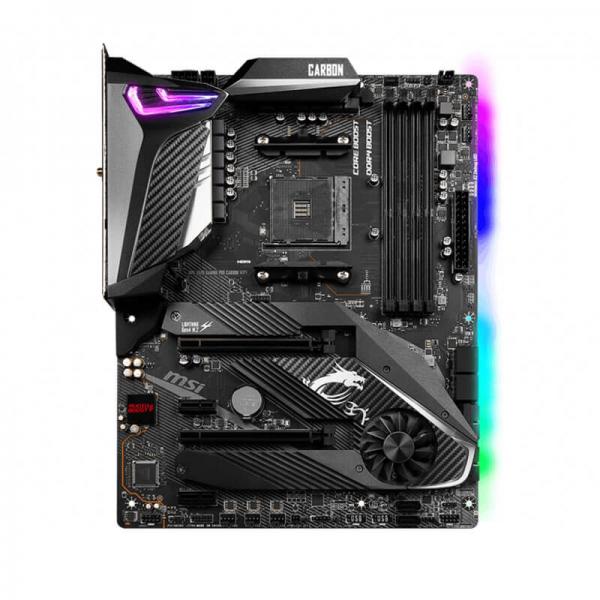

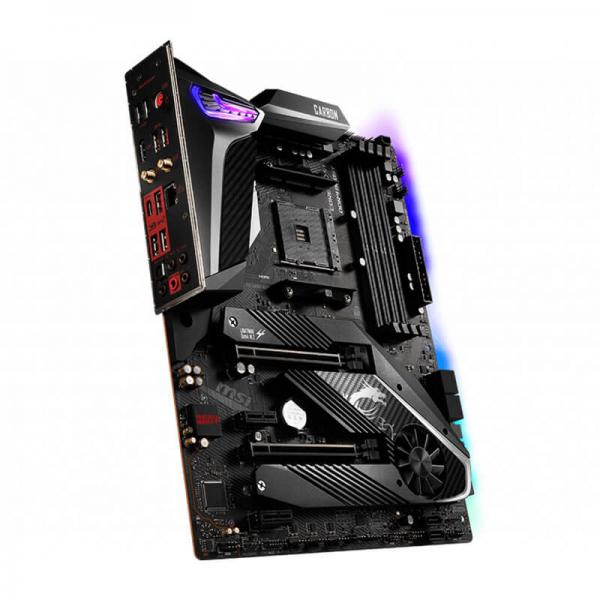

- MSI MPG X570 Gaming Pro Carbon Max Wifi DDR4 AMD Motherboard
Description
Feature of MSI MPG X570 Gaming Pro Carbon Max WiFi DDR4
To provide super smooth performance for fervent gamers and prosumers, the heatsink is froze-designed with the patented fan and double ball bearings. Gift your ears with AUDIO BOOST 4 featuring NAHIMIC 3 for an alluring listening experience. Introducing dragon center, a brand new software that integrates all MSI tools such as GAME MODE, VOICE BOOST, LIVE UPDATE and AMBIENT LINK with a friendly user interface
- Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
- Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8 4 pin CPU power connector, Game Boost, DDR4 Boost
- AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE, AMBIENT LINK with user friendly user interface.
A HUGE STEP OF DDR PERFORMANCE
MSI MPG X570 Gaming Pro Carbon Max Wifi OC LAB does not merely work hard on extreme overclocking. The A-XMP memory profile has great improvement on performance and efficiency for X570. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
EASY OVERCLOCKING WITH A-XMP PROFILE
The A-XMP in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.
Specifications of MSI MPG X570 Gaming Pro Carbon Max WiFi DDR4
| PROCESSOR | Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4 |
| CHIPSET | AMD® X570 Chipset |
| MEMORY |
4x DDR4 memory slots, support up to 128GB3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODEDual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Please refer www.msi.com for more information on compatible memory. |
| EXPANSION SLOTS |
1x PCIe 4.0/3.0 x16 slot (PCI_E1)3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode1x PCIe 4.0/3.0 x4 slot (PCI_E3) 2x PCIe 3.0 x1 slots The speeds may vary for different devices |
| ONBOARD GRAPHICS | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz |
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
AMD® X570 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 slot (from AMD® Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™ Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devicesThe speeds may vary for different devices |
| RAID |
AMD® X570 Chipset Supports RAID 0, RAID 1 and RAID 10 |
| USB |
AMD® X570 Chipset 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panell 4x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® Processor 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| AUDIO |
Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| LAN | 1x Intel® I211AT Gigabit LAN controller |
| WIFI & BLUETOOTH |
Intel® Wi-Fi 6 AX200 The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth® 5 |
| INTERNAL CONNECTORS |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x TPM module connector 1x Clear CMOS jumper 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR connector 1x 2-pin LED Demo Connect 4x EZ Debug LEDs |

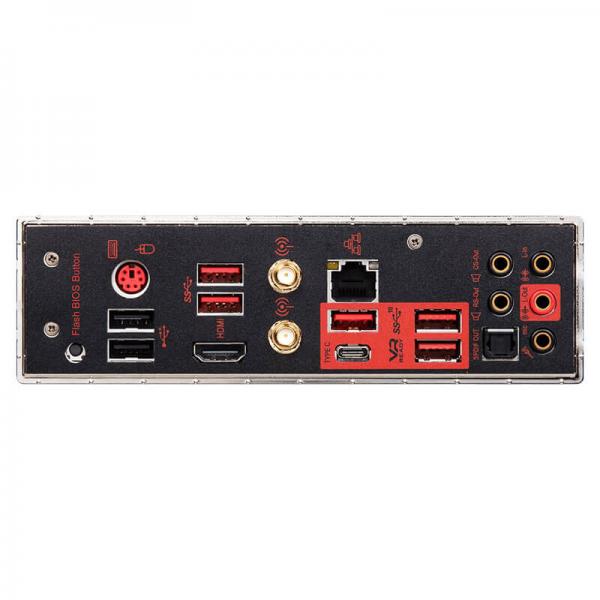

| BACK PANEL PORTS |
Keyboard / Mouse USB 3.2 Gen1 Type-A Wireless / Bluetooth LAN Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen2 Type-A C USB 3.2 Gen2 Type-A Optical S/PDIF out |
| DIMENSIONS |
12 in. x 9.6 in. (30.4 cm x 24.3 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
