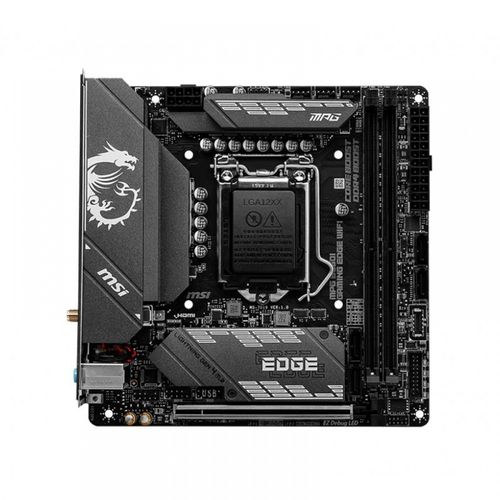

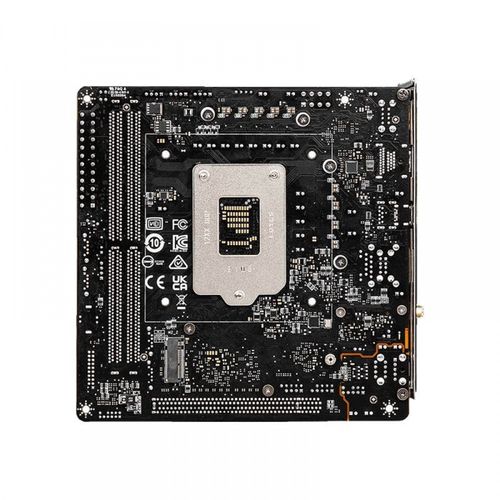

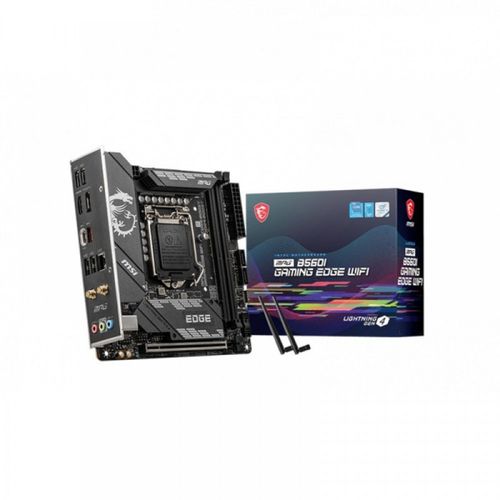

- MSI MPG B560I Gaming Edge Wifi DDR4 Intel Motherboard
Description
Features of MSI MPG B560I Gaming Edge Wifi DDR4 Intel Motherboard
- Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5200(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
- Enhanced Power Design: 6+2+1 direct power design, 8-pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 8-layer PCB made by 2oz thickened copper material
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Specifications of MSI MPG B560I Gaming Edge Wifi DDR4 Intel Motherboard
| PROCESSOR |
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel ® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200 |
| CHIPSET | Intel® B560 Chipset |
| MEMORY |
2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU Max frequency:1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer to www.msi.com for more information on compatible memory |
| EXPANSION SLOTS |
1x PCIe x16 slotSupport up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU |
| ONBOARD GRAPHICS |
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz |
| STORAGE |
4x SATA 6Gb/s ports 2x M.2 slots 2x M.2 slots Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU Supports 2280 storage devicesM2 2 slot Supports 2280 storage devices Intel® Optane™ Memory ReadySupports Intel® Smart Response Technology for Intel® Core ™ processors |
| USB |
Intel® B560 Chipset 2x USB 3.2 Gen 2 10Gbps ports 3x USB 3.2 Gen 1 5Gbps ports 6x USB 2.0 ports |
| AUDIO |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| WIRELESS LAN & BLUETOOTH |
Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2, FIPS, FISMA |
| INTERNAL CONNECTORS |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector 1x USB 2.0 connector 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper |
| LED FEATURE |
4x EZ Debug LED 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector |

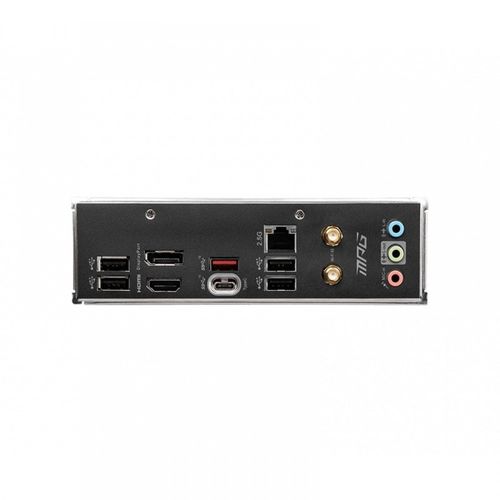

| BACK PANEL PORTS |
DisplayPort USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Wi-Fi/Bluetooth USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-C USB 2.0 Audio Connectors |
| DIMENSIONS |
Mini-ITX Form Factor 6.7 in. x 6.7 in. |
| MOUNTING | 4 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
