- MSI MPG B560I Gaming Edge Wifi DDR4 AMD Motherboard
Description

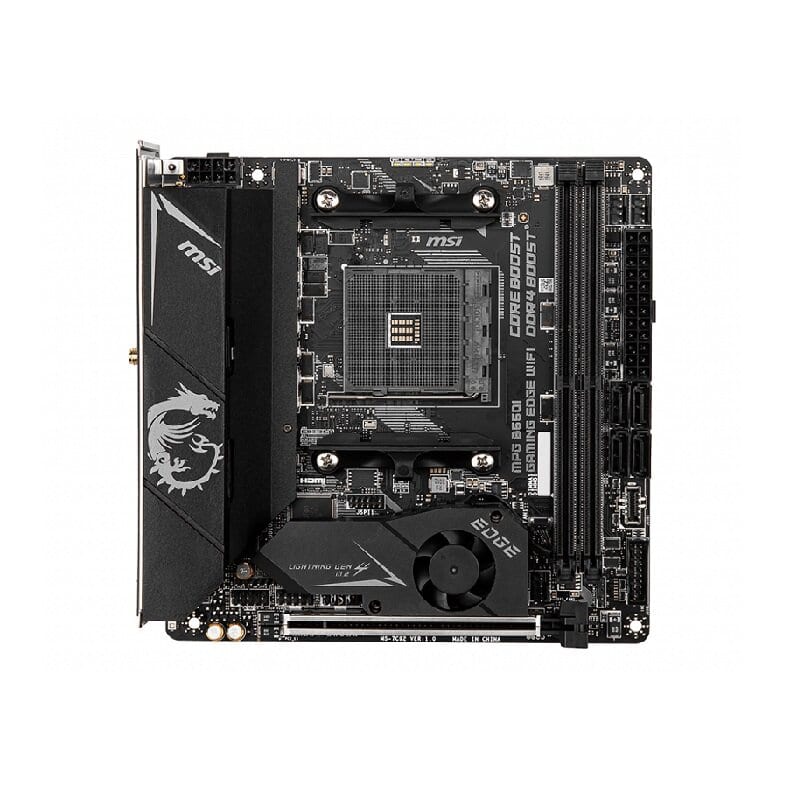

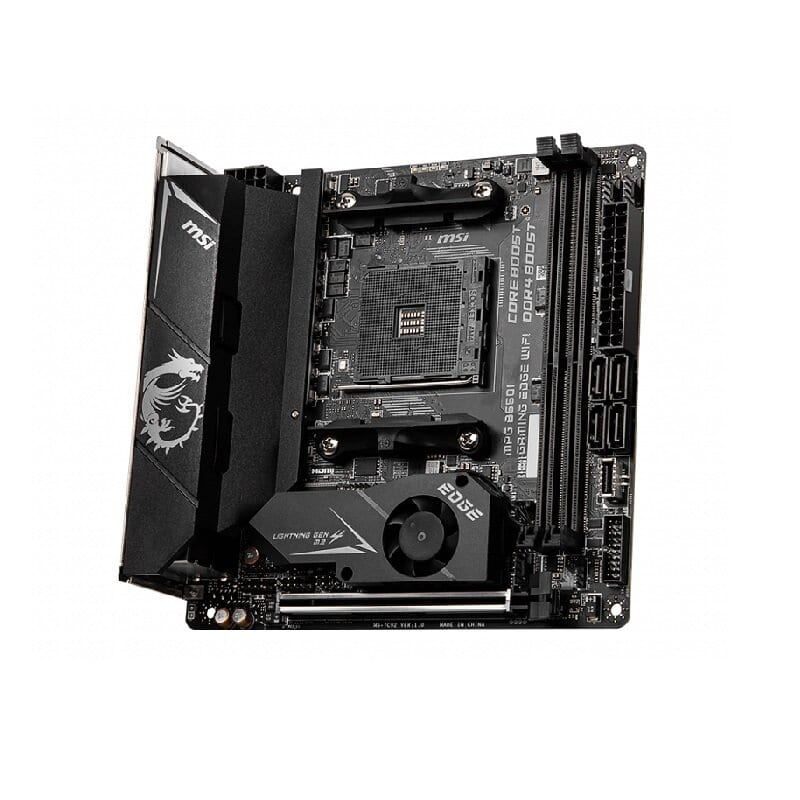

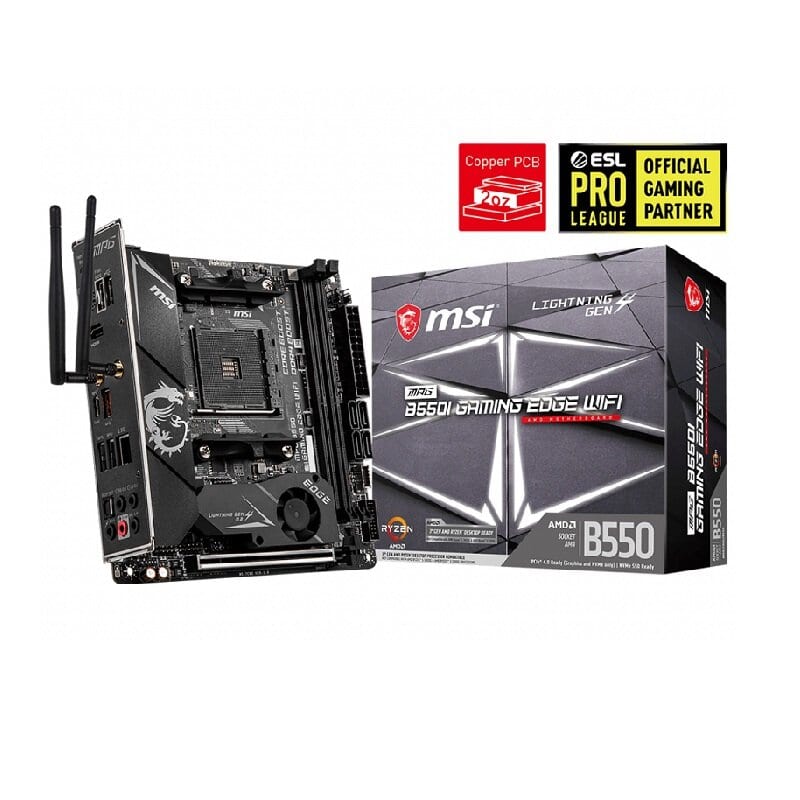

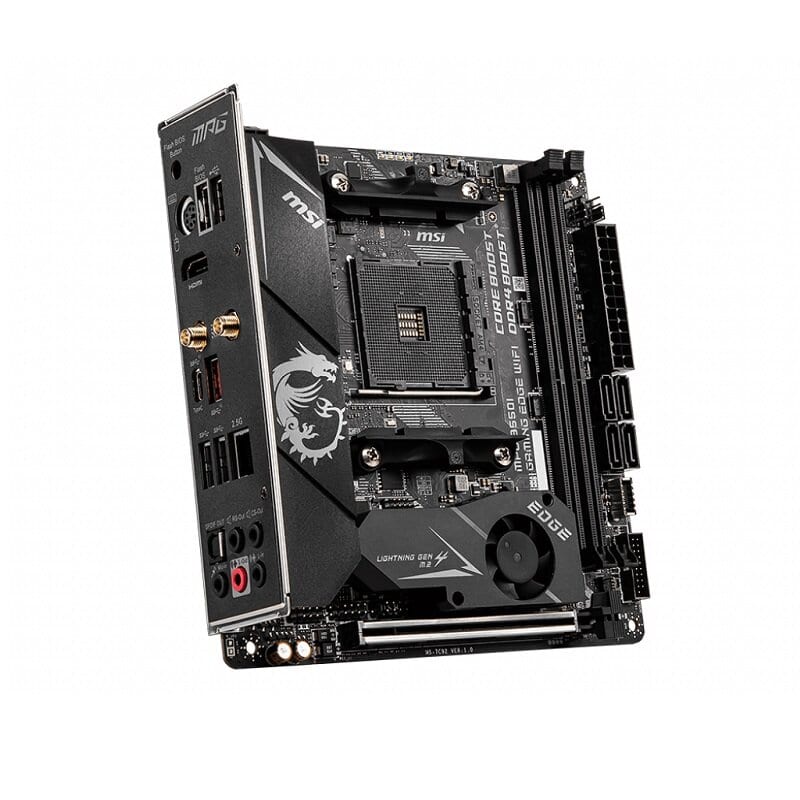

MSI MPG B550I Gaming Edge WiFi Motherboard
Features:
- Support for 3srd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
- Supports DDR4 Memory, up to 4600(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, AMD Turbo USB 3.2 Gen 2 10Gbps and Front USB Type-C connector
- Enhanced Power Design: 8 2 1 Digital Power Design with Dr.MOS 60A, Core Boost, DDR4 Boost
- Premium Thermal Solution: Extended Heatsink Design, M.2 Shield Frozr and 8 layer PCB with 2oz Thickened Copper are built for high performance system and non-stop gaming experience
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- HDMI 2.1: Support 4K display with up to 4096x2160@60Hz
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Audio Boost: Reward your ears with studio grade sound quality
Specifications:
| Motherboard | |
| CPU | Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update |

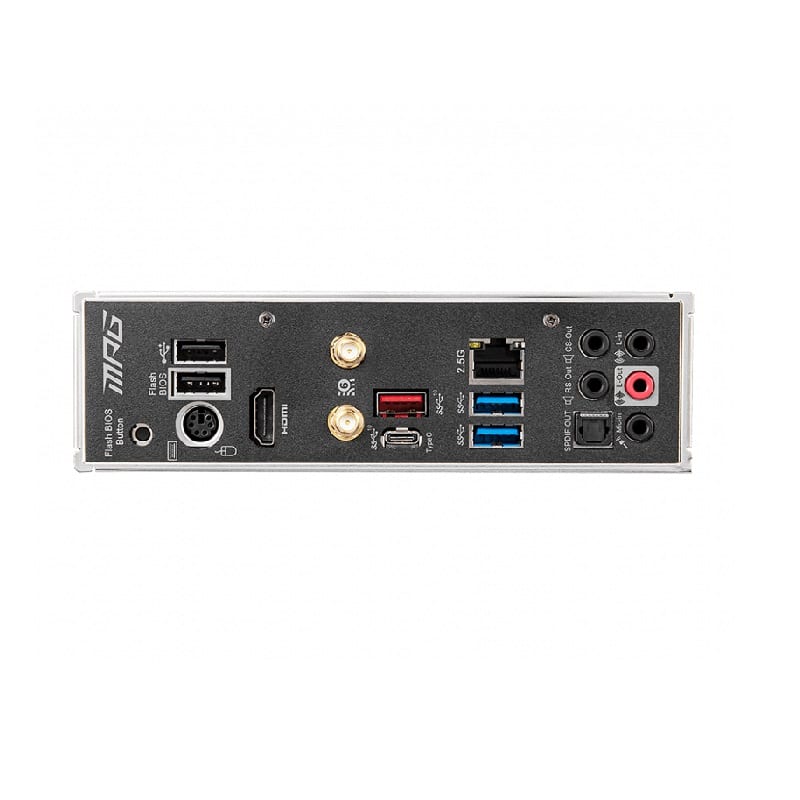

| Back Panel I/O Ports | USB 2.0 Wi-Fi / Bluetooth USB 3.2 Gen 2 10Gbps (Type-A) LAN Port HD Audio Connectors BIOS Flashback Button PS/2 Combo Port HDMI Port USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF OUT |
| Chipset | AMD B550 Chipset |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x 3-pin RAINBOW LED connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED |
| Memory | 2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4466/ 4533/ 4600 MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHZ 1DPC 2R max speed 4000 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports un-buffered memory Please refer www.msi.com for more information on compatible memory. |
| Onboard Graphics | 1x HDMI 2.0/ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 Maximum shared memory of 2048 MB Available for the processor with integrated graphics. |
| Expansion Slots | 1x PCIe 4.0/ 3.0 x16 slot 1 The supported specification depends on installed processor. |
| Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2280 storage devices The supported specification depends on installed processor. |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Wireless LAN & Bluetooth | Intel® AX200 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.1 |
| USB | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port) on the back panel 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Audio | Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| I/O Controller | NUVOTON NCT6687-R Controller Chip |
| DIMENSION** | Mini-ITX Form Factor 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) |
| Warranty** | 3 Years |
| **Note | Price, feature and specifications are subject to change without notice. |
