- MSI MPG A850 PCIE5 850W 80 + Gold Fully Modular ATX 3.0 Power Supply
Description
Feature Of MSI MPG A850 PCIE5
- Supports Nvidia® GeForce RTXTM 40 Series graphics cards

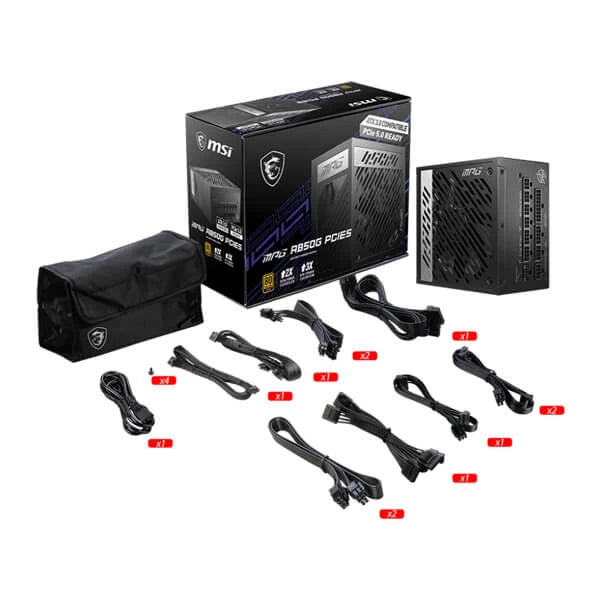

- Full modular design
- Flat cables
- MSI MPG A580 PCIE5 850W PSU 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
80 PLUS GOLD CERTIFIED
The efficiency of your MSI Power Supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
SINGLE-RAILED DESIGN
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
GPU SUPPORT FOR ALL
The gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
Get the best 80 Plus Gold computer smps price from us today!
SYSTEM BUILD
The power supply can be easily placed and installed into your build.
Specifications Of MSI MPG A580 PCIE5
Efficiency Rating | 80 PLUS Gold (up to 90%) |
Modular | Yes (full modular) |

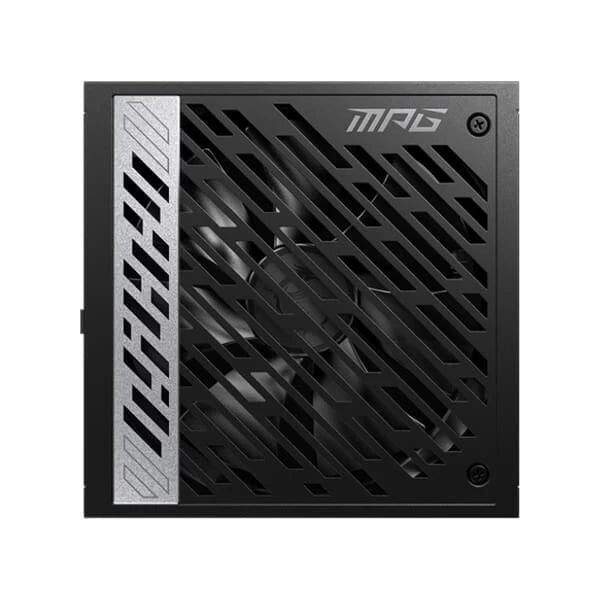

Fan Size | 135 mm |
Fan Bearing | Fluid Dynamic Bearing |
Dimensions (DxWxH) | 150 x 150 x 86 mm |
PFC Type | Active PFC |
Input Voltage Range | 100-240 |
Power Watt | 850W |
Power Excursion | 1700W (*up to 200% of the PSU's rated power for 100μs) |
Input Frequency Range | 50~60 Hz |
Protection | OCP / OVP / OPP / OTP / SCP / UVP |

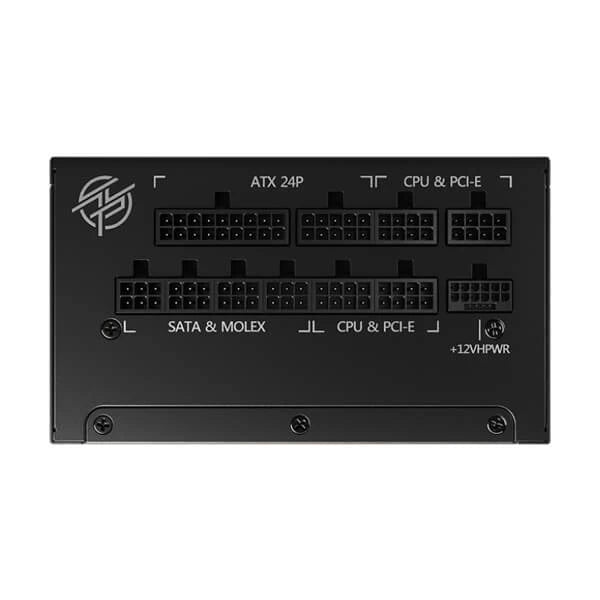

ATX (24 pin) | 1 |
EPS (4+4 pin) | 2 |
PCI-E 5.0 (16 pin) | 1 (600W) |
PCI-E (6+2 pin) | 6 |
SATA (15 pin) | 8 |
MOLEX (4 pin) | 4 |
FDD (4 pin) | 1 |
Warranty | 10 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
