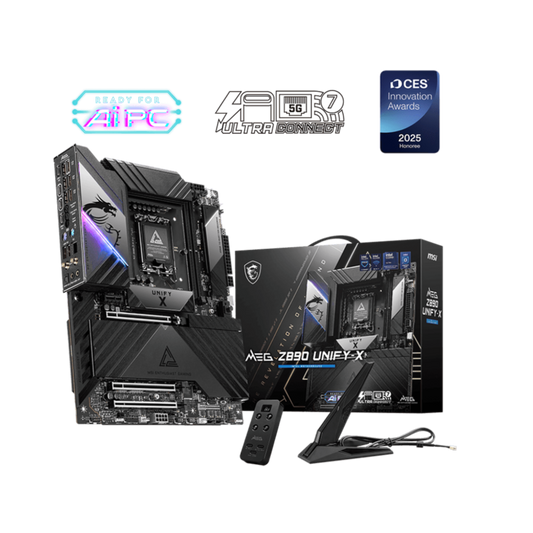

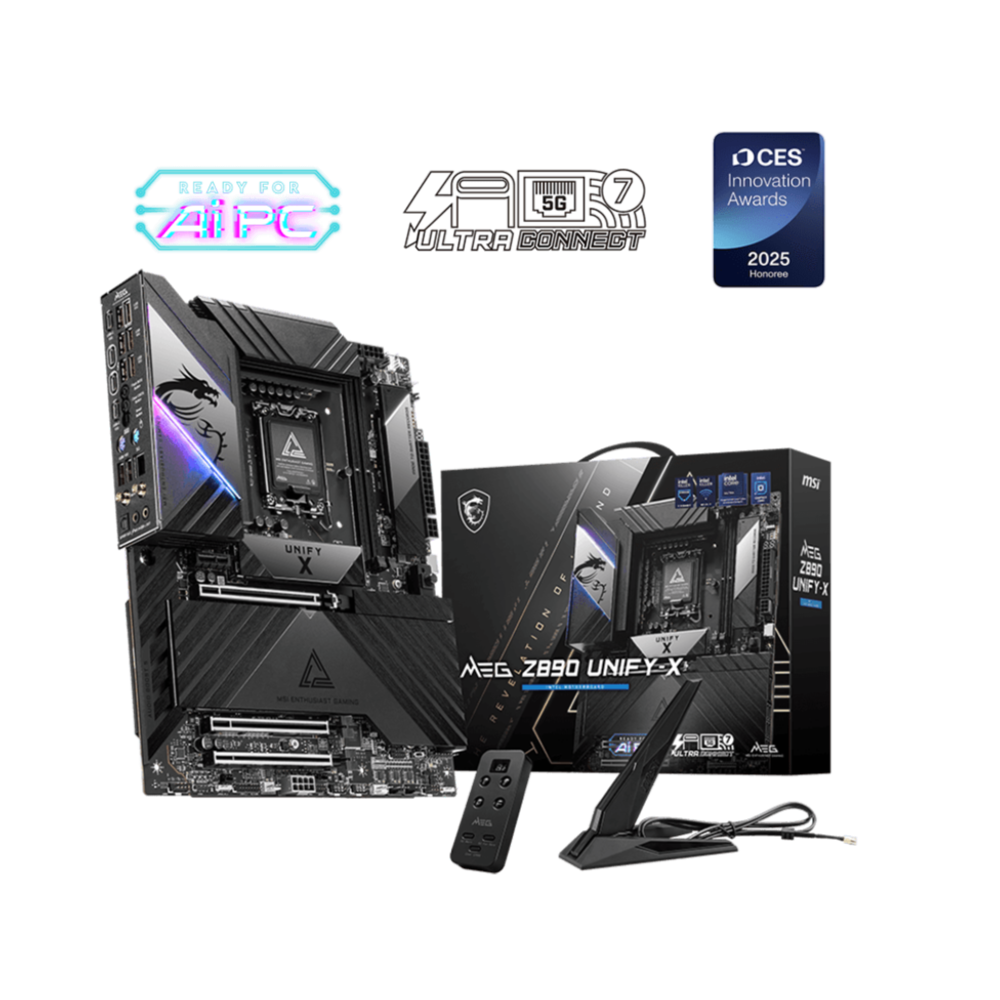

MSI MEG Z890 Unify-X Wifi7 DDR5 Intel Motherboard

A host of features inject artificial intelligence into key aspects of your computing experience to make smarter, real-time optimizations. The MSI Center offers a clean, minimal interface to customize and manage your PC settings. The AI Engine, for example, automatically adjusts settings based on the applications you're using, ensuring seamless performance.

EZ OVERCLOCKING

While overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features for both processor and memory, allowing users to easily enhance system performance without delving into intricate settings.

GAME BOOST

One-click CPU overclock automatically optimizes your CPU performance, instantly tuning it to the best possible level.

AI BOOST

An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need additional horsepower.

XMP

Choose from preset XMP profiles to automatically overclock compatible DDR memory for optimal performance.

AI BOOST

MSI AI Boost offers three-stage NPU overclocking, allowing users to adjust NPU performance based on their specific needs. This easy-to-use feature makes NPU overclocking both convenient and accessible, enabling users to boost NPU power effortlessly. Tested by MSI OC LAB, AI Boost can achieve up to a 27% performance increase, significantly improving AI computing tasks.

DIRECT 20+2+1+1 POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 20+2+1+1 digital power phases. Combining dual power connectors and 110A Smart Power Stage, MEG Z890 UNIFY-X is ready for the challenge of high-end processors.

OC ENGINE

OC Engine is a precision clock generator for extreme overclocking, allowing users to adjust base clock (BCLK) frequencies independently for enhanced CPU performance. It ensures stability while pushing system limits, making it ideal for overclocking enthusiasts aiming to maximize performance and achieve new records with safety and control.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE

Designed specifically for record-breaking DDR5 memory overclocking with its dedicated 2 DIMM architecture. Combines with dedicated SMT welding process and MSI Memory Boost technology, MEG Z890 UNIFY-X is ready to deliver the world class memory performance.

MEMORY SUPPORT STAND

The aluminum backplate cools down your motherboard, while the dedicated sunken design strengthens the memory slot area to prevent PCB bending and to protect surrounding components.

MEMORY FORCE

MSI MEG series motherboards feature exclusive Memory Force function, which displays the current overclocking capability of your DDR5 memory. This feature simplifies the complicated memory training flow into an easy graphic score that helps you determine the direction of memory overclocking without redundant reboot and testing process.

Memory Extension Mode

Memory Extension Mode provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. Furthermore, Memory Extension Mode can combine XMP profiles to maximize memory frequency, enabling users to effortlessly discover the best configuration based on their requirements.

Transient Voltage Suppressors (TVS)

Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

Aluminum Cover

Fully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.

Direct Touch Cross Heat-pipe

The U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.

Double-sided M.2 Shield Frozr

Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.

9W/mK Thermal Pad

High quality 9W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

Metal Backplate

The metal baseplate cool down the MOSFET temperature with dedicated thermal pads.

Enlarged PCH Heatsink

MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

THE NEXT GEN WI-FI SOLUTION – WI-FI 7

Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

FAST AND FUTURE-READY STORAGE

MSI MEG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Specifications of MSI MEG Z890 Unify-X Wifi7 DDR5 Intel Motherboard
