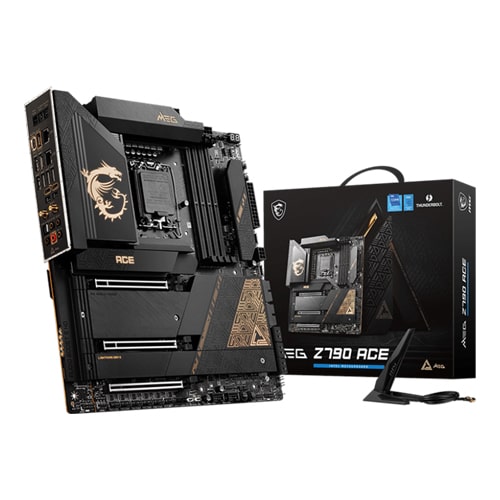

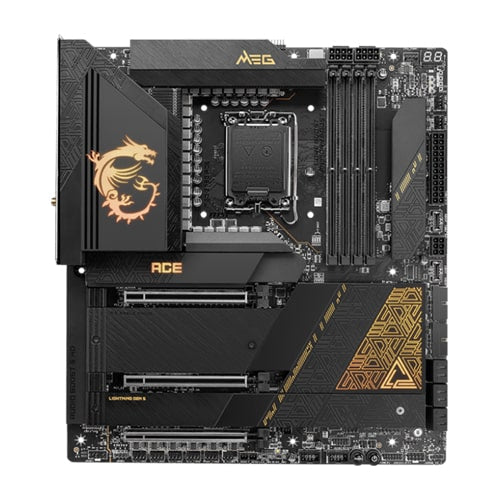

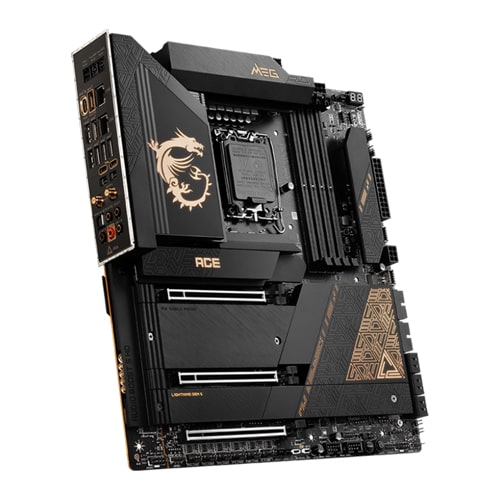

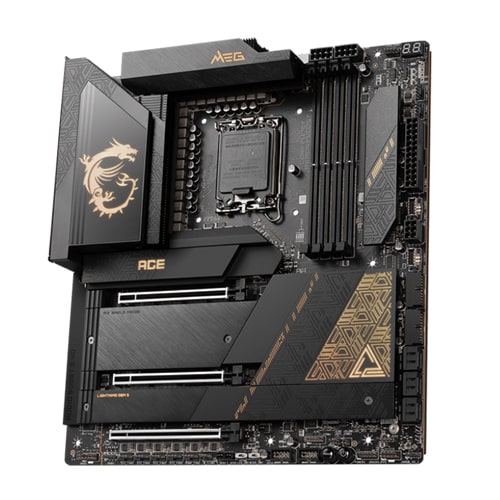

- MSI MEG Z790 Ace Wifi DDR5 Intel Motherboard
Monsoon Sale Offer
Description
Features of MSI MEG Z790 Ace Wifi DDR5 Intel Motherboard
Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
Dual Thunderbolt 4 ports:
Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Extreme Power Design:
24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
Maximum 5 x M.2 Connectors:
Onboard quintuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Outstanding Cooling Solution:
Stacked Fin Array, Direct Touch Cross Heat-pipe, Aluminum Backplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.
Dual 2.5G LAN with latest Wi-Fi 6E solution:
Onboard dual 2.5G LAN with the latest MSI MEG Z790 Ace Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning Fast Game experience:
PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2×2 20G with one 60W USB Power Delivery.
DIY Friendly Design:
Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
8 Layer PCB with 2oz Thickened Copper:
Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD:
Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience
Specifications of MSI MEG Z790 Ace Wifi DDR5 Intel Motherboard
Chipset | INTEL Z790 |
CPU Support |
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC) /6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC) /5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz |
Onboard Graphics |
1x Type-C DisplayPort Supports a maximum resolution of 4K 60Hz |
Onboard Thunderbolt |
Thunderbolt chip JHL8540 2x Thunderbolt4 (USB-C) ports Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
Expansion Slot |
3x PCI-E x16 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
Multi-GPU | Supports AMD MULTI-GPU |
Storage |
5x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 6x SATA 6G port |
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
USB |
4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 2x USB 3.2 Gen2x2 Type C (Front) |
LAN | 2x Intel® 2.5Gbps LAN |
Wireless / Bluetooth |
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA |
Audio |
Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
Internal I/O |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 2x USB 3.2 Gen 2×2 Type C V-check point |
LED Features |
1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |

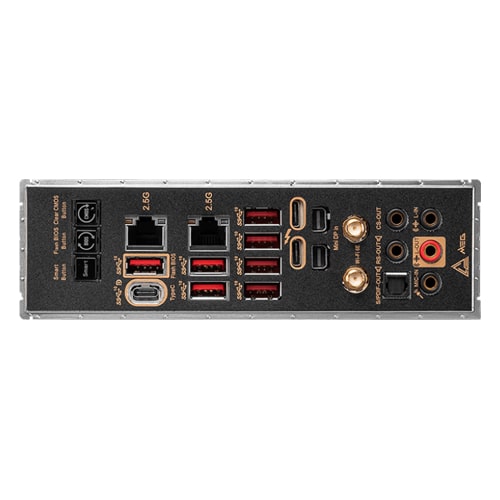

Back Panel Ports |
Clear CMOS Button Flash BIOS Button 2.5G LAN 2.5G LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors Smart Button USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out |
Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB Dimension |
E-ATX 277mmx304.8mm |
Warranty | 3 Years |
Note** | **Prices, Specifications & Features are subject to change without notice |
