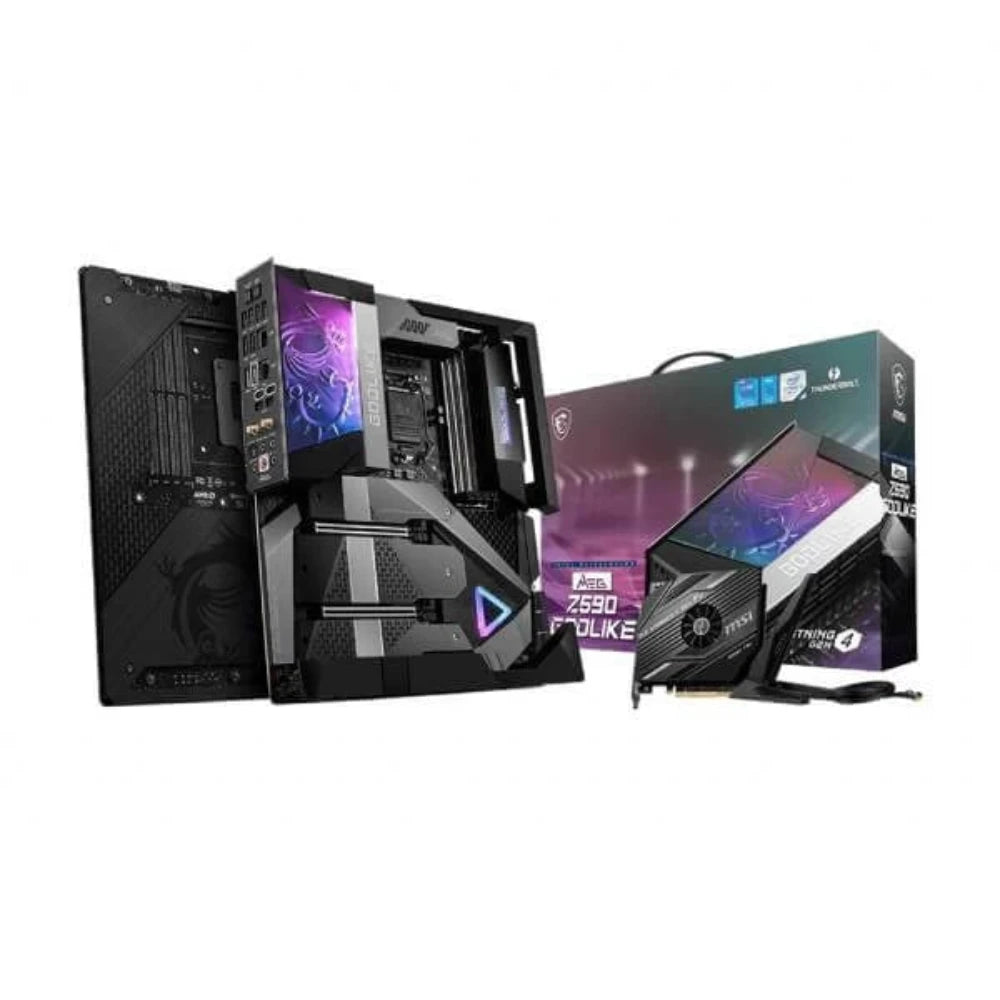

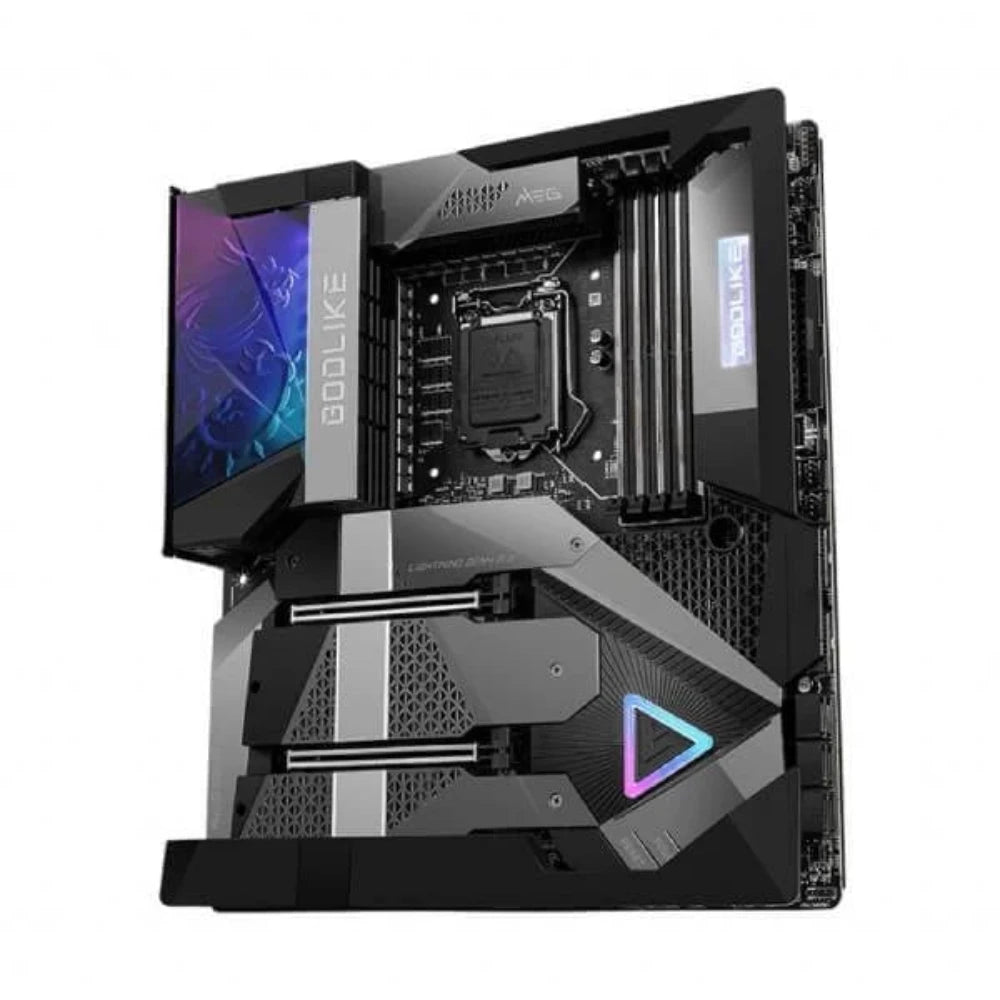

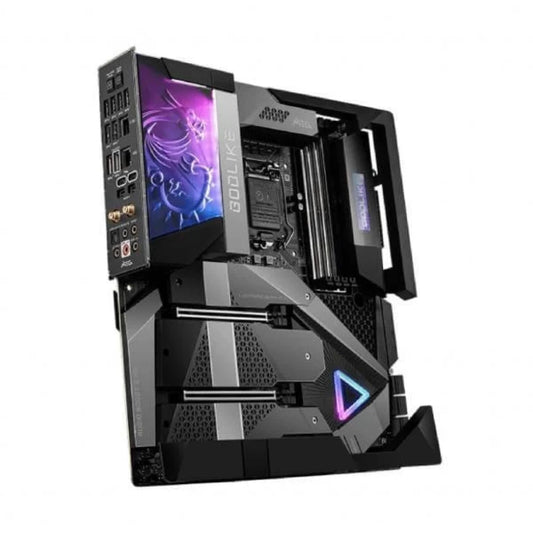

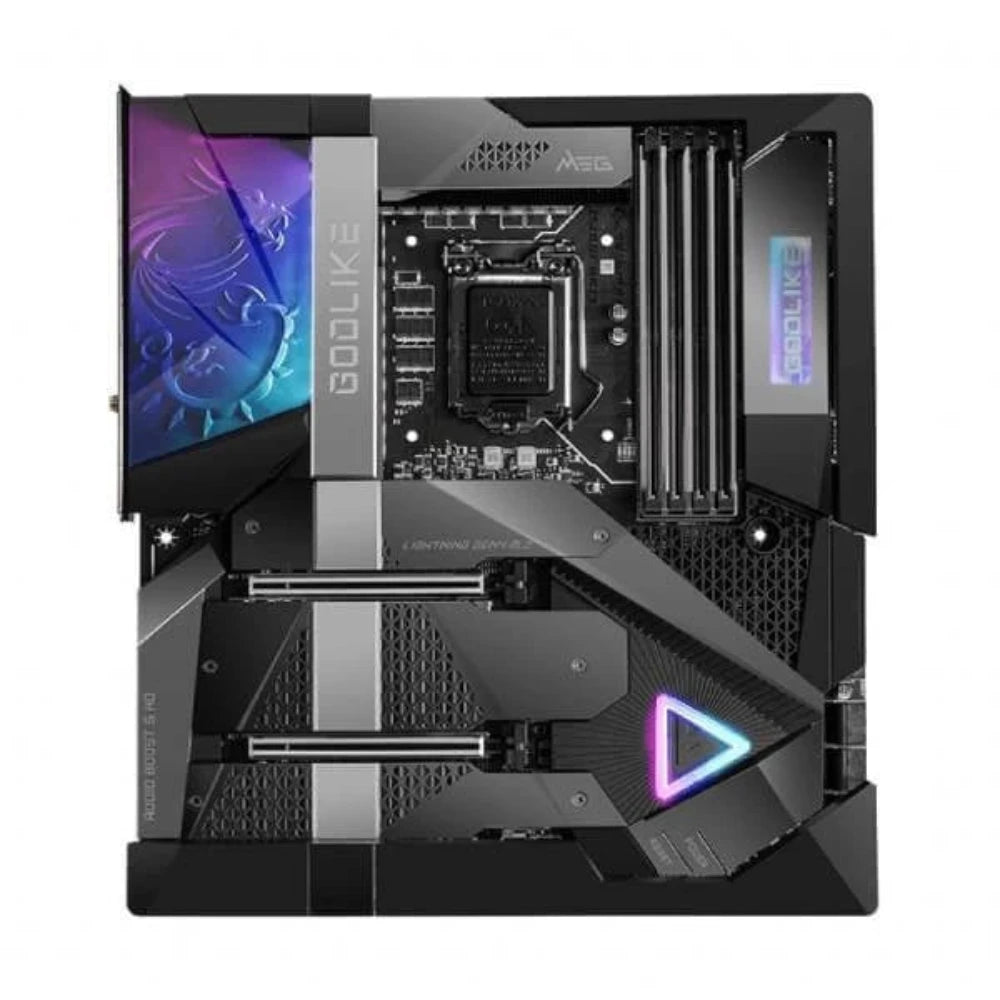

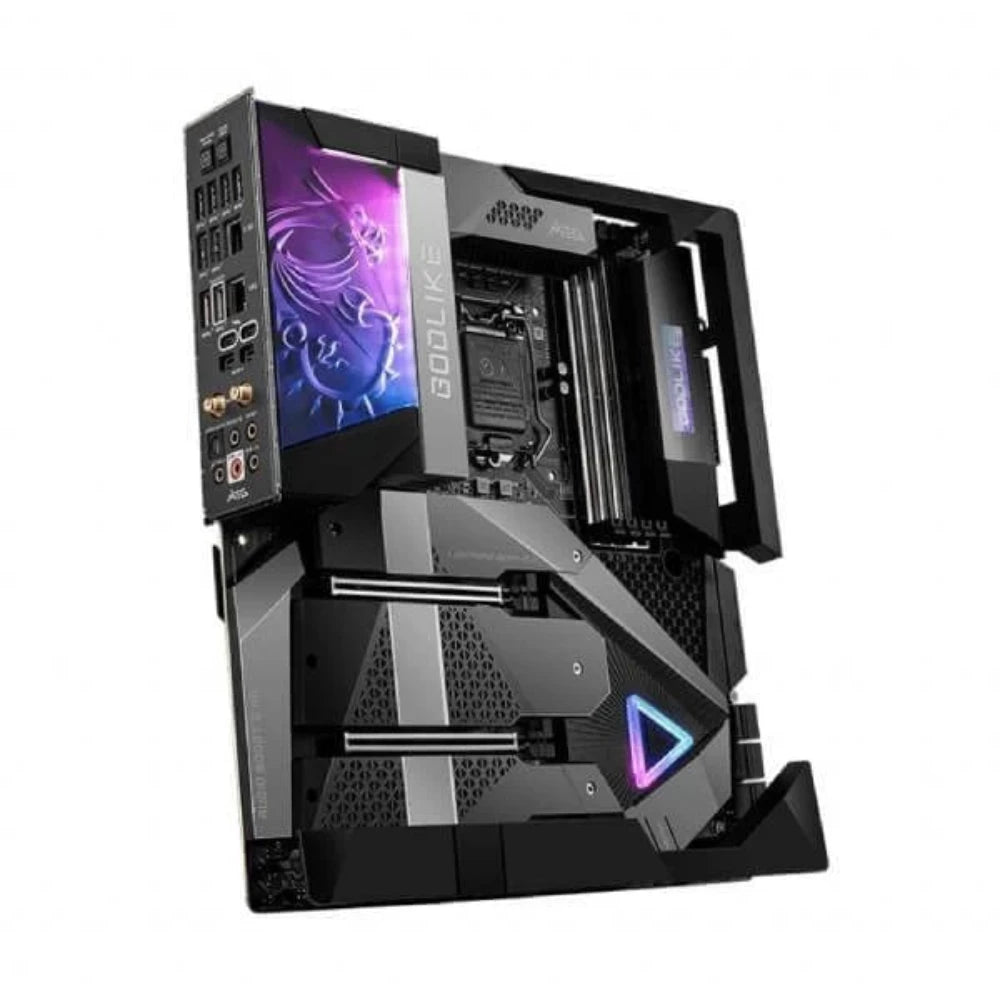

MSI MEG Z590 Godlike DDR4 Intel Motherboard

Write a review

Out of stock

Rs. 94,499.00 Rs. 129,000.00

Discount: Rs. 34,501.00 (27%)

35 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: 12 September,2024 - 16 September,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Feature of MSI MEG Z590 Godlike DDR4

MSI MEG Z590 Godlike DDR4 gives the most immersive audio experience as it comes with studio sound quality. Now show off your PC build without messy cables with help of a revolutionary magnetic cover when installing a great number of devices. With the help of dynamic dashboard II and built colorful OLED screen panel shows the true status of godlike.

Supports 11th and 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5600(OC) MHz
Extreme Power Design: INTERSIL digital PWM, direct 20 phases with 90A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the maximum performance.
Premium Thermal Module: Wavy fin design, 8mm heatpipe, 7W/mK thermal pads, Frozr Heatsink and Aluminum Backplate ensure the extreme performance with low temperature.
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Dynamic Dashboard II: Built-in colorful OLED screen panel indicates the status of GODLIKE and shows off your own personality.
Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and latest Wi-Fi 6E solution deliver the best online experience without lag.
Full Armor Design: The revolutionary magnetic cover allow you showing off your PC building without messy cable when installing great amount of devices.
Special Accessory: Exclusive accessories boost the performance and user experience - M.2 XPANDER-Z GEN 4 S, Tuning Controller and DIY Stands set.

LIGHTNING GEN 4 M.2

Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

FAST AND FUTURE-READY STORAGE

MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD

PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel^® Optane™ Memory device. Intel^® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.

EASY RAID SETUP WITH M.2 GENIE

Looking to go all out in terms of raw data speed and put multiple SSDs in RAID 0? Setting this up can prove to be quite the challenge. That’s why we created M.2 Genie, a brilliant feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

MEMORY FORCE – EASY TUNING YOUR DDR4 MEMORY

MSI MEG series motherboards feature exclusive Memory Force function which shows the current state of DDR4 memory. This patent-pending feature simplifies the complicated training flow to an easy graphic that helps you determine the direction of overclocking without the redundant reboot and testing process

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

MSI CENTER

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

CLICK BIOS 5

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records

RESIZABLE BAR (RE-SIZE BAR)

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

Specifications of MSI MEG Z590 Godlike DDR4

PROCESSOR	Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® processors 1 Processor socket LGA1200
CHIPSET	Intel® Z590 Chipset
MEMORY	4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)Max. overclocking frequency:1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOTS	3x PCIe x16 slotsSupport x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4 PCI_E1 & PCI_E2 slots (From CPU)Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E3 slot (From Z590 chipset)Supports up to PCIe 3.0 PCI_E3 will run at x1 speed when installing device in M2_4 slot.
MULTI-GPU	Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology
THUNDERBOLT 4	2x Thunderbolt™ 4 (Type-C) ports on the back panelSupport up to 40 Gbps transfer rate with Thunderbolt devices Support up to 20 Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A , 15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)
STORAGE	6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M)M2_1 (from CPU)Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 & M2_4 slots (from Z590 chipset)M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot. M2_4 will run at x2 speed when installing device in PCI_E3 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB	Intel® Z590 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel and 1 Type-C internal connector) 2x USB 2.0 ports are available through the internal USB 2.0 connector Hub GL850G 2x USB 2.0 ports are available through the internal USB 2.0 connector Asmedia® 1074 Chipset 10x USB 3.2 Gen 1 5Gbps ports (6 Type-A ports on the back panel, 4 ports are available through the internal USB 3.2 Gen 1 connectors)
AUDIO	Realtek® ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Aquantia® AQC107 10Gbps LAN controller 1x Intel® I225-V 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH	Intel® WiFi-6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 , FIPS, FISMA
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x Chassis intrusion connector 2x 2-pin Thermal sensors connectors 1x TPM module connector 1x Tuning controller connector
LED FEATURE	1x 2-Digit Debug Code LED 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 1x EZ LED Control switch

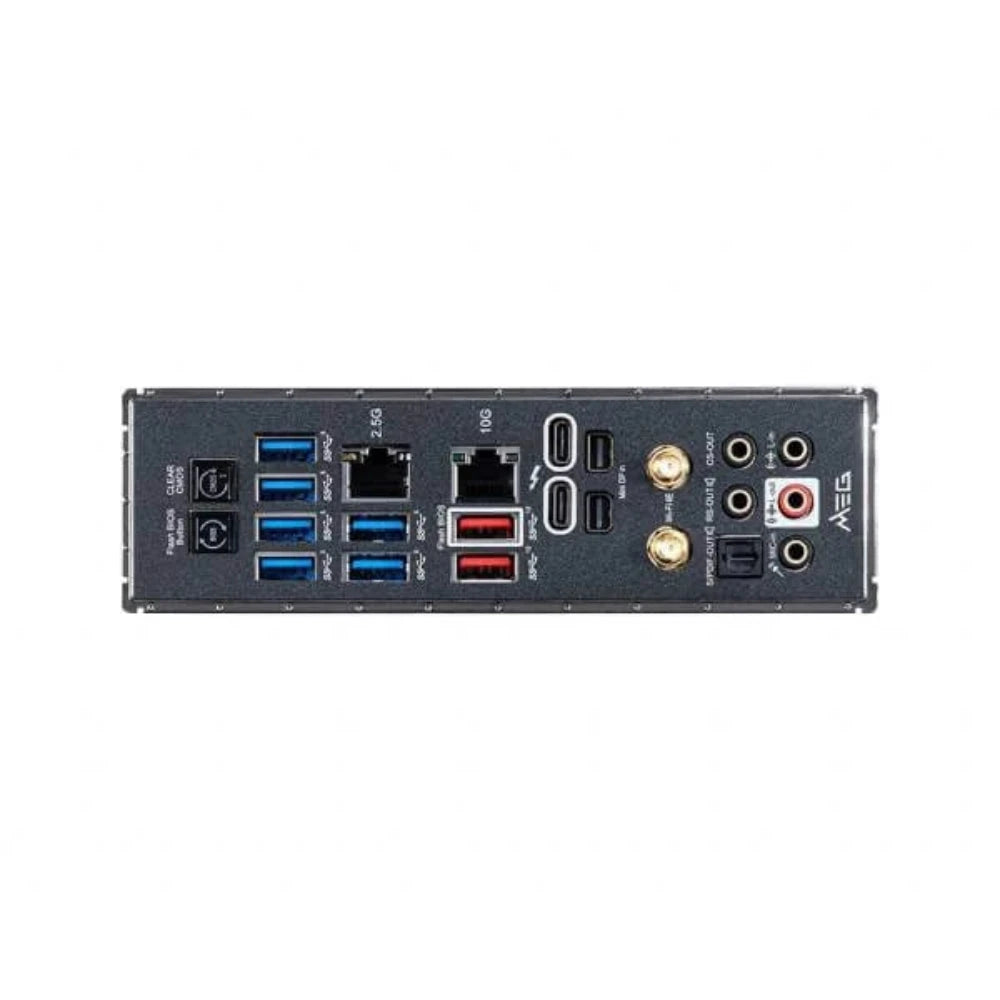

BACK PANEL PORTS	Clear CMOS Button 2.5G LAN 10G Super LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button USB 3.2 Gen1 5Gbps (Type-A) USB 3.2 Gen2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out
DIMENSIONS	12 in. x 10.9 in. (30.5 cm x 27.7 cm) E-ATX Form Factor
MOUNTING	9 mounting holes
OPERATING SYSTEM	Support for Windows® 10 64-bit
Warranty	3 Years
