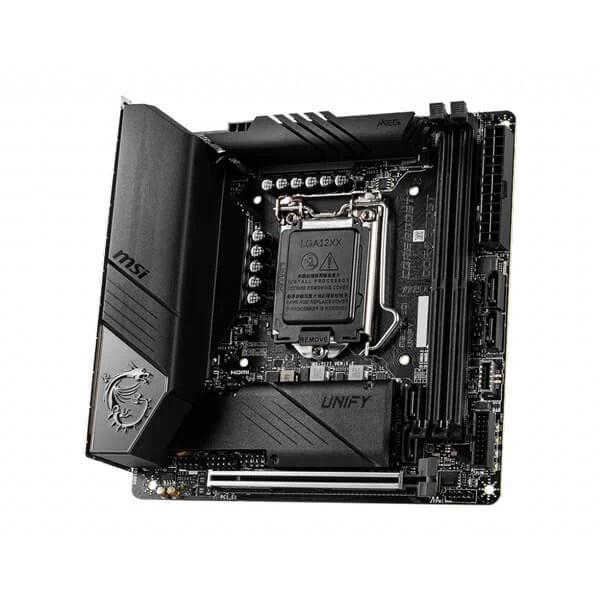

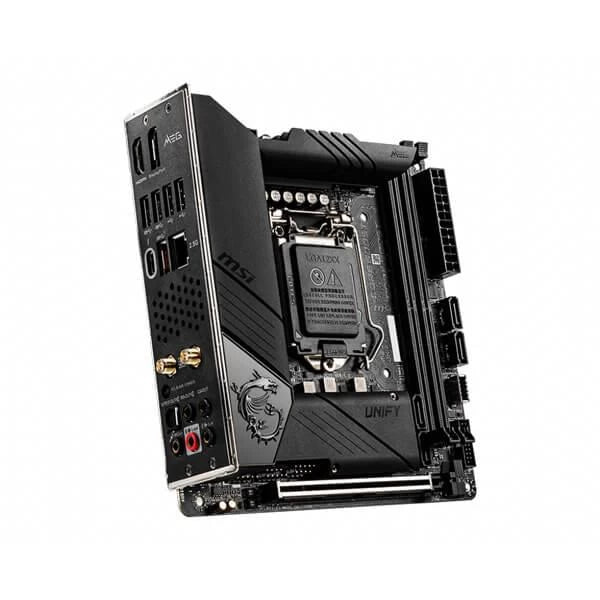

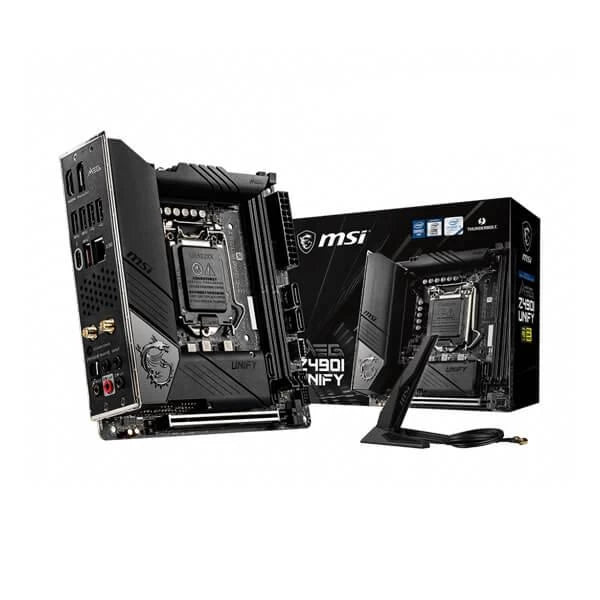

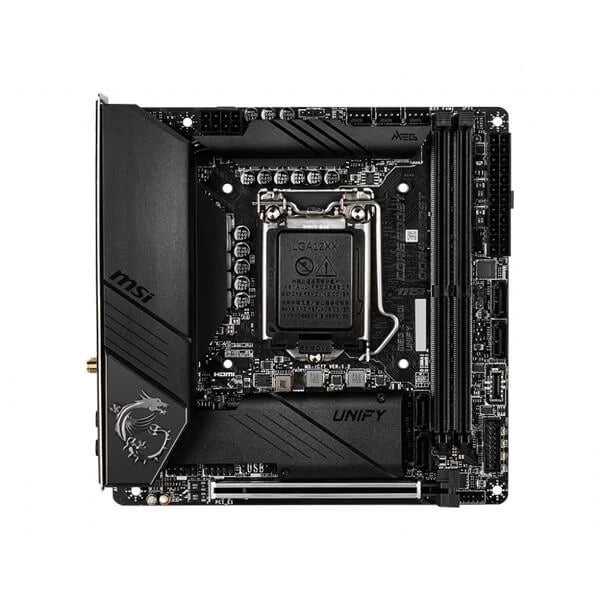

- MSI MEG Z490I Unify DDR4 Intel Motherboard
Description
Feature of MSI MEG Z490I UNIFY DDR4
Now maximise the performance for NVMe based SSDs with Twin Turbo M.2 alongside Shield Frozr running at PCI-E Gen3 x4. The transfer speeds can go up to 32 Gb/s for the latest SSDs. MSI MEG Z490I UNIFY comes with pre-installed I/O Shielding. This helps to provide convenience for installation and better EMI protection.
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5000(OC) MHz
- Ready 4 the Future: Support Lightning Gen 4 Solution for the future
- Thunderbolt™ 3 ports: Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices.
- Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.
- Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp.
- Latest Network Solution: Onboard 2.5G LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.
- Twin Turbo M.2 with Shield Frozr: Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs.
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
The MSI MEG Z490I Unify DDR4 series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our existing arsenal with new innovative technology; this results in significant improvements in operational and gaming efficiency. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for enthusiasts who want it all.
PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
Specifications of MSI MEG Z490I UNIFY DDR4
Processor | Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors |
Chipset | Intel® Z490 Chipset |
Memory |
2x DDR4 memory slots, support up to 64GB Supports 1R 2133/2666/2933 MHz1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4500+ MHzSupports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel® Extreme Memory Profile |
Expansion Slots | 1x PCIe 3.0 x16 slot |
Onbaord Graphics |
1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz Intel® JHL7540 Thunderbolt™ 3 Controller 1x Thunderbolt™ 3 port on the back panelSupports Thunderbolt™ 3 with a maximum resolution of 3840x2160 @60Hz or DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 HzMaximum shared memory is 1GB |
Thunderbolt™ 3 |
Intel® JHL7540 Thunderbolt™ 3 Controller 1x Thunderbolt™ 3 Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices Supports up to 10 Gbps transfer rate with USB 3.2 Gen2 10Gbps devices Supports up to 5V/3A , 15W power charging Supports Daisy-chain up to six Thunderbolt™ 3 devices |
Storage |
Intel® Z490 Chipset 4x SATA 6Gb/s ports 2x M.2 slots M2_2 supports up to PCIe 3.0 x4, 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors |
RAID |
Intel® Z490 Chipset Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices |
USB |
Intel® Z490 Chipset2x USB 3.2 Gen2 10Gbps ports 4x USB 3.2 Gen1 5Gbps ports 4x USB 2.0 ports Intel® JHL7540 Thunderbolt™ 3 Controller1x USB 3.2 Gen2 10Gbps Type-C port on the back panel |
Audio |
Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
Wireless LAN & Bluetooth |
Intel® AX201 The Wireless module is pre-installed in the M.2 slot Supports MU-MIM0 TX/RX, 2.4GHz/ 5GHz up to 2.4Gbps Supports 802.11ac WiFi 6 pre-certified Supports Bluetooth® 5.1, FIPS, FISMA |
Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots 1x USB 3.2 Gen2 10Gbps Type-C port 1x USB 3.2 Gen1 5Gbps connector 1x USB 2.0 connector 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 3-pin RAINB0W LED connectors 1xTPM module connector |
LED Features | 4x EZ Debug LED |

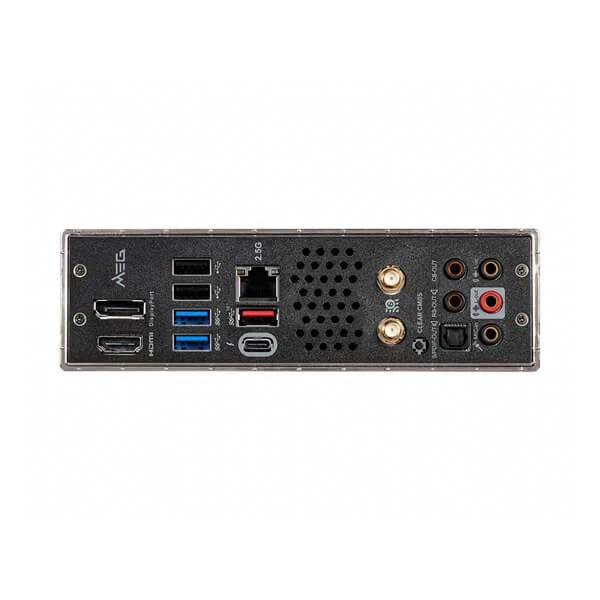

Back Panel Connectors |
Display port USB 2.0 ports 2.5G LAN Wi-Fi /Bluetooth Antenna Connectors HD Audio Connectors HDMI port USB 3.2 Gen1 5Gbps (Type-A) Thunderbolt 3 (40Gbps) USB 3.2 Gen2 10Gbps (Type-A) Clear CM0S Button 0ptical S/PDIF 0ut |
Dimensions |
6.7 in. x 6.7 in. Mini-ITX Form Factor |
Mounting | 4 mounting holes |
Operating System | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
