- MSI MEG Z490 Unify Motherboard
Description

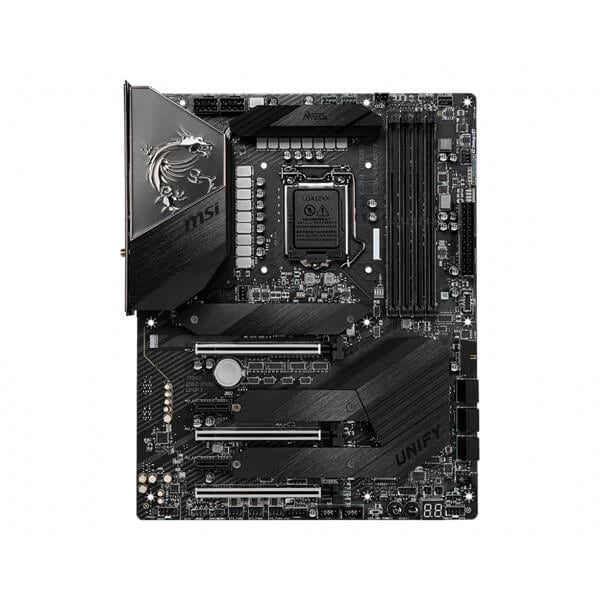

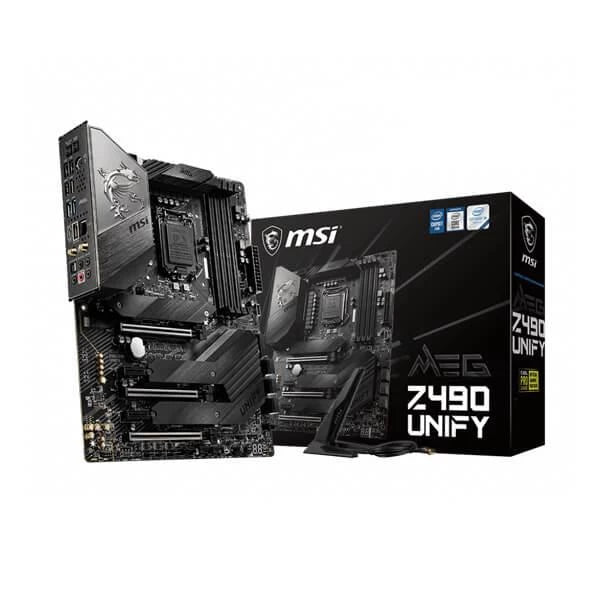

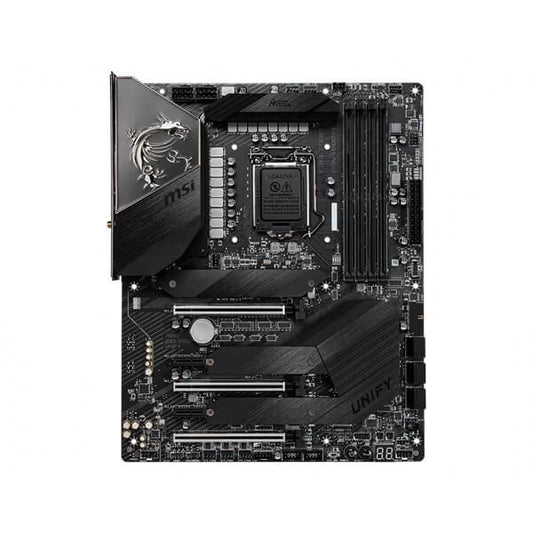

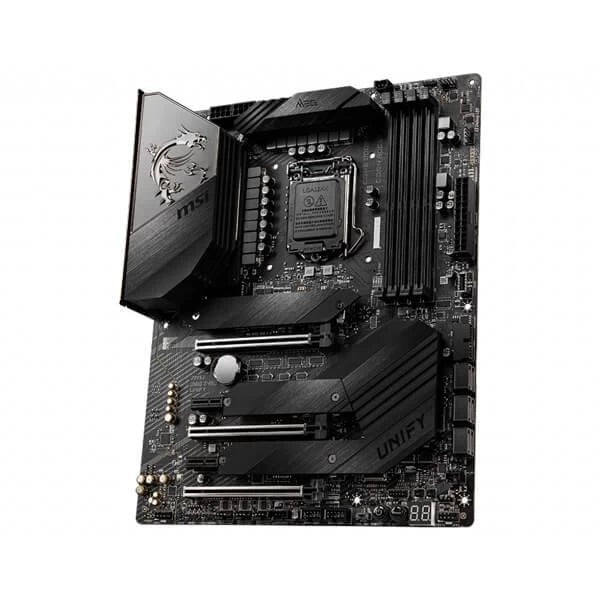

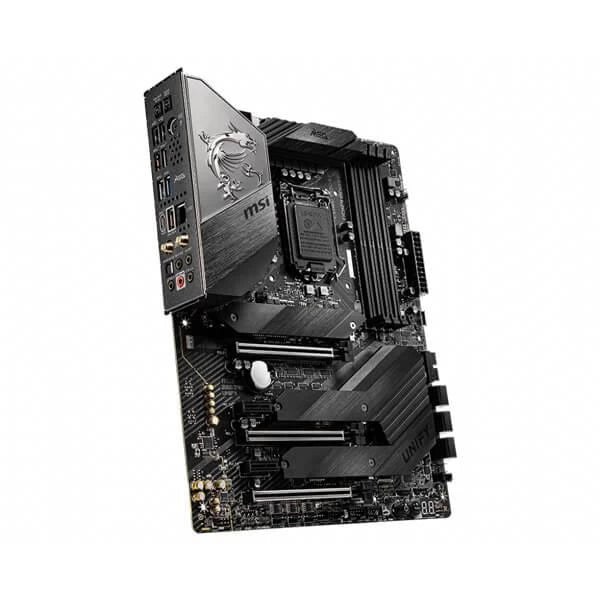

MSI MEG Z490 Unify Motherboard
Features:
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 4800(OC) MHz
- Ready 4 the Future: Support Lightning Gen 4 Solution for the future
- Extreme Power Design: INTERSIL digital PWM, 16+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
- Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp.
- Latest Network Solution: Onboard 2.5G LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.
- Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
- Triple Turbo M.2 with Shield Frozr: Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs.
- Audio Boost HD: Isolated audio with a high quality audio processor with ESS DAC & Nahimic for the most immersive gaming experience.
Specifications:
| Processor | Supports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 socket |
| Chipset | Intel® Z490 Chipset |
| Memory |
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/2666/2933 MHz1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slots |
3x PCIe 3.0x 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4) 2x PCIe x1 slots (from PCH) |
| Multi-GPU |
Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology |
| Storage |
Intel® Z490 Chipset 6x SATA 6Gb/s ports 3x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors |
| RAID |
Intel® Z490 Chipset Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices |
| USB |
Intel® Z490 Chipset 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia® 3241 chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel |
| Audio |
Realtek® ALC1220 Codec + ESS SABRE9018Q2C combo DAC 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| LAN | 1x Realtek® 8125B 2.5G LAN controller |
| WiFi & Bluetooth |
Intel® AX201 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot |
| Internal connectors |
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x slow mode jumper 1x power button 1x reset button 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector |

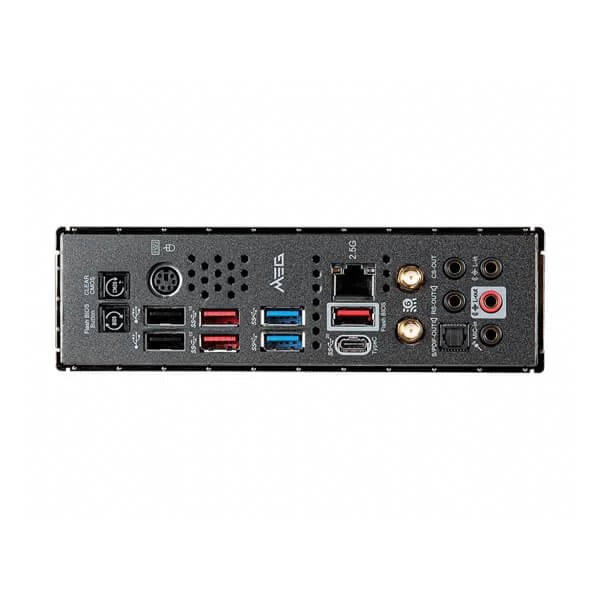

| Back panel ports |
Clear CMOS Button PS/2 Keyboard / Mouse Port 2.5G LAN Wi-Fi /Bluetooth Antenna Connectors HD Audio Connectors Flash BIOS Button USB 2.0 Ports USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out |
| Dimensions |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
