Description

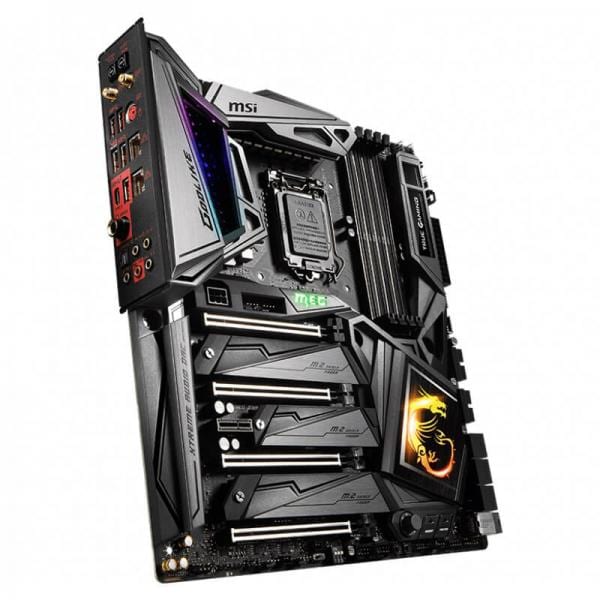

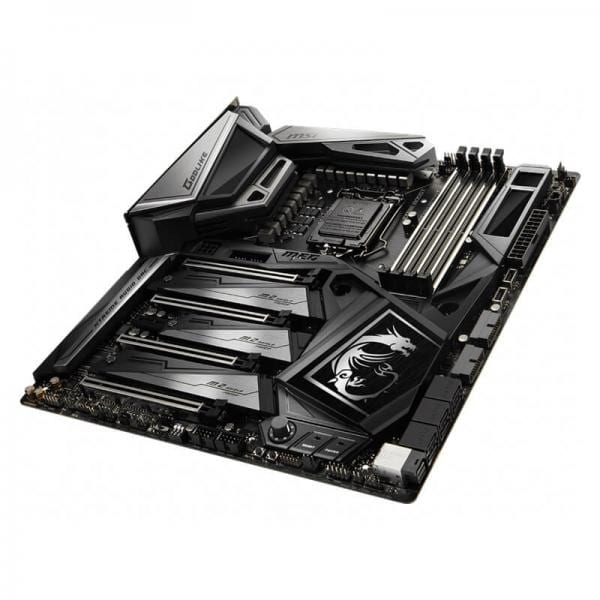

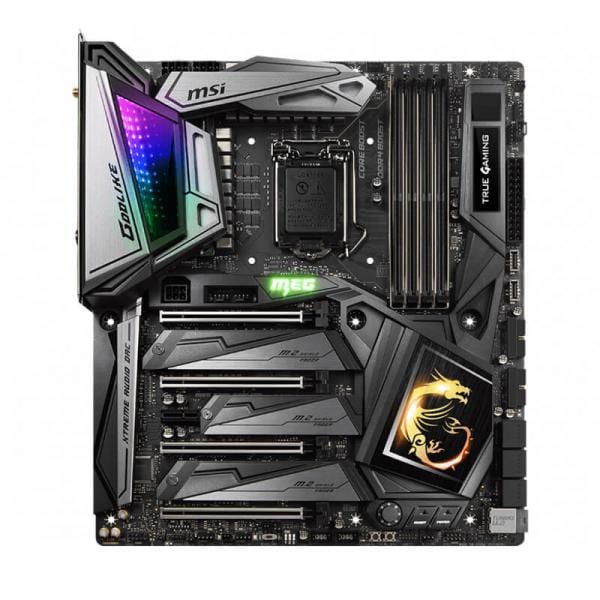

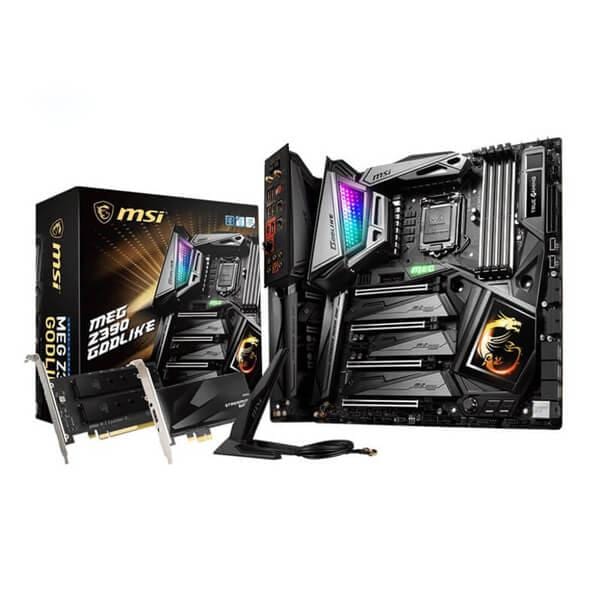

MSI MEG Z390 Godlike WiFi Motherboard
Features:
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4600(OC) MHz
- Mystic Light Infinity: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports both RGB and RAINBOW LED strip
- Dynamic Dashboard: Built-in dynamic panel that indicates the status of GODLIKE and shows off your own personality.
- Lightning Fast Game Experience: 1x Turbo U.2, 3x Turbo M.2 with Shield Frozr, Dual Front USB 3.1 Gen2 Type-C
- Xtreme Audio DAC: Isolated audio with ESS DAC, 2x audio processors & Nahimic to deliver the breathtaking sound quality with 384kHz/32-bit
- Killer xTend: Combine a built-in-switch with wireless extender. Killer fueled LAN & WIFI extender with ultimate traffic prioritization.
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Specifications:
PROCESSOR | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
CHIPSET | Intel® Z390 Chipset |
MEMORY |
4 x DDR4 memory slots, support up to 128GBSupports DDR4 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz
Dual channel memory architecture |
SLOTS |
4 x PCIe 3.0 x16 slots 1 x PCIe 3.0 x1 slot |
MULTI-GPU |
Supports 2-Way NVIDIA® SLI™ Technology Supports 4-Way AMD CrossFire™ Technology |
STORAGE |
Intel® Z390 Chipset 6 x SATA 6Gb/s ports1 3 x M.2 slots (Key M)1M2_1 & M2_3 support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready1 x U.2 port2Supports PCIe 3.0 x4 NVMe storageM.2_2 slot, U.2 port and SATA ports share the bandwidth. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
RAID |
Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID5 for M.2 PCIe storage devices |
USB |
Intel® Z390 Chipset 6 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 2 Type-C internal connectors) 4 x USB 2.0 (High-speed USB) ports through the internal USB connectors ASMedia® ASM1042 Chipset 2 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel ASMedia® ASM1074 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors |
AUDIO |
2 x Realtek® ALC1220 Codecs 7.1-Channel High Definition Audio Supports S/PDIF output ESS® E9018 Codec Supports 6.3mm Gold-plated stereo headphone out |
LAN | 2 x KillerTM E2500 Gigabit LAN controller |
WIFI & BLUETOOTH |
Killer™ 1550 Chipset The Wireless module is pre-install in the M2_4 (Key-E) slot Supports Wi-Fi 5, 2x2, Dual Band, (2.4GHz, 5GHz) up to 1.73 Gbps speed. Supports Bluetooth® 5 |
INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin ATX PCIe power connector 6 x SATA 6Gb/s connectors 3 x M.2 slots (M-Key) 1 x U.2 port 2 x USB 3.1 Gen2 Type-C ports 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 8 x 4-pin system fan connectors 1 x 3-pin Water Flow connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 2 x 2-pin Thermal Sensors connectors 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x 3-pin CORSAIR LED connector |

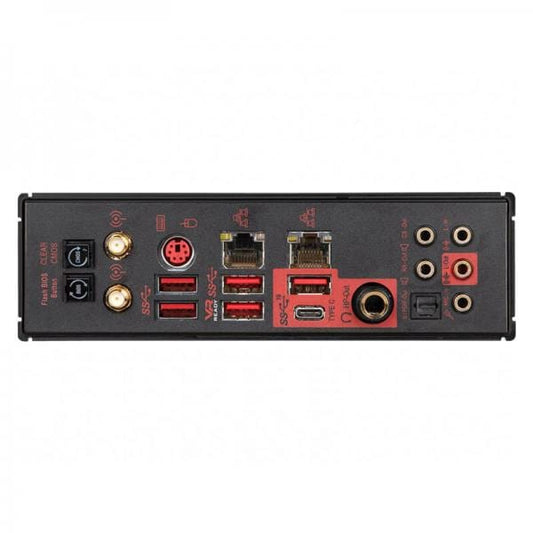

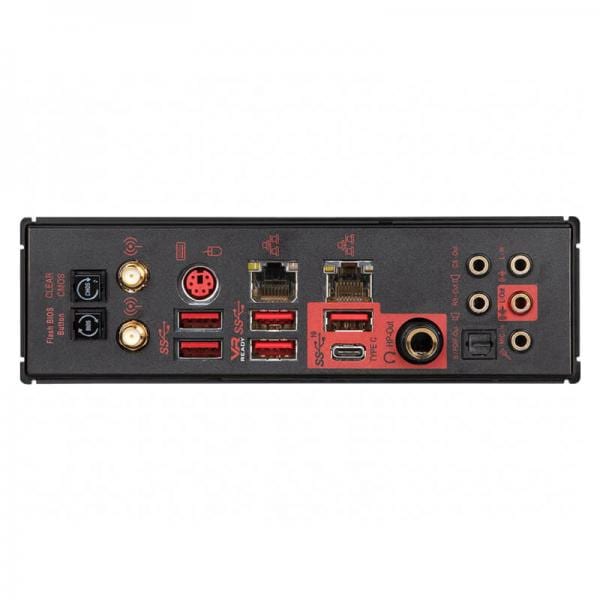

BACK PANEL PORTS |
Clear CMOS Button Wi-Fi /Bluetooth Antenna Connectors PS/2 GAMING Device Port Double Killer™ E2500 Gigabit LAN HD Audio Connectors Flash BIOS Button USB 3.1 Gen1 Ports USB 3.1 Gen2 Ports USB 3.1 Gen2 Ports Type-A C 6.3mm headphone Optical S/PDIF-Out |
DIMENSIONS |
12 in. x 10.7 in. (30.5 cm x 27.2 cm) E-ATX Form Factor |
MOUNTING | 9 mounting holes |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
