Description

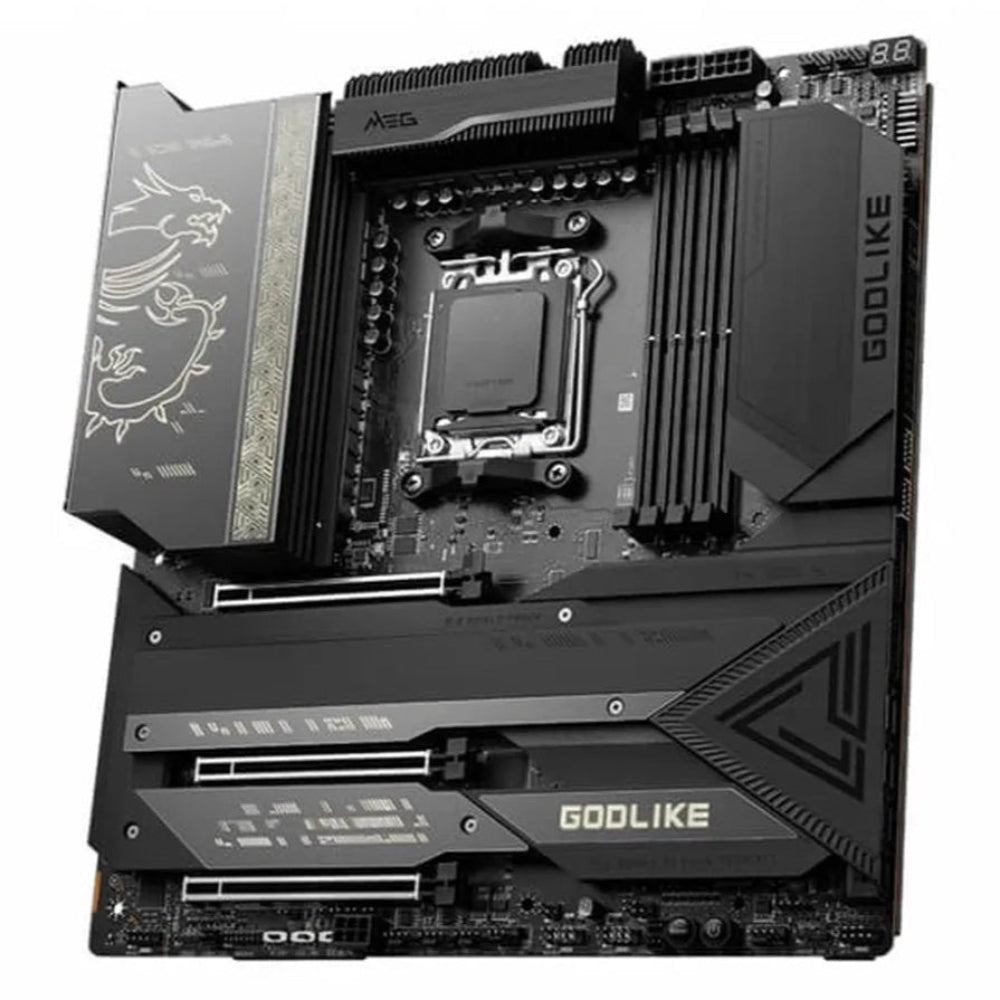

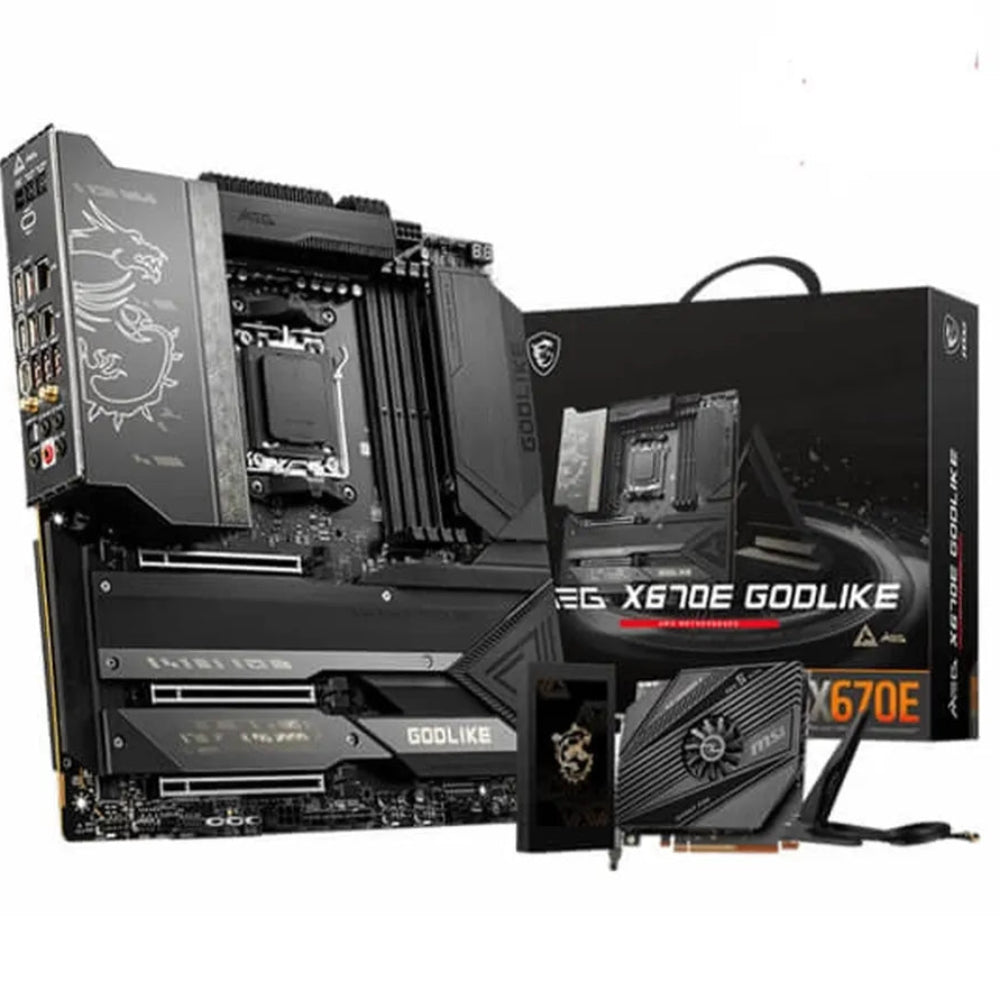

MSI MEG X670E Godlike DDR5 Motherboard
Features :
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6666+MHz (OC)
- M-Vision Dashboard: The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
- Extreme Power Design: 24+2+1 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
- Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
- Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery.
- DIY Friendly Design: Patented Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
- 10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Specifications :
| CHIPSET | AMD X670 |
| CPU SUPPORT |
Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| MEMORY |
4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6666+(OC)/6600(OC)/6400(OC)/6200(OC)/6000 (OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000
(OC)/4800(JEDEC) MHz
Max. overclocking frequency: • 1DPC 1R Max speed up to 6666+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| EXPANSION SLOT |
3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU) |
| MULTI-GPU | Supports AMD MULTI-GPU |
| STORAGE |
4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 ,
supports 2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 ,
supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G port |
| RAID |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices * SATA_A1_A2, SATA_B1_B2 and SATA_B3_B4 do not support RAID function. |
| USB |
4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 2x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front) |
| LAN |
Marvell® AQC113CS-B1-C 10Gbps LAN Intel® I225V 2.5Gbps LAN |
| WIRELESS / BLUETOOTH |
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO |
Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| INTERNAL I/O |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 4pin or 6 pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C 1x USB 3.2 Gen 2x2 Type C V-check point |
| LED FEATURE |
1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |

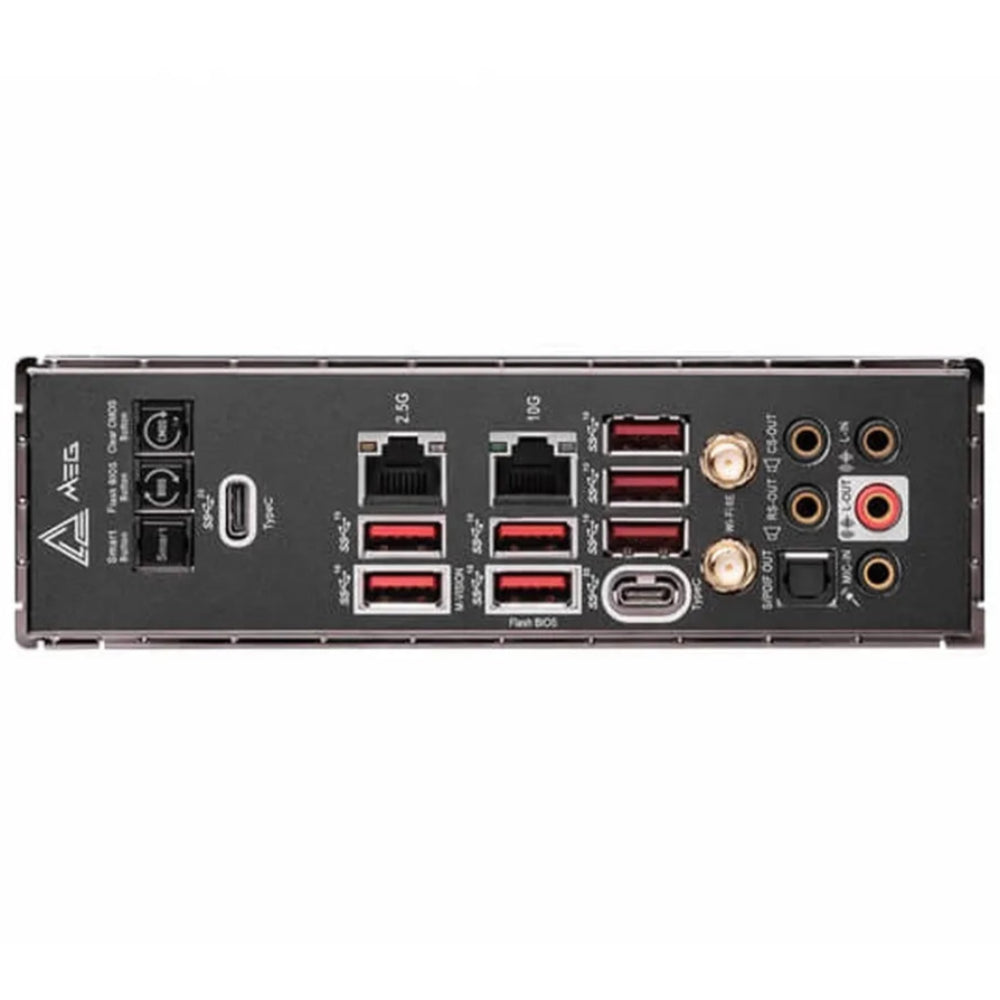

| BACK PANEL PORTS |
Clear CMOS Button Flash BIOS Button 2.5G LAN 10G Super LAN USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Smart Button USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB DIMENSION |
E-ATX 288mmx304.8mm |
