MSI MEG X670E ACE DDR5 AMD Motherboard

Name: EliteHubs
Address: E Square, 201/217/218, Subhash Rd, Vishnu Prasad Society, Navpada, Vile Parle East, Vile Parle,, Mumbai, 400057, IN
Telephone: +91-93217 27055
Price range: INR

Out of stock

Rs. 75,615.00 Rs. 100,999.00

Discount: Rs. 25,384.00 (26%)

30 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Features Of MSI MEG X670E ACE DDR5 AMD Motherboard

Supports AMD Ryzen™ 7000 Series Desktop Processors
MSI MEG X670E ACE DDR5 Memory, Dual Channel DDR5 6666+MHz (OC)
Extreme Power Design: 22+2+1 phases power design with 90A Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Outstanding Cooling Solution: Stacked Fin Array, Direct Touch VRM Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.
10G Super LAN with latest Wi-Fi 6E solution: Onboard 10Gbps LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery.
DIY Friendly Design: Patent Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience

Specifications Of MSI MEG X670E ACE DDR5 AMD Motherboard

CHIPSET	AMD X670
CPU SUPPORT	Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
MEMORY	4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6666+(OC)/6600(OC)/6400(OC)/6200(OC)/6000 (OC)/5800(OC)/5600(OC)/5400(OC)/5200 (OC)/5000(OC)/4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6666+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
ONBOARD GRAPHICS	1x Type-C DisplayPort Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
MULTI-GPU	Supports AMD MULTI-GPU
STORAGE	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function.
USB	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 8x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 2x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front)
LAN	Marvell® AQC113CS-B1-C 10Gbps LAN
WIRELESS / BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO	Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C 1x USB 3.2 Gen 2x2 Type-C 1x USB 3.2 Gen 2x2 Type C V-check point
LED FEATURE	1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED

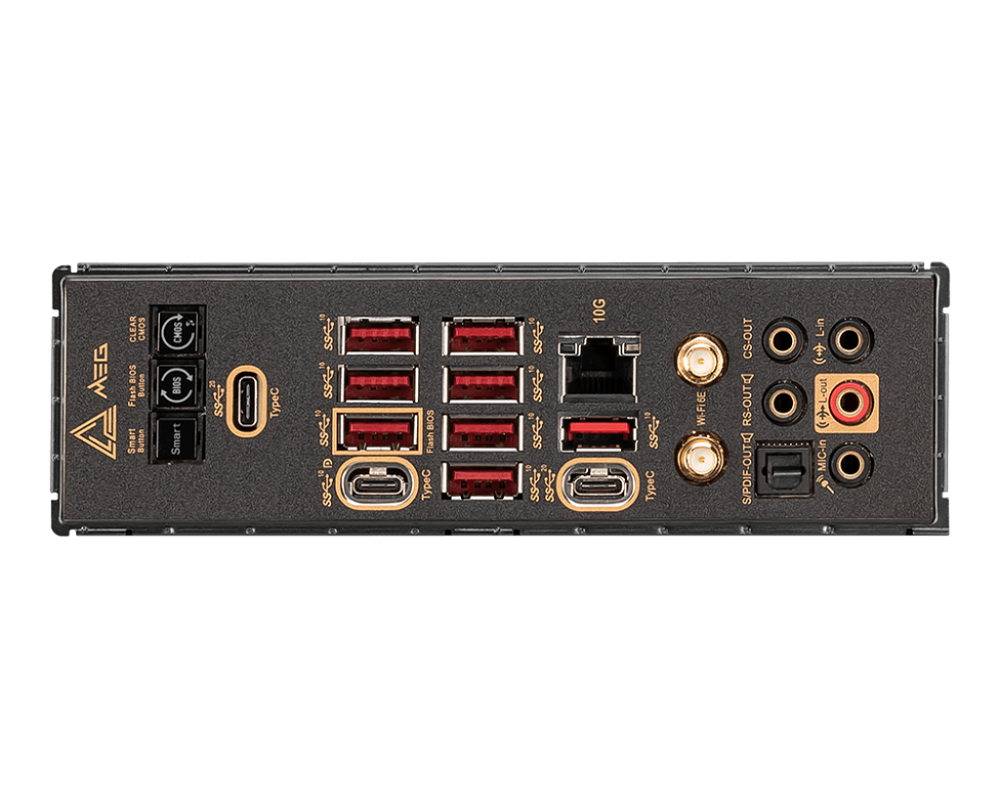

BACK PANEL PORTS	Clear CMOS Button Flash BIOS Button USB 3.2 Gen 2 10Gbps (Type-A) 10G Super LAN Wi-Fi / Bluetooth HD Audio Connectors Smart Button USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION	E-ATX 277mmx304.8mm
