MSI MEG X299 Creation WiFi Motherboard
Features:
Unique look and feel inspired by the concept of element explosion tailor-made for designers and content creators. Features Triple Turbo M.2 with Shield Frozr, Mystic Light, Core Boost, Audio Boost 4 with Nahimic and Lightning USB 3.1 Gen2.
- Supports Intel® Core™ X-series Processors Family
- Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4200 (OC)
- Maximum Power: 13 1 phases digital power with heat-pipe heatsink design
- Maximum Data Transfer: 2.5G LAN Intel® Gigabit LAN with Intel® WIFI and bandwidth management
- Maximum Storage: 7 x Turbo M.2 with M.2 XPANDER-AERO
- Maximum Temperature Control: Full fan control with 8 PWM fan headers and 1 dedicated thermal sensor
- M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 safer and faster
- Core Boost: With premium layout and full digital power design to support more cores and provide better performance
- Triple 8 Pin Power Supply: By providing triple 8 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance
- Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports both RGB and RAINBOW LED strip
- Audio Boost 4 with NAHIMIC: Reward your ears with studio grade sound quality
- DDR4 Boost with Steel Armor: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost
- Multi-GPU: With Steel Armor PCI-E slots. Supports 4-Way NVIDIA SLI™ & 4-Way AMD Crossfire™
- THUNDERBOLTM3: Exclusive expansion card offering dual DisplayPort and dual Thunderbolt 3 for the full 4K video experience.
Specifications:
| PROCESSOR | Supports Intel® Core™ X-Series Processor Family for LGA2066 Socket |
| CHIPSET | Intel® X299 Chipset |
| MEMORY |
8 x DDR4 memory slots, support up to 128GB Quad channel memory architecture with the CPU that supports up to 4-channels DDR4X-series processor support DDR4 4200(OC)/ 4100(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHzDual channel memory architecture with the CPU that supports up to 2-channels DDR4X-series processor support DDR4 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHzSupports Intel® Extreme Memory Profile (XMP) Please refer to Compatibility for more information on compatible memory Please refer the DIMM Slots section for more details. |
| SLOTS |
4 x PCIe 3.0 x16 slotsSupport x16/x0/x16/x8, x8/x8/x16/x8 mode with the 44-lane CPU. Support x16/x0/x8/x4, x8/x8/x8/x4 mode with the 28-lane CPU. Support x8/x0/x4/x4 mode with the 16-lane CPU.1 x PCIe 3.0 x1 slot |
| MULTI-GPU |
Supports NVIDIA® SLI™ Technology Supports AMD CrossFire™ Technology |
| STORAGE |
Intel® X299 Chipset 8 x SATA 6Gb/s ports 3 x M.2 slots (Key M)M2_1 & M2_2 support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready for M2_1, M2_2 slots1 x U.2 portSupports PCIe 3.0 x4 NVMe storageThe SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M.2_1 slot. The SATA2 connector will be unavailable when a SATA M.2 SSD has been installed in the M.2_2 slot. M2_3 slot and PCIe slots share the bandwidth. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID |
Intel® X299 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 PCIe storage devices |
| USB |
Intel® X299 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors 6 x USB 2.0 (High-speed USB) ports(2 ports on the back panel, 4 ports available through the internal USB connectors) ASMedia® ASM3142 Chipset 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A port on the back panel, 1 Type-C internal connector)ASMedia® ASM1074 Chipset 6 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel |
| AUDIO |
Realtek® ALC1220 Codecs 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN |
1 x Intel I219-V Gigabit LAN controller 1 x Realtek RTL8125-CG 2.5G LAN controller |
| WIRELESS |
Intel® Wireless-AC 9260 Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps Supports Bluetooth® 2.1, 2.1 EDR, 3.0,4.0, 5 Only support windows 10 64-bit |
| INTERNAL CONNECTORS |
1 24-pin ATX main power connector 3x 8-pin ATX 12V power connectors 1x flat 4-pin ATX 12V power connector 8x SATA 6Gb/s connectors 1x U.2 port 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 1x USB 3.1 Gen2 Type-C port 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 4x 4-pin system fan connectors 2x 4-pin extend system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x 2-pin Thermal Sensors connector 1x Virtual RAID on CPU connector 1x Thunderbolt Add-on Card Connector Provides additional power to PCIe x16 slots |
| BACK PANEL PORTS |

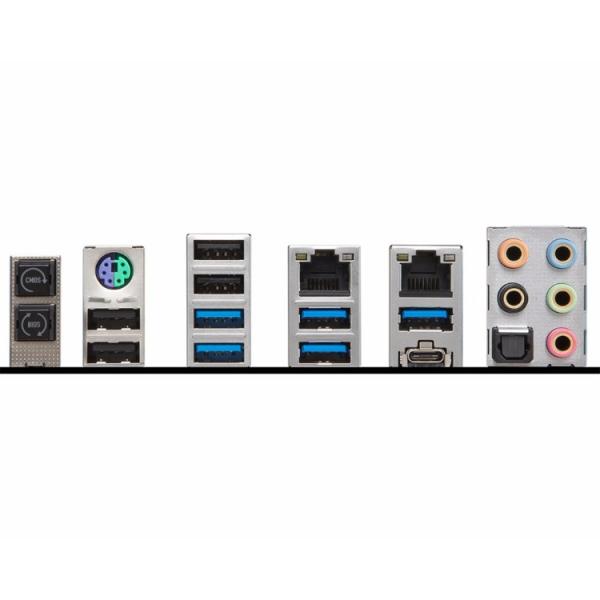

Clear CMOS Button PS/2 Port USB 3.1 Gen1 Ports 2.5G LAN Port Intel® LAN Ports Intel® WiFi/ Bluetooth Module HD Audio Connectors Flash BIOS Button USB 2.0 Ports USB 3.1 Gen1 Ports Intel Turbo USB 3.1 Gen 2 Type A C Optical S/PDIF-Out |
| DIMENSIONS |
12 in. x 10.7 in. (30.5 cm x 27.2 cm) E-ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bitj |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
