Description
Features of MSI MEG Ai1300P PCIe5 1300W 80+ Platinum Fully Modular 3.0 ATX Power Supply
MSI MEG Ai1300P PCIe5 1300W 80 Plus Platinum Fully Modular Power Supply
The MEG series MSI MEG Ai1300P PCIe5 is revealed as a legend that represents the ultimate elegance in gaming.
With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be.

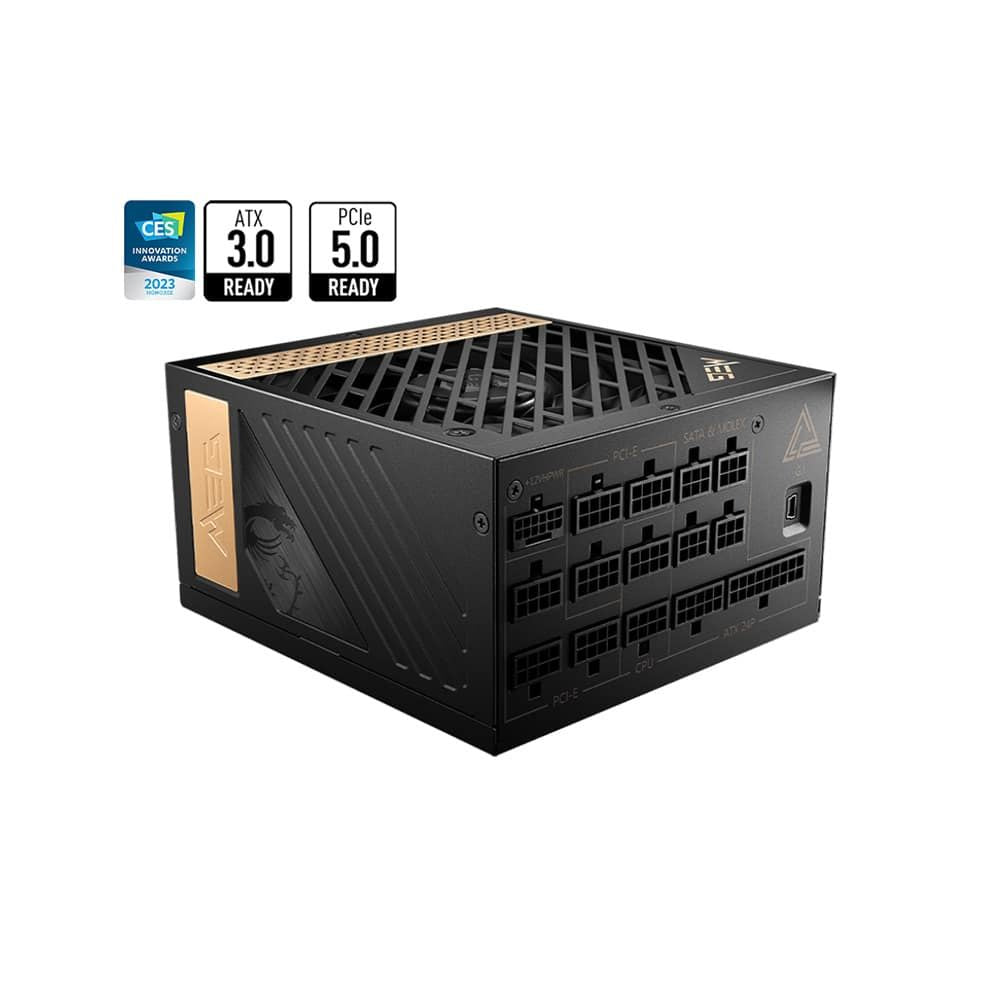

ATX 3.0 READY
The MSI MEG Ai1300P PCIe5 1300w Power Supply has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
LEVEL UP YOUR GAME
With native 16 PIN PCIe connector this power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.
80 PLUS PLATINUM CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Platinum certification promises lower energy consumption and higher efficiency.
GAMING INTELLIGENCE
Gaming Intelligence is dedicated to providing many unique and useful features to improve the gamer's experience.
GPU SUPPORT FOR ALL
The MSI Power Supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MEG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
COMPACT SIZING
Compared with the general platinum power supply on the market. The power supply’s 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.

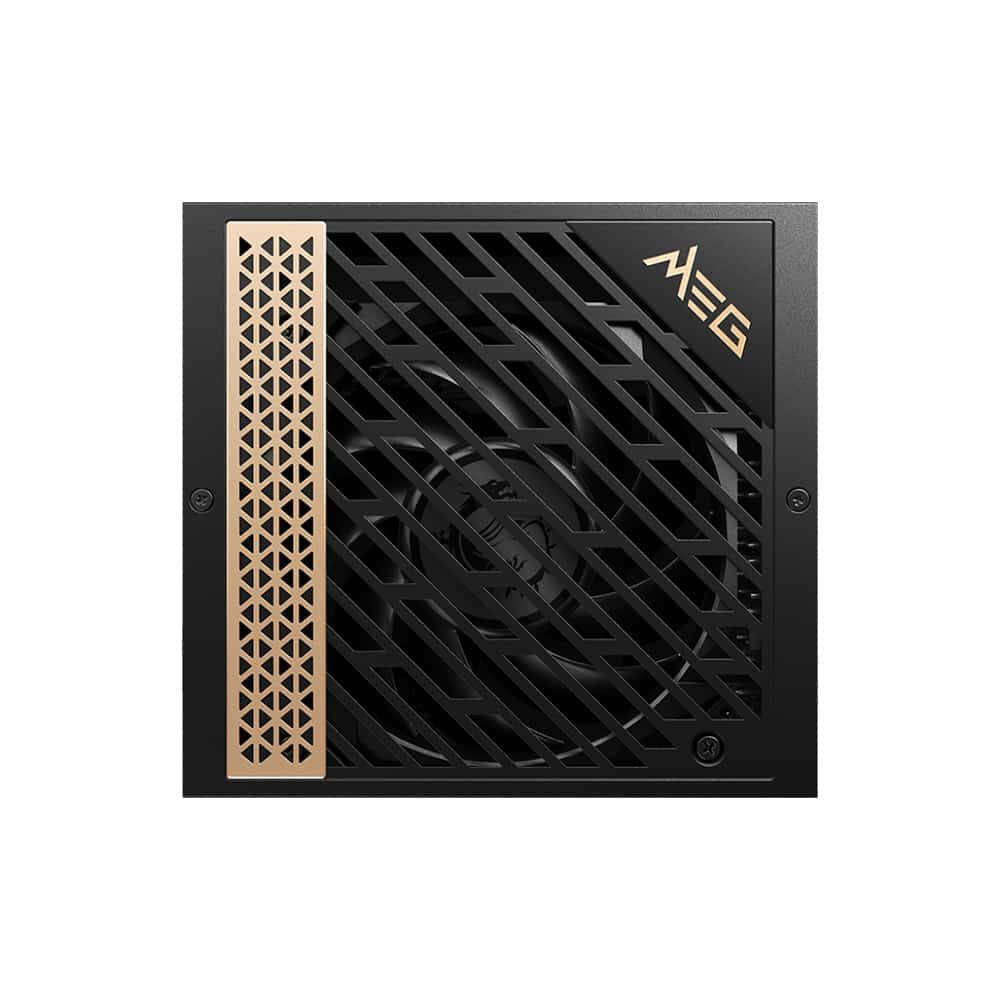

FAN DESIGN
Redefine the power supply's fan design and optimize its utility as the power supply's best operational support.
Features
Supports Nvidia® GeForce RTXTM 40 Series graphics cards
ATX 3.0 fully supported
PCIe 5.0 ready, with native 16 pin connector
Software sync with MSI center
Full modular design
Sleeve cables
80 PLUS Platinum certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design
Technical Details
Brand : MSI
Model : MEG Ai1300P PCIe5
Specifications
EFFICIENCY RATING : 80 PLUS Platinum (up to 92%)
MODULAR : Yes (full modular)
FAN SIZE : 120 mm
FAN BEARING : Hydro Dynamic Bearing
DIMENSIONS (DXWXH) : 160 x 150 x 86 mm
PFC TYPE : Active PFC
INPUT VOLTAGE RANGE : 100-240~
POWER WATT : 1300W
POWER EXCURSION : 2600W (*up to 200% of the PSU's rated power for 100μs)
INPUT FREQUENCY RANGE : 50~60 Hz
PROTECTION : OCP / OVP / OPP / OTP / SCP / UVP

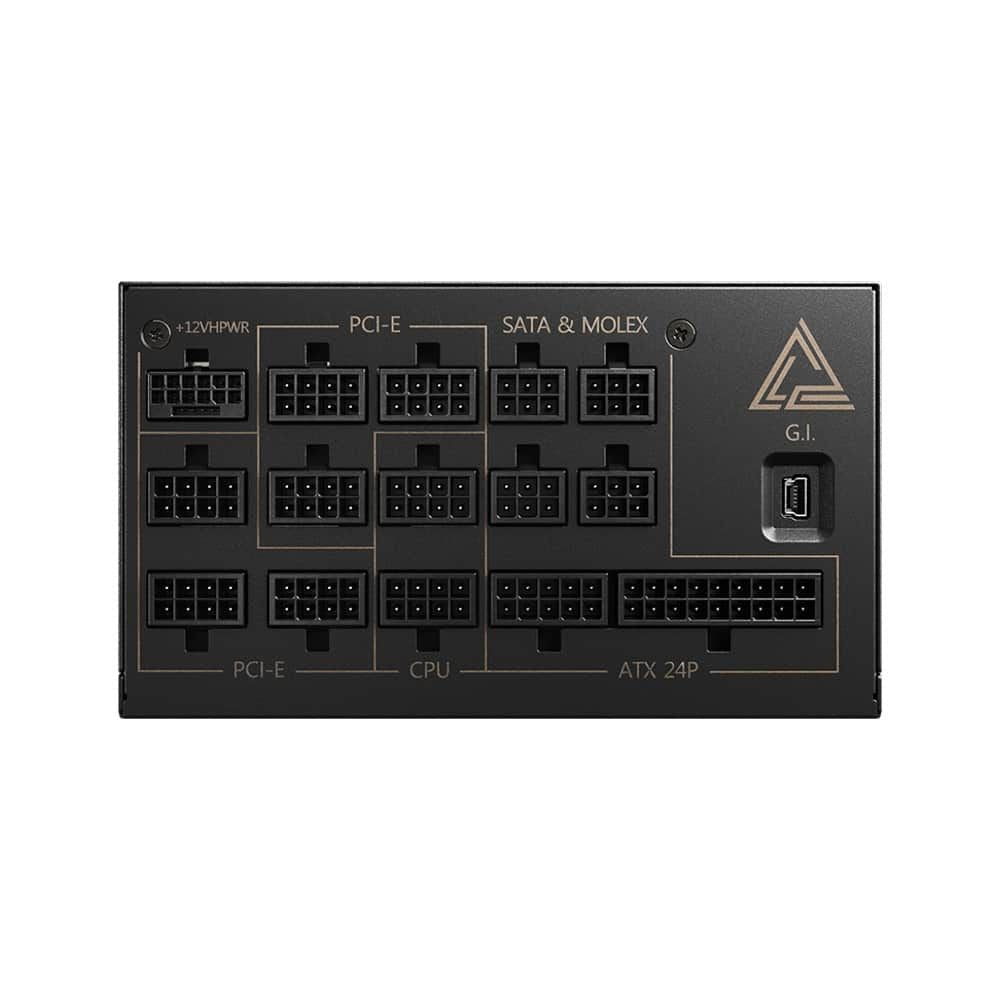

ATX (24 PIN) : 1
EPS (8 PIN) : 1
EPS (4+4 PIN) : 1
PCI-E 5.0 (16 PIN) : 1 (650W)
PCI-E (6+2 PIN) : 8
SATA (15 PIN) : 16
MOLEX (4 PIN) : 4
FDD (4 PIN) : 1
Get the best 80 Plus Platinum computer smps price from us today!
Specifications of MSI MEG Ai1300P PCIe5 1300W 80+ Platinum Fully Modular 3.0 ATX Power Supply
Model | |
Brand | MSI |
Model | MEG Ai1300P PCIe5 |
Series | MEG |
Spec | |
Type | ATX |
Maximum Power | 1300W |
Fans | 120mm |
PFC | Active PFC |
PCI-E Connectors | 6+2 pins x 8 |
Modular | Fully Modular |
Efficiency | 80 PLUS� Platinum Efficiency |
Input Voltage | 100 - 240 V |
Input Frequency Range | 50 ~ 60Hz |
Output | 1300W |
Approvals | OCP / OVP / OPP / OTP / SCP / UVP |
