Description

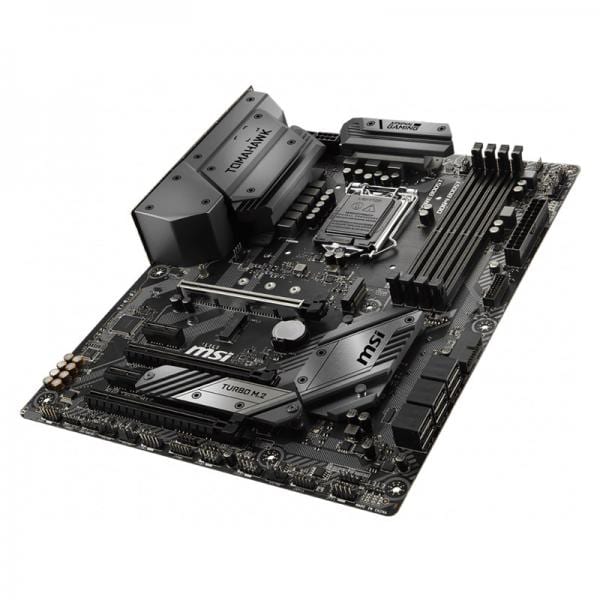

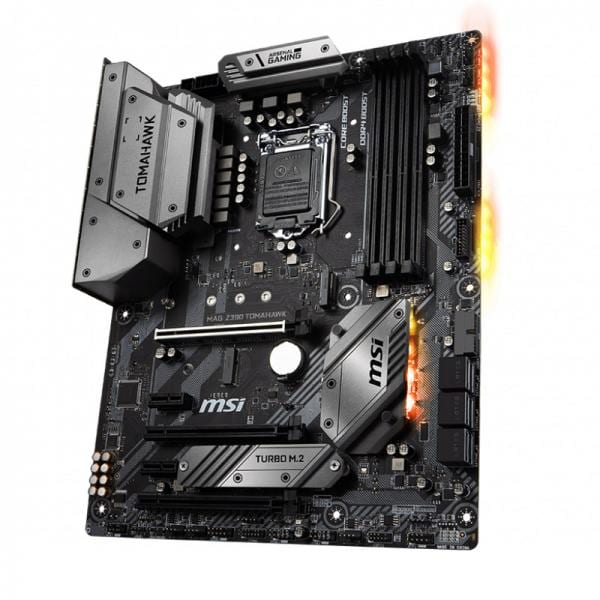

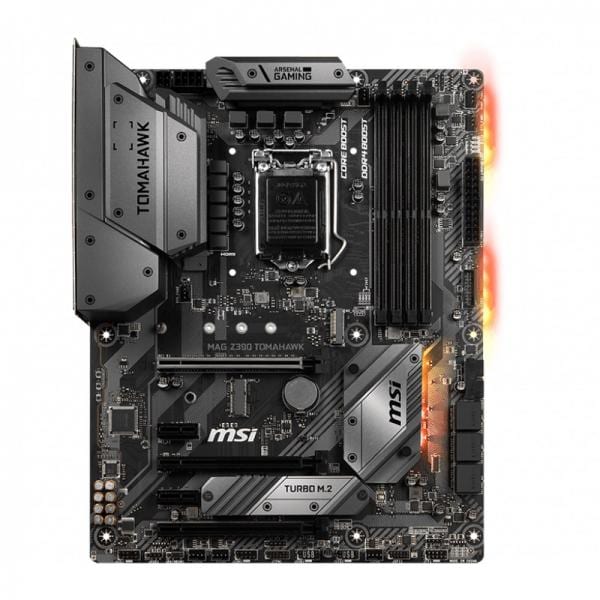

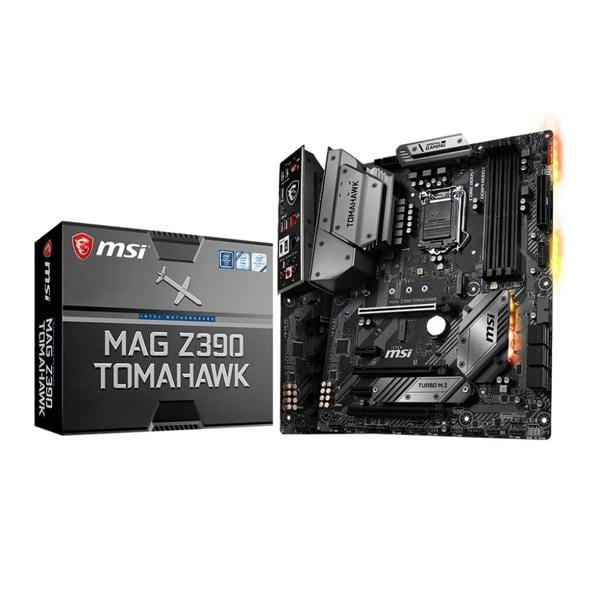

MSI MAG Z390 Tomahawk Motherboard
Features:
Military-style with pre-installed IO shielding, extended heatsink design and M.2 Shield Frozr for better thermal solution, plus dual Intel LAN, Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Twin Turbo M.2, and USB 3.1 Gen2 connector
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4400(OC) MHz
- Integrated I/O design: Pre-installed I/O Shielding for convenient installation. Extended Heatsink Design ensures even high-end processors to run in full speed.
- Premium Network Connection: Dual Intel LAN for both intranet and internet, Intel CNVi Ready
- Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Intel Turbo USB 3.1 GEN2
- Set Core Power Free: Core Boost, 8 4 pin CPU power connector, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
Specifications:
| PROCESSOR | Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® Z390 Chipset |
| MEMORY |
4 x DDR4 memory slots, support up to 128GB DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz* Dual-Channel mode non-ECC, un-buffered memory Intel® Extreme Memory Profile (XMP) |
| SLOTS |
3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes) 2 x PCIe 3.0 x1 slots 1 x M.2 slot (Key E) for an Intel® CNVi wireless module only |
| ONBOARD GRAPHICS |
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz *No Display support when using the Processor model with suffix “F” |
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
Intel® Z390 Chipset 6x SATA 6Gb/s ports*1 2x M.2 slots (Key M)*1M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory ReadyM.2 slots and SATA ports share the bandwidth. Please refer to user manual for details. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID |
Intel® Z390 Chipset Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices |
| USB |
Intel® Z390 Chipset 4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel) 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) |
| AUDIO |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN |
1 x Intel® I219-V Gigabit LAN controller 1 x Intel® I211-AT Gigabit LAN controller |
| INTERNAL CONNECTORS |
24-pin ATX main power connector 8-pin ATX 12V power connector 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Serial port connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 2 x 4-pin RGB LED connectors 1 x 3-pin RAINBOW LED connector |

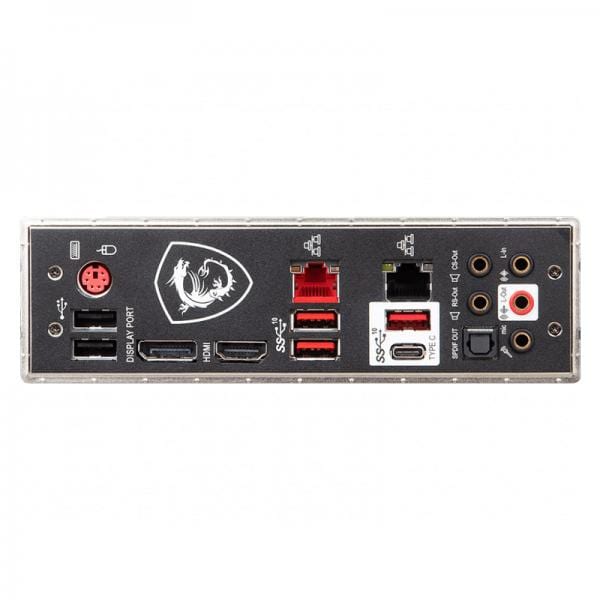

| BACK PANEL PORTS |
PS/2 Combo Port LAN Port HD Audio Connectors USB 2.0 Port DisplayPort HDMI Port USB 3.1 Gen2 Type A USB 3.1 Gen2 Type A C Optical S/PDIF OUT |
| DIMENSIONS |
9.6 in. x 12 in. (24.3 cm x 30.4 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
