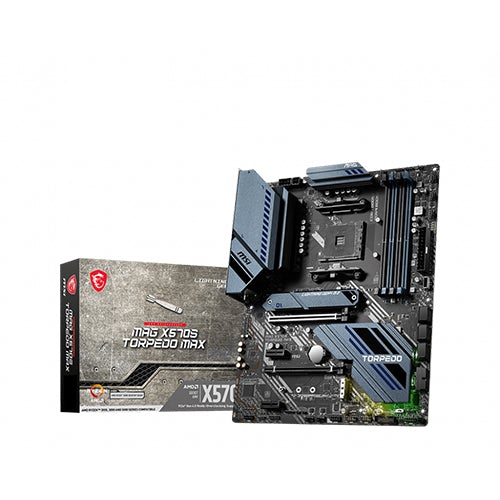

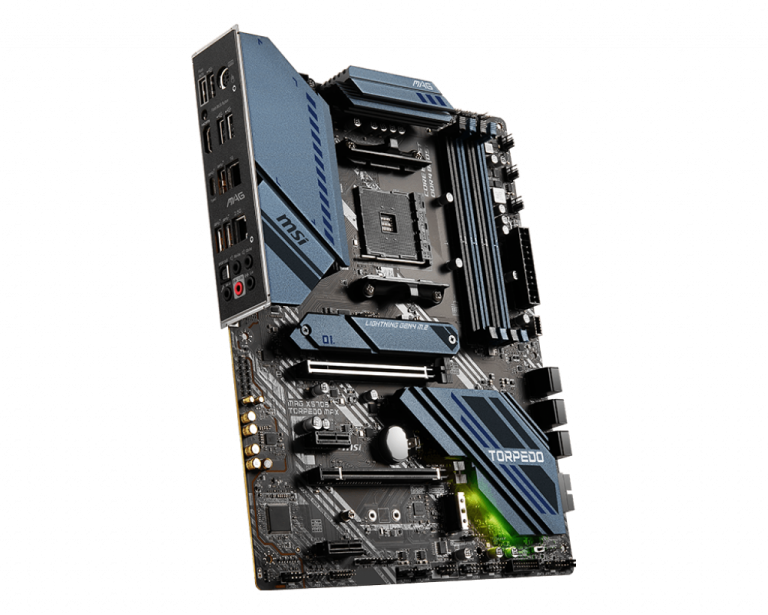

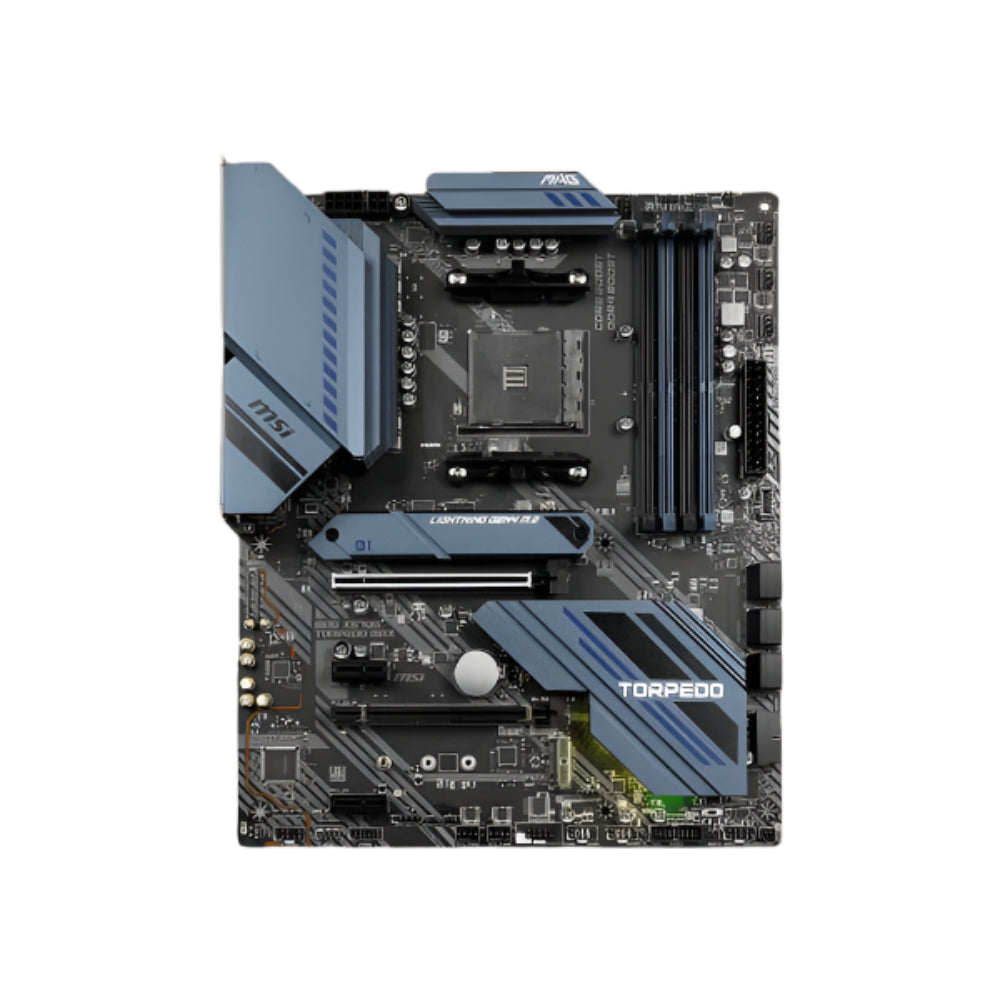

- MSI MAG X570S Torpedo Max DDR4 AMD Motherboard
Description
Feature of MSI MAG X570S Torpedo Max
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
- Supports DDR4 Memory, up to 5100(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™
Lightning Gen4 Solution
Latest Gen4 PCI-E solution with bandwidth up to 64GB/s Maximum transfer speed.
M.2 Shield FROZR
The M.2 thermal accessory keeps M.2 SSDs safe while resisting Throttling, helping them run faster.
Mystic Light RGB LED
Personalize your PC with 16.8 million colors / 29 effects, Controlled in one click!
2.5G Plus Gigabit LAN
Delivers Gigabits LAN, with onboard 2.5G, LAN Manager Better online network experience without lag.
Core Boost
With premium layout and optimized power design to support Providing more cores and better performance.
Extended Heatsink Design
MSI MAG X570S Torpedo Max ensures extended PWM Hitsink and Advanced Circuit Design Even the high-end processor runs at full speed.
Audio Boost 5
Isolated audio with a high-quality audio processor for maximum Immersive gaming experience.
2oz Thickened Copper PCB
An improved PCB design improves heat dissipation and Reliability of performance.
DDR4 Boost
Advanced technology to provide pure data signal for optimum Gaming performance and stability.
Specifications of MSI MAG X570S Torpedo Max
| CPU |
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4 |
| Chipset | AMD X570 Chipset |
| MEMORY | 4x DDR4 memory slots, support up to 128GB Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1 Max overclocking frequency by A-XMP OC mode: For Ryzen™ 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4266 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen™ 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 3866 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| EXPANSION SLOT |
Supports PCIe 4.0 / PCIe 3.0 specification PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 1x PCIe x16 slot (From X570 chipset) PCI_E3 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset) |
| MULTI-GPU | Supports AMD CrossFire™ Technology |
| ONBOARD GRAPHICS | Supports AMD CrossFire™ Technology |
| STORAGE |
6x SATA 6Gb/s ports (from AMD X570 Chipset) 2x M.2 slots (Key M) Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor Supports up to SATA 6Gb/s M2_1 slot (from Processor) Support 2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports 2242/ 2260/ 2280 storage devices |
| RAID | Supports RAID 0, RAID 1 and RAID 10 |
| USB |
AMD X570 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A &Type-C) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| AUDIO |
Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN |
1x Realtek® 8125B 2.5Gbps LAN Controller 1x Realtek® RTL8111H 1Gbps LAN Controller |
| INTERNAL CONNECTORS |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector 1x Chassis Intrusion connector |
| LED FEATURE |
2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED 1X EZ LED Control switch |
| BACK PANEL PORTS |
PS/2 Mouse / Keyboard USB 3.2 Gen 1 5Gbps (Type-A) Gigabit LAN Port 2.5G LAN Port HD Audio Connectors USB 2.0 Port Flash BIOS Button HDMI 2.1 Port USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) Optical S/PDIF OUT |
| DIMENSIONS |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
