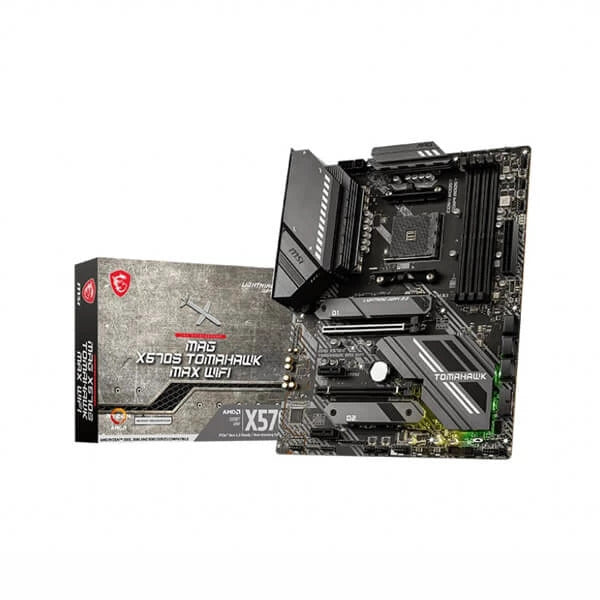

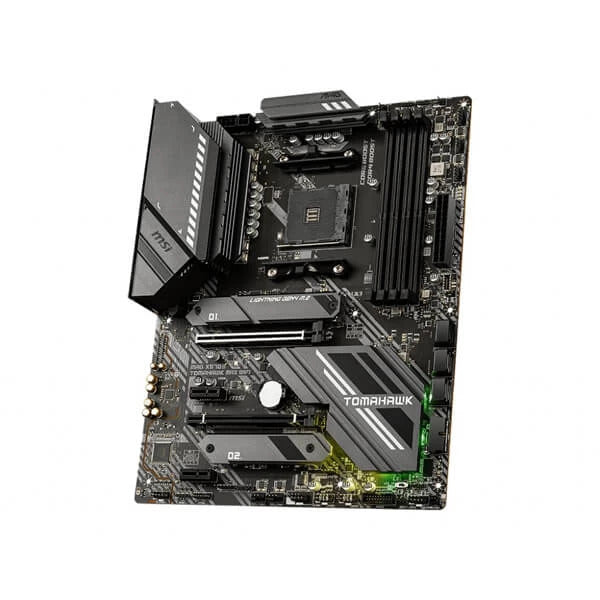

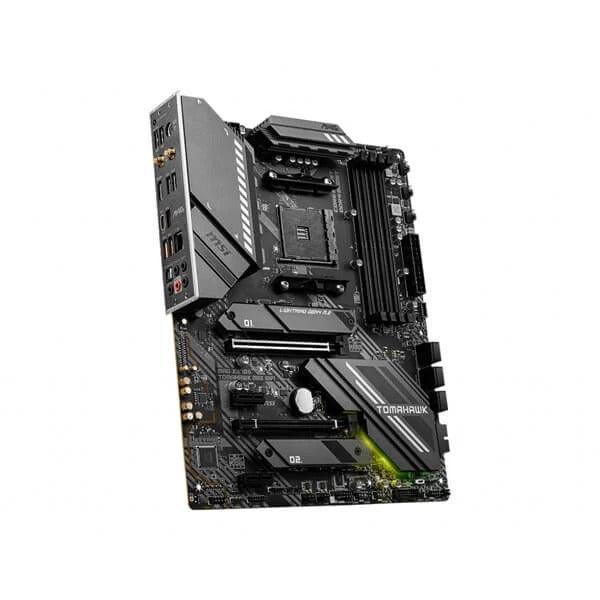

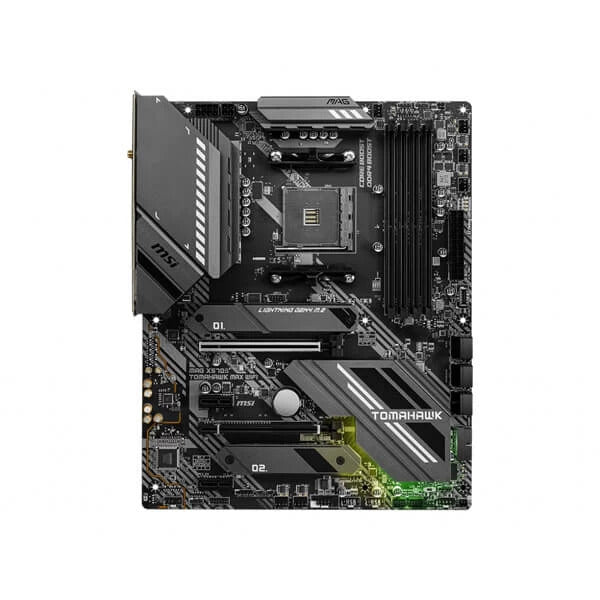

- MSI MAG X570S Tomahawk Max Wifi DDR4 AMD Motherboard
Description
Feature of MSI MAG X570S Tomahawk Max WiFi
MAG X570S TOMAHAWK MAX WIFI
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI MAG X570S Tomahawk Max motherboards are built with a variety of connectors to satisfy gamers.Enhanced audio,advanced LAN networking capabalities,USB and Mystic Light turn any gaming experience into an immerse one.
CONNECTIVITY
Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
LIGHTNING GEN 4 M.2
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
ENHANCED PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end AMD CPU to run in full speed with MSI motherboards.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
- Supports DDR4 Memory, up to 5100(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™
Specifications of MSI MAG X570S Tomahawk Max WiFi
| Processor |
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors1 Supports Socket AM4 |
| Chipset | AMD X570 Chipset |
| Memory |
4x DDR4 memory slots, support up to 128GB Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1 Max overclocking frequency by A-XMP OC mode: For Ryzen™ 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4266 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen™ 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 3866 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Expansion Slot |
Supports PCIe 4.0 / PCIe 3.0 specification PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 1x PCIe x16 slot (From X570 chipset) PCI_E3 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset) |
| Multi-GPU | Supports AMD CrossFire™ Technology |
| Onboard Graphics |
1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz 1 2 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage |
6x SATA 6Gb/s ports (from AMD X570 Chipset) 2x M.2 slots (Key M) Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor Supports up to SATA 6Gb/s M2_1 slot (from Processor) Support 2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports 2242/ 2260/ 2280 storage devices |
| RAID | Supports RAID 0, RAID 1 and RAID 10 |
| USB |
AMD X570 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio |
Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Realtek® 8125B 2.5Gbps LAN Controller |
| Wireless LAN & Bluetooth |
Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.22, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1. Bluetooth 5.2 will be ready in WIN10 21H1. |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector 1x Chassis Intrusion connector |
| LED Feature |
2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED 1X EZ LED Control switch |
| Back panel ports |
PS/2 Mouse / Keyboard Wi-Fi Antenna USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) 2.5G LAN Port HD Audio Connectors Flash BIOS Button USB 2.0 Port HDMI 2.1 Port USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) Optical S/PDIF OUT |
| Dimensions |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
