Description

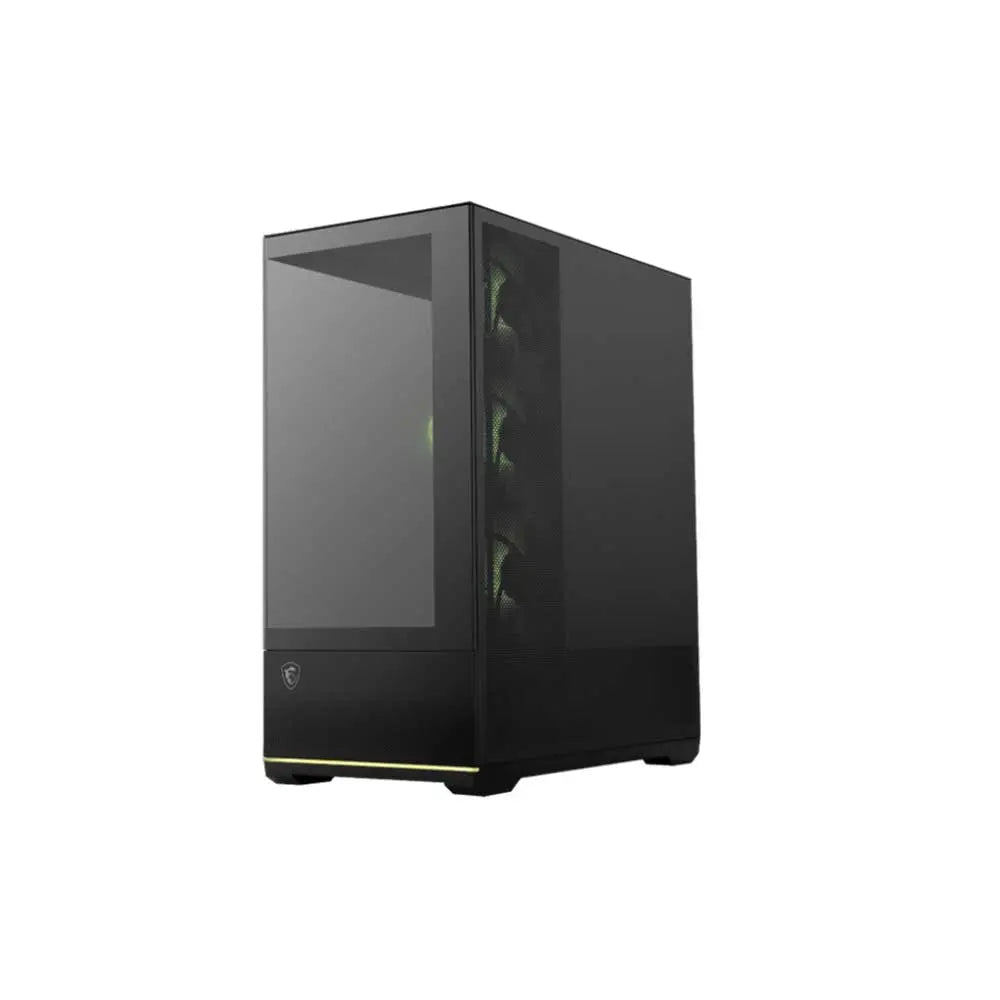

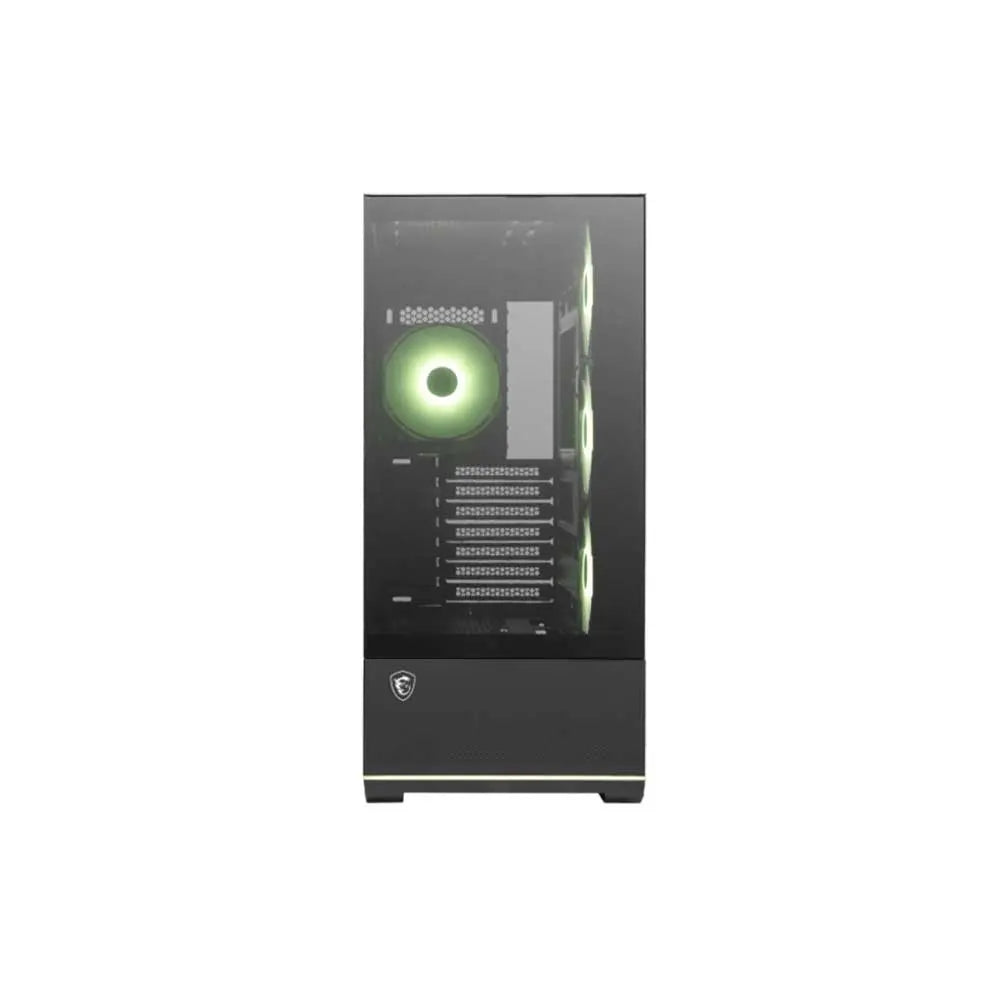

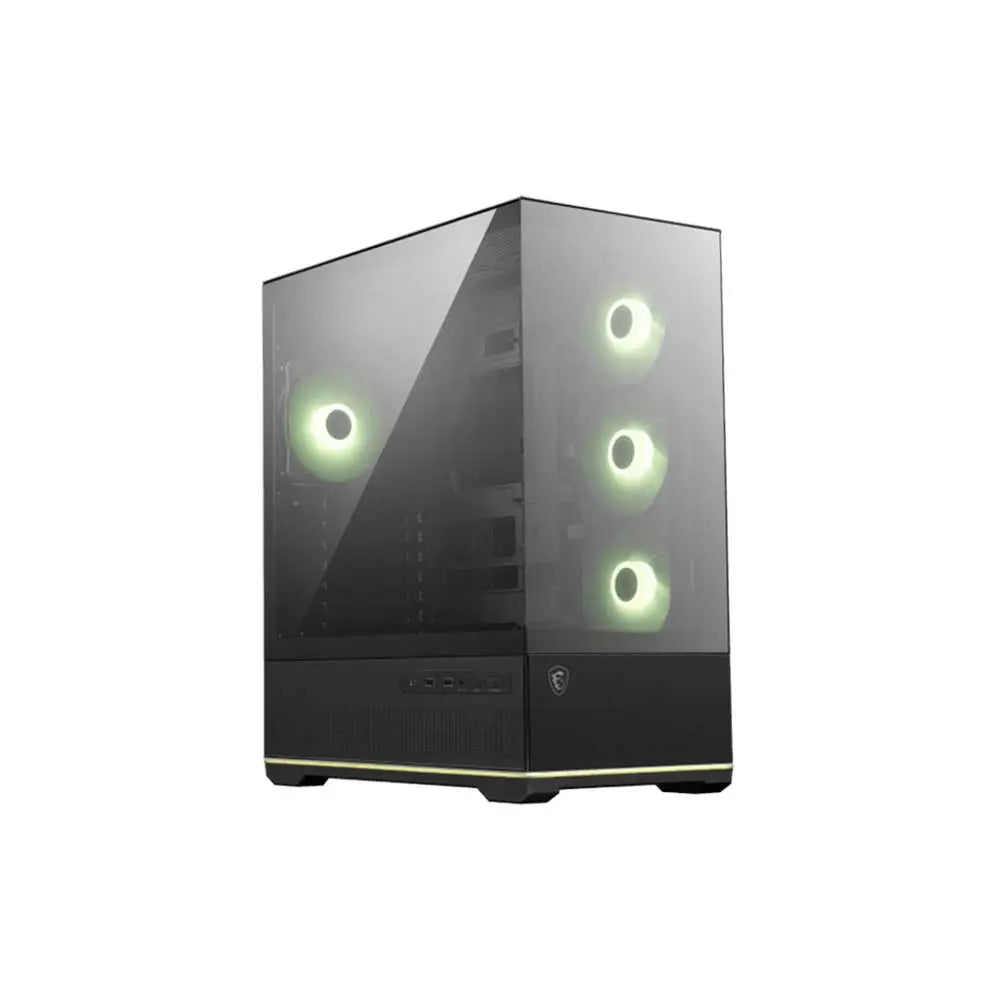

Features of MSI MAG Pano 110R PZ ARGB ATX Mid Tower Cabinet ( Black )
MSI’s mainstream Mag Pano 110R PZ series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
- 270-Degree Display: The chassis features a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components.
- Measurements: Supports multiple motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX and back-connect ATX and Micro-ATX, allowing users to customize their PC setup.
- Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an unobstructed display of the ARGB fan’s lighting effects, free from interference by fan frames.
- ARGB-Fan Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans, allowing users to adjust 18 ARGB lighting effects with a single LED switch button MSPL0032
- Upgrade Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm radiator at rear. The lower chamber, surrounded by vents, further enhances heat dissipation for optimal performance.
Specifications of MSI MAG Pano 110R PZ ARGB ATX Mid Tower Cabinet (Black)
| Product Name | MAG PANO 110R PZ / BLACK |
| Case Form Factor | Mid-Tower |
| Motherboard Form Factor Support |
Regular: ATX / Micro-ATX / Mini-ITXBack-connect: ATX / Micro-ATX |
| I/O Ports |
1 x USB 20Gbs (Type-C) 2 x USB 5Gbs (Type-A) 1 x Audio-Out / Mic-in 1 x LED Button 1 x Power Button |
| Drive Mount Support |
2 x 2.5“ 2 x 3.5“ 2 x 2.5″/3.5″ combo |
| Expansion Slot | 7 |
| Maximum GPU Length | 400 mm / 15.75 inches |
| Maximum CPU Cooler Height | 160 mm / 6.30 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm / 7.87 inches |
| Fan Size Support |
Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm Side: 3 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm (Above the power shroud) |
| Pre-Installed Fan Type |
Side: 3 x ARGB Fan (Reverse Blades Fan) Rear: 1 x ARGB Fan |
| Pre-Installed Fan SIze |
Side: 3 x 120 mm Rear: 1 x 120 mm |
| Radiator Size Support |
Top: 120 / 140 / 240 / 280 / 360 mm Front: NA Rear: 120 mm Side: NA Bottom: NA |
| Dimensions (DxWxH) | 420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
