- MSI MAG Forge 320R Airflow ATX Mid Tower Cabinet (Black)
Description
Features Of MSI MAG Forge 320R
- MSI Cabinet Forge 320R Supports up to 360 mm AIO liquid cooler and large 40 series GPU
- MSI MAG Forge 320R ATX Cabinet Supports up to 11 x system fans configuration, providing ventilation and stable performance to the whole system
- Built-in ARGB fans and control board, providing striking lighting and vivid lighting effects
- Tempered Glass Side Panel displays RGB lighting effects
- The Magnetic Dust Filter on the top vents being easily remove for cleaning
The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The micro-atx chassis provide small footprint but big perfromance.

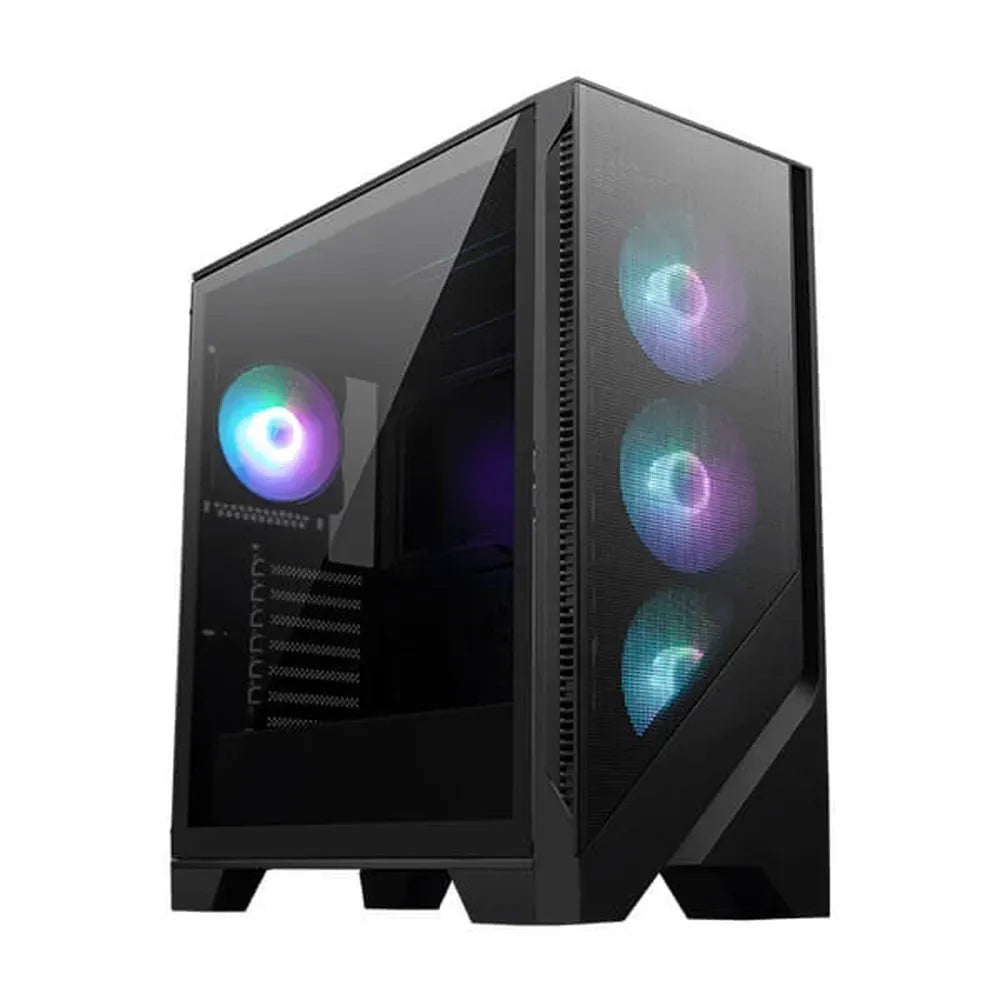

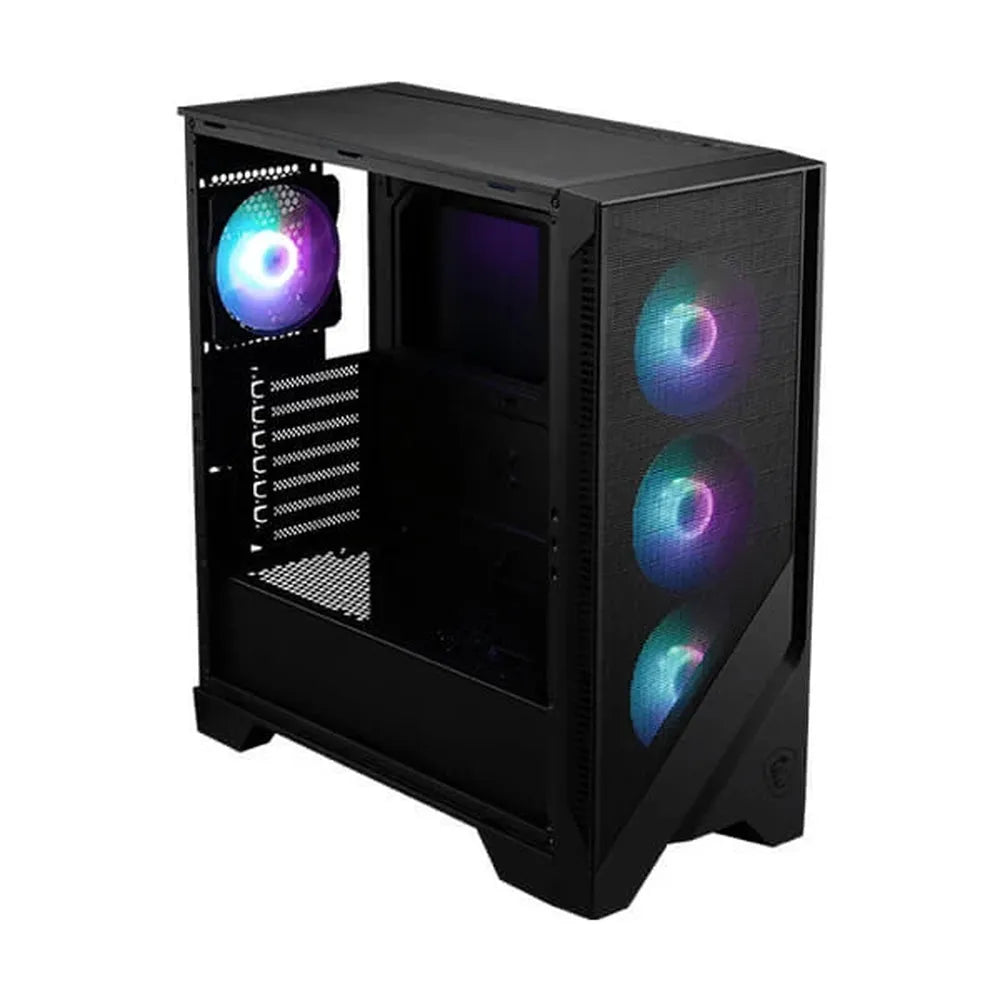

MSI MAG FORGE 320R AIRFLOW
Beyond the Power

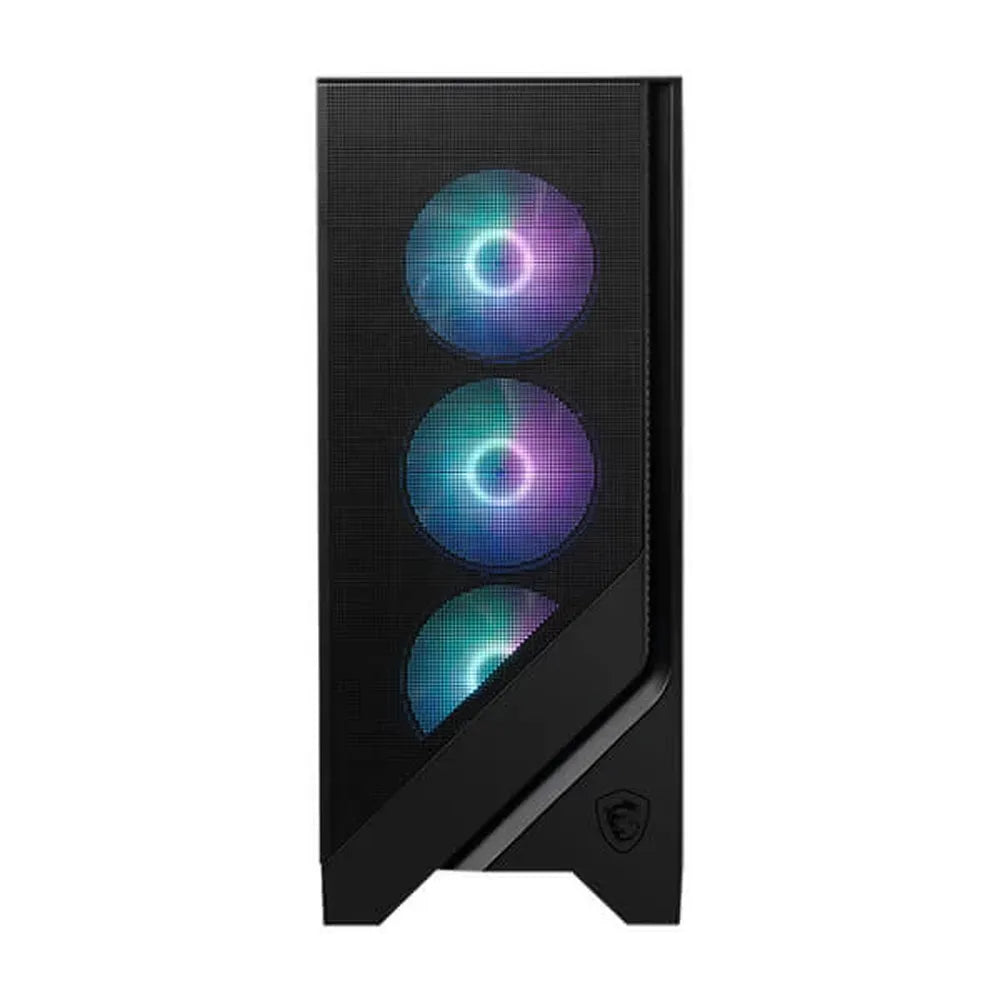

MESH CERTIFIED MAKES IT WORK
The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The matx chassis provide small footprint but big performance.
HEAT DISSIPATION
You don’t need to worry about system cooling with the help of the gaming cases.
OPTIMISED AIRFLOW
The MAG FORGE 320/120 Series is optimised to provide generous and effective airflow for system cooling. The MAG FORGE 320R AIRFLOW supports up to 11 x 120 mm fans.
HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.
Motherboard SupportEASY TO INSTALL
The gaming case has many features that make the installation process all the easier.
1-TO-6 ARGB CONTROL BOARD
User can intuitively control & switch 9 lighting effects through the LED switch button.
1-TO-4 FAN CABLE
Use the 1-to-4 Fan Cable to create more possibilities for adding more fans to your system.
DIY FRIENDLY CABLES
The uni front Panel cable makes it easy for users to connect to MSI motherboard directly.
FANCY APPEARANCE
Build and display the coolest PC with controllable ARGB lighting.

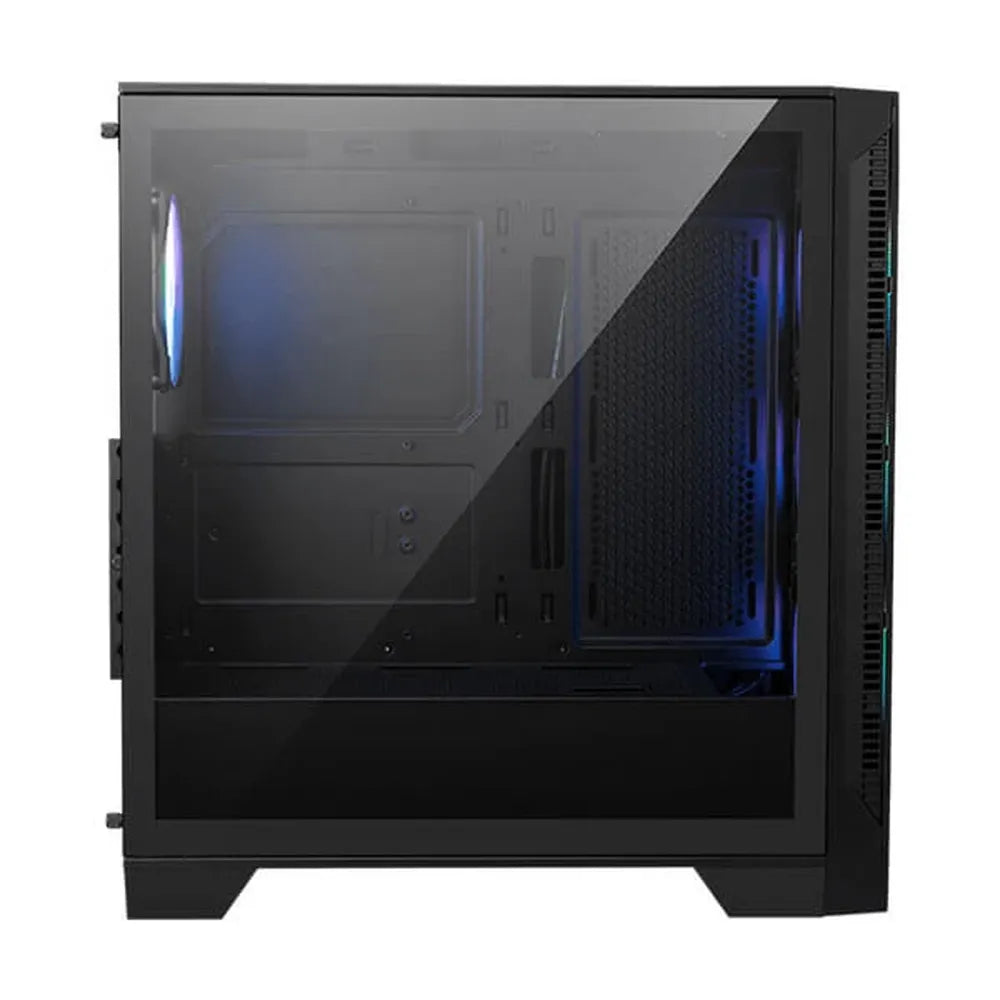

TEMPERED GLASS WINDOW
The 4mm tempered glass windows offers the best durability and system accessibility.
INSTA-LIGHT LOOP BUTTON
Quickly control the lighting effects of fans that connected to control board with Insta-Light Loop at the touch of a button. Click through the profiles at ease and choose a favourite.
Connectable Front I/O
1 – USB 3.2 Gen 1 Type-A
2 – Mic-in
3 – Audio-out
4 – LED Switch
5 – Power
Best cpu case with fan at affordable prices at Elitehubs!
Specifications Of MSI MAG Forge 320R
Model | MSI MAG FORGE 320R AIRFLOW |
Case Form Factor | Mid Tower |
Motherboard Form Factor Support | ATX / Micro-ATX / Mini-ITX |
I/O Ports |
2 x USB 3.2 Gen 1 Type-A 1 x Audio-out 1 x Mic-in 1 x LED Switch |
Drive Mount Support |
1 x 2.5" 2 x 2.5" / 3.5" |
Expansion Slots | 7 |
Maximum GPU Length | 390 mm / 15.35 inches |
Maximum CPU Cooler Height | 160 mm / 6.29 inches |
Power Supply Support | ATX |
Maximum PSU Length | 200 mm / 7.87 inches (without 2.5"/3.5" HDD tray installation) |
Fan Size Support |
Front: 3 x 120 mm / 2 x 140 mm Top: 3 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm Side: 2 x 120 mm PSU Shroud: 2 x 120 mm |
Pre-installed Fan Size |
Front: 3 x 120 mm Rear: 1 x 120 mm |
Pre-installed Fan Type |
Front: 3 x ARGB Fan Rear: 1 x ARGB Fan |
Radiator Size Support |
Front: 120 / 140 / 240 mm Top: 120 / 240 / 280 / 360 mm Rear: 120 mm |
Dimensions (DxWxH) | 472.5 x 210 x 498 mm / 18.60 x 8.26 x 19.60 inches |
Net Weight | 7.05 kg / 15.54lbs |
Gross Weight | 8.35 kg / 18.41lbs |
Connection |
Power Button LED Switch Button Audio Out Mic In 2 x USB 3.2 Gen 1 Type-A |
Warranty | 1 Year |
Note | *** Features, Price, Specifications are subject to change without notice. |
