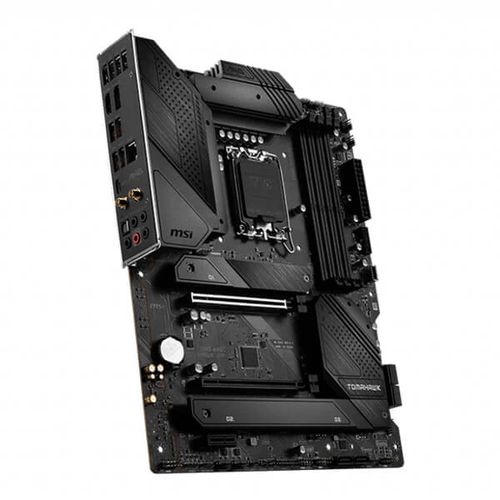

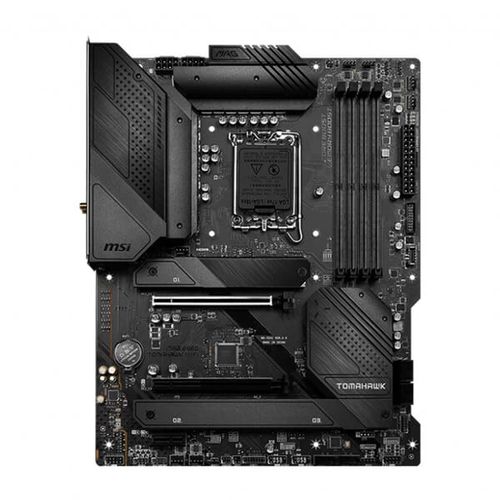

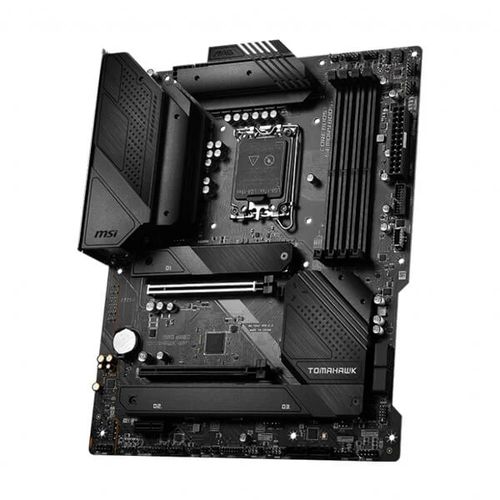

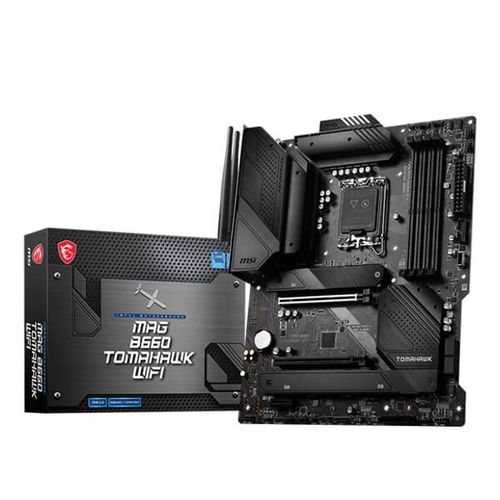

- MSI MAG B660 Tomahawk Wifi DDR5 Intel Motherboard
Description
Feature of MSI MAG B660 Tomahawk WiFi DDR4
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6200+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI MAG B660 Tomahawk Wifi DDR5 motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FAST AND FUTURE-READY STORAGE
MSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilitie USB and Mystic Light turn any gaming experience into an immerse one.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
Specifications of MSI MAG B660 Tomahawk WiFi DDR4
Processor |
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1 Processor socket LGA1700 |
Chipset | Intel® B660 Chipset |
Memory |
4x DDR5 memory slots, support up to 128GB 1 Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
Expansion Slot |
2x PCIe x16 slots PCI_E1 (From CPU) Support up to PCIe 4.0 PCI_E2 (From B660 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From B660 chipset) |
Multi-GPU | Supports AMD® CrossFire™ Technology |
Onboard Graphics |
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2 |
Storage |
6x SATA 6Gb/s ports SATA5~8 (From B660 chipset) SATAA~B (From ASM1061) 3x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From B660 chipset) M2_2 supports up to PCIe 4.0 x4 M2_3 supports up to PCIe 4.0 x2 1 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1 |
USB |
Intel® B660 Chipset 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) |
Audio |
Realtek® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
LAN | 1x Realtek® RTL8125B-CG 2.5Gbps LAN controller |
Wireless LAN & Bluetooth® |
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 2, FIPS, FISMA |
Internal connectors |
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
LED Feature |
2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |

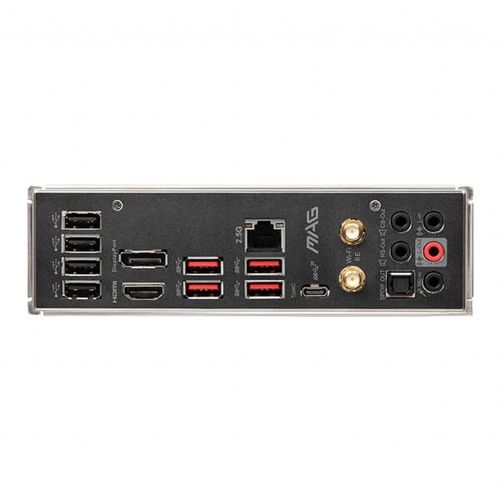

Back panel ports |
USB 2.0 Port DisplayPort 1.4 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
Dimensions |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
