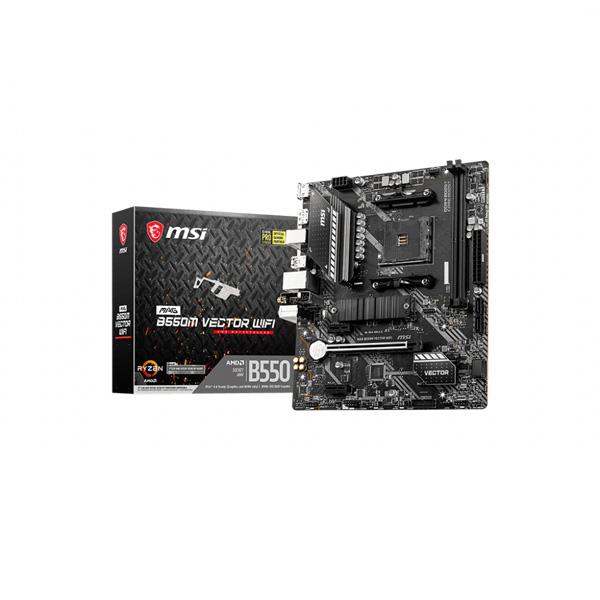

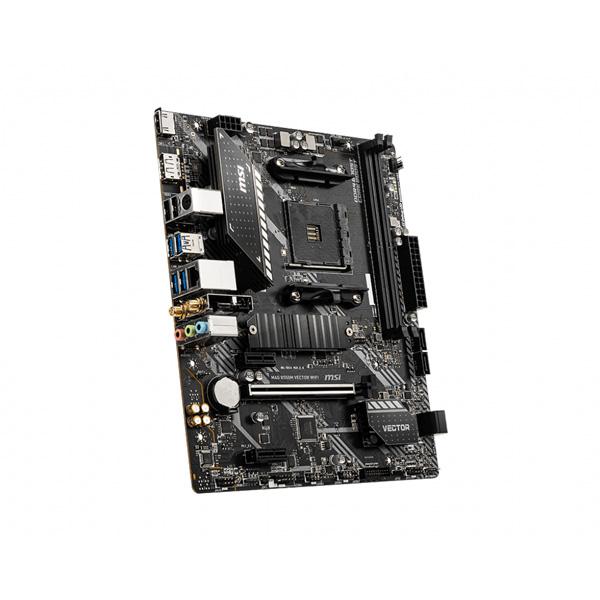

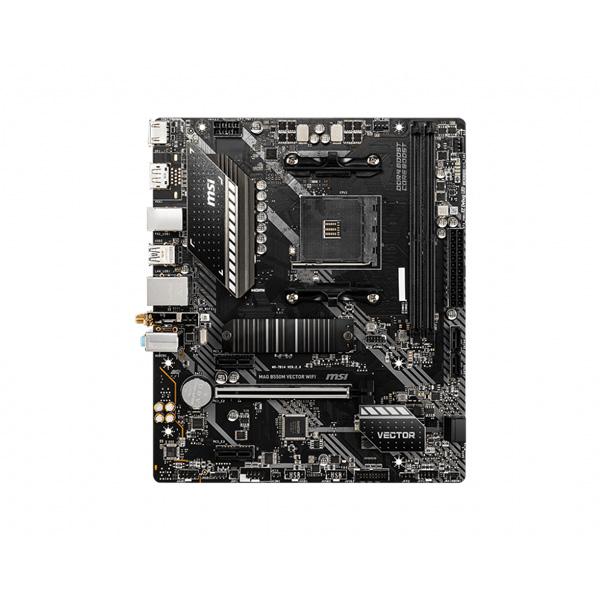

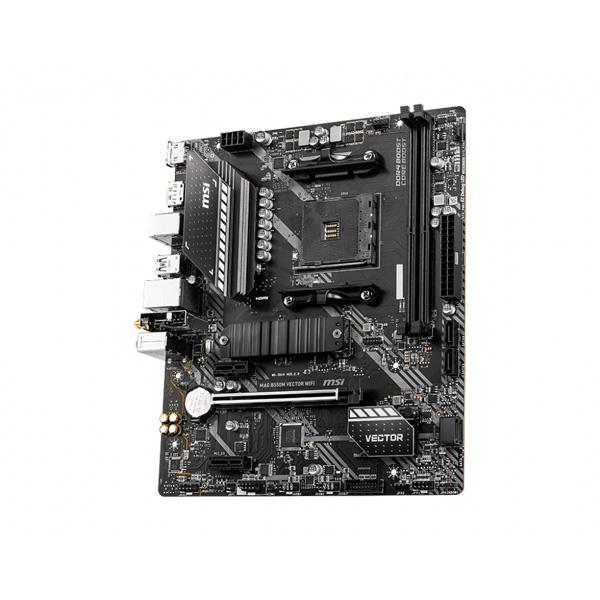

- MSI MAG B550M Vector Wifi DDR4 AMD Motherboard
Description
Feature of MSI MAG B550M Vector WiFi DDR4
- Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Extended Heatsink Design: Leading heatsink design, extended for maximum cooling and performance
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
Conquer the Battlefield
The MSI MAG B550M Vector Wifi DDR4 series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
NEXT-GEN INTEL® WI-FI AC & BLUETOOTH
This next-generation Intel® Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation.
Specifications of MSI MAG B550M Vector WiFi DDR4
| CPU | Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors |
| Chipset | AMD B550 Chipset |
| Memory |
2x DDR4 memory slots, support up to 64GBSupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHzDual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Expansion Slot |
1x PCIe x16 slot (PCI_E2)Supports PCIe 4.0/3.0 1
2x PCIe 3.0 x1 slots |
| Onboard Graphics |
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 Maximum shared memory of 2048 MB Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage |
AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slots (Key M)M2_1 slot (from AMD processor)Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devicesThe supported specification depends on installed processor. |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB |
AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio |
Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8111H LAN controller |
| Wireless LAN & Bluetooth |
Intel® Dual Band Wireless-AC 3168 Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector 1x Clear CMOS jumper |

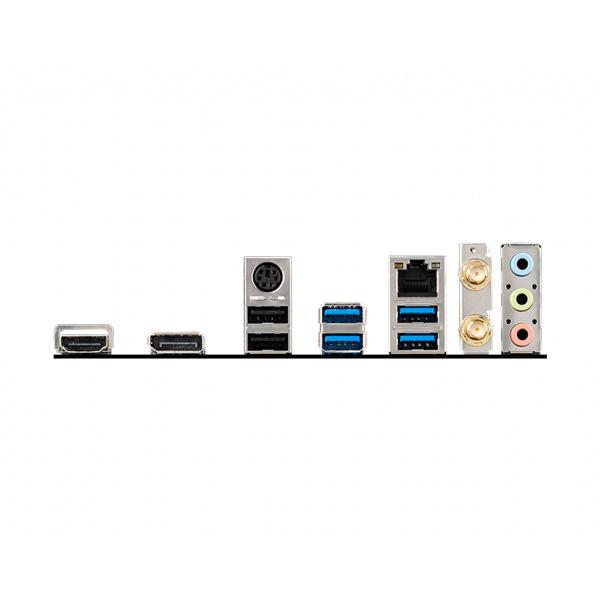

| Back panel ports |
Keyboard / Mouse LAN port Wi-Fi Antenna connectors Audio Connectors HDMI DisplayPort USB 2.0 Ports USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A |
| Dimensions |
M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm) |
| MOUNTING | 6 mounting holes |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
