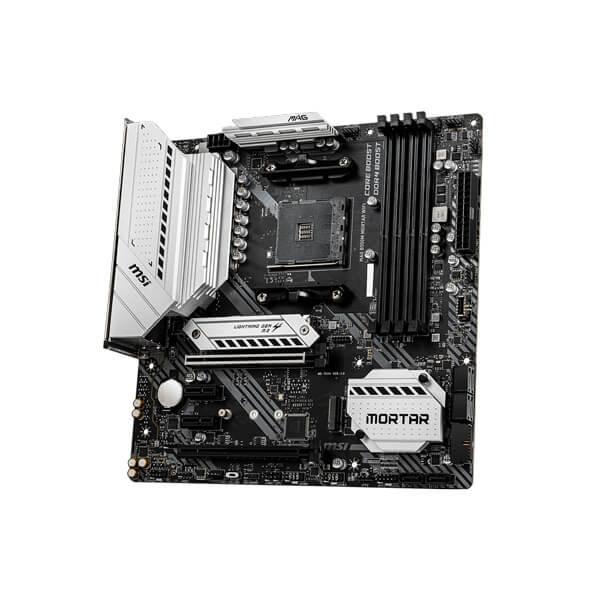

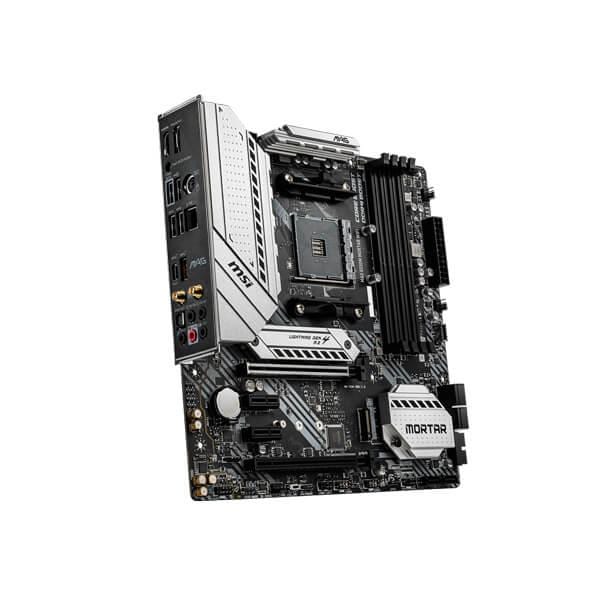

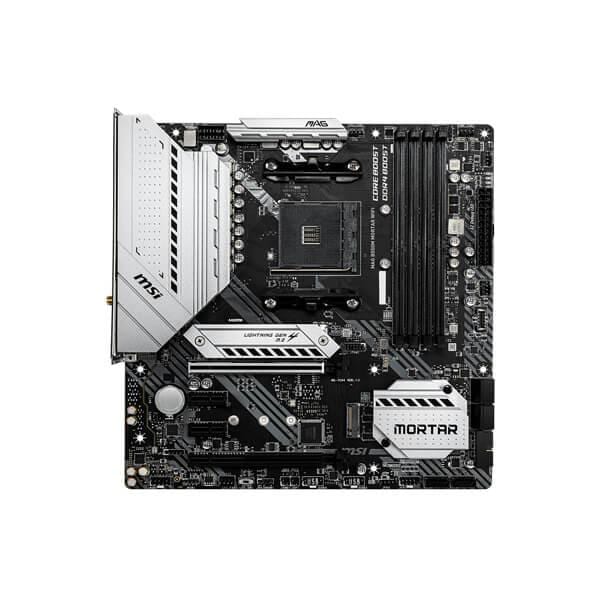

- MSI MAG B550M Mortar Wifi AM4 DDR4 AMD Motherboard
Description
Feature of MSI MAG B550M Mortar WiFi
- Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
- Supports DDR4 Memory, up to 4400 (OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- Enhanced Power Design: 8 2 1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™
Conquer the Battlefield
The MSI MAG B550M Mortar Wifi series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
FAST AND FUTURE-READY STORAGE
MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.
Specifications of MSI MAG B550M Mortar WiFi
Processor | Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update |
Chipset | AMD B550 Chipset |
Memory |
4x DDR4 memory slots, support up to 128GBSupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400 MHz by A-XMP OC MODE1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZDual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
Expansion Slot |
1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2x PCIe 3.0 x1 slots |
Multi-GPU | Supports 2-Way AMD CrossFire™ Technology |
Onboard Graphics |
1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 2048 MB |
Storage |
AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 slot (from AMD processor)Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devicesM2_2 slot (from AMD B550 chipset)Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
RAID |
AMD B550 Chipset Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
USB |
AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
Audio |
Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
Wireless LAN & Bluetooth® |
Intel® Wi-Fi 6 AX200 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.1 |
Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper |

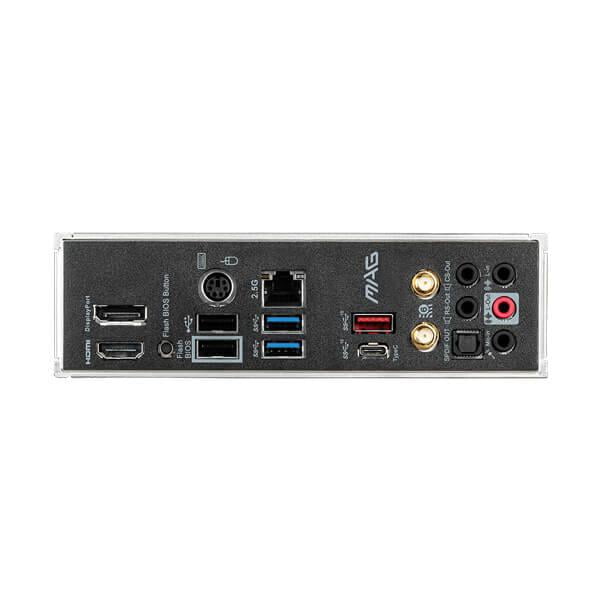

Back panel ports |
DisplayPort PS/2 Combo Port 2.5G LAN Port USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors HDMI Port Flash BIOS Button USB 2.0 port USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Optical S/PDIF OUT |
Dimensions |
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
Mounting | 8 mounting holes |
Operating System | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
