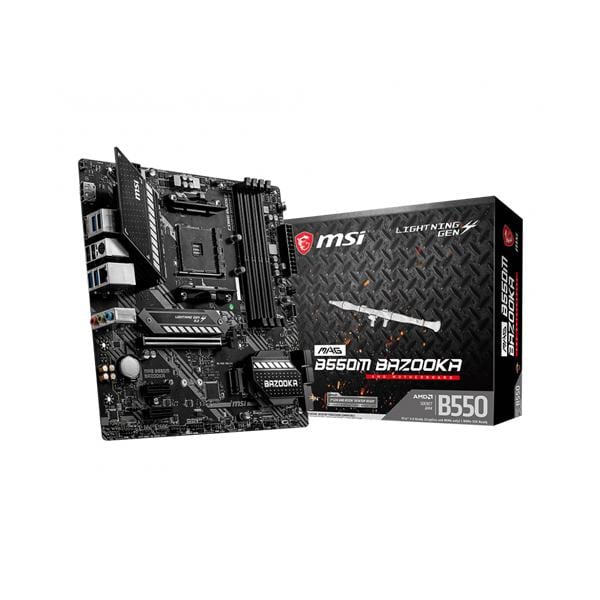

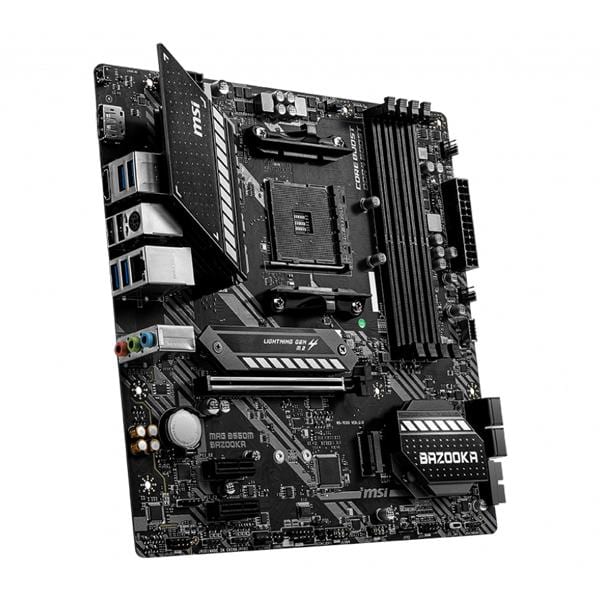

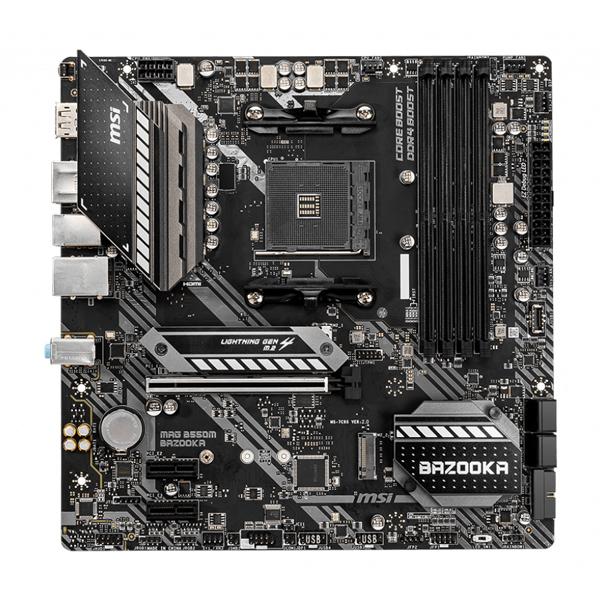

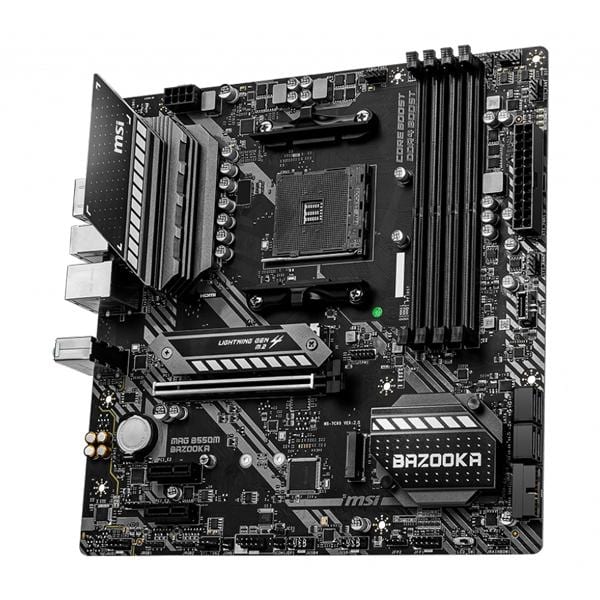

- MSI MAG B550M Bazooka AM4 DDR4 AMD Motherboard
Description
Feature of MSI MAG B550M Bazooka DDR4
- Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
- Supports DDR4 Memory, up to 4400 (OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- Gigabit LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Enhanced Power Design: 4 2 1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Flash BIOS Button with Optimized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
ENHANCED PERFORMANCE
High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
CONNECTIVITY
MSI MAG B550M Bazooka AM4 motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one
LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
Specifications of MSI MAG B550M Bazooka DDR4
| CPU | Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update |
| Chipset | AMD B550 Chipset |
| Memory |
4x DDR4 memory slots, support up to 128GBSupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400 MHz by A-XMP OC MODE1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZDual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Expansion Slot | 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1 2x PCIe 3.0 x1 slots The supported specification depends on installed processor. |
| Onboard Graphics |
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1 Maximum shared memory of 16GB Available for the processor with integrated graphics. |
| Storage |
AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 slot (from AMD processor)Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devicesM2_2 slot (from AMD B550 chipset)Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devicesThe supported specification depends on installed processor. |
| RAID |
AMD B550 Chipset Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports (4 Type-A ports on the back panel) |
| Audio |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8111HN 1Gbps LAN controller |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper |

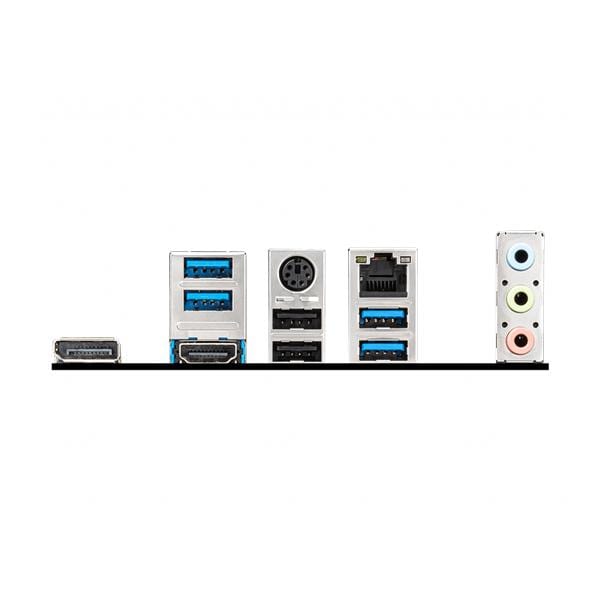

| Back panel ports |
USB 3.2 Gen 1 5Gbps Type A PS/2 Combo Port Gigabit LAN Port Flash BIOS Button DisplayPort HDMI USB 2.0 port USB 3.2 Gen 1 5Gbps Type A HD Audio Connectors |
| I/O Controller | NUVOTON NCT6687-R Controller Chip |
| Dimensions |
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
