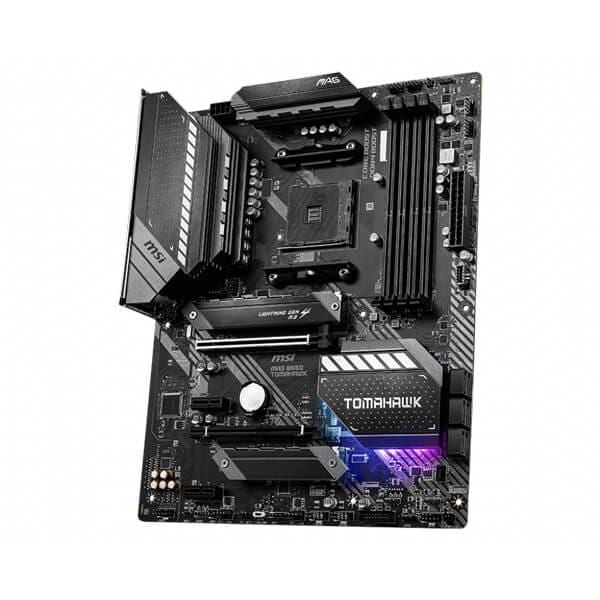

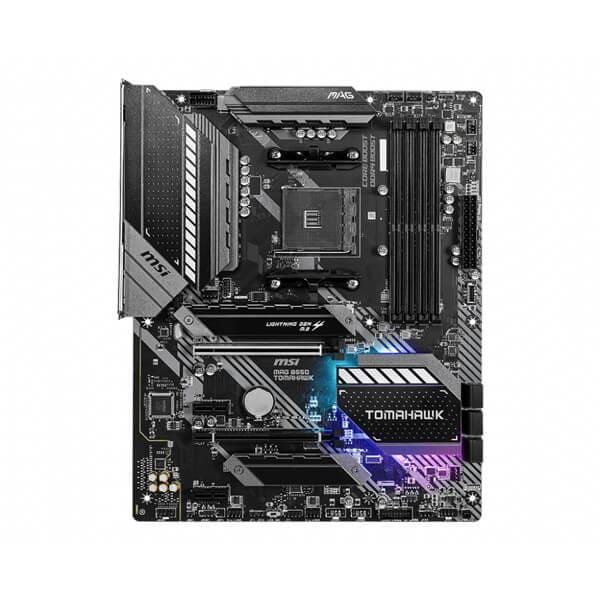

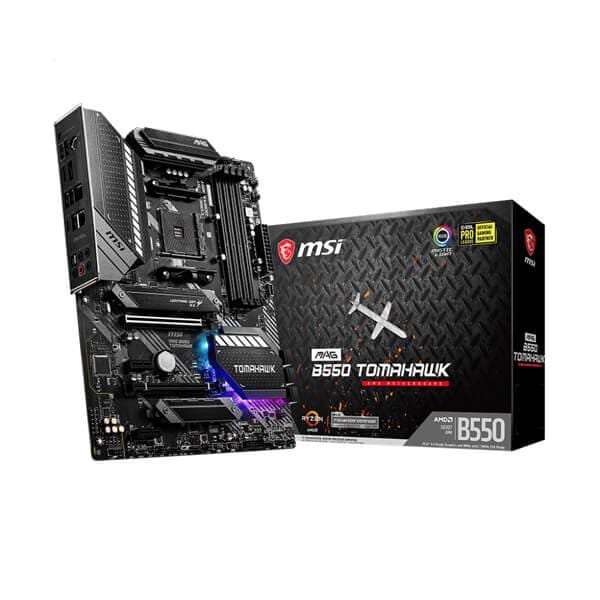

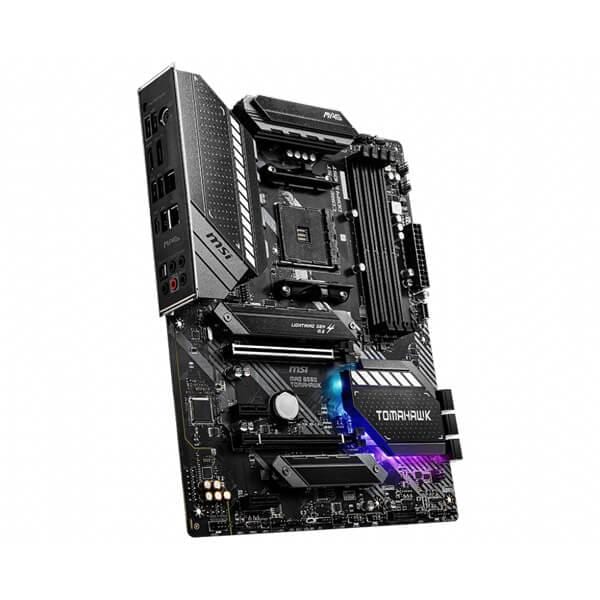

- MSI MAG B550 Tomahawk AM4 DDR4 AMD Motherboard
Monsoon Sale Offer
Description
Feature of MSI MAG B550 Tomahawk AM4 DDR4
- Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
- Supports DDR4 Memory, up to 4866 (OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- Enhanced Power Design: 10 2 1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
- Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag.
- Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB and RAINBOW LED strip.
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™
Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI MAG B550 Tomahawk AM4 features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
10+2+1 DUET RAIL POWER SYSTEM
With its 8 pin power connectors and exclusive Core Boost technology, the MAG B550 TOMAHAWK MAX WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
FORTIFIED PCIE 4.0 X16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
GEN4 M.2 CONNECTORS
The MAG B550 TOMAHAWK MAX WIFI motherboard features MSI's latest M.2 slots:
M.2 SHIELD FROZR
Even the world's fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
4 X DDR4 DUAL CHANNEL (5100 MHZ OC)
DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
A-XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.
Specifications of MSI MAG B550 Tomahawk AM4 DDR4
| Processor | Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update |
| Chipset | AMD B550 Chipset |
| Memory |
4 x DDR4 memory slots, support up to 128GBSupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866 MHz by A-XMP OC MODE1DPC 1R max speed 4866 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZDual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Expansion Slot |
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots |
| Multi-GPU | Supports 2-Way AMD CrossFire™ Technology |
| Onboard Graphics |
1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 2048 MB |
| Storage |
AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 slot (from AMD Processor)Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devicesM2_2 slot (from AMD B550 chipset)Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio |
Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN |
1x Realtek® RTL8125B 2.5Gbps LAN controller 1x Realtek® RTL8111H 1Gbps LAN controller |
| Internal connectors |
x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper |

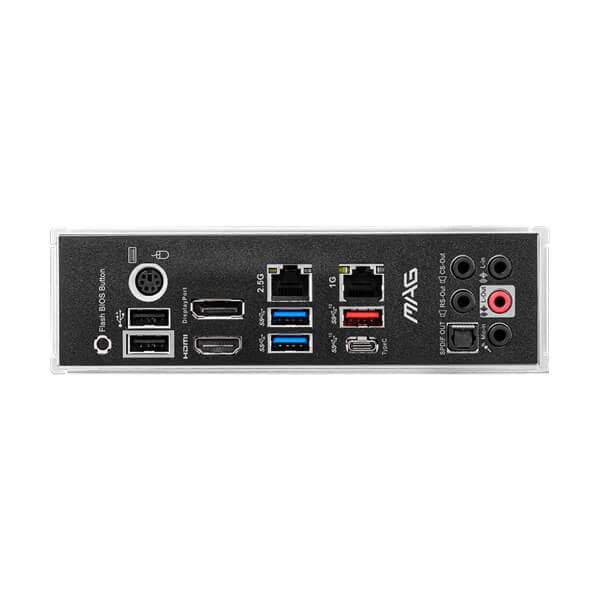

| Back panel ports |
PS/2 Combo Port DisplayPort 2.5G LAN Port 1G LAN Port HD Audio Connectors Flash BIOS Button USB 2.0 Port HDMI Port USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A Type-C) Optical S/PDIF OUT |
| Dimensions |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
