Description
Feature of MSI MAG B460 Tomahawk DDR4
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI MAG B460 Tomahawk features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
Specifications of MSI MAG B460 Tomahawk DDR4
CPU | Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket |
Chipset | Intel® B460 Chipset |
Memory |
4x DDR4 memory slots, support up to 128GB Intel® Core™ i7/i9Supports up to DDR4 2933 MHzIntel® Core™ i5 (Below)Supports up to DDR4 2666 MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
Expansion Slot |
1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode 1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode 2x PCIe 3.0 x1 slots (From PCH) |
Onboard Graphics |
1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz |
Storage |
Intel® B460 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors |
RAID |
Intel® B460 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB |
Intel® B460 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector) 1x USB 3.2 Gen 1 5Gbps port (1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia® ASM3241 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel |
Audio |
Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
LAN |
1x Realtek® RTL8125B 2.5Gbps LAN controller 1x Intel® I219V 1Gbps LAN controller |
Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper |

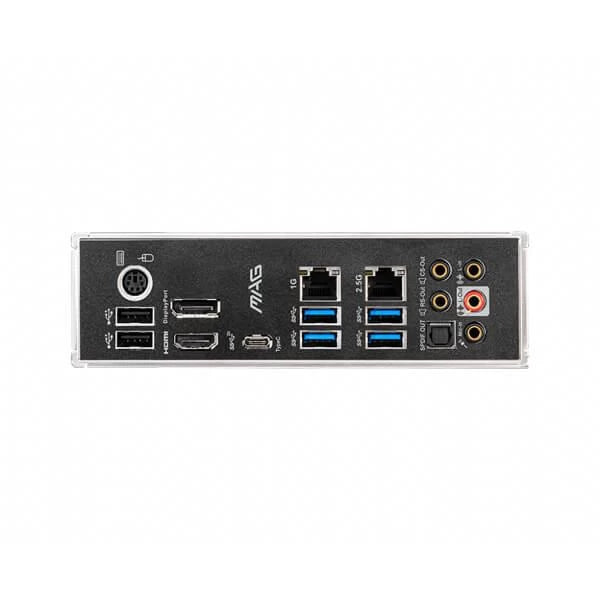

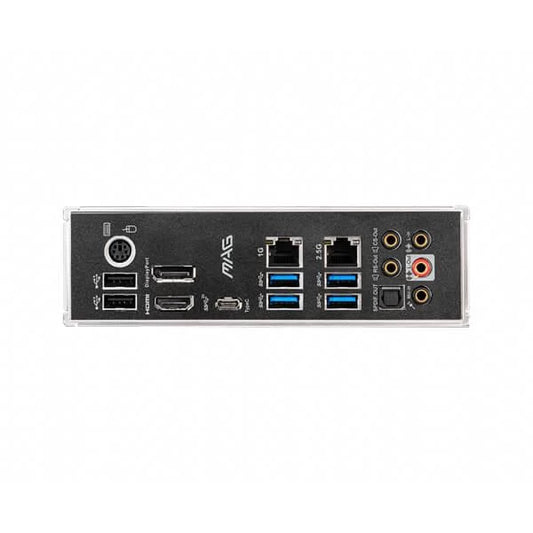

Back panel ports |
PS/2 Combo Port DisplayPort 1G LAN Port 2.5G LAN Port HD Audio Connectors USB 2.0 Ports HDMI USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF OUT |
LED Features |
1x EZ LED Control switch 4x EZ Debug LED |
I/O Controller | NUVOTON NCT6687 Controller Chip |
Hardware Monitor |
CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control |
Form Factor |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
BIOS Features |
1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 ∙Multi-language |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
