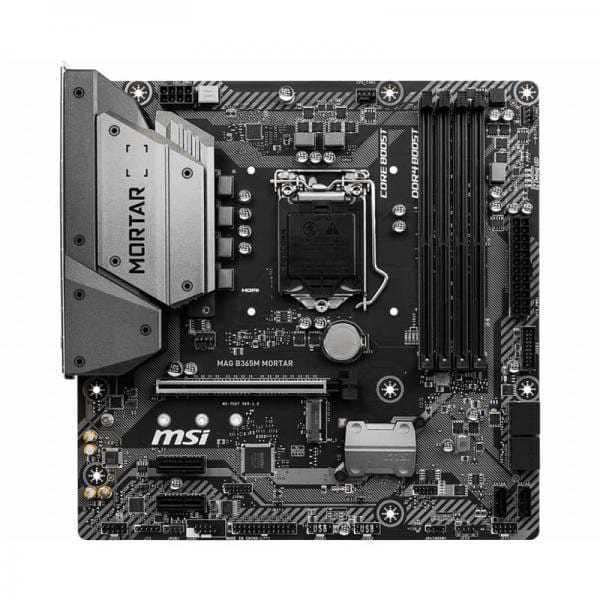

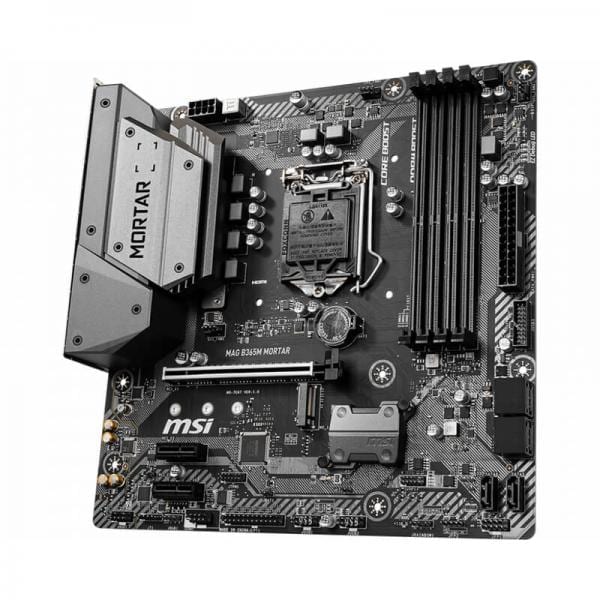

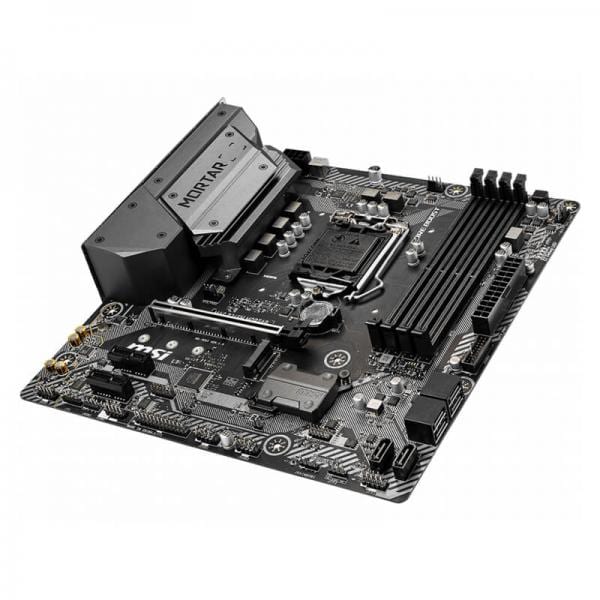

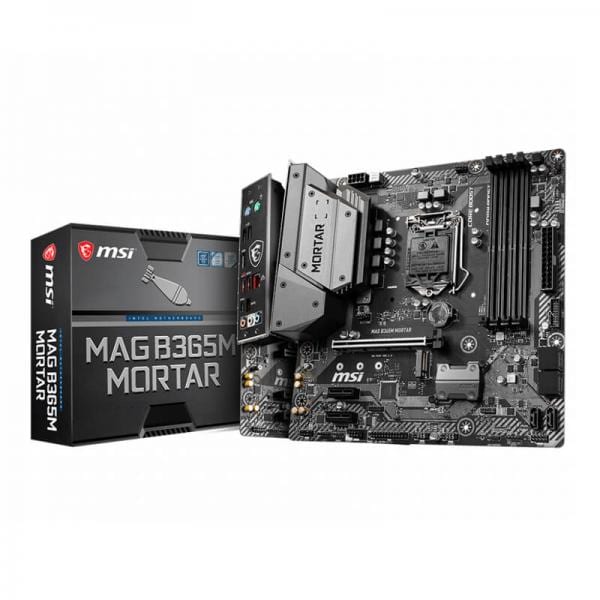

- MSI MAG B365M Mortar DDR4 Intel Motherboard
Description
Feature of MSI MAG B365M Mortar DDR4
- Military-style with Extended heatsink design for better thermal solution, Intel Gaming LAN, Pre-installed I/O Shielding, Core Boost, DDR4 Boost, Turbo M.2 and USB 3.1 connector
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666 MHz
- Intel Gaming LAN: Premium network solution from Intel® for professional andmultimedia use. Delivers a secure, stable and fast network connection
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Set Core Power Free: Extended Heatsink Design, Core Boost, DDR4 Boost
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- Mystic Light Extension: Control both RGB and RAINBOW strips with independent LEDs added to your system with Mystic Light APP and mobile device
- Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.
DIY FRIENDLY
MSI MAG B365M Mortar DDR4 Micro ATX LGA1151 Motherboard been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.
STAY COOL FOR ULTIMATE GAMING PERFORMANCE
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
AUTODETECT DC OR PWM MODE WITH HYSTERESIS
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
TROUBLESHOOTING FRIENDLY DESIGN
MSI motherboards been designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup.
PRE-INSTALLED I/O SHIELDING
Pre-Installed IO Shielding makes handling the motherboard process easier and safer. The patent-pending design grounded and protects the IO ports from potential electrostatic discharge damage from the external environment.
MAXIMUM COMPATIBILITY
Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want.
More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility, so you confirm and choose any gaming rig as you want.
9TH AND 8TH PROCESSORS SUPPORT
MSI B365 motherboards perfectly support Intel® 9th and 8th processors, so you can still enjoy latest MSI motherboard technology if you use 8th processors. Combining MSI Core Boost, you can release maximum performance no matter what CPU you use.
Specifications of MSI MAG B365M Mortar DDR4
| PROCESSOR | Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® B365 Chipset |
| MEMORY |
4 x DDR4 memory slots, support up to 64GB Supports DDR4 2666/ 2400/ 2133 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| SLOTS |
1 x PCIe 3.0 x16 slot 2 x PCIe 3.0 x1 slots |
| ONBOARD GRAPHICS | 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz |
| STORAGE |
Intel® B365 Chipset 6 x SATA 6Gb/s ports 1 x M.2 slots (Key M)Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices Intel® Optane™ Memory ReadySATA1 port will be unavailable when installing SATA M.2 SSD in M.2 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| USB |
Intel® B365 Chipset 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) |
| AUDIO |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Intel® I219-V Gigabit LAN controller |
| INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x 3-pin RAINBOW LED connector 1 x 4-pin RGB LED connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |

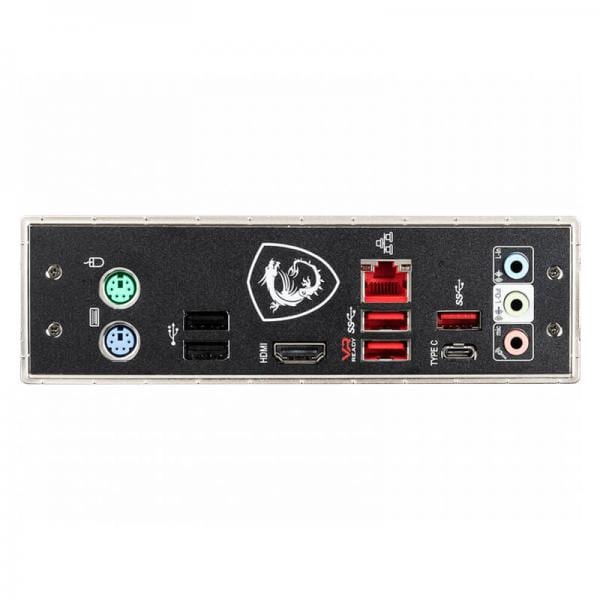

| BACK PANEL PORTS |
Mouse Port Intel GAMING LAN HD Audio Connectors Keyboard Port USB 2.0 ports HDMI Port USB 3.1 Gen1 Type-A ports USB 3.1 Gen1 Type-A C ports |
| DIMENSIONS |
9.6 in. x 9.6 in. (24.3 cm x 24.3 cm) Micro-ATX Form Factor |
| MOUNTING | 8 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
