Description

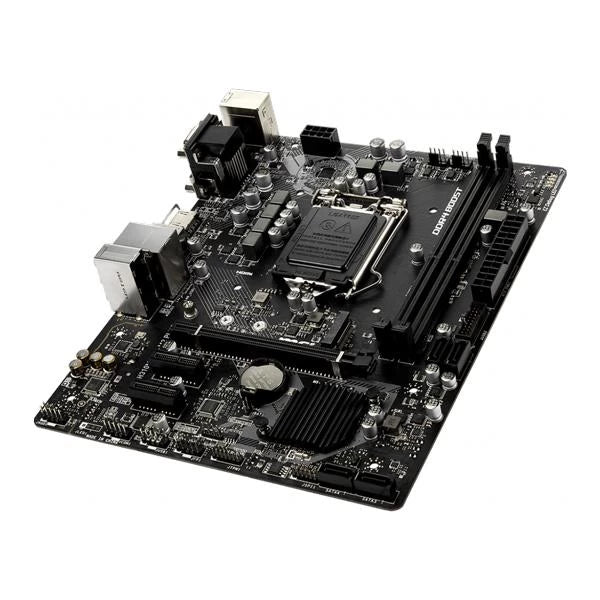

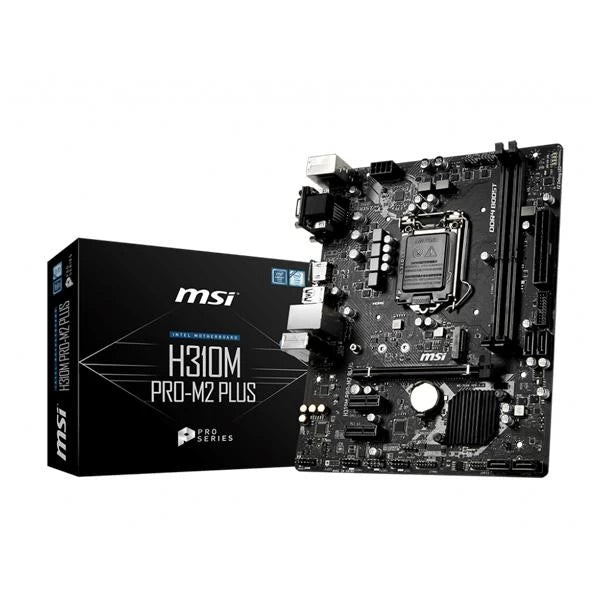

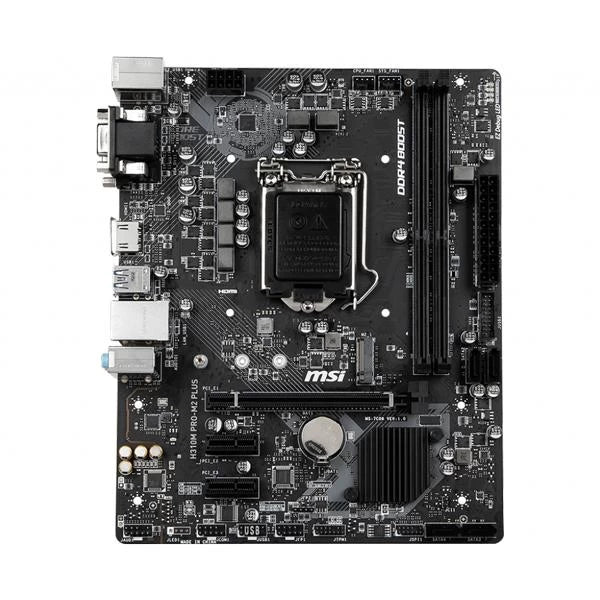

MSI H310M Pro-M2 Plus Motherboard
Features:
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666MHz
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
- Audio Boost: Reward your ears with studio grade sound quality.
- M.2 and NVMe support, up to 20 Gb/s using PCI-Express Gen2 x4.
- EZ Debug LED: Easiest way to troubleshoot.
- PCI-E Steel Slot: Protecting VGA cards against bending for better performance, stability and strength.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Specifications:
| Processor | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Chipset |
Intel® H310 Chipset This chipset is ME11 firmware based and doesn't feature SDA3.0 |
| Memory |
2 x DDR4 memory slots, support up to 32GB Supports DDR4 2666/ 2400/ 2133 MHz Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Slots |
1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots |
| Onboard Graphics |
1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz1 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 1x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1 *No Display support when using the Processor model with suffix “F” Supports up to 2 displays simultaneously |
| Storage |
Intel® H310 Chipset 4 x SATA 6Gb/s ports1 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices SATA1 port will be unavailable when an M.2 SATA SSD is installed in the M2_1 slot. |
| USB |
Intel® H310 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors) |
| Audio |
Realtek® ALC887 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Intel I219-V Gigabit LAN controller |
| Internal connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |

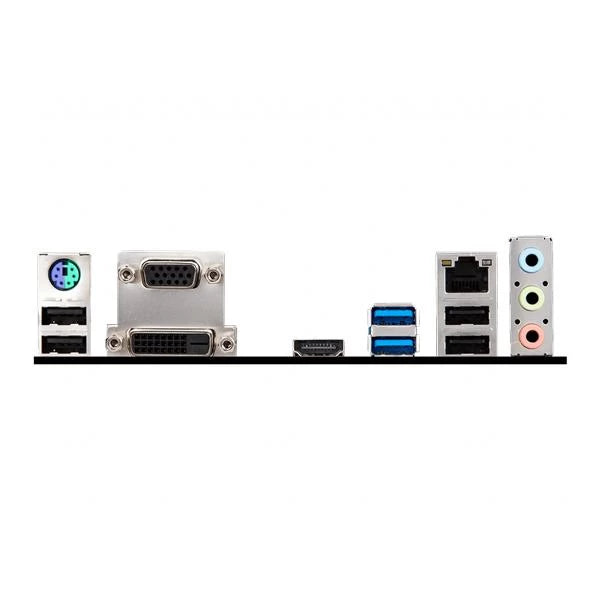

| Back panel ports |
PS/2 Combo VGA HDMI USB 3.1 Gen1 LAN HD Audio Connectors DVI-D USB 2.0 |
| Dimensions |
9.1 in. x 7.3 in. (23.0 cm x 18.5 cm) m-ATX Form Factor |
| Mounting | 6 mounting holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice |
