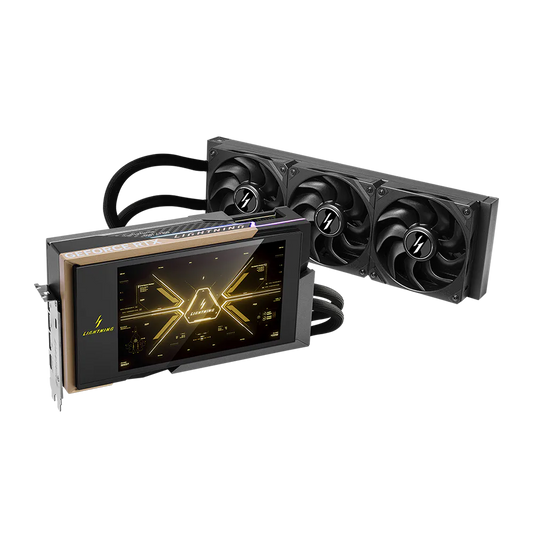

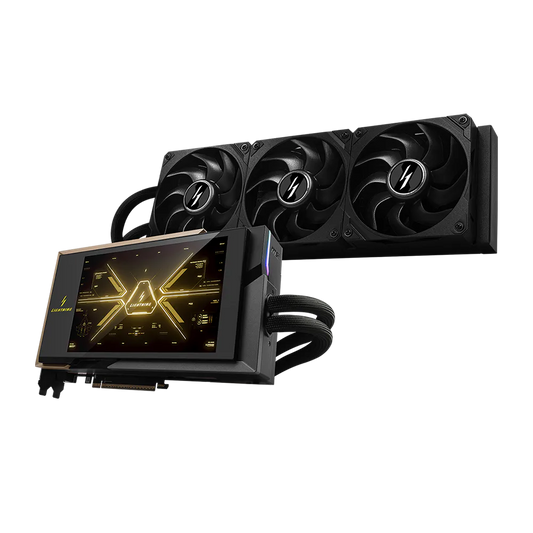

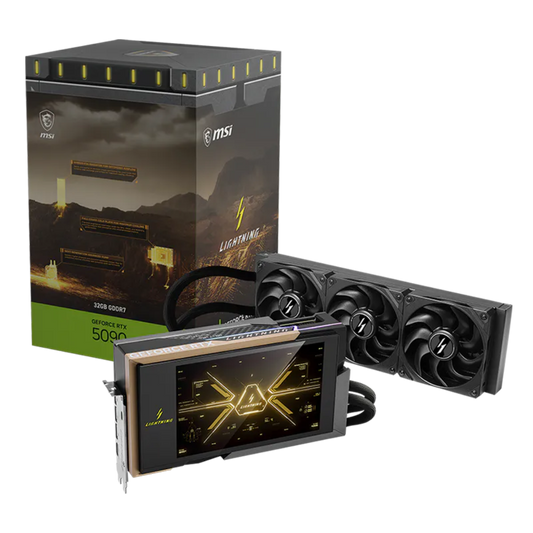

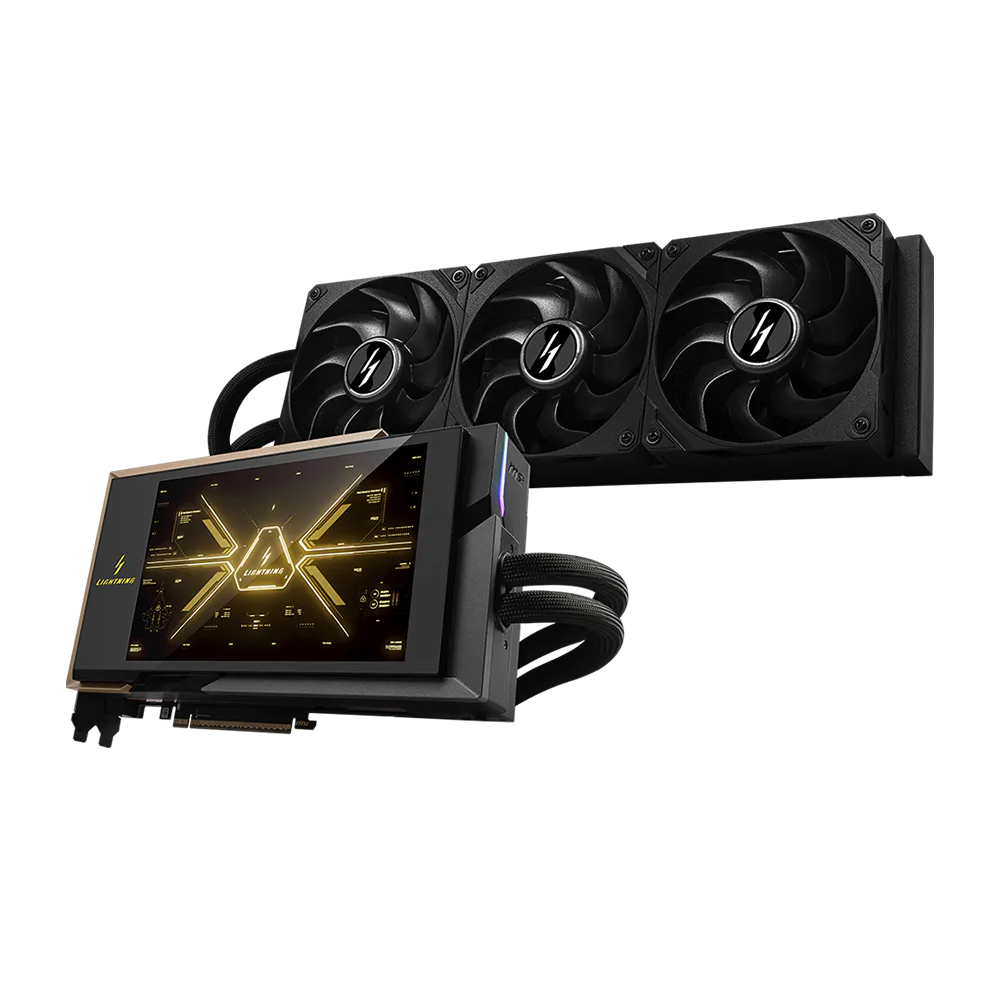

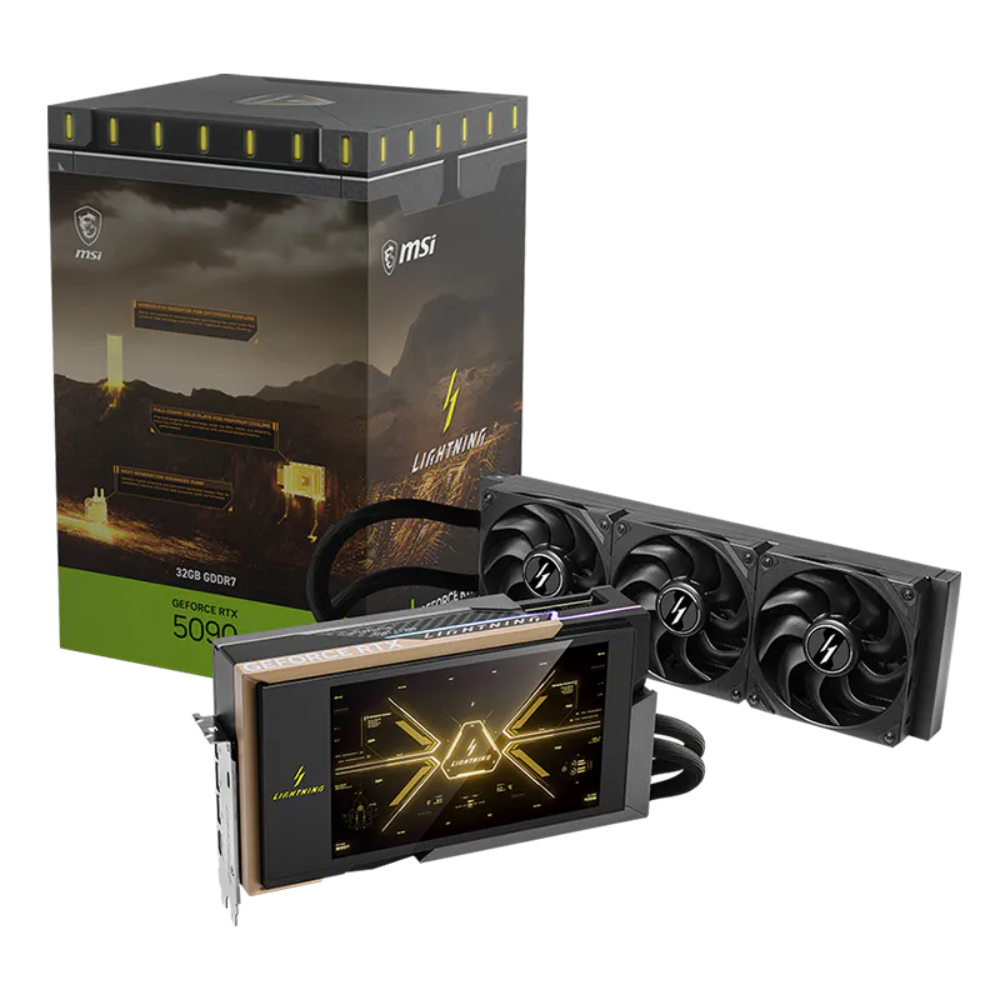

- MSI GeForce RTX 5090 Lightning Z 32GB Nvidia Graphic Card
Description
Features of MSI GeForce RTX 5090 Lightning Z 32GB Nvidia Graphic Card
KV LOGO
The future ignites. The legend returns.
The RTX™ 5090 LIGHTNING stands as MSI’s pinnacle — forged for the extreme. Reimagined liquid cooling, precision-carbon accents, and Lightning-cut design unite to deliver not just power, but perfection made real.
Lightning, Reinvented. Esteemed.
A flagship crafted with precision.
Forged in Carbon Fiber -
Reinforced. Light. Beautiful.
Rigid carbon fiber and Lightning Pattern detailing deliver technical elegance.
Display Aesthetics
A full 8-inch display at the front defines its striking aesthetic.
COOLING AS ART
Next-gen liquid cooling, engineered for precision - cooler, faster, and pushing performance beyond limits.
Overclocking Without Limits
Designed for extreme overclocking, LIGHTNING delivers a meticulously engineered ecosystem—refined with elite global overclockers to keep breaking limits.
Trusted By Elite Overclockers
Developed, tested, and validated by elite overclockers, this graphics card is built to meet the demands of record-breaking performance. From extreme stress testing to real-world tuning, it delivers the stability, precision, and headroom trusted by the world’s best.
Record-Breaking
LIGHTNING pushes beyond limits - shattering world records and setting new benchmarks where others can't reach.
GeForce RTX™ 5090 32G LIGHTNING Z
- Powered by the NVIDIA Blackwell architecture and DLSS 4
-
Core Clocks:
Extreme Performance: 2775 MHz (MSI Center)
Boost: 2730 MHz - Custom PCB: A reinforced PCB with 3oz copper and premium components delivers superior conductivity, stability, and extreme OC performance.
- Full-cover Cold Plate: Precision-engineered waterways cover the GPU, VRAM, and MOSFETs, ensuring uncompromised thermal performance.
- Hybrid-fin Radiator: Dense and sparse fin sections create contrasting hot–cold zones that enhance heat exchange and airflow for maximum cooling efficiency.
- Next-generation Advanced Pump: Delivers higher pressure and precision-optimized coolant flow for thermal efficiency and sustained peak performance.

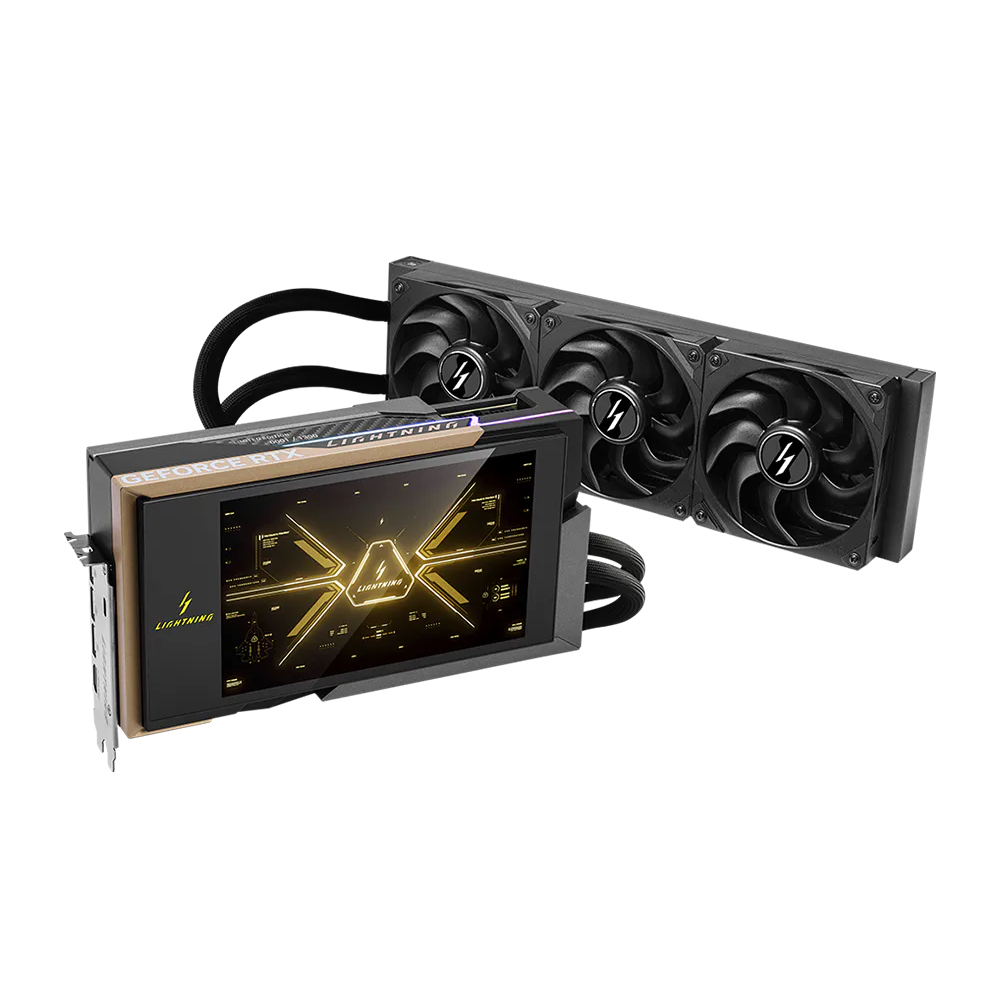

- A Full 8-Inch Display: Introducing the world’s first graphics card with a fully integrated 8-inch screen, blending aesthetics and function.
- LIGHTNING Fan: Designed for the Lightning series, the fan’s aerodynamic blades optimize airflow and pressure to ensure maximum cooling.
- LIGHTNING HUB & OVERDRIVE APP: Exclusive to the Lightning series, this web-based hub and mobile app deliver seamless GPU, display, and lighting control.
- Carbon Fiber Backplate: Rigid carbon fiber and Lightning Pattern detailing deliver technical elegance.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications of MSI GeForce RTX 5090 Lightning Z 32GB Nvidia Graphic Card
| Marketing Name | GeForce RTX™ 5090 32G LIGHTNING Z |
| Model Name | G5090-32LZ |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5090 |
| Interface | PCI Express® Gen 5x 16 |
| Core Clocks | Extreme Performance: 2775 MHz (MSI Center) Boost: 2730 MHz |
| CUDA® CORES | 21760 Units |
| Memory Speed | 28 Gbps |
| Memory | 32GB GDDR7 |
| Memory Bus | 512bit |

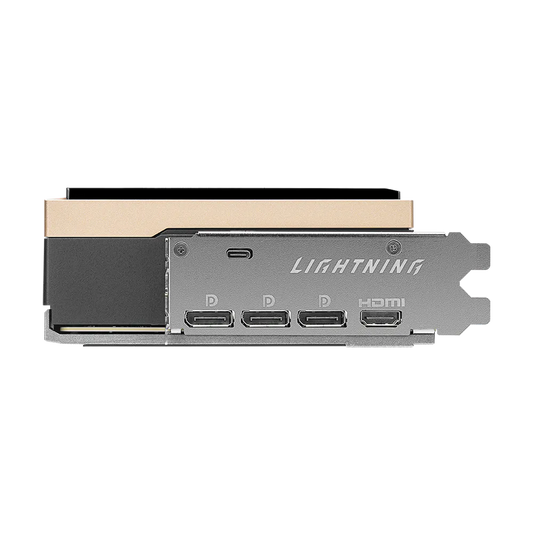

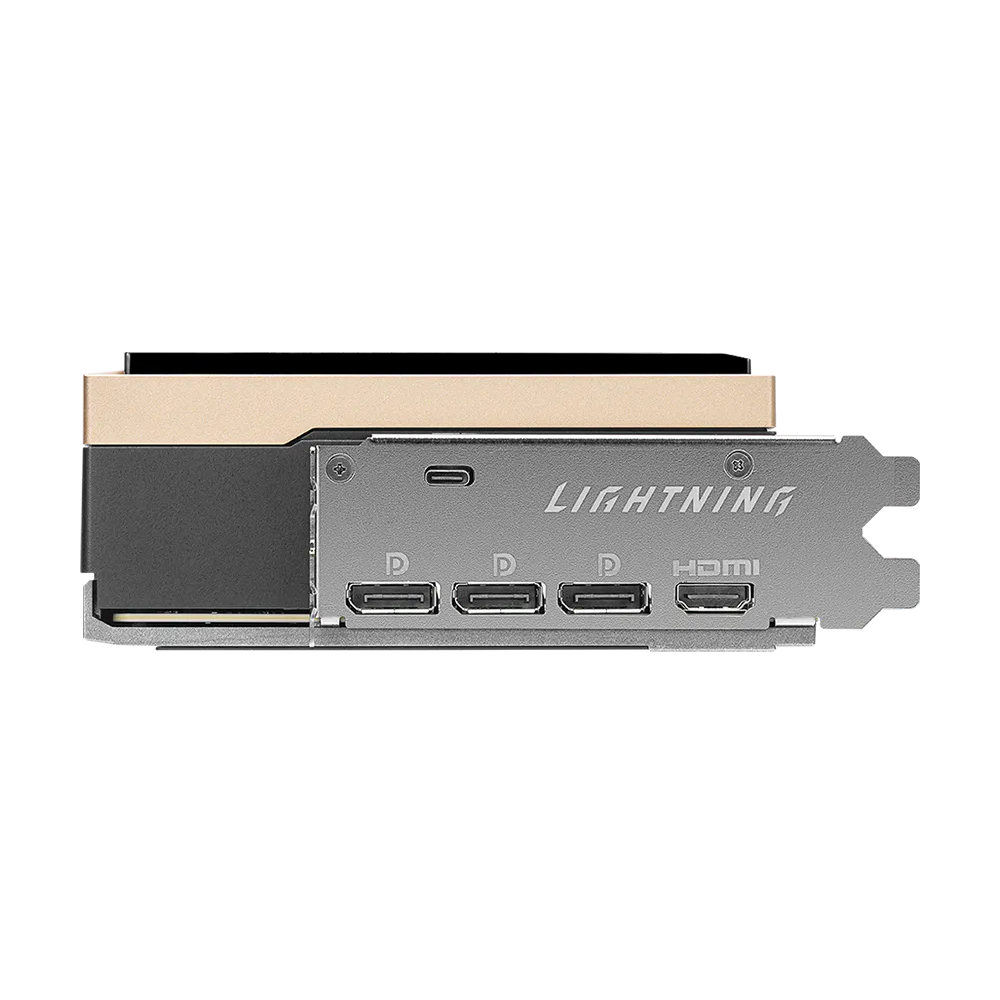

| Output | USB Type-C x 1 (Dedicated for Lightning display panel only), DisplayPort x 3 (2.1b), HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | OC:800 W EXtreme:1000W |

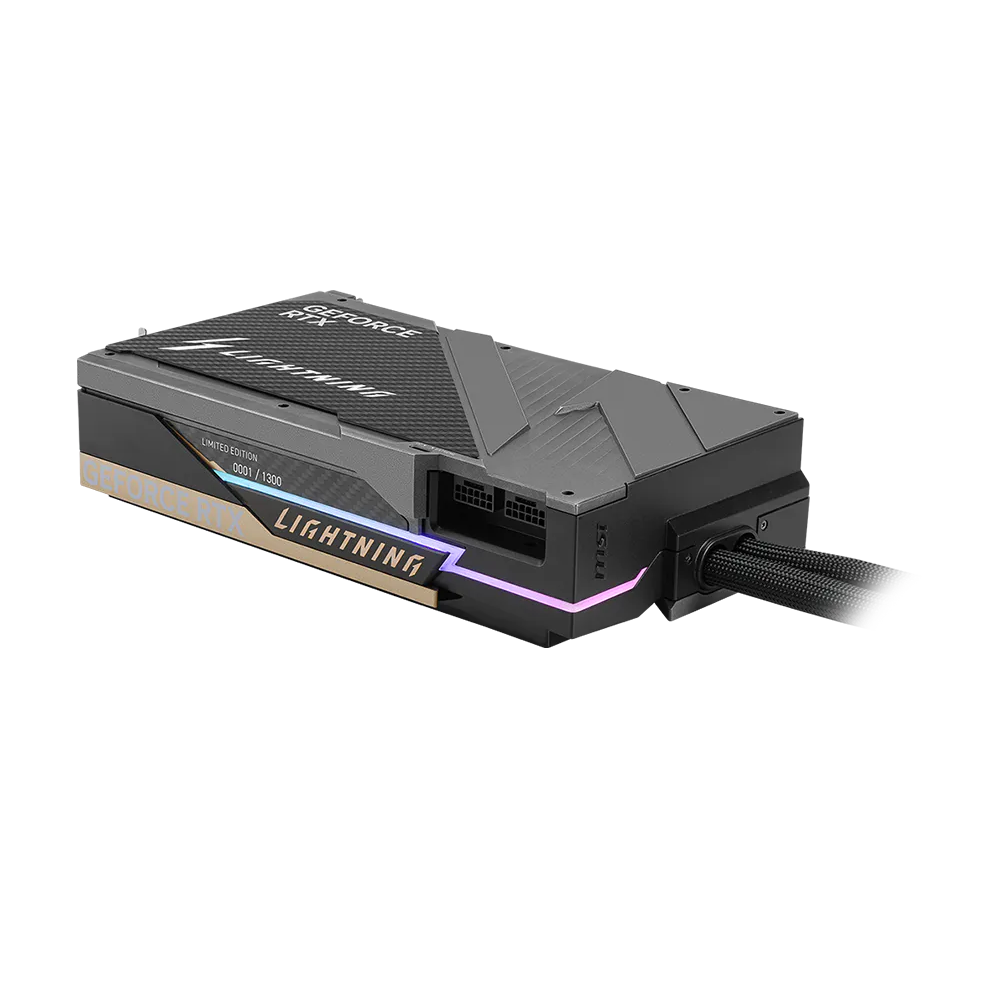

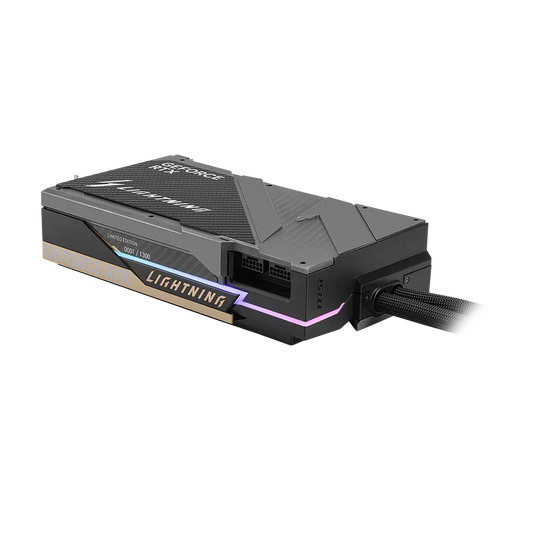

| Power connectors | 16-pin x 2 (1-to-3 dongle not supported.) |
| Recommended PSU | 1500W+ |
| Card Dimension (mm) | Card: 260 x 151 x 61 mm Radiator: 394 x 120 x 56 mm |
| Weight (Card / Package) | TBD g / TBD g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
