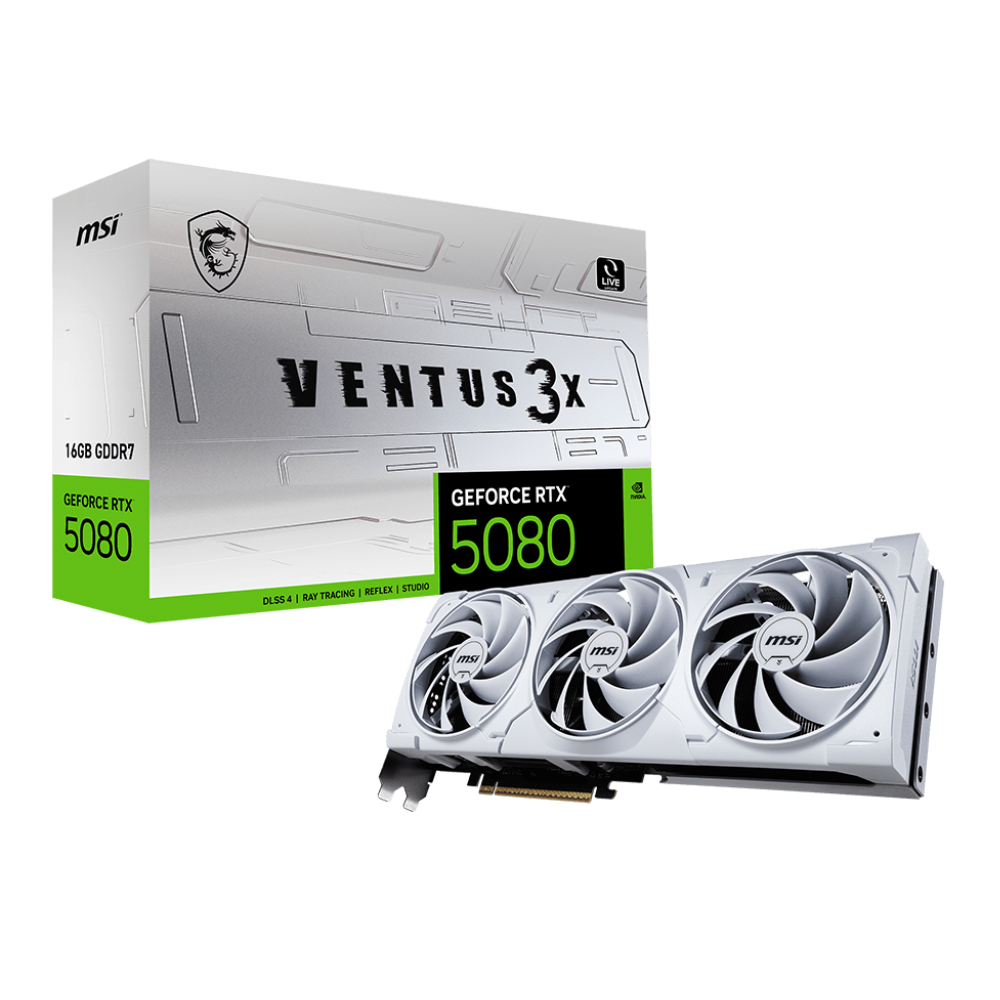

- MSI GeForce RTX 5080 Ventus 3X White 16GB Nvidia Graphic card
Description
Features of MSI GeForce RTX 5080 Ventus 3X White 16GB Nvidia Graphic card
TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

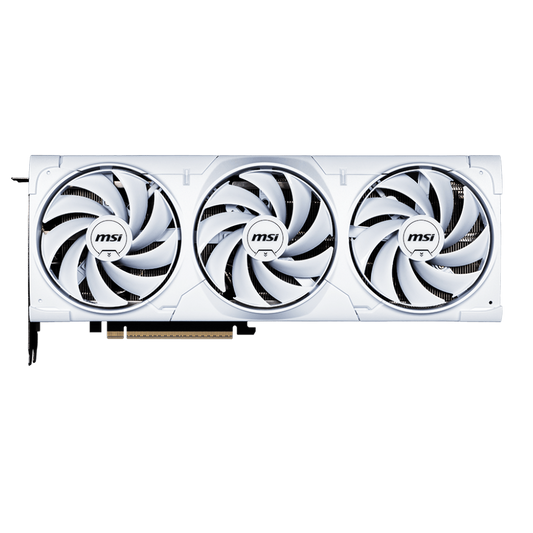

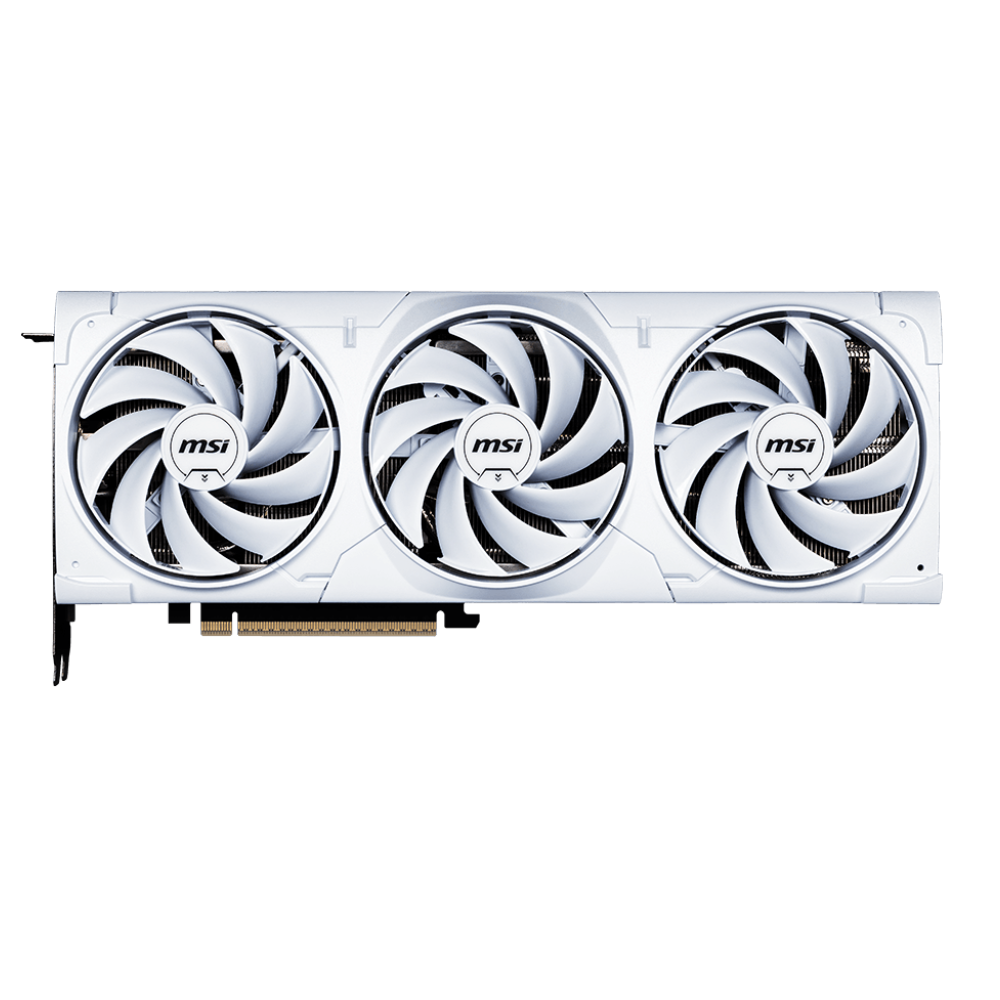

Triple-Fan Thermal Design
Three fans on a large heatsink deliver both superior and quieter cooling.
TORX FAN 5.0
TORX FAN 5.0 enhances airflow and pressure through an improved fan design. Ring arcs link three sets of 22-degree-tilted fan blades, increasing airflow by 23% compared to axial fans.
DOUBLE BALL BEARINGS
Two sets of durable ball bearings spin the fans for years of intense and lengthy gaming sessions.
NICKEL-PLATED COPPER BASEPLATE
Heat from the GPU and memory modules is quickly captured by a solid nickel-plated copper baseplate and rapidly transferred to the core pipes.
KEEPING THE CORE COOL - CORE PIPES
Core Pipes are engineered with a square shape contact area for maximum heat capture where it engages the GPU baseplate, then dispersing heat across the heatsink for optimal thermal management.

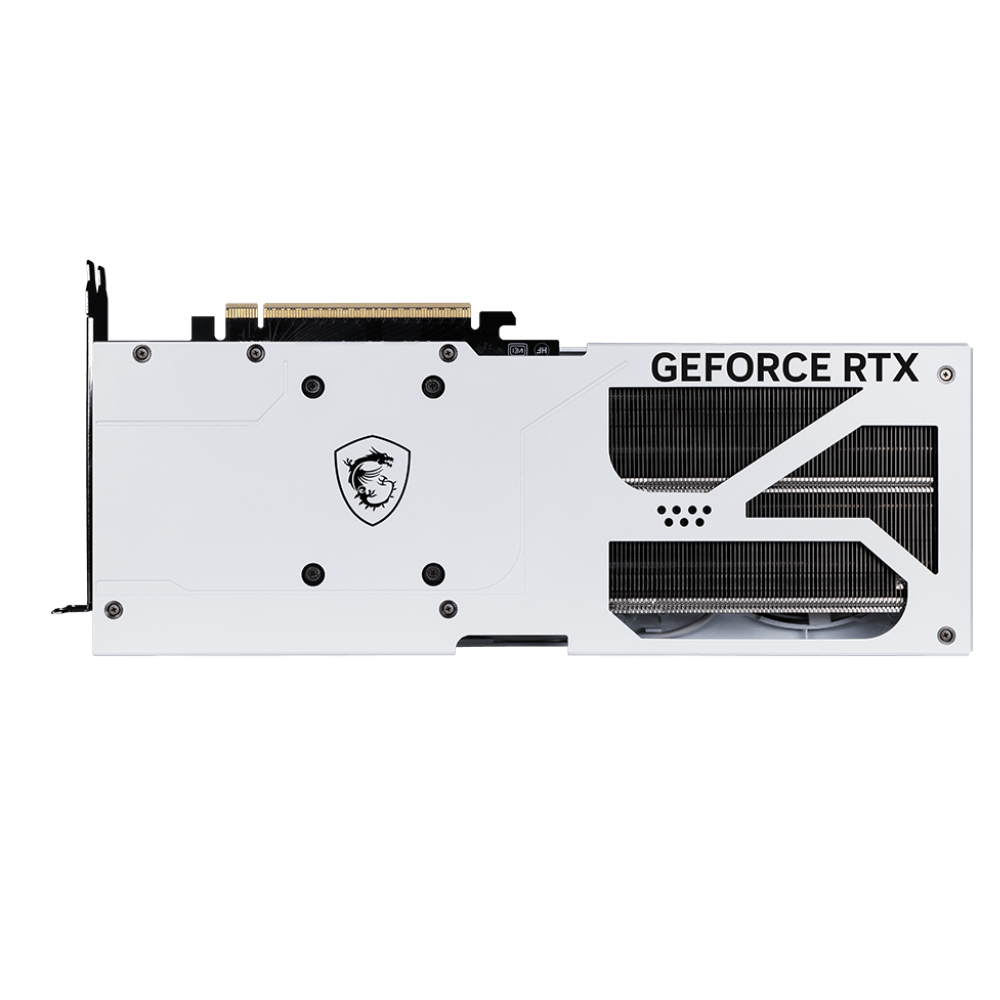

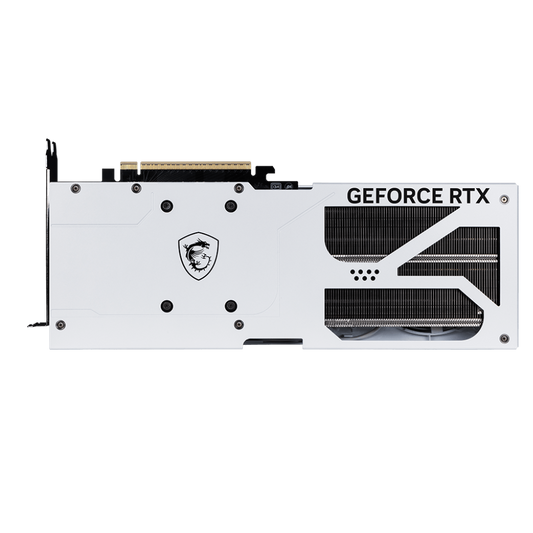

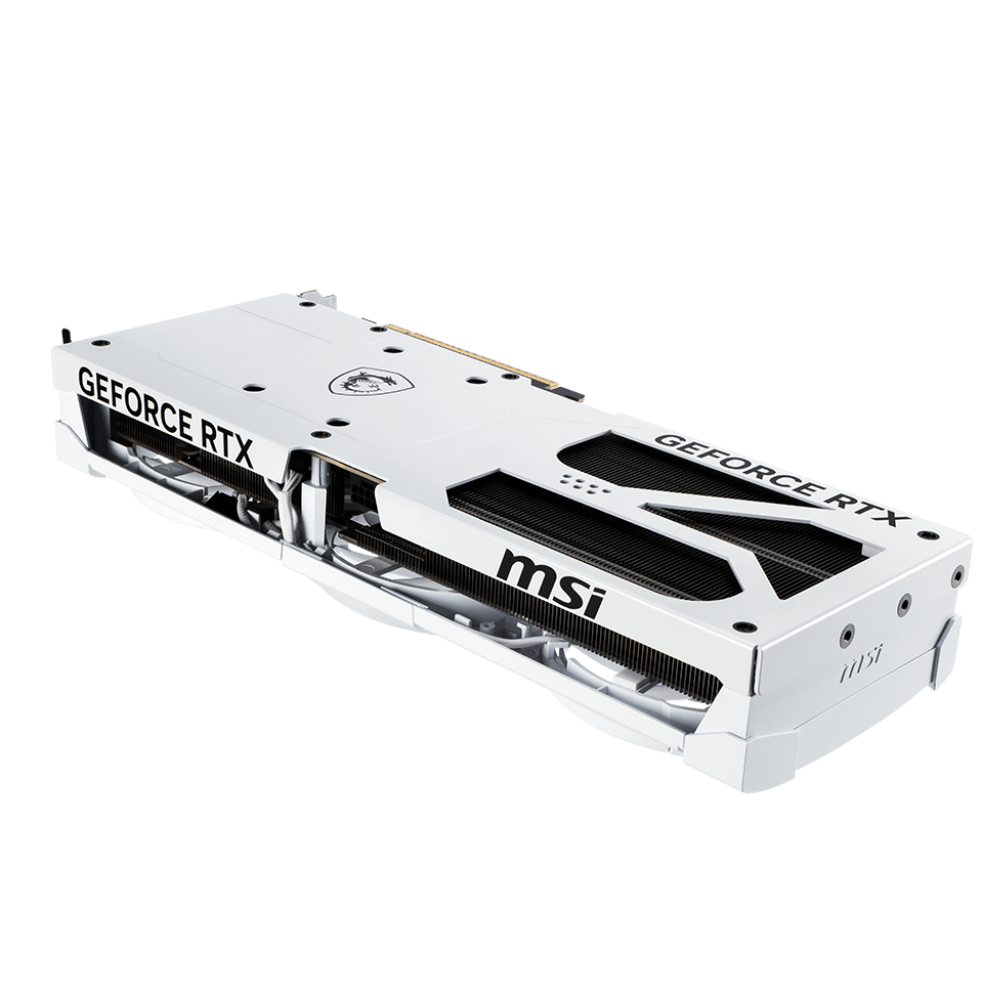

METAL BACKPLATE
A sturdy metal backplate helps to strengthen the graphics card while airflow vents allow exhaust air to pass through, effectively reducing excess heat.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
HARDENING EVERY DETAIL
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
GeForce RTX™ 5080 16G VENTUS 3X OC WHITE
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
-
Core Clocks:
Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications of MSI GeForce RTX 5080 Ventus 3X White 16GB Nvidia Graphic card
Marketing Name | GeForce RTX™ 5080 16G VENTUS 3X WHITE |
Model Name | G5080-16V3W |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 5080 |
Interface | PCI Express® Gen 5 |
Core Clocks |
Extreme Performance: 2625 MHz (MSI Center) Boost: 2617 MHz |
CUDA® CORES | 10752 Units |
Memory Speed | 30 Gbps |
Memory | 16GB GDDR7 |
Memory Bus | 256-bit |

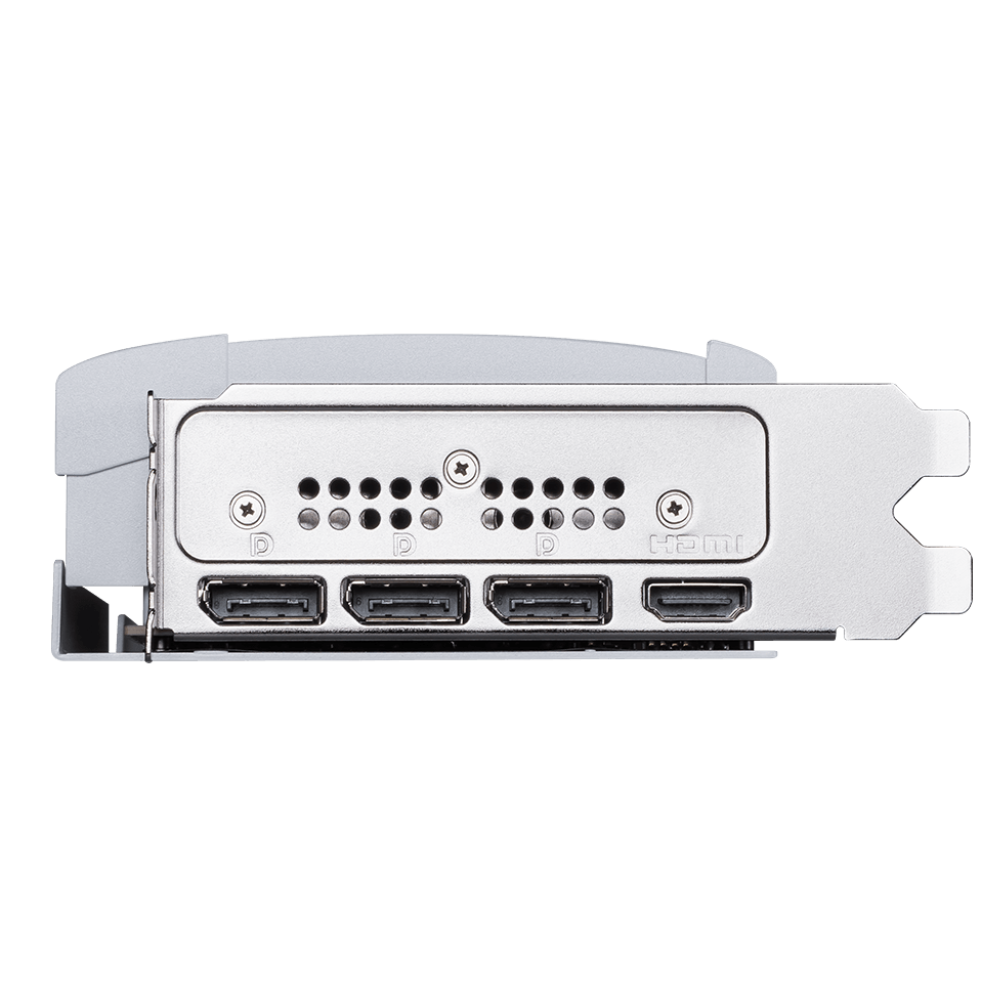

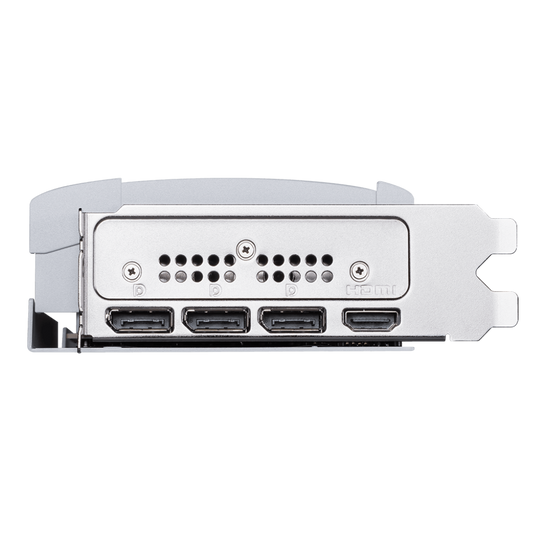

Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
HDCP Support | Y |
Power consumption | 360 W |

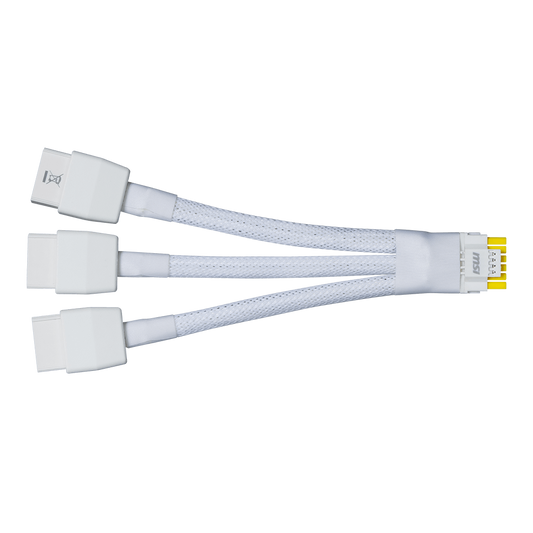

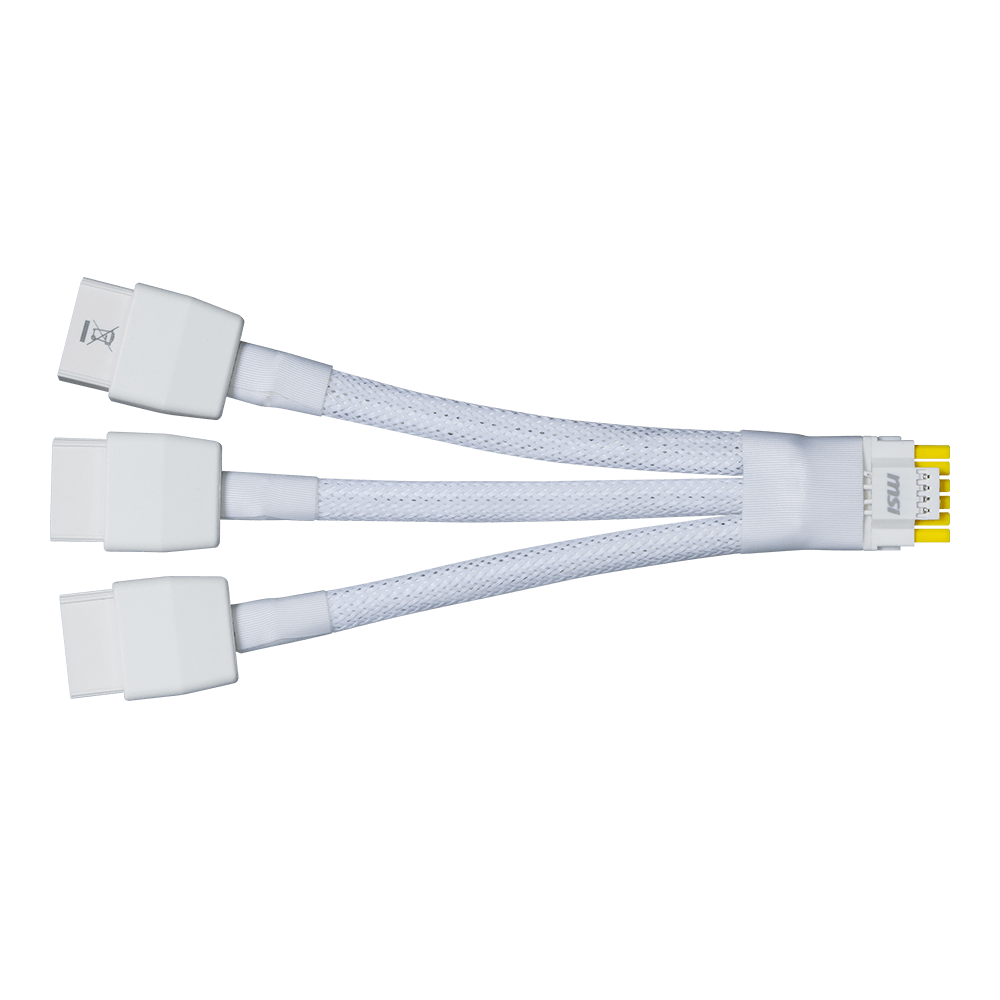

Power connectors | 16-pin x1 |
Recommended PSU | 850 W |
Card Dimension (mm) | 303 x 121 x 49 mm |
Weight (Card / Package) | 1084 g / 1576 g |
DirectX Version Support | 12 Ultimate |
OpenGL Version Support | 4.6 |
Maximum Displays | 4 |
G-SYNC® technology | Y |
Digital Maximum Resolution | 7680 x 4320 |
