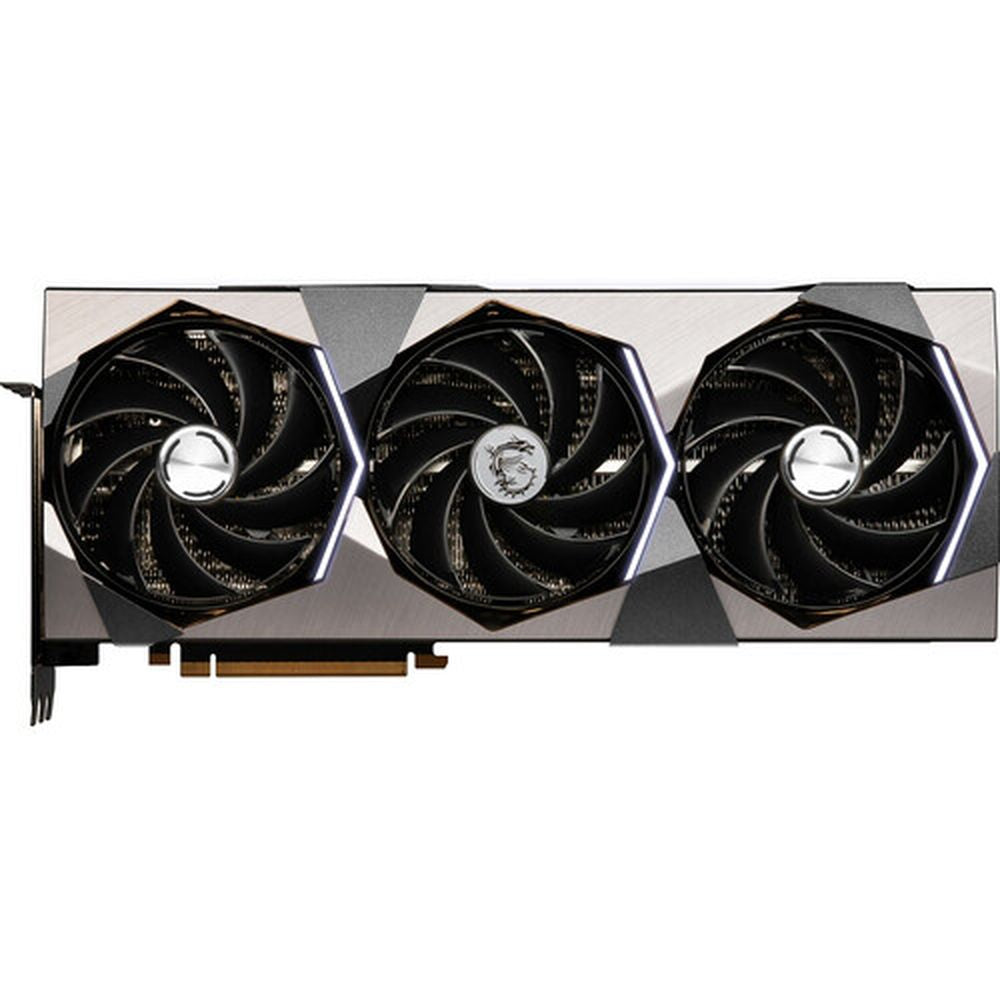

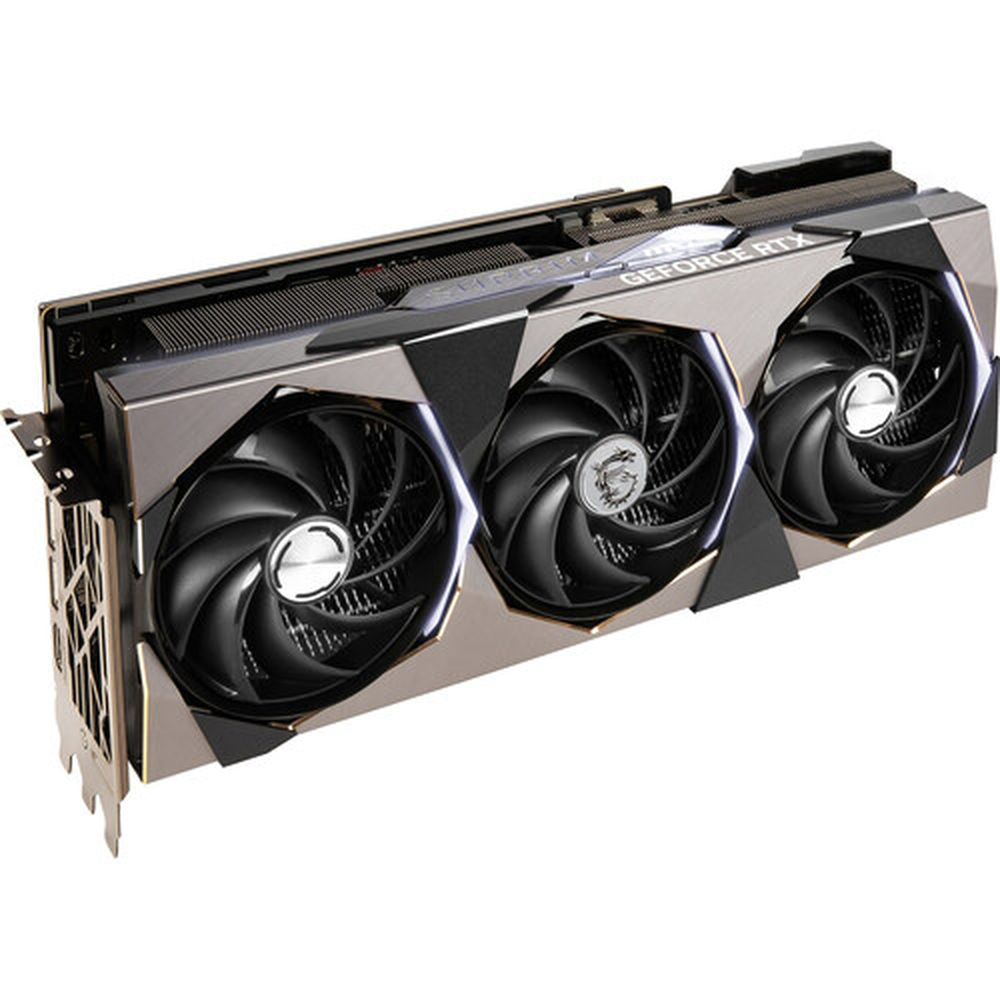

MSI GeForce RTX 4080 Super Suprim X 16GB Nvidia Graphic Card

FINISHING TOUCHES

The motif of straight lines continue around the fans with octagonal cutouts featuring polished 45-degree beveled edges.

TRI-FROZR 3S
THERMAL DESIGN

Upgraded fans, airflow control, and other thermal innovation make TRI-FROZR 3S the best air-cooling solution yet from MSI.

TORX FAN 5.0

TORX FAN 5.0 incorporates design improvements that result in +23% increased airflow compared to an axial fan.

Ring arcs link sets of three fan blades that focus airflow into the heatsink. Blades tilt 22 degrees to maintain high-pressure airflow even at slower rotational speeds.

The trailing end of each ring arc folds inward to reduce turbulence and drag.

Airflow stability is further improved with both a fan cowl that extends shortly beyond the enclosure to lengthen the air passageway and bulging notches under the cowl to reduce
recirculation.

ADVANCED SOLUTION
VAPOR CHAMBER

A Vapor Chamber is excellent for rapidly stabilizing heat on a planar surface. The GPU and VRAM are covered with a Vapor Chamber which transfers heat to Core Pipes.

KEEPING THE CORE COOL - CORE PIPE

Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the vapor chamber to then spread heat along the full length of the heatsink.

AIRFLOW CONTROL

Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise

FILLED FINS

Updated heat pipe pathing has allowed more space for additional heatsink fins.

WAVE-CURVED 3.0

Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.

AIR ANTEGRADE FIN

Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.

METAL BACKPLATE

Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat.

ZERO FROZR

The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.

DOUBLE-BALL BEARING

Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
