- MSI GeForce RTX 4060 Ti OC 8GB Nvidia Graphic Card
Description
Features Of MSI GeForce RTX 4060 Ti OC 8GB
TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.
REVOLUTIONARY TRIPLE-FAN THERMAL
Three fans on a huge heatsink ensures a cool and quiet experience.
COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
AIRFLOW CONTROL
Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.
The NVIDIA GeForce RTX 4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and comes with 12GB of superfast G6X memory.
WITH DLSS 3
Game, stream, create. The GeForce RTX 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
2565 MHz / 18 Gbps
8GB GDDR6

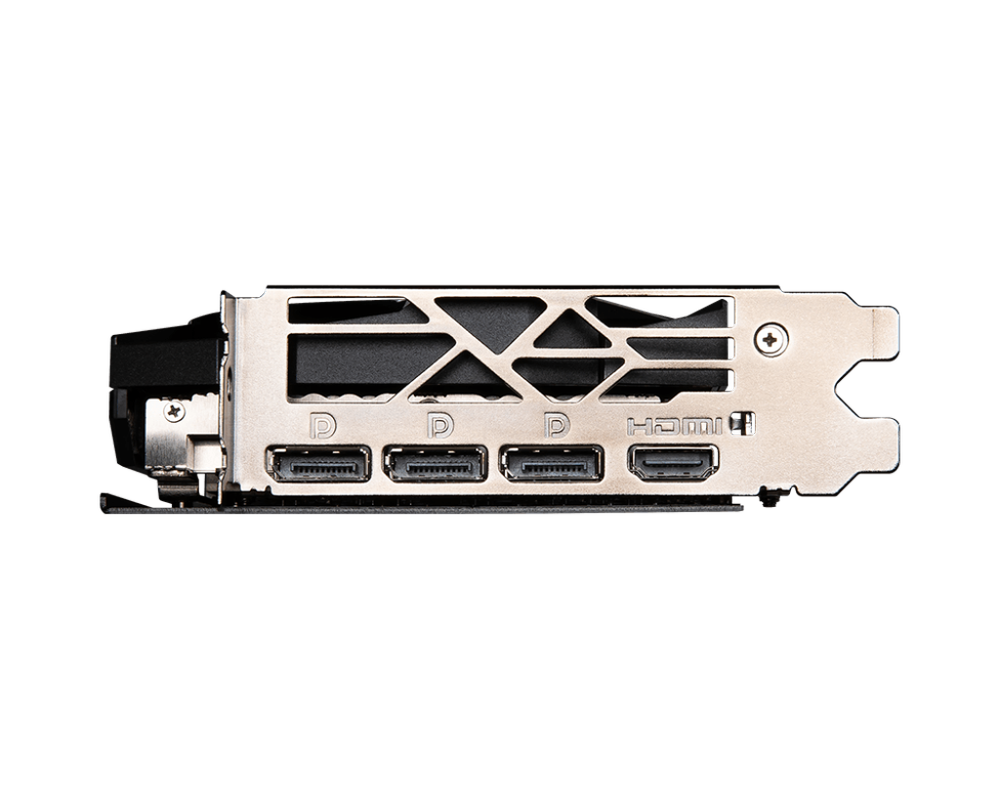

DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Triple Fan Thermal Design
TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

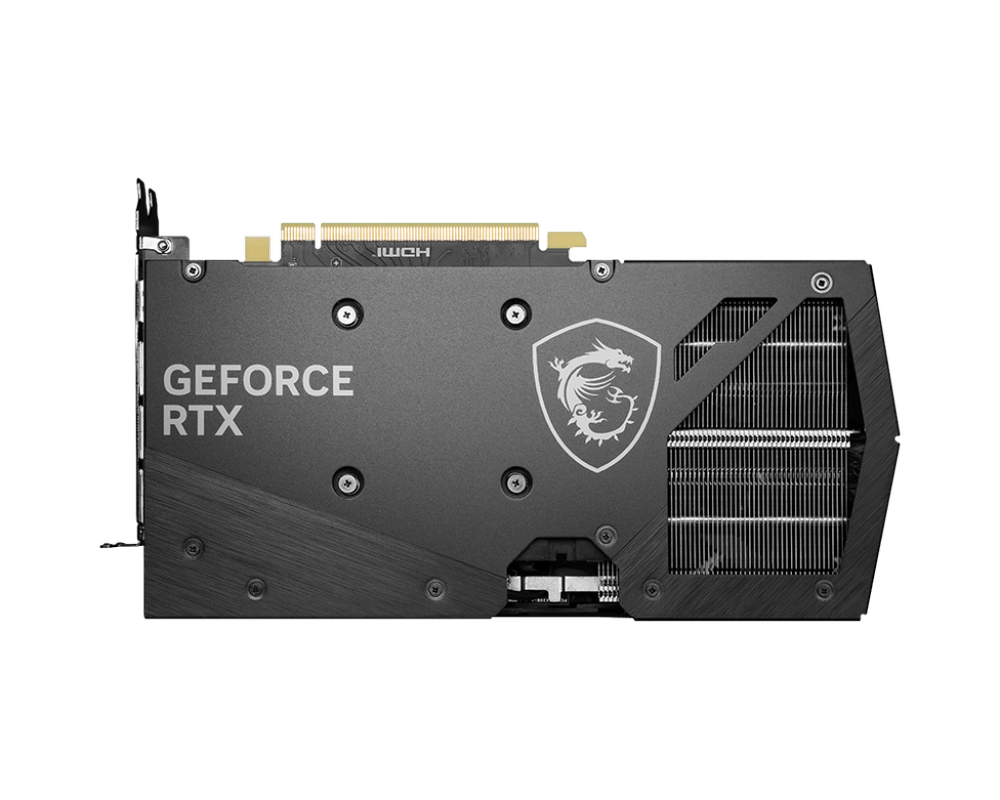

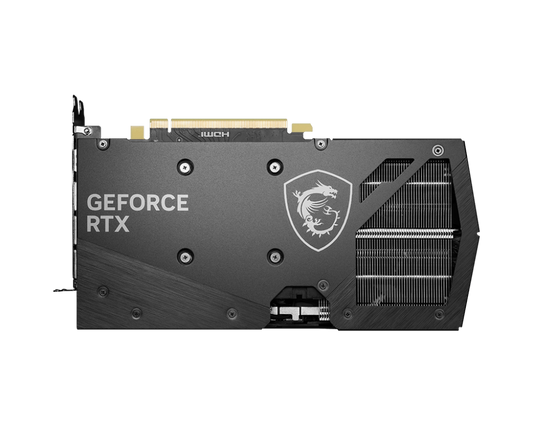

Reinforcing Backplate
The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Technical Detail
Brand : MSI
Model : VENTUS 3X E 8G OC
Technical Spec
GRAPHICS PROCESSING UNIT : NVIDIA GeForce RTX 4060 Ti
INTERFACE : PCI Express Gen 4 x16 (uses x8)
CORE CLOCKS : Extreme Performance: 2580 MHz (MSI Center), Boost: 2565 MHz
CUDA CORES : 4352 Units
MEMORY SPEED : 18Gbps
MEMORY : 8GB GDDR6
MEMORY BUS : 128-bit
OUTPUT
DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
HDCP SUPPORT : Yes
POWER CONSUMPTION : 160W
POWER CONNECTORS : 8pin * 1
RECOMMENDED PSU : 550W
CARD DIMENSION (MM) : 308 x 120 x 43 mm
WEIGHT (CARD / PACKAGE) : 728 g / 1080 g
DIRECTX VERSION SUPPORT : 12 Ultimate
OPENGL VERSION SUPPORT : 4.6
MAXIMUM DISPLAYS : 4
G-SYNC® TECHNOLOGY : Yes
DIGITAL MAXIMUM RESOLUTION : 7680 x 4320
Get the Best graphics card prices from us today!
Specification Of MSI GeForce RTX 4060 Ti OC 8GB
Model | |
Brand | MSI GeForce RTX 4060 Ti OC 8GB |
Model | VENTUS 3X E 8G OC |
Interface | |
Interface | PCI Express® Gen 4 x16 (uses x8) |
Chipset | |
GPU | NVIDIA GeForce RTX 4060 Ti |
Core clock | Extreme Performance: 2580 MHz (MSI Center) Boost: 2565 MHz |
Stream Processors | 4352 Units |
Memory | |
Memory Clock | 18 Gbps |
Memory Size | 8GB |
Memory Interface | 128-bit |
Memory Type | GDDR6 |
3D API | |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Ports | |
DVI | |
TV-Out | |
HDMI | HDMI x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a) |
VIVO | |
D-SUB | |
DisplayPort | DisplayPort x 3 (v1.4a) |
General | |
RAMDAC | N/A |
Max Resolution | 7680 x 4320 |
SLI Supported | N/A |
Cooler | Triple fan |
Power Connector | 8 Pin x 1 |
Dual-Link DVI Supported | |
HDCP Ready | |
Tuner | N/A |
