- MSI Creator X299 Motherboard
Description

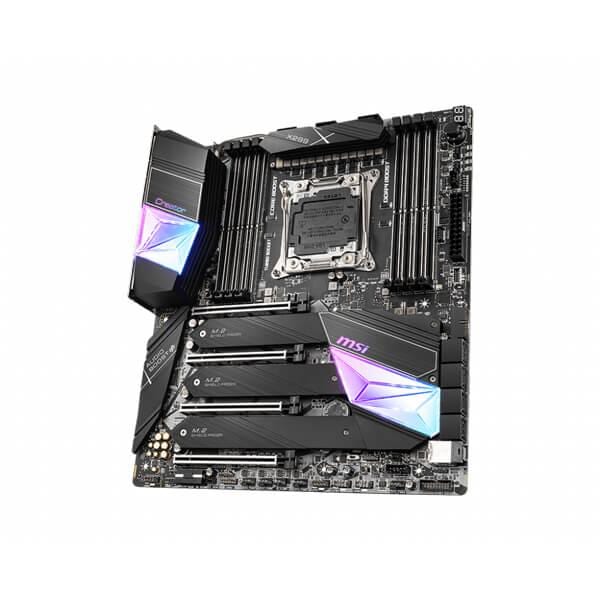

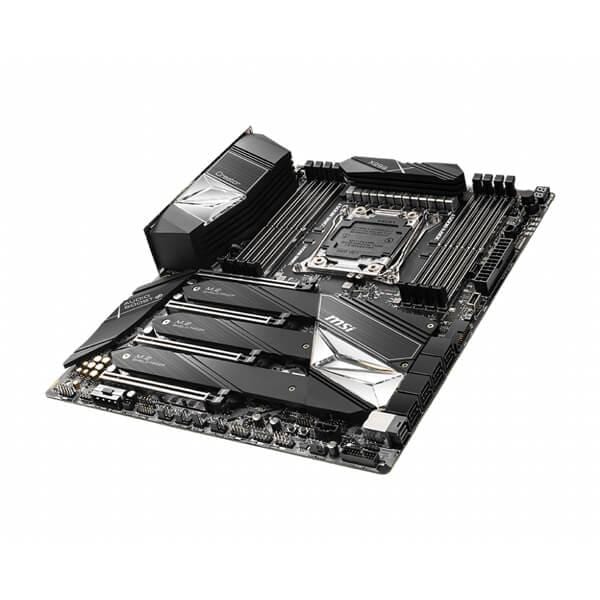

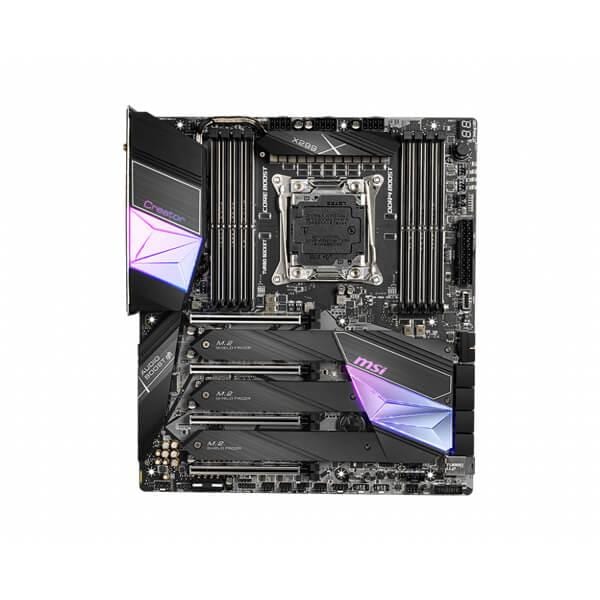

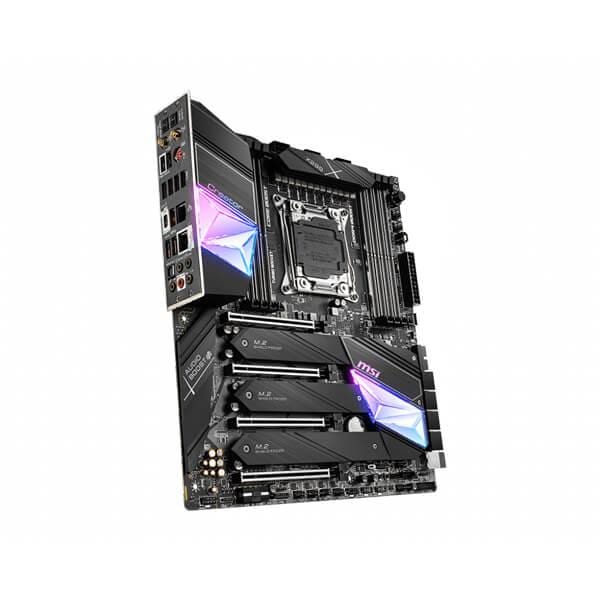

MSI Creator X299 Motherboard
Features:
- Supports Intel® Core™ X-series Processors 10000/9000/78xx(above)series for LGA2066 Socket
- Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4266 (OC)
- More Powerful than Enough: dedicate 12 phases 90A digital power to CPU, with all aluminum design
- More Efficiency for Data Transfer: 10G LAN Intel® Gigabit LAN with Intel® WIFI 6 and bandwidth management
- More Compatibility for Storage: 7 x Turbo M.2 with M.2 XPANDER-AERO, 1 x Turbo U.2
- More Flexibility for Temperature Control: Full fan control with 8 PWM fan headers and 1 dedicated thermal sensor
- Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.
Specifications:
| Processor | Supports Intel® Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066 |
| Chipset | Intel® X299 Chipset |
| Memory |
8 x DDR4 memory slots, support up to 256GB Support DDR4 4266 (OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 Quad channel memory architecture Supports Intel® Extreme Memory Profile (XMP) |
| Slots |
4 x PCIe 3.0 x16 slots Support x8/ x8/ x16/ x8 and x16/ x0/ x16/ x8 modes with the 48-lane CPU. Support x8/ x8/ x16/ x8 and x16/ x0/ x16/ x8 modes with the 44-lane CPU. Support x8/ x8/ x8/ x0 and x16/ x0/ x8/ x0 modes with the 28-lane CPU. |
| Multi-GPU |
Supports 4-Way NVIDIA® SLI® Technology1 Supports 4-Way AMD® CrossFire™ Technology |
| Storage |
Intel® X299 Chipset 8 x SATA 6Gb/s ports 1 x M.2 slots (Key M)1 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices Intel® Rapid Start Technology Intel® Optane™ Memory Ready 1 x U.2 port, supports PCIe 3.0 x4 NVMe storage Supports Intel® Smart Response Technology Intel® CPU 2 x M.2 slots (M2_2 & M2_3, Key M)1 Support up to PCIe 3.0 x4, 2242/ 2260/ 2280/ 22110 storage devices |
| RAID |
Intel® X299 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 PCIe storage devices |
| USB |
ASMedia® ASM3242 Chipset 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20 Gbps) Type-C port on the back panel ASMedia® ASM3142 Chipset 1 x USB 3.2 Gen2 (SuperSpeed USB 10 Gbps) Type-C port through the internal USB connectors) ASMedia® ASM1074 Chipset 7 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel Intel® X299 Chipset 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A through the internal USB connectors 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors) |
| Audio |
Realtek® ALC1220 Codecs 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN |
1 x Intel® I219-V Gigabit LAN controller 1 x Aquantia® AQC107 10-Gigabit LAN controller |
| Wireless |
Intel® Wi-Fi 6 AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth® 5.1 The Wireless module is pre-install in the M2_4 (Key-E)slot Only support windows 10 64-bit |
| Internal connectors |
1 x 24-pin ATX main power connector 3 x 8-pin ATX 12V power connectors 1 x flat 4-pin ATX 12V power connector (Provides additional power for PCIe x16 slots) 8 x SATA 6Gb/s connectors 1 x U.2 port 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (support additional 4 USB 3.2 Gen1 ports) 1x USB 3.2 Gen2 Type-C Port 1 x 4-pin CPU fan connector 4 x 4-pin system fan connectors 2 x 4-pin extend system fan connectors 1 x 4-pin water-pump fan connector 1 x 3-pin Water Flow connector 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x 2-pin Thermal Sensors connector 1 x Thunderbolt Add-on Card Connector 1 x Virtual RAID on CPU connector Provides additional power to PCIe x16 slots |

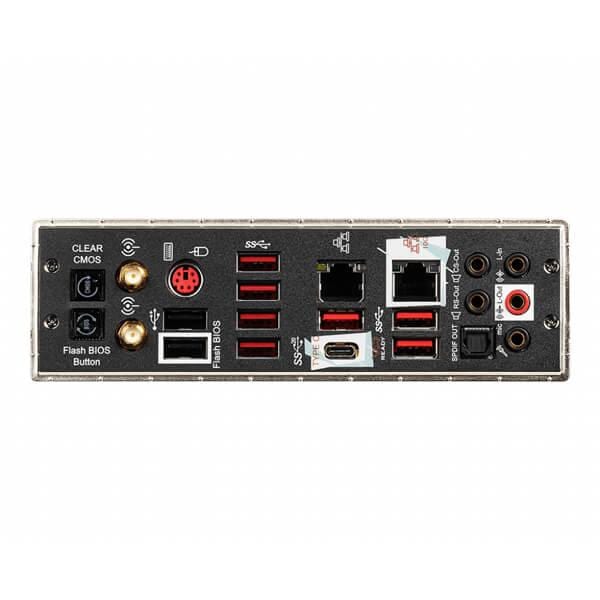

| Back panel ports |
Clear CMOS Button Keyboard / Mouse Gigabit LAN 10G LAN Audio Connectors Flash BIOS Button Wireless / Bluetooth USB 2.0 USB 3.2 Gen1 Type-A USB 3.2 Gen2x2 20G Type-C USB 3.2 Gen1 Type-A Optical S/PDIF out |
| Dimensions |
12 in. x 10.7 in. (30.5 cm x 27.2 cm) E-ATX Form Factor |
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price, and specifications are subject to change without notice. |
