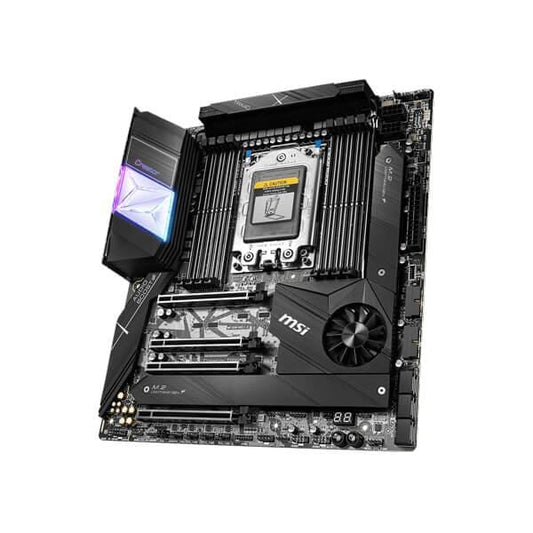

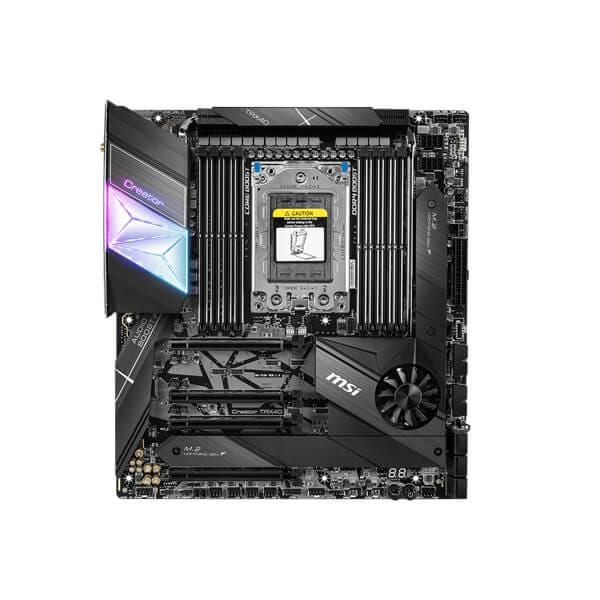

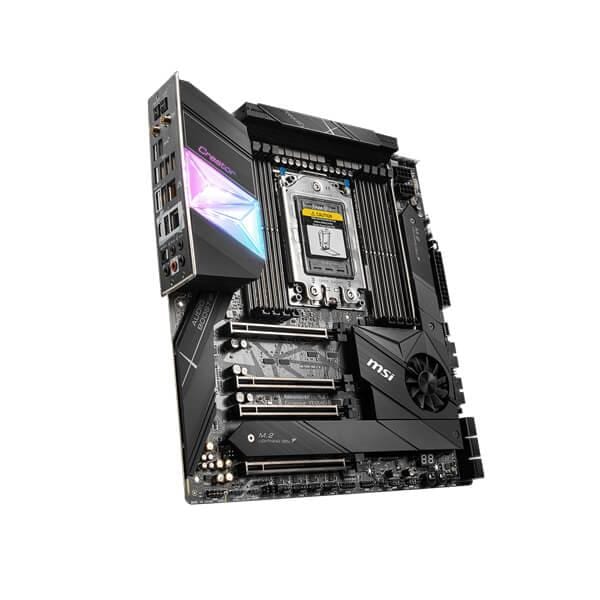

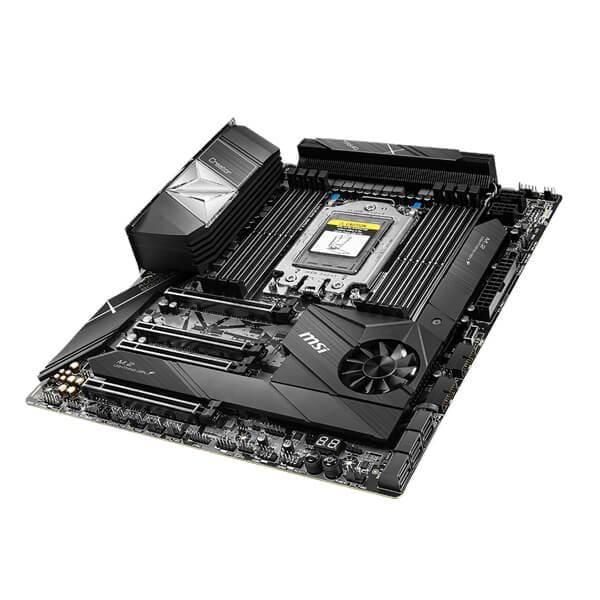

- MSI Creator TRX40 WiFi DDR4 AMD Motherboard
Description
Feature of MSI Creator TRX40 WiFi DDR4
- Supports 3rd Gen AMD® RyzenTM ThreadripperTM Desktop Processors for Socket sTRX4
- Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4666(OC)
- More Powerful than Enough: dedicate 16 phases 70A digital power to CPU, with All Aluminum Design
- More Efficency for Data Transfer: 10G LAN Intel® Gigabit LAN with Intel® WIFI 6 and bandwidth management

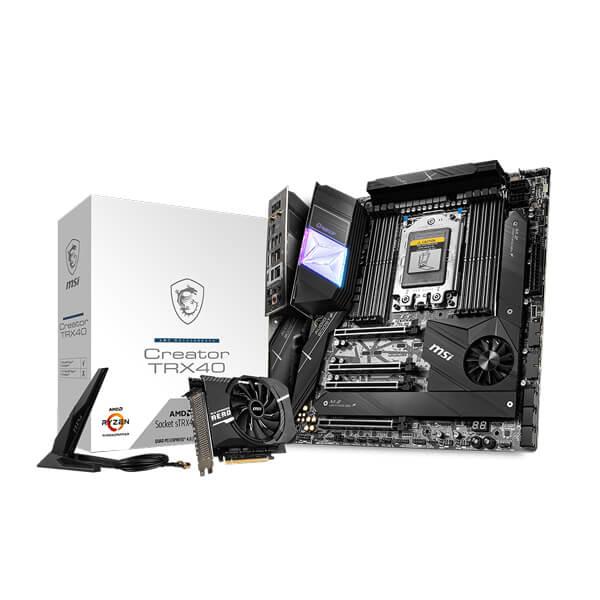

- More Compatibility for Storage: 7 x Lightning Gen4 M.2 with M.2 XPANDER-AERO GEN4
- More Flexibility for Temperature Control: Full fan control with 9 PWM fan headers and 3 dedicated thermal sensor
- Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with double-sided M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
- Set Core Power Free: Extended Heatsink and Heat-pipe Design, stacked fin array, Core Boost, Digital PWM IC, dual 8 pin CPU power connectors, DDR4 Boost
- Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for creators and prosumers.
- Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB, Rainbow and Corsair LED strip
- Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel Armor PCI-E slots. Supports up to 3-Way NVIDIA SLI & 3-Way AMD Crossfire
DIY FRIENDLY
MSI Creator TRX40 WiFi motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.
Cooling
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers
Compatibility
Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range
BIOS and Software
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your
ENHANCED PERFORMANCE
MSI motherboards featured all the latest solution for enthusiast and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready for everything.
CPU
High quality materials and smart fan optimizations contribute to cooling all essential components, which is key to making sure your system runs stable and delivers the best performance
MEMORY
Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4
Storage
MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over
USB
Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 20Gb/s
IN-STUDIO ADVANTAGE
MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.
CONNECTIVITY
Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data.
Specifications of MSI Creator TRX40 WiFi DDR4
Processor | 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors |
Chipset | AMD® TRX40 Chipset |
Memory |
8x DDR4 memory slots, support up to 256G Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz1DPC 1R max speed 4666 MHz 1DPC 2R max speed 4000 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHzQuad channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
Slots | 4x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode) |
Multi-GPU |
Supports 3-Way NVIDIA® SLI™ Technology Supports 3-Way AMDA® CrossFire™ Technology |
Storage |
6x SATA 6Gb/s ports 1x M.2 slot (M2_3, Key M)Supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor 2x M.2 slots (M2_1 & M2_2, Key M)M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices |
RAID | Supports RAID 0, RAID 1 and RAID 10 |
USB |
2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector) 8x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors) 4x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors 4x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel |
Audio |
1x Realtek® ALC1220 Codec7.1-Channel High Definition Audio
1x Realtek® ALC4050H CodecSupports front & rear panel Mic-in |
LAN |
1x Intel® I211AT Gigabit LAN controller 1x Aquantia® AQC107 10-Gigabit LAN controller |
Wireless |
Intel® Wi-Fi 6 AX200 The Wireless module is pre-install in the M2_4 (Key-E) slot Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz- 5GHz (160MHz) up to 2.4Gbps Supports Bluetooth® 5 |
Internal connectors |
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen2 Type-C port 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin pump fan connector (supports up to 2A) 4x 4-pin system fan connectors 3x 4-pin extend fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 3x 2-pin Thermal Sensors connectors 1x 4-pin 5050 RGB LED connector 2x 3-pin ARGB LED connectors 1x 3-pin CORSAIR LED connector 1x LED demo connector 1x JBLK_U pin header 1x JBLK_D pin header 1x OC retry pin header 1x OC force enter pin header 1x Slow mode booting jumper |
Back panel ports |
Clear CMOS Button Wireless / Bluetooth Gigabit LAN 10G LAN Audio Connectors Flash BIOS Button USB 3.2 Gen2 Type-A USB 3.2 Gen1 Type-A USB 3.2 Gen2 Type-A USB 3.2 Gen2x2 20G Type-C USB 3.2 Gen1 Type-A |
Form Factor |
E-ATX Form Factor 12 in. x 10.9 in. (30.4 cm x 27.7 cm) |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
