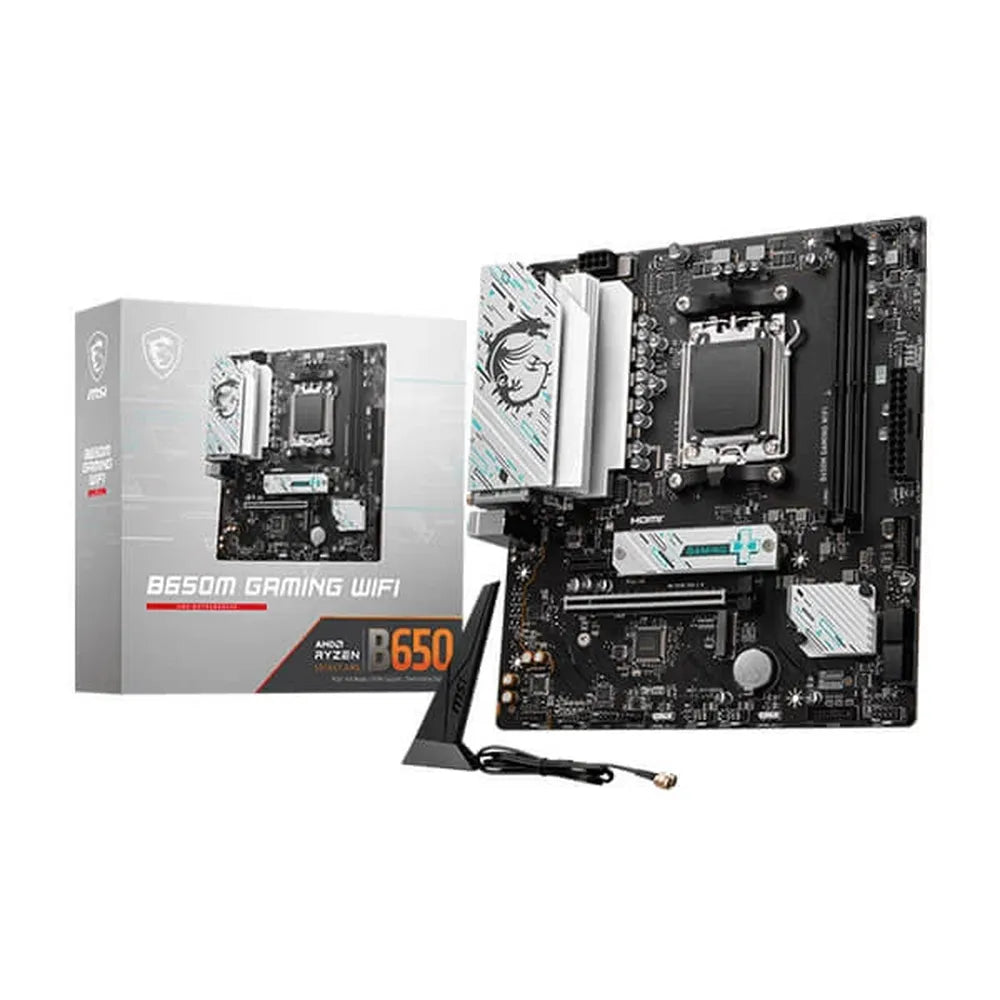

MSI B650M Gaming WIFI DDR5 AMD Motherboard

Features Of MSI B650M Gaming WIFI

• Ryzen 7000 READY, HIGH PERFORMANCE – The B650M GAMING WIFI (mATX) outfitted with AMD B650 chipset (AM5, Ryzen 7000 ready); The VRM features MSI Core Boost technology for enhanced CPU performance & stability
• INTEGRATED COOLING – VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer PCB with 2 oz. thickened copper
• DDR5 MEMORY, PCIe 4.0 x16 SLOT – 2 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 7800+ MHz); Primary PCIe x16 slot supports PCIe 4.0 (64Gbps) and includes Steel Armor, secondary PCIe x1 slot supports PCIe 3.0
• DUAL M.2 CONNECTORS – Storage options include 2 x M.2 Gen4 64Gbps slots to prevent thermal throttling during hyper-fast SSD access

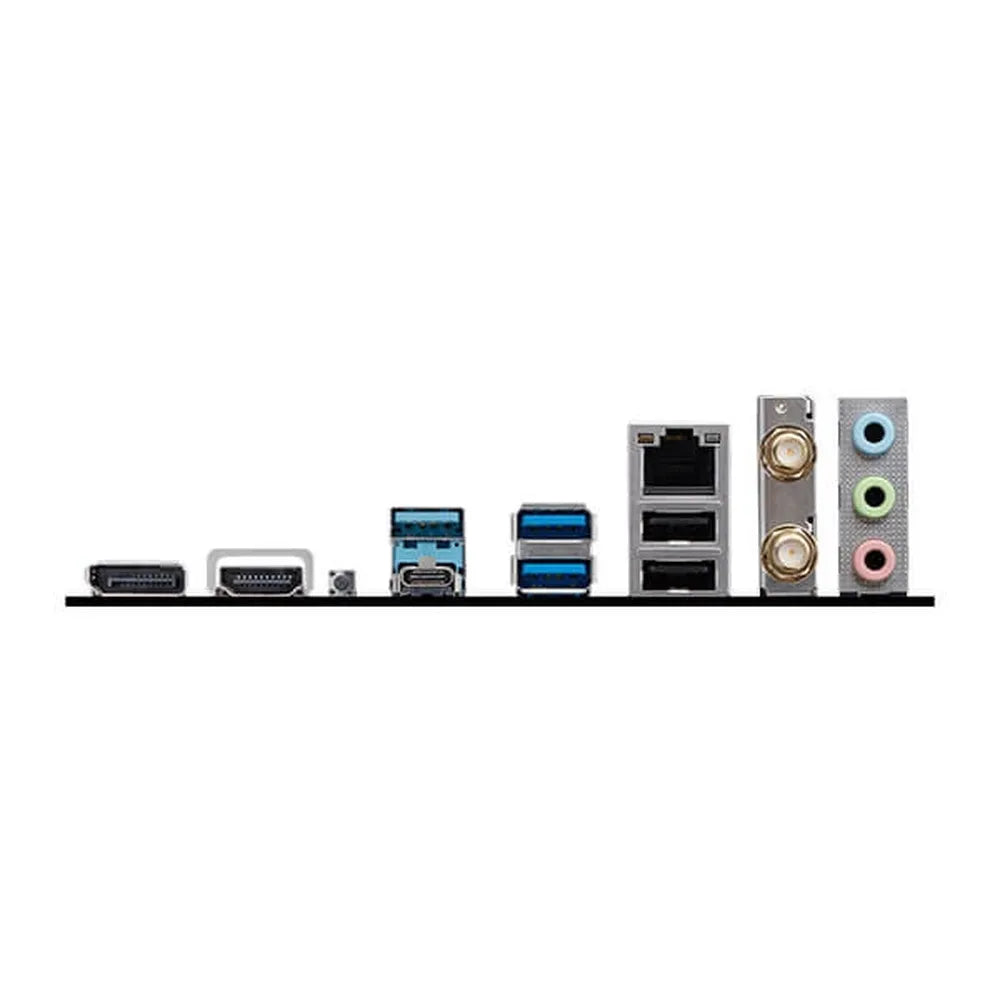

• WI-FI 6E CONNECTIVITY – Network hardware includes an AMD Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 1 Type-C (5Gbps), HDMI 2.1, DisplayPort 1.4, and 7.1 HD Audio with Audio Boost

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.

M.2 Shield Frozr

Keeps M.2 SSDs safe while preventing throttling, making them run faster.

7W/mK Thermal Pad & Additional Choke Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation

REINFORCED, HEAVY SOLDERED CONNECTIONS

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS

To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI’s premium network solution provides incredible data transfer speed for demanding users.

• MSI B650M Gaming Wifi Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7800+(OC) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper

Specification Of MSI B650M Gaming WIFI
